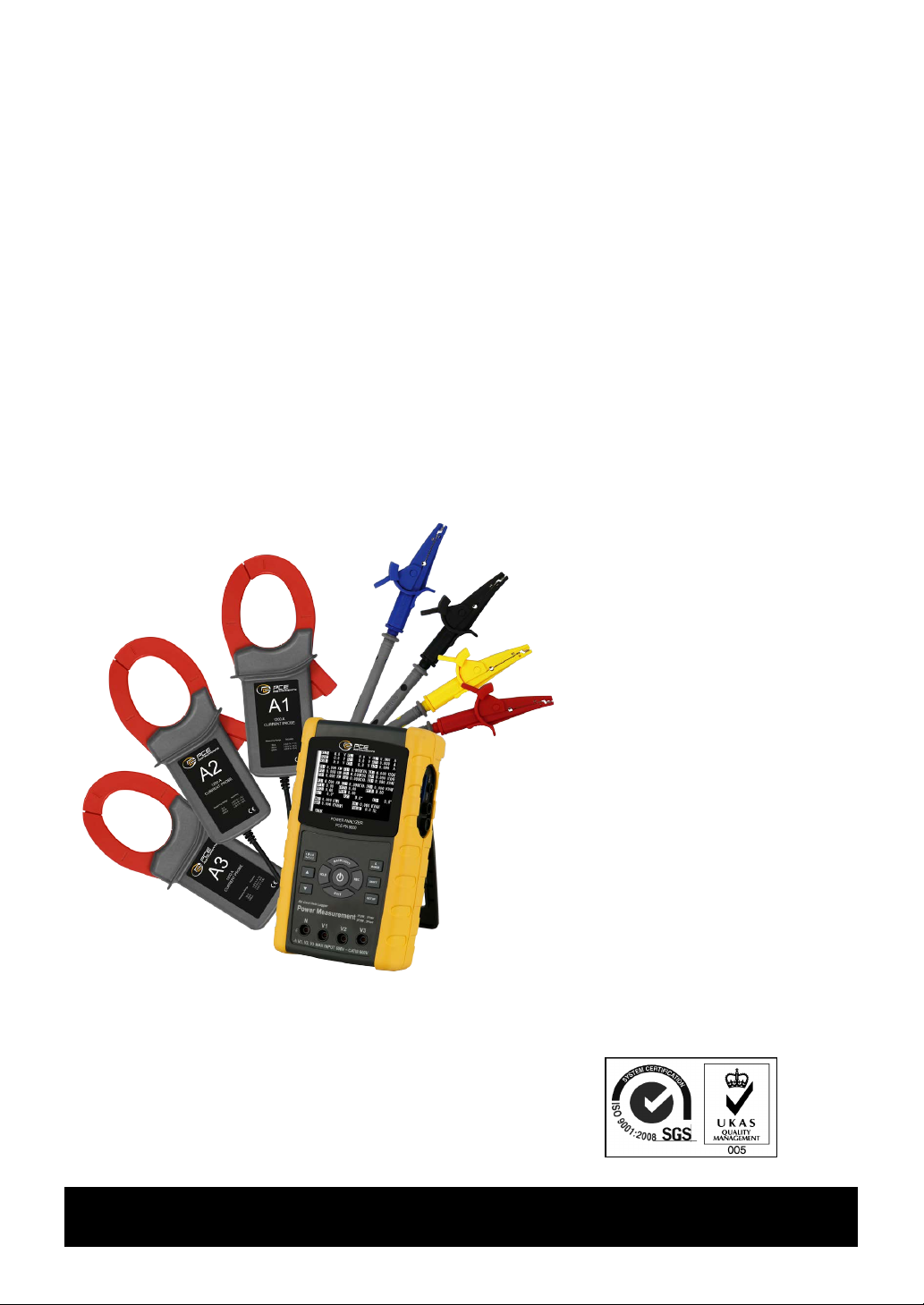

SD card real time data logger

3 PHASE

POWER ANALYZER

Model : PCE-PA 8000

Your purchase of

this 3 PHASE

POWER ANALYZER

marks a step

forward for you into

t h e f i e l d o f

p r e c i s i o n

measurement.

A l t h o u g h t h i s

POWER ANALYZER

is a complex and

delicate instrument,

its durable structure

will allow many

years of use if

proper operating

techniques are

developed. Please

read the following

i n s t r u c t i o n s

carefully and always

keep this manual

within easy reach.

OPERATION MANUAL

Caution Symbol

Caution :

* Risk of electric shock !

* During the measurement,

do not open the cabinet.

Caution :

* Do not apply the overload

voltage, current to the input

terminal !

* Remove test leads before open

the battery cover !

* Cleaning - Only use the dry

cloth to clean the plastic case !

Environment Conditions

* Installation Categories III 600V.

* Pollution Degree 2.

* Altitude up to 2000 meters.

* Indoor use.

* Relative humidity 80% max.

TABLE OF CONTENTS

FEATURES...............................................................................................

2. SPECIFICATIONS.................................................................................................

2-1

General Specifications......................................................................

2-2

Electrical Specifications..................................................

FRONT PANEL DESCRIPTION.....................................................

MEASURING PREPARATION ......................................................

4-1 The original screen.............................................. 10

4-2 Entry the measurement Screen...............................

4-3 The summary description of keyboard...................

4-4 SETUP KEY description.........................................

4-5 Setting function description before measuring...........

MEASURING PROCEDURES ......................................................

5-1 1Φ 2W ( one phase by two wires )

measurement......................................................

5-2 1Φ 3W ( one phase by three wires )

measurement....................................................................

5-3 3Φ 3W ( three phase by three wires )

measurement....................................................................

5-4 3Φ 4W ( three phase by four wires )

measurement....................................................................

5-5 The CT and PT measurement.................................

5-6 ZERO adjustment for Watt Hour.................................

5-7 Data Logger function............................................

5-8 Data Hold function............................................ 45

5-9 Backlight key........................................................

5-10 A ( Current ) Range key............................................................

5-11 LOWBAT screen............................................................

5-12 Appendix 1............................................................

MAINTENANCE.....................................................................................

6-1 Cleaning................................................................................

6-2 Replacement of batteries .................................................................................

RS232 PC SERIAL INTERFACE.............................................

8. Download the saving data from the SD card to

the computer ( EXCEL software ) ...................................

PATENT.....................................................................

10. THE ADDRESS OF AFTER SERVICE CENTER ..................

1. FEATURES

* Analysis for 3 phase multi-power system, 1P/2W,

1P/3W, 3P/3W, 3P/4W

* Voltage & Current are the True RMS value.

* True Power ( KW、MW、GW ) measurement.

* Apparent Power ( KVA、MVA、GVA ) measurement.

* Reactive Power ( KVAR MVAR、GVAR) measurement.

* Watt-Hour ( WH、SH、QH、PFH ).

* Power Factor( PF )、Phase Angle( Φ ).

* Voltage measurement range : 10 to 600 ACV

* Current measurement range: 0.2A to 1200 ACA.

* Programmable CT ratio (1 to 600) and PT ratio (1 to 1000).

* ACV input impedance is 10 Mega ohms.

* Safety Standard : IEC 1010, CAT III 600V

* Built-in clock and Calendar, real time data record with

SD memory card , sampling time set from 2 to 7200

seconds. Just slot in the SD card into the computer, it

can down load the all the measured value with the

time information ( year/month/data/

hour/minute/second ) to the Excel directly, then user

can make the further data analysis by themselves.

* Complete set with 4 PCs Test Leads, 4 PCs Alligator

clips, 3 PCs Clamp Probe, AC to DC 9V adapter,

2 G SD memory card and Carrying bag.

* Computer data output, can cooperate with USB Cable

/USB-01 RS232 cable/UPCB-02 and Data Acquisition

software, SOFT-LUT-USB.

2. SPECIFICATIONS

2-1 General Specifications:

Circuit Custom one-chip of microprocessor LSI

circuit

Display * LCD Size :

81.4 X 61 mm ( 3.2 X 2.4 inch )

* Dot Matrix LCD (320 X 240 pixels )

with back light.

Measurement * ACV

* ACA

* AC WATT ( True Power )

AC WATT( Apparent Power )

AC WATT( Reactive Power )

* Power factor

* Phase angle

* Frequency

Wire 1P/2W, 1P/3W, 3P/3W, 3P/4W.

connections

Voltage ranges 10 ACV to 600 ACV, auto range.

Current ranges 0.2 ACA to 1200 ACA,

auto range/manual range.

Safety IEC1010 CAT III 600 V.

standard

ACV input 10 Mega ohms.

impedance

Range select ACV Auto range.

ACA Auto range & manual range.

Clamp 40 Hz to 1 KHz.

frequency

response

Spec. tested 45 to 65 Hz.

frequency

Over load ACV 720 ACV rms

protection ACA 1300 ACA with clamp probe

CP-1200

Over Indicator Show " OL ".

Under Indicator Show " UR ".

Data Hold Freeze the display reading.

Data Record SD Card Record.

Sampling Time Approx. 1 second.

Power ON/OFF Manual OFF by push button.

Real time * Real time data logger, saved the data

data logger into SD memory card and down load

the all the measured value with the

time information ( year/month/data/

hour/minute/second ) down load

to the Excel

* Integration time for data logger :

2 seconds to 7200 seconds, the during

of setting step are 2 seconds.

Data Output RS232 computer serial interface :

USB/RS232 * Connect the optional USB cable

* Computer

USB-01 will get the USB plug.

interface

* Connect the optional RS232 cable

UPCB-02 will get the RS232

plug.

Operating 0 to 50 ( 32 to 122 ).℃ ℉

Temperature

Operating Less than 80% R.H..

Humidity

Power Supply * DC 1.5V, AA ( UM-3 ) Battery X 8 PCs

(Alkaline or heavy-duty battery).

* AC to DC 9V power adapter.

Power * Meter : 300 DCmA.

Consumption * Clamp : 34 DCmA.

Clamp max. 50 mm ( 2.0 inch ) Dia.

conductor

Size

Weight * Meter : 948g ( includes batteries )

* Clamp ( includded cable ) : 467g

Dimension

Meter :

225 X 125 X 64 mm

( 8.86 X 4.92 X 2.52 inch )

Clamp :

210 X 64 X 33mm

( 8.3 X 2.5 X 1.3 inch )

Clamp Jaw : 86 mm (3.4 inch)- outside

Accessories *

Instruction manual...............

1 PC

Included *

Test Leads (TL88-4AT)...........

1 Set (4 PCs)

* Alligator clips (TL88-4AC) 1 Set (4 PCs)

Clamp Probe ( CP-1200 ).........

3 PCs

AC to DC 9V adapter.................

1 PC

* SD card ( 2 G ).................... 1 PC

Carrying bag.........................

1 PC

Optional *USB Cable , USB-01

Accessories *RS232 cable, UPCB-02

*Data Acquisition software,

SW-U811-WIN

2-2 Electrical Specifications:

ACV

Range Resolution Accuracy

10.0V to 600.0V 0.1V ± (0.5%+0.5V)

* Phase to neutral line

10.0V to 600.0V

* Phase to phase

ACA

Range Resolution Accuracy

20A 0.001A,

< 10 A

± (0.5%+0.1A)

0.01A,

10 A≧

200A 0.01A,

< 100 A

± (0.5%+0.5A)

0.1A,

100 A≧

1200A 0.1A,

< 1000 A

± (0.5%+5A)

1A,

1000 A≧

Power factor

Range Resolution Accuracy

0.00 to 1.00 0.01 ± 0.04

Remark :

* PFH : Long term power factor

* PFΣ :

For 3Φ 4W, 3Φ 3W

PFΣ = ( PF1 + PF2 + PF3 )/3

For 1Φ 3W

PFΣ = ( PF1 + PF2 )/2

Φ ( Phase angle )

Range Resolution Accuracy

-180° to 180° 0.1° ± 1°

* ACOS ( PF )

Frequency

Range Resolution Accuracy

45 to 65 Hz 0.1 Hz 0.1 Hz

Active (Real) Power

Range Resolution Accuracy

0.000 to 9.999 KW *0.001/0.01/0.1 KW ± (1%+0.008KW)

10.00 to 99.99 KW *0.01/0.1 KW ± (1%+0.08KW)

100.0 to 999.9 KW 0.1 KW ± (1%+0.8KW)

1.000 to 9.999 MW 0.001 MW ± (1%+0.008MW)

* : The resolution is changed according the different ACA range.

Apparent Power

Range Resolution Accuracy

0.000 to 9.999 KVA *0.001/0.01/0.1KVA ± (1%+0.008KVA)

10.00 to 99.99 KVA *0.01/0.1 KVA ± (1%+0.08KVA)

100.0 to 999.9 KVA 0.1 KVA ± (1%+0.8KVA)

1.000 to 9.999 MVA 0.001 MVA ± (1%+0.008MVA)

* : The resolution is changed according the different ACA range.

Reactive Power

Range Resolution Accuracy

0.000 to 9.999 KVAR *0.001/0.01/0.1KVAR ± (1%+0.008 KVAR)

10.00 to 99.99 KVAR *0.01/0.1 KVAR ± (1%+0.08 KVAR)

100.0 to 999.9 KVAR 0.1 KVAR ± (1%+0.8 KVAR)

1.000 to 9.999 MVAR 0.001 MVAR ± (1%+0.008 MVAR)

* : The resolution is changed according the different ACA range.

Watt Hour ( Active Power Hour) : WH

Range Resolution Accuracy

0.000 to 9.999 KWH 0.001 KWH ± (2%+0.008 KWH)

10.00 to 99.99 KWH 0.01 KWH ± (2%+0.08 KWH)

100.0 to 999.9 KWH 0.1 KWH ± (2%+0.8 KWH)

1.000 to 9.999 MWH 0.001 MWH ± (2%+0.008 MWH)

VA Hour ( Apparent Power Hour ) : SH

Range Resolution Accuracy

0.000 to 9.999 KVAH 0.001 KVAH ± (2%+0.008 KVAH)

10.00 to 99.99 KVAH 0.01 KVAH ± (2%+0.08 KVAH)

100.0 to 999.9 KVAH 0.1 KVAH ± (2%+0.8 KVAH)

1.000 to 9.999 MVAH 0.001 MVAH ± (2%+0.008 MVAH)

VAR Hour ( Reactive Power Hour ) : QH

Range Resolution Accuracy

0.000 to 9.999 KVARH 0.001 KVARH ± (2%+0.008 KVARH)

10.00 to 99.99 KVARH 0.01 KVARH ± (2%+0.08 KVARH)

100.0 to 999.9 KVARH 0.1 KVARH ± (2%+0.8 KVARH)

1.000 to 9.999 MVARH 0.001 MVARH ± (2%+0.008 MVARH)

Tabla de contenidos

Otros manuales de Instrumento de medición de PCE Instruments

PCE Instruments

PCE Instruments Brookhuis FMC Manual de usuario

PCE Instruments

PCE Instruments PCE-HWA 30-ICA Manual de usuario

PCE Instruments

PCE Instruments PCE-HDM 5 Manual de usuario

PCE Instruments

PCE Instruments PCE-830+PCE-6801 Manual de usuario

PCE Instruments

PCE Instruments PCE-PB N Series Manual de usuario

PCE Instruments

PCE Instruments PCE-HT 110 Manual de usuario

PCE Instruments

PCE Instruments PCE-360-ICA Manual de usuario

PCE Instruments

PCE Instruments PCE-TDS 200 Manual de usuario

PCE Instruments

PCE Instruments PCE-HDM 20 Manual de usuario

PCE Instruments

PCE Instruments PCE-TDS 200 Series Manual de usuario

PCE Instruments

PCE Instruments PCE-TDS 100 H/HS Manual de usuario

PCE Instruments

PCE Instruments PCE-423N Manual de usuario

PCE Instruments

PCE Instruments PCE-PH 30 Manual de usuario

PCE Instruments

PCE Instruments PCE-CT 21BT Manual de usuario

PCE Instruments

PCE Instruments PCE-DDA 10 Manual de usuario

PCE Instruments

PCE Instruments PCE-MSM 4 Manual de usuario

PCE Instruments

PCE Instruments PCE-TDS 200 Series Manual de usuario

PCE Instruments

PCE Instruments PCE-320 Manual de usuario

PCE Instruments

PCE Instruments PCE-MFI 400 Manual de usuario

PCE Instruments

PCE Instruments PCE-BTM 2000A Manual de usuario

PCE Instruments

PCE Instruments PCE-353 Manual de usuario

PCE Instruments

PCE Instruments PCE-007 Manual de usuario

PCE Instruments

PCE Instruments PCE-DFG N 20K Manual de usuario

PCE Instruments

PCE Instruments PCE-1000 Manual de usuario

Manuales populares de Instrumento de medición de otras marcas

Suaoki

Suaoki D40 Manual de usuario

Elster

Elster BK-G1.6 Manual de usuario

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manual

Duratool

Duratool D03128 Manual de usuario

Vega

Vega VEGAPULS 65 Manual de usuario

Tonghui

Tonghui TH2618B Manual de usuario

Tenmars

Tenmars TM-801 Manual de usuario

MSR

MSR 145 Manual de usuario

TPS

TPS WP-82 Manual de usuario

ELMETRON

ELMETRON CP-511 Manual de usuario

PCB Piezotronics

PCB Piezotronics 003C30 Manual de usuario

Tenma

Tenma 72-10465 Manual de usuario

Endress+Hauser

Endress+Hauser Proline Promag 50 Especificaciones técnicas

Siemens

Siemens SITRANS F Coriolis FCT030 Manual de lista de piezas

KLINGER

KLINGER CMF V Series Manual de usuario

EXFO

EXFO FTB-2 Manual de operación y mantenimiento

Keysight

Keysight M8290A Manual de usuario

ADTEK

ADTEK MW-5 Manual de usuario
