Reference Guide
013-16123A
Wireless Smart Gate
PS-3225
1The Swivel Rod Clamp can be detached
*See the PASCO catalog or the PASCO web site www.pasco.com for more information.

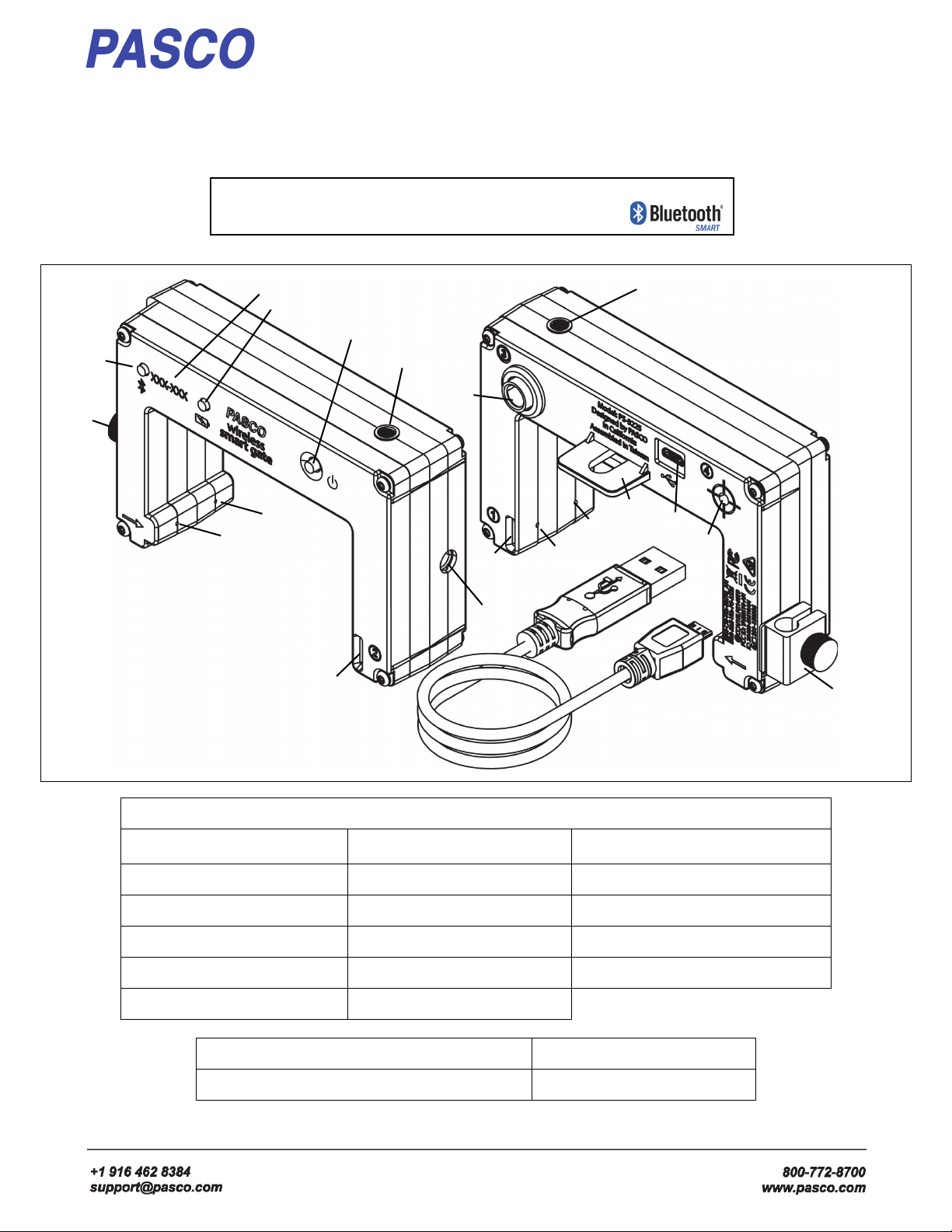

Legend
(1) Swivel Rod Clamp1(7) Emitter Port 2 (13) Super Pulley Tab
(2) Bluetooth LED (8) Photogate Tape Slot (14) USB Port
(3) Device ID (9) 1/4-20 Threaded Hole (15) (Port 4)Laser Detector Port
(4) Battery LED (10) Detector Port 1 (16) Indicator LED
(5) Power Button (11) Detector Port 2 (17) Micro USB Cable
(6)Emitter Port 1 (12) (Port 3) Auxiliary Port
Required Item* Model Number*
PASCO Data Collection Software see www.pasco.com
(1)
(1)
(2)
(3)
(4)
(5)
(6)(6)
(7)
(8)
(9)
(8) (10)
(11)
(12)
(13)
(14)
(15)
(16)
(16)
(17)
Power: Rechargeable Battery
Connection: USB or
Software: SPARKvue or
PASCO Capstone
PS-3225 Introduction
2
013-16123A
Compatible Equipment*
Initial Step: Connect to a USB Port or USB Charger
Use the included Micro USB Cable to connect the Micro USB Port on the Wireless Smart Gate to a
USB port or a USB charger (such as PS-2575A). When connected to a USB port or charger, the
Battery LED shines yellow to show the battery is charging. When the battery is charged, the Battery
LED shines green. Allow 3 hours for charging.
Introduction
The PASCO Wireless Smart Gate is a versatile measuring device that can connect to a computer or mobile device
wirelessly through Bluetooth (BLE) or physically with a Micro USB cable. It measures the time for an object’s
motion, such as a PASCO Cart, as the object blocks one or more beams of light. The Smart Gate has three
detector ports and one Auxiliary port. There are slots for Ports 1 and 2 for Photogate Tape (ME-6663) or Photogate
Tape, High Resolution (ME-6666).
Port 1 and Port 2 operate in the same way as a pair of PASCO Photogates that are side-by-side.The space
between the emitters for Port 1 and Port 2 is 1.5 cm. PASCO Capstone or SPARKvue software records and
displays the times for a variety of timing combinations such as the amount of time each port is blocked, or the time
from when one port is blocked until the second port is blocked. The software also displays the values of
calculations such as the speed or velocity between Port 1 and Port 2.
Port 3, the Auxiliary Port, is the port for a PASCO Photogate or similar device
such as a Time-of-Flight Accessory. The Auxiliary port accepts a 0.25 inch
(6.35 mm) “tip-ring-sleeve” phono plug.
Port 4, the Laser Detector Port, is designed to work with a laser beam to
allow measurement of an object too large to pass through the Wireless Smart Gate. The software begins recording
time when a laser beam shining into the port is blocked by a passing object.
Product Name Model Number
Super Pulley ME-9450A
Super Pulley with Mounting Rod ME-9499
Photogate Stand ME-9805
Picket Fence (Large) ME-9377A
Picket Fence (Smart Timer) ME-8933
Picket Fence (Cart) ME-9804
Photogate Bracket (Track) ME-9806
Photogate Mounting Bracket (Projectile Launcher) ME-6812A
Photogate Head ME-9498A
Accessory Photogate ME-9204B
Time-of-Flight Accessory ME-6810A
Photogate Tape, High Resolution ME-6666
Photogate Pendulum Set ME-8752
Tip - Ring - Sleeve Phono Plug
PS-3225 Hardware Set-Up
3
013-16123A
Data Collection Software
Measurements from the sensor are recorded and displayed using PASCO software such as SPARKvue or PASCO
Capstone. SPARKvue allows the sensor to work with a computer or a mobile device such as a tablet, datalogger,
or smart-phone when the sensor is connected. PASCO Capstone will work on a PC or Mac.
See the PASCO web site at www.pasco.com/software for help in selecting the right PASCO software and to check
for the latest versions.
ON/OFF and Sleep Information
To turn the sensor on, press and hold the Power Button until the Battery LED shines red for a moment, and then
release the Power Button. The Bluetooth LED will blink to indicate that the sensor is ready to be “paired” with a
device using the PASCO software.The sensor puts itself to sleep after one hour of inactivity if connected, and after
several minutes if not connected. To turn the sensor off, press and hold the Power Button for a moment until the
Battery LED shines red. Release the Power Button and the Bluetooth LED stops blinking.
Hardware Set-Up
Mounting the Wireless Smart Gate to a Pulley Mounting Rod
A Pulley Mounting Rod (SA-9343) fits the 1/4-20 threaded
hole that is on the side of the Wireless Smart Gate opposite
to the swivel rod clamp.
The swivel rod clamp and thumbscrew allows the Wireless
Smart Gate to be mounted on a 0.63 cm (1/4 in.) diameter
rod (such as the ME-9805 Photogate Stand).
The open space for the Wireless Smart Gate is 7.2 cm
(width) by 4.0 cm (depth). Remember, the Laser Detector
Port (Port 4) allows the measurement of the motion of
larger objects when used with a laser.
PASCO Capstone SPARKvue
•Mac OS X •Mac OS X
•Windows •Windows
•iOS
•Android
•Chromebook
1/4-20
threaded hole
Mounting
Rod
Tab for
Super Pulley
Depth =
4.0 cm
Width =
7.2 cm
Swivel Rod
Clamp
Port 4, Laser
Detector Port
Port 3, Auxiliary
Port
Wireless Smart Gate Hardware Set-Up
4013-16123A
Adding a Super Pulley to the Wireless Smart Gate
The tab on the Wireless Smart Gate housing provides a seat for
attaching a PASCO Super Pulley (ME-9450A) using a Pulley
Mounting Rod. When using a Super Pulley with the Wireless
Smart Gate, only Detector Port 1 (“gate 1”) will record state
changes caused by the rotating pulley.
Mounting the Wireless Smart Gate on a PASCO Track
The Wireless Smart Gate can be attached to the side of a
PASCO Track with a Photogate Bracket (ME-9806). Slide the
square nut on the Photogate Bracket into the T-slot of the side
of the PASCO track. Remove the swivel rod clamp from the
side of the Wireless Smart Gate (but save the swivel rod clamp
for later use).
Use the short thumbscrew from the Photogate Bracket
assembly to attach the Wireless Smart Gate to the Photogate
Bracket.
Note that half of the Wireless Smart Gate housing fits between
the “rails” on each edge of one side of the Photogate Bracket,
and the Wireless Smart Gate can be adjusted up or down. If you
wish to adjust the Photogate Bracket to an angle relative to the
PASCO track, mount the bracket on the track with the smooth
side of the bracket against the edge of the track. The small
thumbscrew will hold the Wireless Smart Gate in place against
the smooth side of the bracket. Both the Photogate Bracket and
the Wireless Smart Gate can then be set an any angle.
Mounting
Rod
(SA-9242)
Super Pulley
(ME-9450A)
Tab for Super
Pulley
T-slot
Square
Nut
Photogate
Bracket
(ME-9806)
PASCO
Track
Wireless
Smart Gate
PS-3225 Hardware Set-Up
5
013-16123A
Mounting the Wireless Smart Gate on a PASCO
Projectile Launcher
Use a Photogate Mounting Bracket (ME-6821A) to
attach the Wireless Smart Gate to a PASCO Projectile
Launcher (see the PASCO web site for more information
about launchers).
Clamp the PASCO Projectile Launcher in place. Mount
the Photogate Mounting Bracket to the T-slot of the
Projectile Launcher. Adjust the bracket so that the second
position on the bracket is aligned with the end of the
launcher. Remove the swivel rod clamp from the side of
the Wireless Smart Gate (but save the swivel rod clamp
for later use). Use one of the smaller thumbscrews from
the Photogate Mounting Bracket (ME-6821A) to attach
the Wireless Smart Gate to the Photogate Mounting
Bracket as shown.
Using the Wireless Smart Gate with the
Time-of-Flight Accessory
The PASCO Time-of-Flight Accessory (ME-6810A) is
designed for projectile motion experiments. The
Time-of-Flight Accessory can be used with a Wireless Smart
Gate mounted on a Projectile Launcher to measure the time of
a projectile’s motion from launch to landing. Connect the plug
from the Time-of-Flight Accessory into Port 3, the Auxiliary
Port on the back of the Wireless Smart Gate. The Wireless
Smart Gate measures the initial speed of the projectile and the
Time-of-Flight Accessory measures total travel time.
Using the Wireless Smart Gate with Photogate Tape
High Resolution Photogate Tape (ME-6666) fits through the
Photogate Tape Slot on the detector side of the Wireless Smart Gate.
The Photogate Tape is made of a flexible Mylar material that can be cut to any length, and is reusable. The tape is 30 m long
with 1cm spacing between bands (edge-to-edge). When the tape is threaded through the Photogate Tape Slot of the Wireless
Smart Gate, the student can measure position, velocity, and acceleration with a high degree of accuracy.
Wireless
Smart Gate
Projectile
Launcher
Base
Photogate
Mounting
Bracket
(ME-6821A)
Thumbscrew
Projectile Launcher
(ME-6800)
Smart Gate
Time-of-Flight
Accessory Pad
Smart Gate
ME-6666
Photogate
Tape Slot
Photogate Tape,
High Resolution
Wireless Smart Gate Hardware Set-Up
6013-16123A
Using the Wireless Smart Gate with a Picket Fence on a Cart
Mount a Five Pattern Picket Fence (ME-9804) or a Smart Timer Picket Fence (ME-8933) to the accessory tray of a PASCO
Cart (such as the ME-6950 PAScar). Use a Photogate Mounting Bracket (ME-9806) to mount the Wireless Smart Gate on the
side of a PASCO Track (such as the ME-6960 PAStrack). Adjust the height of the Smart Gate to match the level of the desired
flag pattern on the Picket Fence.
Using the Wireless Smart Gate with a Photogate Pendulum
Use a clamp (such as the ME-9506 Pendulum Clamp), a
support rod, and string (such as the SE-8050 Braided Physics
String) to hang a Photogate Pendulum as shown with the string
attached at two points on the Pendulum Clamp,
Use a Mounting Rod (SA-9242 or ME-9483) and a clamp (such
as the ME-9507 Multi-Clamp) to Mount the Wireless Smart
Gate so that the Photogate Pendulum interrupts the infrared
beam as it swings through the Wireless Smart Gate. For more
accurate results, arrange the pendulum so that it swings close to
the emitter side of the Wireless Smart Gate.
Photogate Bracket
(ME-9806)
PASCO Track
PASCO Cart
Picket Fence
(ME-8933)
Wireless Smart Gate
Mounting
Rod
Clamp
Base
Support
Rod
Pendulum
Clamp
(ME-9506)
String
Photogate
Pendulum
(ME-8752 Emitter
side
PS-3225 Software Setup
7
013-16123A
Software Setup
Software Help
•In Sparkvue, tap or click the Main Menu icon.
•In the menu, select “Help...” for information about
collecting, displaying, and analyzing data.
•In the window that opens is the address of the web page for Help.
Copy and paste the address into a web browser program to open
the Sparkvue User’s Guide web page.
.
•SPARKvue User’s Guide web page”
.
•In PASCO Capstone, select PASCO Capstone Help from the Help menu, or
press F1.
Main Menu icon
Select
SPARKvue “Help” Window
Wireless Smart Gate Software Setup
8013-16123A
Bluetooth and Battery LED Information
The Bluetooth LED (light-emitting diode) and the battery LED operate as follows:
Indicator LED Information
The Indicator LED on the top of the Wireless Smart Gate shines when the sensor is on and connected to the
software and an object blocks the infrared beam entering Port 1 or Port 2. The Indicator LED also shines when
a Photogate or a Time-of-Flight Apparatus is attached to the Auxiliary Port (Port 3) and the photogate beam is
blocked or a projectile hits the Time-of-Flight pad.
Laser Detector Port (Port 4) is a special case. The sensor must be on and Port 4 must be selected in the
PASCO Capstone data collection software. If a laser beam shines into Port 4, and the laser beam is blocked,
the Indicator LED shines red. If the laser beam is unblocked, the Indicator LED is clear.
Bluetooth LED Status Battery LED Status
Red blink Ready to pair Red blink Low power
Green blink Connected
Port Status LED Color Status LED Color
1 Blocked Amber Unblocked Clear
2 Blocked Green Unblocked Clear
1 & 2 Blocked Red Unblocked Clear
3 Blocked Red Unblocked Clear
PS-3225 Connect the Sensor Wirelessly via Bluetooth in SPARKvue
9
013-16123A
Connect the Sensor Wirelessly via Bluetooth in SPARKvue
1. Turn on the sensor and start SPARKvue.
•The “choose a path” window opens.
.
2. To “pair” the Wireless Smart Gate wirelessly to the computing device (e.g., computer or tablet), click or touch
“Sensor Data” in the “choose a path” window.
•The “Sensor Data Configuration” screen opens.
3. In the “Sensor Data Configuration screen”, look in the “Connected Devices” list. Touch or click to select the
correct address that matches the Device ID XXX-XXX number found on the Wireless Smart Gate.
•A message confirms that the sensor is being connected.
•Next, in the “Sensor Data Configuration” screen, “Wireless Smart Gate” appears in the “Select Measurement
for Templates” panel,
4. Click or Touch the “gear-shaped” Configuration Icon
•The “Assign SmartGate” screen is revealed.
Click or Touch
Click or Touch
the
Configuration
Icon
Wireless Smart Gate Assign SmartGate- Smart Gate Only
10 013-16123A
Assign SmartGate- Smart Gate Only
The three choices are:.
•“Smart Gate Only”
•“Smart Gate and Auxiliary Port”
•”Auxiliary Port Only”
Smart Gate Only
Click or touch the menu arrow for
“Smart Gate Only” to show the
various timer choices.
See the descriptions that follow.
1. Smart Gate Only - Smart
Gate Timer
•Click or touch “Smart Gate
Timer” and then click or touch
“OK” to accept the choice and
close the dialog.
•The “Select Measurements for
Templates” panel is revealed.
•The panel shows “Speed
Between Gates” as the default
choice.
•This measurement is based
on the time from when the first
Detector Port beam is blocked
until the second Detector Port
beam is blocked.
Click or Touch the Menu arrow
Assign SmartGate Choices
Smart Gate Only- Timer Choices
Click or Touch to select
Smart Gate Timer Measurements
Click or Touch “OK” to accept the choice
Este manual sirve para los siguientes modelos
1
Tabla de contenidos
Otros manuales de Instrumento de medición de PASCO
PASCO
PASCO PS-3234 Manual de usuario
PASCO
PASCO PASPort Xplorer PS-2000 Manual de usuario
PASCO
PASCO ES-9078 Manual de usuario
PASCO
PASCO ES-9078A Manual de usuario
PASCO
PASCO PS-2600 Manual de uso y cuidado
PASCO
PASCO Xplorer GLX Manual de programación
PASCO
PASCO PASPORT PS-2131 Manual de usuario
PASCO
PASCO ES-9042A Manual de usuario
PASCO
PASCO OS-8525A Manual de usuario
PASCO
PASCO PS-2136A Manual de usuario
PASCO
PASCO Pasport PS-2152 Manual de usuario
PASCO
PASCO PASPORT PS-2204 Manual de usuario
PASCO
PASCO SP-9285 Manual de usuario
PASCO
PASCO Pasport PS-2600 Manual de usuario
PASCO
PASCO SF-9069 Manual de usuario
PASCO
PASCO Pasport PS-2132 Manual de usuario
PASCO
PASCO PS-3215 Manual de uso y cuidado
PASCO
PASCO SE-7611 Manual de usuario
PASCO
PASCO PS-3237 Manual de usuario
PASCO
PASCO PS-3234 Manual de usuario
Manuales populares de Instrumento de medición de otras marcas
Endress+Hauser
Endress+Hauser Proline Promag 50 Especificaciones técnicas
Siemens
Siemens SITRANS F Coriolis FCT030 Manual de lista de piezas
KLINGER
KLINGER CMF V Series Manual de usuario
EXFO
EXFO FTB-2 Manual de operación y mantenimiento
Keysight
Keysight M8290A Manual de usuario
ADTEK
ADTEK MW-5 Manual de usuario
