Instruction Sheet

012-06070B

Electroscope

SF-9069

800-772-8700 (US) +1 916 462 8384

www.pasco.com [email protected]

Hardware

Introduction

The SF-9069 Electroscope is used for detecting and

demonstrating static electric charge. When the electro-

scope is charged, the lightweight conductive rod rotates to

indicate the magnitude of the charge. The apparatus

includes a Charge Sampler for transferring charge to the

electroscope.

Additional Equipment Recommended

• Classic Electrostatic Materials Kit SF-9068

• Banana Plug Patch Cord

1. Shrouded Red Patch Cords

2. Shrouded Black Patch Cords

• Shrouded Red Patch Cords EM-9740

• Shrouded Black Patch Cords EM-9471

Check the PASCO Web page at

www.pasco.com

Setup and Operation

• Plug the Charge

Sampler into the top

of the Electroscope.

• Plug a patch cord

into the Grounding

Port on the base of

the Electroscope.

Connect the patch

cord to something

that is grounded.

Item Number

Charge Sampler 1

Conductive Rod 2

Grounding Port 3

Electroscope SF-9069

2012-06070B

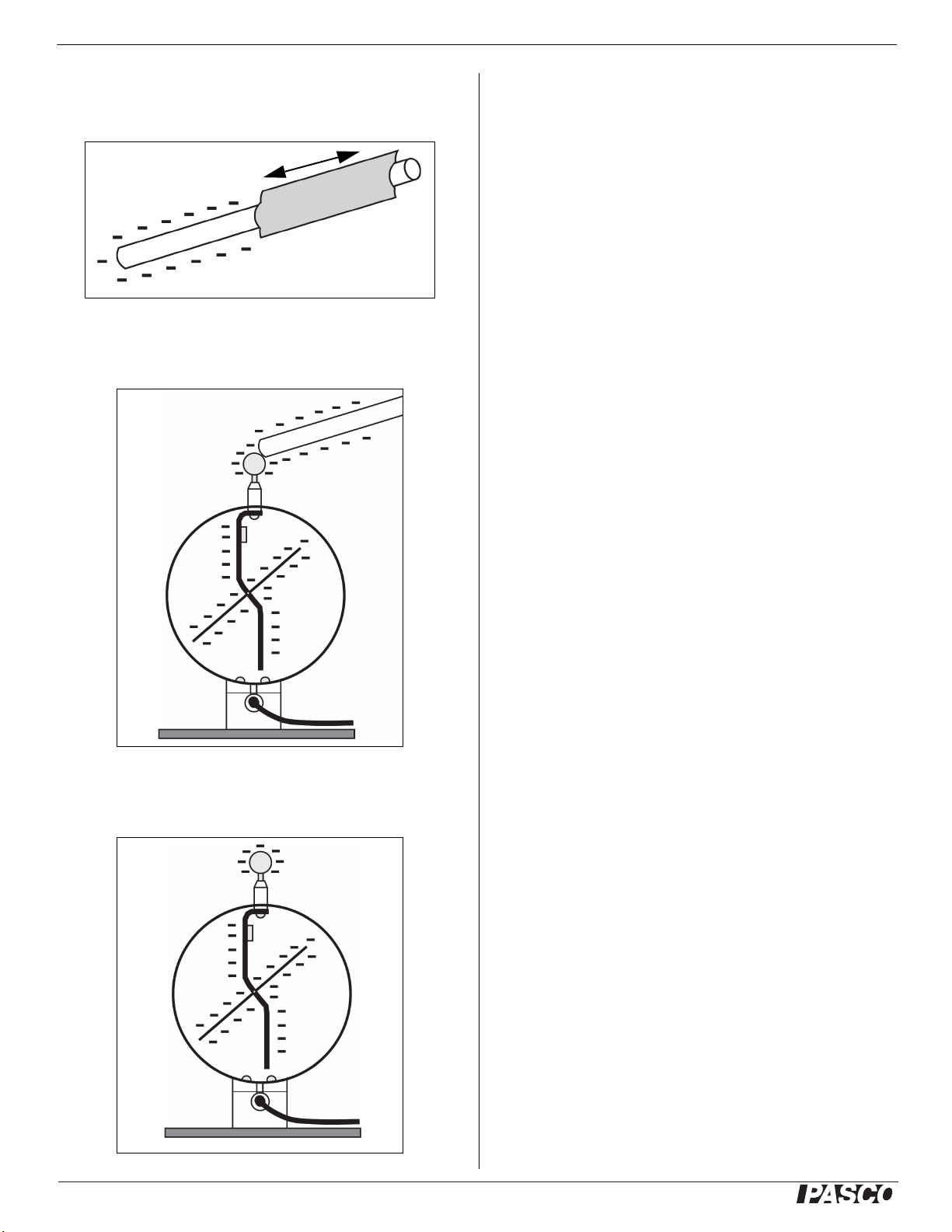

• Charge an object such as a PVC plastic rob by rub-

bing it vigorously with a wool cloth.

• Transfer the charge to the Electroscope by touching

the Charge Sampler with the charged object.

• Remove the charged object and observe what hap-

pens to the Electroscope.

Grounding the Electroscope

NOTE: Discharge (“ground”) the Electroscope by touching

the Charge Sampler with your finger or with the end of a

patch cord that is connected to ground.

Technical Support

For assistance with any PASCO product, contact PASCO

at:

The Reference Guide will be updated periodically. For the

latest revision of this Instruction Sheet, visit the PASCO

Web site at

www.pasco.com/manuals

and enter the product number, SF-9069, in the text

window.

Replacement Parts

For information about possible replacement parts, contact

Technical Support:

Limited Warranty

For a description of the product warranty, see the PASCO catalog. For

more information visit www.pasco.com/legal

This PASCO scientific

Instruction Sheet

is copyrighted with all rights

reserved. Permission is granted to non-profit educational institutions for

reproduction of any part of this manual, providing the reproductions are

used only in their laboratories and classrooms, and are not sold for profit.

Reproduction under any other circumstances, without the written consent

of PASCO scientific, is prohibited. Version 23-07-2016.

Trademarks

PASCO, PASCO scientific, PASCO Capstone, PASPORT, and

SPARKvue are trademarks or registered trademarks of PASCO scientific,

in the United States and/or in other countries. All other brands, products,

or service names are or may be trademarks or service marks of, and are

used to identify, products or services of their respective owners. For more

information visit www.pasco.com/legal.

Wool cloth

Plastic (PVC) rod

Address: PASCO scientific

10101 Foothills Blvd.

Roseville, CA 95747-7100

Phone: +1 916 462 8384 (worldwide)

8700-772-8700 (U.S.)

Web: www.pasco.com/support

Email: [email protected]
