Panasonic KX-HGT100 Manual de usuario

KX-HGT100 SIP-Phone

Panasonic Telephone Systems www.voicesonic.com

Phone 877-289-2829

Panasonic KX-HGT100, KXHGT100, HGT100

CONFIGURATIONS AND USER SETTINGS

All manuals and user guides at all-guides.com

all-guides.com

KX-HGT100 Configuration (1)

User name: KX-HGT100

Password: kx-hgt100

1. Connect the HGT100 to the LAN via a suitable switch port

2. Power on the unit (using PoE or the optional AC Adaptor)

3. Check the LCD Display shows “Not configured

Web Setting”

4. Using your Browser (Internet Explorer etc), access http://192.168.0.241/

Not Configured

Web Setting

All manuals and user guides at all-guides.com

KX-HGT100 Configuration (2)

Unit has no Profile set.

Registration is not

possible

Unit Status:

All manuals and user guides at all-guides.com

KX-HGT100 Configuration (3)

STATIC IP is set by default

Default IP:

192.168.0.241

Default Subnet Mask

255.255.255.0

Network Status:

All manuals and user guides at all-guides.com

KX-HGT100 Configuration (4)

LAN Connection:

STATIC IP or DHCP Mode

can be selected.

(Static IP is Default = X )

NB: If you select ‘DHCP’ here, you will need to re-connect your browser using the

allocated IP address before continuing to configure.

All manuals and user guides at all-guides.com

KX-HGT100 Configuration (5)

Enter IP Address etc

of HGT100 here

DNS Server Address can

be added here

(not required for TDE/NCP)

After clicking ‘Save’, please power off/on the HGT-100

All manuals and user guides at all-guides.com

all-guides.com

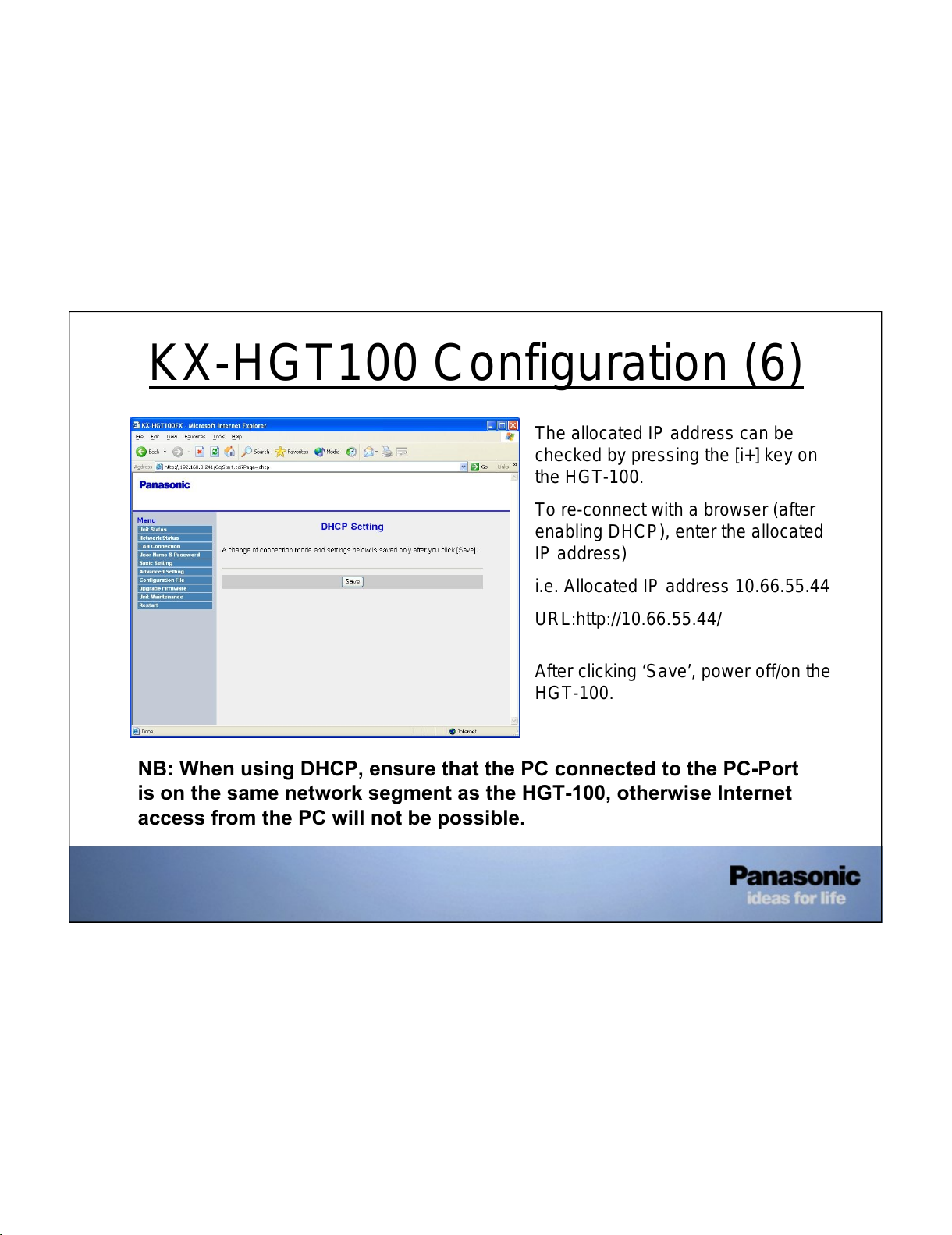

KX-HGT100 Configuration (6)

NB: When using DHCP, ensure that the PC connected to the PC-Port

is on the same network segment as the HGT-100, otherwise Internet

access from the PC will not be possible.

The allocated IP address can be

checked by pressing the [i+] key on

the HGT-100.

To re-connect with a browser (after

enabling DHCP), enter the allocated

IP address)

i.e. Allocated IP address 10.66.55.44

URL:http://10.66.55.44/

After clicking ‘Save’, power off/on the

HGT-100.

All manuals and user guides at all-guides.com

KX-HGT100 Configuration (7)

Username and Password:

Modifies the HTTP

and Password from

default

If Idle Timeout expires, unit will need to be powered off/on to re-open HTTP port. (“Special” Setting)

All manuals and user guides at all-guides.com

KX-HGT100 Configuration (8)

Basic Settings: Refer to next slide for

language parameters;

SIP Extension details and

password (Telephone

Number and SIP ID can

match)

SIP Proxy, Registrar and

Domain information.

For NCP Extension, enter

the IP address of the NCP

for all settings.

All manuals and user guides at all-guides.com

KX-HGT100 Configuration (9)

Basic Settings: (Example)

(Stand-Alone SIP Telephone configuration with Gamma SIP Account)

SIP Number,

Account and

password.

SIP Proxy,

Registrar and

Domain (IP or

DNS).
