Panasonic E series Manual de usuario

E-Series

NVR Operation Guide

Panasonic System Networks Co., Ltd.

Security Systems Business Division

V1. 9th Dec 2014

V2. 30th Jan 2015

This document is supplementary to the

operation manual.

The screens used in this document is

taken from K-NL-308K with firmware

version3.20.

Depending on the firmware version, the

screens may differ from the actual screens.

3CONTENTS

1. Camera Preview(Live View)

2. Playback and Search

•Mark Playback

•File List

•Smart Search

•Accurate Playback by Time

3. Backup

•Snap Shot

•Video Clipping

•File Backup

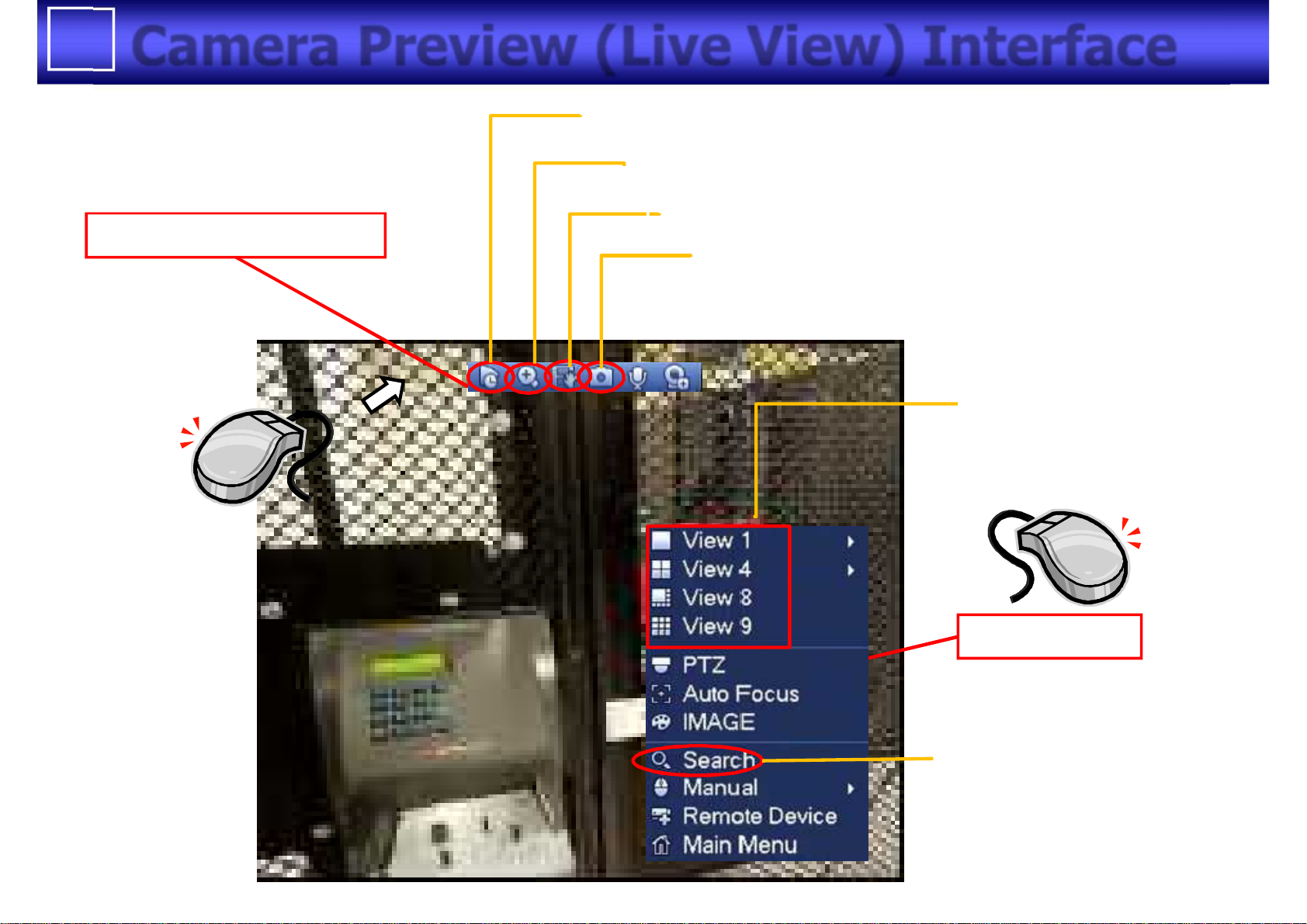

4Camera Preview (Live View) Interface

Preview control interface

Shortcut Menu

Right Click!

Real time Playback button : latest time playback

Digital Zoom button

Point cursor to

upper side

of the screen

Manual Record button : record on USB memory

Snapshot button

Playback and Search Mode

WindowSplit selection

5Playback and Search Interface

Video / Snapshotselection for playback

“Record” : Video select

“PIC” : Snapshotselect

Windowsplit mode(1/4/9)

Playback channel selection

Playback Control Pane

(Play/Pause/PlayBackwards/

Fast Playback/Rewind/Slow Play)

Time Line Bar Can change scale of time line

Display file list of the day

Calendar for playback

(Blue Highlighted date)

There is recorded data

(Yellow colored date)

Currently selectedfor playback

6Playback and Search - Mark Playback

1. Click Mark button to add mark

2. Put Name to the mark

3. Click Mark File list button

to see the list of marked files

(Note: this button will work

only in single channel mode)

7Playback and Search - File List

1. Click File List button

3. Click File Lock button after selected a file in the list

Locked files will not be overwritten 4. Click Search Locked File button

to see the list of locked files

-Check Start time to select

-Double Click to playback

[NOTE]

E series NVR stores recorded video as file.

8Playback and Search – Smart Search

1. Preparation : Go to SETTING > EVENT > DETECT > Motion Detect

4. Select search area with

mouse drag

5. Click Smart Search Button

2. Check Enable 3. Click Smart Search button

Smart Search is now

working

NEW

9Backup - Snap Shot

1. Click “Full Screen” button 2. Click Snap Shot button

Precondition Insert USB memory to USB port on NVR

[NOTE]

Snapshot is saved in USB memory .

Screen shot image is saved as JPEG file.

[CAUTION]

USB memory need to be formatted as FAT32

10 Backup - Video Clipping

2.Select Start Time on timeline bar

4. Select End Time

6.Push Save button,

then back up window is pop up

3.Click Clip button to decide start time

5. Click Clip button to decide end time

Precondition Insert USB memory to USB port on NVR

7.Check the clipped file for backup,

then click Backup

1.Click the channel screen to clip the video [CAUTION]

USB memory need to be formatted as FAT32
