Installation Manual

Additional Digital Cordless Handset

Model No. KX-TGA648E

Thank you for purchasing a Panasonic product.

Please read this installation manual before using the unit and

save it for future reference.

This unit is an additional handset compatible with the

following series of Panasonic Digital Cordless Phone:

KX-TG6481

You must register this handset with your base unit before it

can be used. This installation manual describes only the

steps needed to register and begin using the handset. Please

read the base unit’s operating instructions for further details.

Charge the batteries for about 7 hours before initial use.

TGA648E(e).fm Page 1 Thursday, May 7, 2009 9:18 AM

Helpline Tel. No.: U.K. 0844 844 3898 R.O.I. 01289 8333

Accessory information

Supplied accessories

*1 Please read the base unit’s operating instructions for replacement

battery information.

*2 The handset cover comes attached to the handset.

Note:

LPlease read the base unit’s operating instructions for additional/

replacement accessories.

LThis equipment is designed for use in the U.K. and Republic of Ireland.

LIn the event of problems, you should contact your equipment supplier

in the first instance.

Sales and support information

Customer Care Centre

LFor customers within the U.K.: 0844 844 3898

LFor customers within the Republic of Ireland: 01289 8333

LVisit our website for product information:

www.panasonic.co.uk

LE-mail:

customer.care@panasonic.co.uk

Accessory item/Part number Quantity

Charger/PNLC1003ZT 1

AC adaptor/PQLV219EX 1

Rechargeable batteries*1/

HHR-55AAAB or N4DHYYY00005

Handset cover*2 1

Belt clip/PNKE1011Z1 1

TGA648E(e).fm Page 2 Thursday, May 7, 2009 9:18 AM

Helpline Tel. No.: U.K. 0844 844 3898 R.O.I. 01289 8333

Direct Sales at Panasonic U.K.

LOrder accessory and consumable items for your product with ease and

confidence by phoning our Customer Care Centre Monday - Thursday

9:00am - 5:30pm, Friday 9:30am - 5:30pm (Excluding public holidays).

LOr go on line through our Internet Accessory ordering application at

www.panasonic.co.uk

LMost major credit and debit cards accepted.

LAll enquiries transactions and distribution facilities are provided

directly by Panasonic U.K. Ltd.

LIt couldn’t be simpler!

LAlso available through our Internet is direct shopping for a wide range

of finished products, take a browse on our website for further details.

Setting up

Connection/Wall mounting

Note:

LUse only the supplied Panasonic AC adaptor PQLV219E.

LThe AC adaptor must remain connected at all times. (It is normal for

the adaptor to feel warm during use.)

Hooks

(220-240 V AC,

50 Hz)

25 mm

Screws

(Not supplied)

TGA648E(e).fm Page 3 Thursday, May 7, 2009 9:18 AM

Helpline Tel. No.: U.K. 0844 844 3898 R.O.I. 01289 8333

Battery installation/Battery charge

Important:

LUse the supplied rechargeable batteries. For replacement, we

recommend using the Panasonic rechargeable batteries noted in the

base unit’s operating instructions.

LWipe the battery ends (S, T) with a dry cloth.

LAvoid touching the battery ends (S, T) or the unit contacts.

LConfirm correct polarities (S, T).

LUSE ONLY Ni-MH batteries AAA (R03) size.

LDo NOT use Alkaline/Manganese/Ni-Cd batteries.

Charge for about 7 hours.

LWhen the batteries are fully charged, the charge indicator goes off.

Note:

LWhen the language selection is displayed after installing the batteries

for the first time, you can select your desired language.

{V}

{^}

: Select your desired language.

{ic}

LThe handset display may show “Please wait for 1 minute.”

when the handset is placed on the charger if it is not registered to the

base unit.

LIf the batteries are fully charged, but the operating time seems to be

shorter, clean the battery ends (S, T) and the charge contacts with a

dry cloth and charge again.

Confirm “Charging”

is displayed.

Rechargeable Ni-MH ONLY

TGA648E(e).fm Page 4 Thursday, May 7, 2009 9:18 AM

Helpline Tel. No.: U.K. 0844 844 3898 R.O.I. 01289 8333

Registering the handset to the base unit

Ensure that the handset is switched on. If it is not on, press and hold

{ic}for few seconds to turn the handset on.

1Handset:

Lift the handset and press {ic}.

2Base unit:

Press and hold {x} for about 5 seconds, until the registration tone

sounds.

LIf all registered handsets start ringing, press the same button to

stop. Then repeat this step.

3Handset:

Place the handset on the base unit.

LContinue the operation even when the handset display shows

“Please wait for 1 minute.”.

4With the handset still on the base unit, wait until a confirmation tone

sounds and wstops flashing.

Note:

LIf an error tone sounds, or if wis still flashing, register the handset

according to the base unit’s operating instructions.

For your safety

To prevent severe injury and loss of life/property, read this section carefully before

using the product to ensure proper and safe operation of your product.

WARNING

Power connection

LCompletely insert the AC adaptor/power plug into the power outlet. Failure to do

so may cause electric shock and/or excessive heat resulting in a fire.

LRegularly remove any dust, etc. from the AC adaptor/power plug by pulling it

from the power outlet, then wiping with a dry cloth. Accumulated dust may cause

an insulation defect from moisture, etc. resulting in a fire.

LUnplug the product from power outlets if it emits smoke, an abnormal smell, or

makes an unusual noise. These conditions can cause fire or electric shock.

TGA648E(e).fm Page 5 Thursday, May 7, 2009 9:18 AM

Helpline Tel. No.: U.K. 0844 844 3898 R.O.I. 01289 8333

Confirm that smoke has stopped emitting and contact an authorised service

centre.

Installation

LTo prevent the risk of fire or electrical shock, do not expose the product to rain or

any type of moisture.

LDo not place or use this product near automatically controlled devices such as

automatic doors and fire alarms. Radio waves emitted from this product may

cause such devices to malfunction resulting in an accident.

Operating safeguards

LThe use of excessive sound volume through earphones, headphones, or

headsets may cause hearing loss.

CAUTION

Installation and location

LThe AC adaptor is used as the main disconnect device. Ensure that the AC outlet

is installed near the product and is easily accessible.

Battery

LWe recommend using the supplied batteries or additional/replacement batteries

noted in the base unit’s operating instructions for replacement battery

information. USE ONLY rechargeable Ni-MH batteries AAA (R03) size.

LDo not mix old and new batteries.

LDo not open or mutilate the batteries. Released electrolyte from the batteries is

corrosive and may cause burns or injury to the eyes or skin. The electrolyte is

toxic and may be harmful if swallowed.

LExercise care when handling the batteries. Do not allow conductive materials

such as rings, bracelets, or keys to touch the batteries, otherwise a short circuit

may cause the batteries and/or the conductive material to overheat and cause

burns.

LCharge the batteries provided with or identified for use with this product only, in

accordance with the instructions and limitations specified in this manual.

LOnly use a compatible base unit (or charger) to charge the batteries. Do not

tamper with the base unit (or charger). Failure to follow these instructions may

cause the batteries to swell or explode.

TGA648E(e).fm Page 6 Thursday, May 7, 2009 9:18 AM

Helpline Tel. No.: U.K. 0844 844 3898 R.O.I. 01289 8333

Other information

LOperating the product near electrical appliances may cause interference. Move

away from the electrical appliances.

LUse only the power cord and batteries indicated in this manual. Do not dispose

of batteries in a fire. They may explode. Check with local codes for possible

special disposal instructions.

Routine care

LWipe the outer surface of the product with a soft moist cloth.

LDo not use benzine, thinner, or any abrasive powder.

Splash resistance (handset only)

The handset is designed to be splash-resistant. You can use the handset with wet

hands. (IP 54 Standard)

LDo not immerse in water or leave under running water.

LKeep the handset away from salt water.

LAvoid exposure to prolonged high humidity.

LSince water in headset jack may cause damage, close the headset jack cover

when the optional headset is not in use. When the optional headset is connected,

do not use the handset with wet hands.

LIf the handset is wet, wipe with a soft dry cloth.

LThe base unit/charger is not designed to be splash resistant. Do not place the

handset on the base unit/charger if the handset is wet.

Shock resistance (handset only)

The handset is designed to be shock-resistant, however, it should not be thrown or

stepped on.

Notice for product disposal, transfer, or return

LThis product can store your private/confidential information. To protect your

privacy/confidentiality, we recommend that you erase information such as

phonebook or caller list entries from the memory before you dispose of, transfer,

or return the product.

TGA648E(e).fm Page 7 Thursday, May 7, 2009 9:18 AM

Helpline Tel. No.: U.K. 0844 844 3898 R.O.I. 01289 8333

Information for Users on Collection and Disposal of Old Equipment and used

Batteries

These symbols (1, 2, 3) on the products, packaging, and/or accompanying

documents mean that used electrical and electronic products and batteries should

not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and used batteries,

please take them to applicable collection points, in accordance with your national

legislation and the Directives 2002/96/EC and 2006/66/EC.

By disposing of these products and batteries correctly, you will help to save

valuable resources and prevent any potential negative effects on human health and

the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products and batteries,

please contact your local municipality, your waste disposal service or the point of

sale where you purchased the items.

Penalties may be applicable for incorrect disposal of this waste, in accordance with

national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your

dealer or supplier for further information.

Information on Disposal in other Countries outside the European Union

These symbols (1, 2, 3) are only valid in the European Union. If you wish to

discard these items, please contact your local authorities or dealer and ask for the

correct method of disposal.

Note for the battery symbol

This symbol (2) might be used in combination with a chemical symbol (3). In this

case it complies with the requirement set by the Directive for the chemical involved.

123

TGA648E(e).fm Page 8 Thursday, May 7, 2009 9:18 AM

Helpline Tel. No.: U.K. 0844 844 3898 R.O.I. 01289 8333

Declaration of Conformity:

LPanasonic Communications Co., Ltd. declares that this equipment is in

compliance with the essential requirements and other relevant

provisions of Radio & Telecommunications Terminal Equipment

(R&TTE) Directive 1999/5/EC.

Declarations of Conformity for the relevant Panasonic products

described in this manual are available for download by visiting:

http://www.doc.panasonic.de

Contact to Authorised Representative:

Panasonic Testing Centre

Panasonic Marketing Europe GmbH

Winsbergring 15, 22525 Hamburg, Germany

TGA648E(e).fm Page 9 Thursday, May 7, 2009 9:18 AM

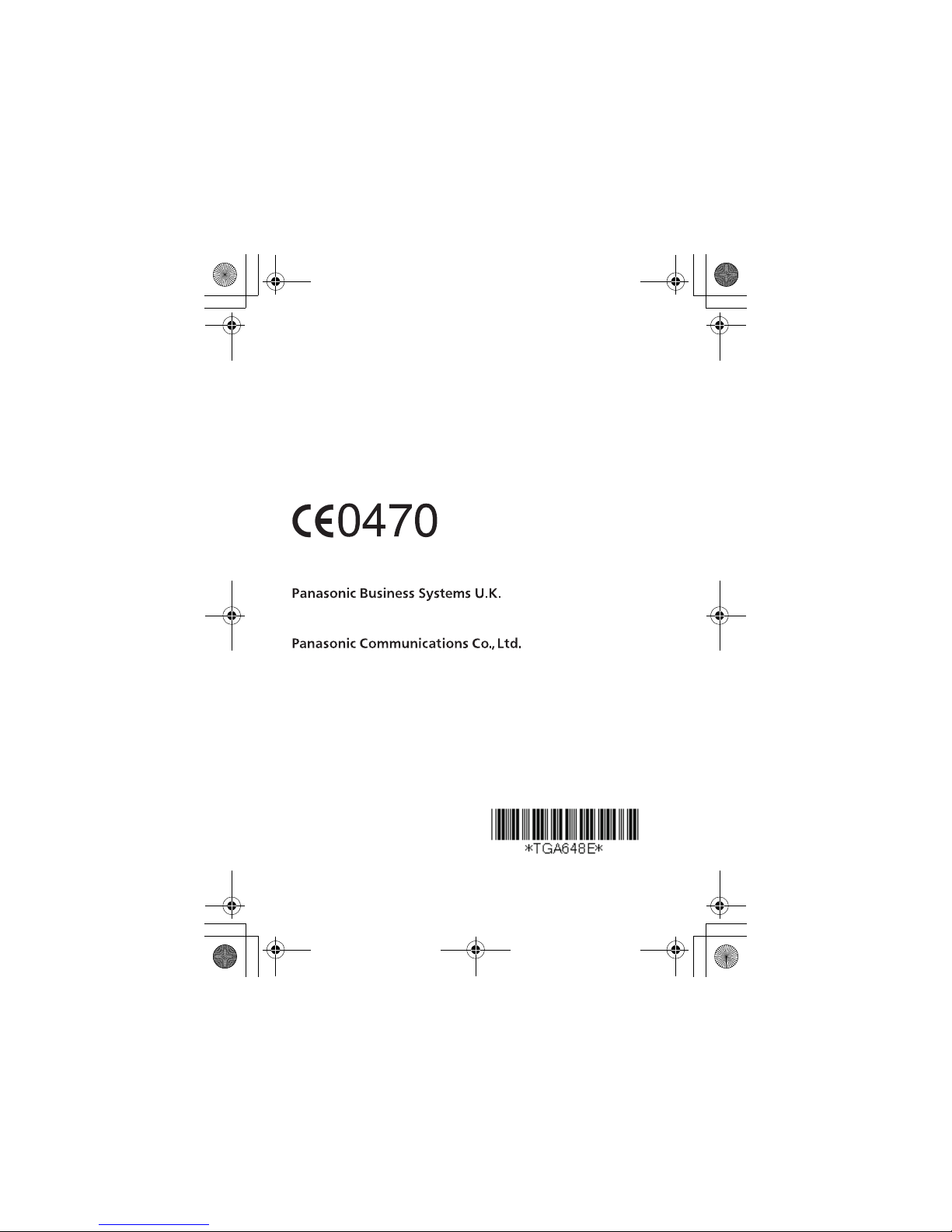

PNQX2008ZA DC0409DK0

Sales Department:

Panasonic House, Willoughby Road, Bracknell, Berkshire, RG12 8FP

1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka 812-8531, Japan

This material is copyrighted by Panasonic Communications Co., Ltd.,

and may be reproduced for internal use only. All other reproduction, in

whole or in part, is prohibited without the written consent of Panasonic

Communications Co., Ltd.

TGA648E(e).fm Page 10 Thursday, May 7, 2009 9:18 AM

Tabla de contenidos

Otros manuales de Auricular de Panasonic

Panasonic

Panasonic KX-TGA800FX Manual de usuario

Panasonic

Panasonic TGP600 Manual de usuario

Panasonic

Panasonic KX-TG6311 Manual de usuario

Panasonic

Panasonic KX-TGA572S Manual de usuario

Panasonic

Panasonic KX-TGEA20EX Manual de usuario

Panasonic

Panasonic KX-TGA410 Manual de usuario

Panasonic

Panasonic KX-TPA50 Manual de usuario

Panasonic

Panasonic KX-TGA800E Manual de usuario

Panasonic

Panasonic KX-TGA550C Manual de usuario

Panasonic

Panasonic KX-TGA740B - Cordless Extension Handset Manual de instrucciones

Panasonic

Panasonic KX-PRSA10C Manual de usuario

Panasonic

Panasonic KX-TG664 Manual de usuario

Panasonic

Panasonic VL-WD613 Manual de usuario

Panasonic

Panasonic KX-TGA651EXB Manual de usuario

Panasonic

Panasonic KX-TGDA50 Manual de usuario

Panasonic

Panasonic KX-TGA400B - Cordless Extension Handset Manual de usuario

Panasonic

Panasonic KX-TGA560B - Cordless Extension Handset Manual de usuario

Panasonic

Panasonic KX-TGEA60M Manual de usuario

Panasonic

Panasonic KX-TGA715FX Manual de usuario

Panasonic

Panasonic KX-TGFA30 Manual de usuario

Panasonic

Panasonic KX-PRSA10 Manual de usuario

Panasonic

Panasonic KX-TGEA20 Manual de usuario

Panasonic

Panasonic KX-TGA731EX Manual de usuario

Panasonic

Panasonic KX-TGA661E Manual de usuario

Manuales populares de Auricular de otras marcas

Swissvoice

Swissvoice ePure HD Manual de usuario

Philips

Philips TD6736/BH051P Manual de usuario

ASCOM

ASCOM I62 - Manual de usuario

LG-Ericsson

LG-Ericsson LIP-9010 Manual de usuario

GE 1583 Manual de usuario

iiNet

iiNet Handset Manual de usuario

ASCOM

ASCOM 9p23 Manual de usuario

AT&T

AT&T DLP70110 Manual de usuario

AirCell

AirCell ST 3100 Manual de usuario

Eaton

Eaton HHIR-LCD-PROG Instrucciones de montaje

Mitel

Mitel 112 Manual de usuario

SBC

SBC SBC-381H Manual de usuario

Mitel

Mitel 5602 Manual de usuario

ASCOM

ASCOM d81 Messenger Instrucciones de instalación

SpectraLink

SpectraLink 7522 Manual de usuario

Avaya

Avaya L100 Series Cómo utilizar

ooma

ooma HD2 Handset Manual de usuario

Yealink

Yealink IPW56 Manual de usuario
