Panasonic KX-TGA410 Manual de usuario

Thank you for purchasing a Panasonic product.

Please read this installation manual before using the unit and

save it for future reference.

For assistance, visit our Web site:

http://www.panasonic.com/help

for customers in the U.S.A. or

Puerto Rico.

This unit is an additional handset compatible with the following

series of Panasonic Digital Cordless Phone:

KX-TG4131/KX-TG6591/KX-TG6631/KX-TG6641/

KX-TG7621/KX-TG7641

You must register this handset with your base unit before it can

be used. This installation manual describes only the steps

needed to register and begin using the handset. Please read

the base unit’s operating instructions for further details.

Charge the batteries for about 7 hours before initial use.

Additional Digital Cordless Handset

Model No. KX-TGA410

Installation Manual

PNQX3136ZA DC1110DE0 (A)

Printed in China

TGA410(e).fm Page 1 Monday, November 8, 2010 4:33 PM

2For assistance, please visit http://www.panasonic.com/help

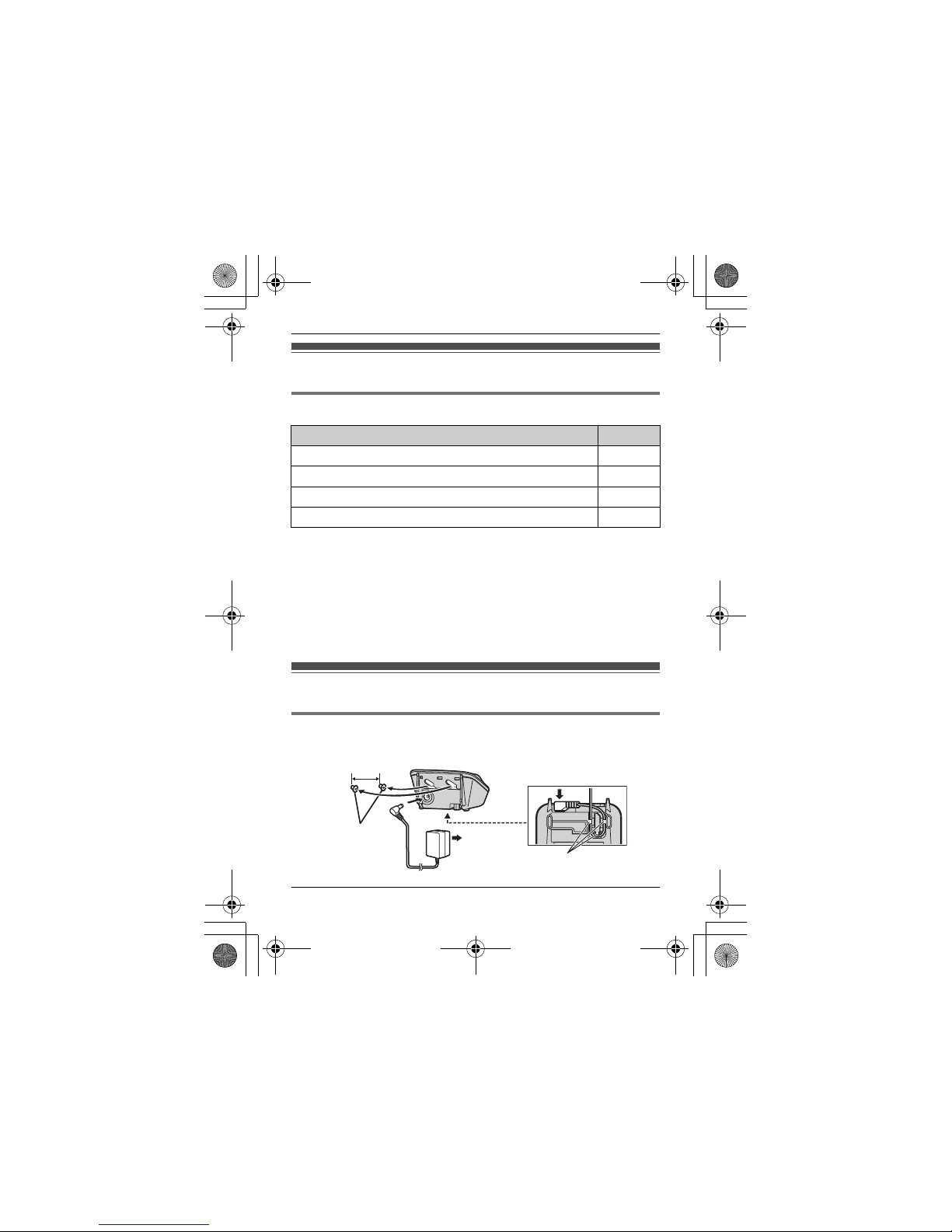

Accessory information

Supplied accessories

*1 PNLC1018ZB: Black, PNLC1018ZM: Metallic gray

PNLC1018ZN: Champagne gold

*2 PNYNTGA410BR: Black, PNYNTGA410MR: Metallic gray

PNYNTGA410NR: Champagne gold

*3 The handset cover comes attached to the handset.

Note:

LPlease read the base unit’s operating instructions for additional/

replacement accessories.

Setting up

Connections/Wall mounting

Accessory item/Order number Quantity

Charger*1 1

AC adaptor/PNLV226Z 1

Rechargeable batteries/HHR-4DPA 2

Handset cover*2, *3 1

(120 V AC,

60 Hz) Hooks

25.4 mm

(1 inch)

Screws

(Not supplied)

TGA410(e).fm Page 2 Monday, November 8, 2010 4:33 PM

For assistance, please visit http://www.panasonic.com/help 3

Note:

LUse only the supplied Panasonic AC adaptor PNLV226.

LThe AC adaptor must remain connected at all times. (It is normal for

the adaptor to feel warm during use.)

LMake sure that the wall and the fixing method are strong enough to

support the weight of the unit.

Battery installation/Battery charging

Important:

LUse the supplied rechargeable batteries. For replacement, we

recommend using the Panasonic rechargeable batteries noted on

page 2.

LWipe the battery ends (S, T) with a dry cloth.

LAvoid touching the battery ends (S, T) or the unit contacts.

LConfirm correct polarities (S, T).

LUSE ONLY Ni-MH batteries AAA (R03) size.

LDo NOT use Alkaline/Manganese/Ni-Cd batteries.

Charge for about 7 hours.

LWhen the batteries are fully charged, the charge indicator goes off and

“Fully charged”is displayed.

Note:

LIf the batteries are fully charged, but the operating time seems to be

shorter, clean the battery ends (S, T) and the charge contacts with a

dry cloth and charge again.

Charge indicator

Confirm

“Charging”

is displayed.

Rechargeable

Ni-MH ONLY

TGA410(e).fm Page 3 Monday, November 8, 2010 4:33 PM

4For assistance, please visit http://www.panasonic.com/help

Registering a handset to a base unit

1Base unit:

Press and hold {LOCATOR}for about 5 seconds until the registration

tone sounds.

LIf all registered handsets start ringing, press {LOCATOR}again to

stop, then repeat this step.

2Handset:

Place the handset on the base unit or charger, then wait until a long

beep sounds and wis displayed.

Note:

LIf an error tone sounds, or if _is displayed, register the handset

according to the base unit’s operating instructions.

Display language

1{MENU}(11)

2{r}: Select the desired setting.

3{SAVE}s{OFF}

For your safety

To prevent severe injury and loss of life/property, read this section carefully before

using the product to ensure proper and safe operation of your product.

WARNING

Power connection

LCompletely insert the AC adaptor/power plug into the power outlet. Failure to do

so may cause electric shock and/or excessive heat resulting in a fire.

LRegularly remove any dust, etc. from the AC adaptor/power plug by pulling it

from the power outlet, then wiping with a dry cloth. Accumulated dust may cause

an insulation defect from moisture, etc. resulting in a fire.

LUnplug the product from power outlets if it emits smoke, an abnormal smell, or

makes an unusual noise. These conditions can cause fire or electric shock.

Confirm that smoke has stopped emitting and contact the Panasonic Call Center

at 1-800-211- PANA (1-800-211-7262).

TGA410(e).fm Page 4 Monday, November 8, 2010 4:33 PM

For assistance, please visit http://www.panasonic.com/help 5

Installation

LTo prevent the risk of fire or electrical shock, do not expose the product to rain or

any type of moisture.

LDo not place or use this product near automatically controlled devices such as

automatic doors and fire alarms. Radio waves emitted from this product may

cause such devices to malfunction resulting in an accident.

CAUTION

Installation and location

LThe AC adaptor is used as the main disconnect device. Ensure that the AC outlet

is installed near the product and is easily accessible.

Battery

LWe recommend using the supplied batteries or additional/replacement batteries

noted on page 2 for replacement battery information. USE ONLY rechargeable

Ni-MH batteries AAA (R03) size.

LDo not mix old and new batteries.

LDo not open or mutilate the batteries. Released electrolyte from the batteries is

corrosive and may cause burns or injury to the eyes or skin. The electrolyte is

toxic and may be harmful if swallowed.

LExercise care when handling the batteries. Do not allow conductive materials

such as rings, bracelets, or keys to touch the batteries, otherwise a short circuit

may cause the batteries and/or the conductive material to overheat and cause

burns.

LCharge the batteries provided with or identified for use with this product only, in

accordance with the instructions and limitations specified in this manual.

LOnly use a compatible base unit (or charger) to charge the batteries. Do not

tamper with the base unit (or charger). Failure to follow these instructions may

cause the batteries to swell or explode.

Attention:

A nickel metal hydride battery that is

recyclable powers the product you have

purchased.

Please call 1-800-8-BATTERY (1-800-822-

8837) for information on how to recycle this

battery.

TGA410(e).fm Page 5 Monday, November 8, 2010 4:33 PM

6For assistance, please visit http://www.panasonic.com/help

Important safety instructions

When using your product, basic safety precautions should always be followed to

reduce the risk of fire, electric shock, and injury to persons, including the following:

1. Do not use this product near water for example, near a bathtub, washbowl,

kitchen sink, or laundry tub, in a wet basement or near a swimming pool.

2. Do not use the telephone to report a gas leak in the vicinity of the leak.

3. Use only the power cord and batteries indicated in this manual. Do not dispose

of batteries in a fire. They may explode. Check with local codes for possible

special disposal instructions.

SAVE THESE INSTRUCTIONS

Other information

LOperating the product near electrical appliances may cause interference. Move

away from the electrical appliances.

CAUTION: Risk of explosion if battery is replaced by an incorrect type. Dispose of

used batteries according to the instructions.

Routine care

LWipe the outer surface of the product with a soft moist cloth.

LDo not use benzine, thinner, or any abrasive powder.

Notice for product disposal, transfer, or return

LThis product can store your private/confidential information. To protect your

privacy/confidentiality, we recommend that you erase information such as

phonebook or caller list entries from the memory before you dispose of, transfer,

or return the product.

TGA410(e).fm Page 6 Monday, November 8, 2010 4:33 PM

For assistance, please visit http://www.panasonic.com/help 7

FCC and other information

This equipment is hearing aid compatible as defined by the FCC in 47 CFR Section

68.316.

When you hold the phone to your ear, noise might be heard in your Hearing Aid.

Some Hearing Aids are not adequately shielded from external RF (radio frequency)

energy. If noise occurs, use an optional headset accessory or the speakerphone

option (if applicable) when using this phone. Consult with your audiologist or

Hearing Aid manufacturer about the availability of Hearing Aids which provide

adequate shielding to RF energy commonly emitted by digital devices.

WHEN PROGRAMMING EMERGENCY NUMBERS AND(OR) MAKING TEST

CALLS TO EMERGENCY NUMBERS:

1) Remain on the line and briefly explain to the dispatcher the reason for the call.

2) Perform such activities in the off-peak hours, such as early morning or late

evenings.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept

any interference received, including interference that may cause undesired

operation.

Privacy of communications may not be ensured when using this phone.

CAUTION:

Any changes or modifications not expressly approved by the party responsible for

compliance could void the user’s authority to operate this device.

NOTE:

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception, which

can be determined by turning the equipment off and on, the user is encouraged to

try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna.

– Increase the separation between the equipment and receiver.

TGA410(e).fm Page 7 Monday, November 8, 2010 4:33 PM

8For assistance, please visit http://www.panasonic.com/help

– Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

– Consult the dealer or an experienced radio/TV technician for help.

FCC RF Exposure Warning:

LThis product complies with FCC radiation exposure limits set forth for an

uncontrolled environment.

LThis handset may not be collocated or operated in conjunction with any other

antenna or transmitter.

LFor body-worn operation, the handset must be used only with a non-metallic

accessory. Use of other accessories may not ensure compliance with FCC RF

exposure requirements.

Notice:

LFCC ID can be found inside the battery compartment or on the bottom of the unit.

Compliance with TIA-1083 standard:

Notice

Telephone handsets identified with this logo have reduced

noise and interference when used with T-Coil equipped hearing

aids and cochlear implants.

Compatible with

Hearing Aid T-Coil

TIA-1083

LThis product is designed for use in the United States of America. Sale or use

of this product in other countries may violate local laws.

LCet appareil est conçu pour être utilisé aux États-Unis d’Amérique. La vente

ou l’emploi de cet appareil dans certains autres pays peut constituer une

infraction à la législation locale.

LEste producto está diseñado para usarse en los Estados Unidos de América.

La venta o el empleo de este producto en ciertos países puede constituir

violación de la legislación local.

Lҏ౰ࠢட࣏୽ٺҢՄ೩Ȅӵڏт୽ড়᎛୵ܖٺҢȂџ૖ོႂІ࿋ӴݲٽȄ

Lߎߩ⵾ຠߪޔᣣᧄ࿖ᄖߢߩ૶↪ࠍ⋡⊛ߣߒߡ⸳⸘ߐࠇߡ߅ࠅޔᣣᧄ࿖ౝߢߩ

૶↪ߪᴺᓞ㆑෻ߣߥࠅ߹ߔޕᓥߞߡޔᒰ␠ߢߪᣣᧄ࿖ౝߦ߅޿ߡߪේೣߣߒ

ߡୃℂߥߤߩࠨ࡯ࡆࠬߪ⥌ߒ߆ߨ߹ߔޕ

TGA410(e).fm Page 8 Monday, November 8, 2010 4:33 PM

For assistance, please visit http://www.panasonic.com/help 9

Notes

TGA410(e).fm Page 9 Monday, November 8, 2010 4:33 PM

10 For assistance, please visit http://www.panasonic.com/help

One Panasonic Way, Secaucus, New Jersey 07094

1Reconnect AC adaptor to the base unit.

2Check if telephone line cord is connected.

3Use rechargeable Ni-MH batteries.

(Alkaline/Manganese/Ni-Cd batteries CANNOT be used.)

4Read troubleshooting page in the base unit’s

Operating Instructions.

If your product is not working properly. . .

IMPORTANT!

Visit our Web site: http://www.panasonic.com/help

LFAQ and troubleshooting hints are available.

TGA410(e).fm Page 10 Monday, November 8, 2010 4:33 PM

Otros manuales para KX-TGA410

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Auricular de Panasonic

Panasonic

Panasonic KX-TD7685 - Wireless Digital Phone Manual de usuario

Panasonic

Panasonic KX-PRWA13C Manual de usuario

Panasonic

Panasonic KX-TGA740B - Cordless Extension Handset Manual de instrucciones

Panasonic

Panasonic EBPH55S - CELL PHONE Manual de usuario

Panasonic

Panasonic 2LINE KX-TGA950C Manual de usuario

Panasonic

Panasonic KX-TGP60 Manual de usuario

Panasonic

Panasonic KX-TG1032 Manual de usuario

Panasonic

Panasonic KX-TGCA35 Manual de usuario

Panasonic

Panasonic KX-TPA70 Manual de usuario

Panasonic

Panasonic KX-PRSA10 Manual de usuario

Panasonic

Panasonic KX-TG2559LBS Manual de usuario

Panasonic

Panasonic KX-TGA510M - 5.8GHz Accessory Handset Manual de usuario

Panasonic

Panasonic KX-TD7696 Manual de usuario

Panasonic

Panasonic KX-TGA840E Manual de usuario

Panasonic

Panasonic KX-TGDA63 Manual de usuario

Panasonic

Panasonic KX-TG9582 Manual de usuario

Panasonic

Panasonic KX-TG5200C Manual de usuario

Panasonic

Panasonic KXTGA850E Manual de usuario

Panasonic

Panasonic KX-TGFA51 Manual de usuario

Panasonic

Panasonic KX-TG1000N - 2.4GHz Cordless Phone Manual de usuario

Panasonic

Panasonic KX-TGEA20EX Manual de usuario

Panasonic

Panasonic KX-TGA661FX Manual de usuario

Panasonic

Panasonic KX-TGEA20C Manual de usuario

Panasonic

Panasonic KX-TGA680 Manual de usuario

Manuales populares de Auricular de otras marcas

Swissvoice

Swissvoice ePure HD Manual de usuario

Philips

Philips TD6736/BH051P Manual de usuario

ASCOM

ASCOM I62 - Manual de usuario

LG-Ericsson

LG-Ericsson LIP-9010 Manual de usuario

GE 1583 Manual de usuario

iiNet

iiNet Handset Manual de usuario

ASCOM

ASCOM 9p23 Manual de usuario

AT&T

AT&T DLP70110 Manual de usuario

AirCell

AirCell ST 3100 Manual de usuario

Eaton

Eaton HHIR-LCD-PROG Instrucciones de montaje

Mitel

Mitel 112 Manual de usuario

SBC

SBC SBC-381H Manual de usuario

Mitel

Mitel 5602 Manual de usuario

ASCOM

ASCOM d81 Messenger Instrucciones de instalación

SpectraLink

SpectraLink 7522 Manual de usuario

Avaya

Avaya L100 Series Cómo utilizar

ooma

ooma HD2 Handset Manual de usuario

Yealink

Yealink IPW56 Manual de usuario
