Installation Manual

Additional Digital Cordless Handset

Model No. KX-TGA661E

KX-TGA806E

KX-TGA860E

Thank you for purchasing a Panasonic product.

Please read this installation manual before using the unit and

save it for future reference.

This unit is an additional handset compatible with the

following series of Panasonic Digital Cordless Phone:

- KX-TG6611/KX-TG6621 (KX-TGA661)

- KX-TG8051/KX-TG8061 (KX-TGA806)

- KX-TG8621 (KX-TGA860)

You must register this handset with your base unit before it

can be used. This installation manual describes only the

steps needed to register and begin using the handset. Please

read the base unit’s operating instructions for further details.

KX-TGA661

TGA661E(e).fm Page 1 Tuesday, March 15, 2011 6:32 PM

Helpline Tel. No.: U.K. 0844 844 3898 Ireland 01289 8333

Accessory information

Supplied accessories

*1 KX-TGA661: PNLC1018ZB (Black), PNLC1018ZM1 (Metallic grey)

KX-TGA806: PNLC1019ZB (Black)

KX-TGA860: PNLC1021ZM (Metallic grey)

*2 Please read the base unit’s operating instructions for replacement

battery information.

*3 The handset cover comes attached to the handset.

*4 KX-TGA806: PNKE1105Z1

KX-TGA860: PNKE1112Z1

Note:

LPlease read the base unit’s operating instructions for additional/

replacement accessories.

LPlease read "General information" of the base unit's operating

instructions for information regarding R&TTE Directive.

Sales and support information

Customer Communication Centre

LFor customers within the U.K.: 0844 844 3898

LFor customers within Ireland: 01289 8333

LVisit our website for product information: www.panasonic.co.uk

LE-mail: [email protected]k

Accessory item/Part number Quantity

Charger*1 1

AC adaptor/PNLV226EZ 1

Rechargeable batteries*2 2

Handset cover*3 1

Belt clip (KX-TGA806/KX-TGA860)*4 1

TGA661E(e).fm Page 2 Tuesday, March 15, 2011 6:32 PM

Helpline Tel. No.: U.K. 0844 844 3898 Ireland 01289 8333

Direct Sales at Panasonic U.K.

LOrder accessory and consumable items for your product with ease and

confidence by phoning our Customer Communication Centre Monday

- Thursday 9:00am - 5:30pm, Friday 9:30am - 5:30pm (Excluding

public holidays).

LOr go on line through our Internet Accessory ordering application at

www.pas-europe.com

LMost major credit and debit cards accepted.

LAll enquiries transactions and distribution facilities are provided

directly by Panasonic U.K. Ltd.

LIt couldn’t be simpler!

LAlso available through our Internet is direct shopping for a wide range

of finished products, take a browse on our website for further details.

Setting up

Connection/Wall mounting

Note:

LUse only the supplied Panasonic AC adaptor PNLV226E.

LThe AC adaptor must remain connected at all times. (It is normal for

the adaptor to feel warm during use.)

LMake sure that the wall and the fixing method are strong enough to

support the weight of the unit. (KX-TGA661/KX-TGA806)

(220-240 V AC,

50/60 Hz)

25 mm

Hooks

Screws

(Not supplied)

TGA661E(e).fm Page 3 Tuesday, March 15, 2011 6:32 PM

Helpline Tel. No.: U.K. 0844 844 3898 Ireland 01289 8333

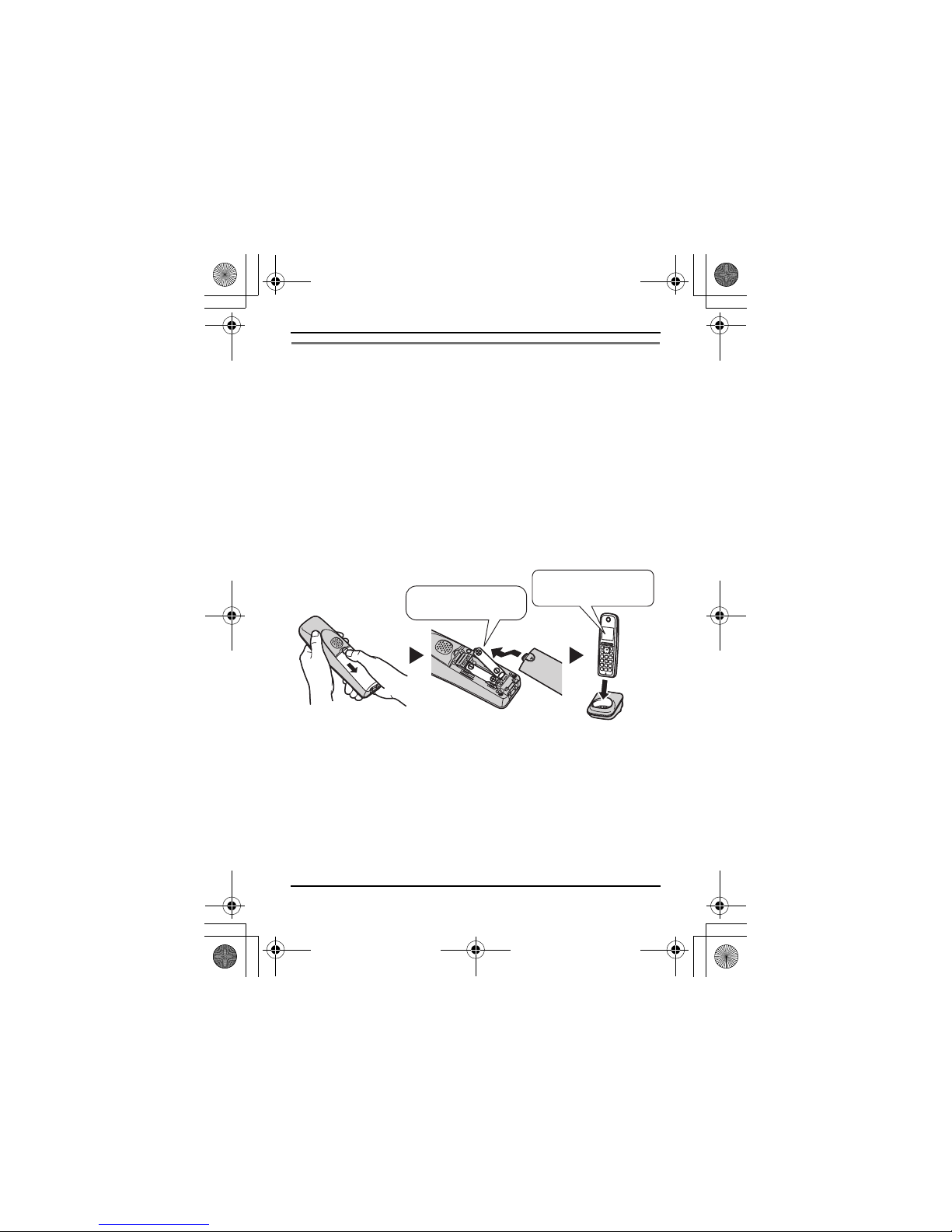

Battery installation/Battery charging

Important:

LUse the supplied rechargeable batteries. For replacement, we

recommend using the Panasonic rechargeable batteries noted in the

base unit’s operating instructions.

LWipe the battery ends (S, T) with a dry cloth.

LAvoid touching the battery ends (S, T) or the unit contacts.

LConfirm correct polarities (S, T).

LUSE ONLY Ni-MH batteries AAA (R03) size.

LDo NOT use Alkaline/Manganese/Ni-Cd batteries.

Charge for about 7 hours.

LWhen the batteries are fully charged, the charge indicator goes off and

“Fully charged”is displayed.

Note:

LThe handset display may show “Please wait for 1 minute.”

when the handset is placed on the charger if it is not registered to the

base unit.

LIf the batteries are fully charged, but the operating time seems to be

shorter, clean the battery ends (S, T) and the charge contacts with a

dry cloth and charge again.

Rechargeable Ni-MH

ONLY

Confirm “Charging”

is displayed.

TGA661E(e).fm Page 4 Tuesday, March 15, 2011 6:32 PM

Helpline Tel. No.: U.K. 0844 844 3898 Ireland 01289 8333

Registering the handset to the base unit

Ensure that the handset is switched on. If it is not on, press and hold

{ic}for few seconds to turn the handset on.

1Handset:

Lift the handset and press {ic}.

2Base unit:

Proceed with the operation for your model.

3Handset:

Place the handset on the base unit or charger.

LContinue the operation even when the handset display shows

“Please wait for 1 minute.”.

4With the handset still on the base unit or charger, wait until a

confirmation tone sounds and wis displayed.

Note:

LIf an error tone sounds, or if _is displayed, register the handset

according to the base unit’s operating instructions.

LThe KX-TG6611/KX-TG8051 does not feature an answering system.

LAnswering system features are available only when this handset is

registered to the KX-TG6621/KX-TG8061/KX-TG8621.

NKX-TG6611/KX-TG8051/KX-TG8621

Press and hold {x} for about 5 seconds. (No registration tone)

NKX-TG6621/KX-TG8061

Press and hold {x} for about 5 seconds, until the registration tone

sounds.

LIf all registered handsets start ringing, press {x} again to stop, then

repeat this step.

TGA661E(e).fm Page 5 Tuesday, March 15, 2011 6:32 PM

Helpline Tel. No.: U.K. 0844 844 3898 Ireland 01289 8333

For your safety

To prevent severe injury and loss of life/property, read this section carefully before

using the product to ensure proper and safe operation of your product.

WARNING

Power connection

LCompletely insert the AC adaptor/power plug into the power outlet. Failure to do

so may cause electric shock and/or excessive heat resulting in a fire.

LRegularly remove any dust, etc. from the AC adaptor/power plug by pulling it

from the power outlet, then wiping with a dry cloth. Accumulated dust may cause

an insulation defect from moisture, etc. resulting in a fire.

LUnplug the product from power outlets if it emits smoke, an abnormal smell, or

makes an unusual noise. These conditions can cause fire or electric shock.

Confirm that smoke has stopped emitting and contact an authorised service

centre.

Installation

LTo prevent the risk of fire or electrical shock, do not expose the product to rain or

any type of moisture.

LDo not place or use this product near automatically controlled devices such as

automatic doors and fire alarms. Radio waves emitted from this product may

cause such devices to malfunction resulting in an accident.

Operating safeguards

LThe use of excessive sound volume through earphones, headphones, or

headsets may cause hearing loss. (KX-TGA806/KX-TGA860)

CAUTION

Installation and location

LThe AC adaptor is used as the main disconnect device. Ensure that the AC outlet

is installed near the product and is easily accessible.

Battery

LWe recommend using the supplied batteries or additional/replacement batteries

noted in the base unit’s operating instructions for replacement battery

information. USE ONLY rechargeable Ni-MH batteries AAA (R03) size.

LDo not mix old and new batteries.

TGA661E(e).fm Page 6 Tuesday, March 15, 2011 6:32 PM

Helpline Tel. No.: U.K. 0844 844 3898 Ireland 01289 8333

LDo not open or mutilate the batteries. Released electrolyte from the batteries is

corrosive and may cause burns or injury to the eyes or skin. The electrolyte is

toxic and may be harmful if swallowed.

LExercise care when handling the batteries. Do not allow conductive materials

such as rings, bracelets, or keys to touch the batteries, otherwise a short circuit

may cause the batteries and/or the conductive material to overheat and cause

burns.

LCharge the batteries provided with or identified for use with this product only, in

accordance with the instructions and limitations specified in this manual.

LOnly use a compatible base unit (or charger) to charge the batteries. Do not

tamper with the base unit (or charger). Failure to follow these instructions may

cause the batteries to swell or explode.

Other information

LOperating the product near electrical appliances may cause interference. Move

away from the electrical appliances.

LUse only the power cord and batteries indicated in this manual. Do not dispose

of batteries in a fire. They may explode. Check with local codes for possible

special disposal instructions.

Routine care

LWipe the outer surface of the product with a soft moist cloth.

LDo not use benzine, thinner, or any abrasive powder.

Notice for product disposal, transfer, or return

LThis product can store your private/confidential information. To protect your

privacy/confidentiality, we recommend that you erase information such as

phonebook or caller list entries from the memory before you dispose of, transfer,

or return the product.

TGA661E(e).fm Page 7 Tuesday, March 15, 2011 6:32 PM

Helpline Tel. No.: U.K. 0844 844 3898 Ireland 01289 8333

Information for Users on Collection and Disposal of Old Equipment and used

Batteries

These symbols (1, 2, 3) on the products, packaging, and/or accompanying

documents mean that used electrical and electronic products and batteries should

not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and used batteries,

please take them to applicable collection points, in accordance with your national

legislation and the Directives 2002/96/EC and 2006/66/EC.

By disposing of these products and batteries correctly, you will help to save

valuable resources and prevent any potential negative effects on human health and

the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products and batteries,

please contact your local municipality, your waste disposal service or the point of

sale where you purchased the items.

Penalties may be applicable for incorrect disposal of this waste, in accordance with

national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your

dealer or supplier for further information.

Information on Disposal in other Countries outside the European Union

These symbols (1, 2, 3) are only valid in the European Union. If you wish to

discard these items, please contact your local authorities or dealer and ask for the

correct method of disposal.

Note for the battery symbol

This symbol (2) might be used in combination with a chemical symbol (3). In this

case it complies with the requirement set by the Directive for the chemical involved.

123

TGA661E(e).fm Page 8 Tuesday, March 15, 2011 6:32 PM

Helpline Tel. No.: U.K. 0844 844 3898 Ireland 01289 8333

Notes

TGA661E(e).fm Page 9 Tuesday, March 15, 2011 6:32 PM

PNQX3283XA TT1210YK2031 (A)

Sales Department:

Panasonic House, Willoughby Road, Bracknell, Berkshire, RG12 8FP

1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka 812-8531, Japan

TGA661E(e).fm Page 10 Tuesday, March 15, 2011 6:32 PM

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Auricular de Panasonic

Panasonic

Panasonic KXTGA750E Manual de usuario

Panasonic

Panasonic KX-TGA510M - 5.8GHz Accessory Handset Manual de usuario

Panasonic

Panasonic KX-TGA410 Manual de usuario

Panasonic

Panasonic KX-TGA840EX Manual de usuario

Panasonic

Panasonic KX-TGA750B Manual de usuario

Panasonic

Panasonic KX-TGMA44 Manual de usuario

Panasonic

Panasonic KX-TPA70 Manual de usuario

Panasonic

Panasonic KX-TWA50EX Manual de usuario

Panasonic

Panasonic KX-TG6311 Manual de usuario

Panasonic

Panasonic KX-TGA550C Manual de usuario

Panasonic

Panasonic KX-TGA106M - Cordless Extension Handset Manual de usuario

Panasonic

Panasonic KXTGA935 - DIGITAL CORDLESS HANDSET INSTALL Manual de instrucciones

Panasonic

Panasonic KX-TGD66 Series Manual de usuario

Panasonic

Panasonic KX-TGA681HK Manual de usuario

Panasonic

Panasonic KX-THA12 Manual de usuario

Panasonic

Panasonic KX-TGA828FX Manual de usuario

Panasonic

Panasonic KX-TGA910FX Manual de usuario

Panasonic

Panasonic KX-TGA830E Manual de usuario

Panasonic

Panasonic KXTGA630 - DIGITAL CORDLESS HANDSET INSTALL Manual de usuario

Panasonic

Panasonic TGP600 Manual de usuario

Panasonic

Panasonic KX-TGFA30E Manual de usuario

Panasonic

Panasonic KX-TGA470 Manual de usuario

Panasonic

Panasonic KX-TGA807EX Manual de usuario

Panasonic

Panasonic KX-TGA470 Manual de usuario

Manuales populares de Auricular de otras marcas

Swissvoice

Swissvoice ePure HD Manual de usuario

Philips

Philips TD6736/BH051P Manual de usuario

ASCOM

ASCOM I62 - Manual de usuario

LG-Ericsson

LG-Ericsson LIP-9010 Manual de usuario

GE 1583 Manual de usuario

iiNet

iiNet Handset Manual de usuario

ASCOM

ASCOM 9p23 Manual de usuario

AT&T

AT&T DLP70110 Manual de usuario

AirCell

AirCell ST 3100 Manual de usuario

Eaton

Eaton HHIR-LCD-PROG Instrucciones de montaje

Mitel

Mitel 112 Manual de usuario

SBC

SBC SBC-381H Manual de usuario

Mitel

Mitel 5602 Manual de usuario

ASCOM

ASCOM d81 Messenger Instrucciones de instalación

SpectraLink

SpectraLink 7522 Manual de usuario

Avaya

Avaya L100 Series Cómo utilizar

ooma

ooma HD2 Handset Manual de usuario

Yealink

Yealink IPW56 Manual de usuario
