Panasonic KX-TGA671EXB Manual de usuario

Installation Manual

Bedienungsanleitung

Manuel d’installation

Installatiehandleiding

Installationsmanual

Bruksanvisning

Asennusohje

Manual de Instalação

Οδηγίες εγκατάστασης

Installationsvejledning

Manual de Instalación

Istruzioni per l’uso

Kullanım Kılavuzu

Additional Digital Cordless Handset

Zusätzliches DECT Mobilteil

Combiné supplémentaire numérique sans fil

Additionele DECT handset

Extra digital trådlös handenhet

Ekstra digitalt, trådløst håndsett

Digitaalinen langaton lisäluuri

Portátil Adicional Sem Fios Digital

Προαιρετικό Ψηφιακό Ασύρµατο Ακουστικό

Ekstra digitalt trådløst håndsæt

Portátil Inalámbrico Digital Adicional

Cordless Aggiuntivo Opzionale

İlave ahize

KX-TGA671EXB

KX-TGA671EXM

KX-TGA671EXS

KX-TGA815EXB

KX-TGA815EXM

KX-TGA815EXA

KX-TGA855EXB

KX-TGA855EXW

KX-TGA855EXR

KX-TGA671

TGA671EX(ex).book Page 1 Friday, March 9, 2012 5:10 PM

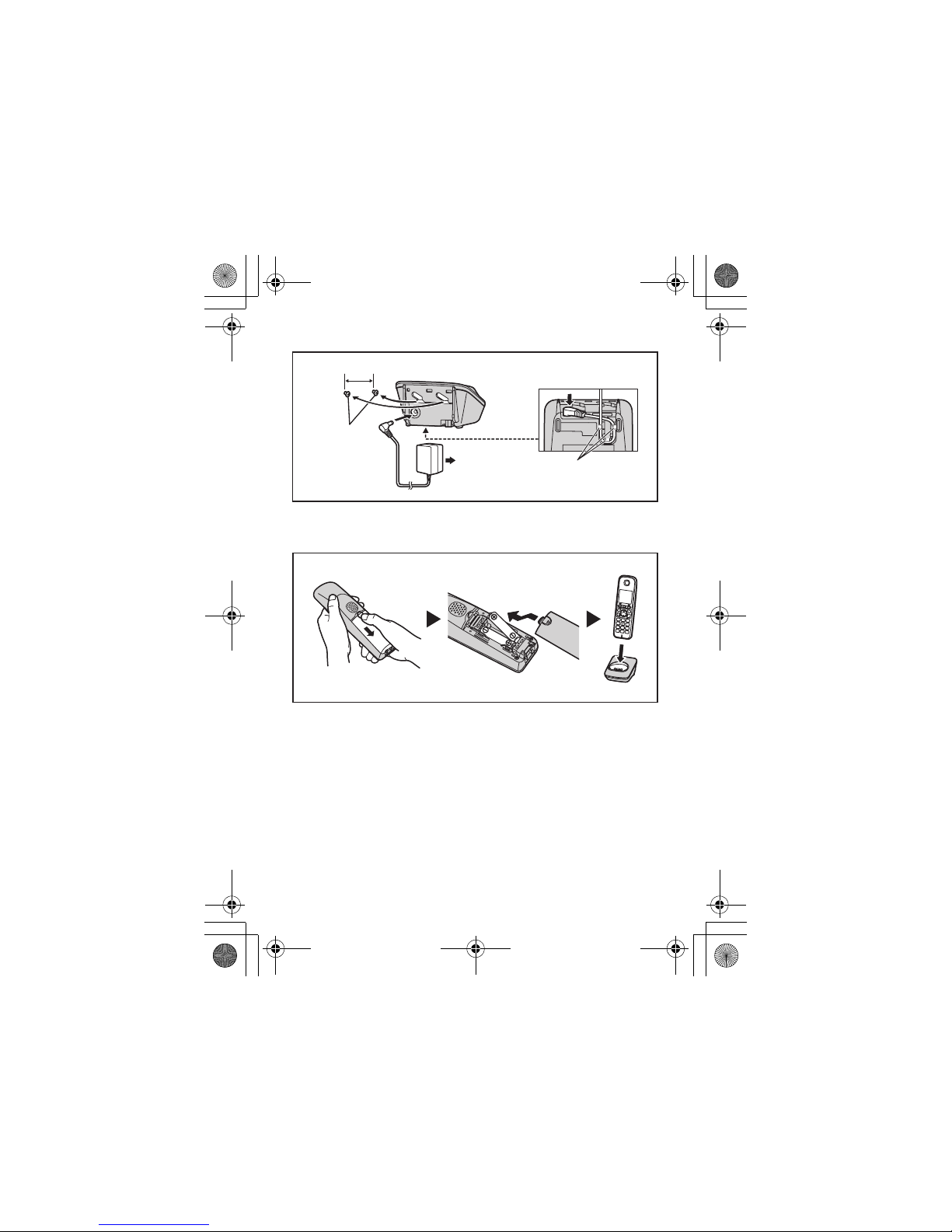

25 mm

Screws

(Not supplied)

Hooks

To power outlet

TGA671EX(ex).book Page 2 Friday, March 9, 2012 5:10 PM

Contents/Inhalt/Table des matières/Inhoud/Innehåll/

Innholdsfortegnelse/Sisällysluettelo/Índice/Περιεχόµενα/

Indholdsfortegnelse/Contenido/Indice/İçindekiler

English ............................................................................................... 4

Deutsch .............................................................................................. 9

Français............................................................................................ 14

Nederlands....................................................................................... 19

Svenska............................................................................................ 25

Norsk ................................................................................................ 30

Suomi ............................................................................................... 35

Português......................................................................................... 40

Ελληνικά........................................................................................... 45

Dansk................................................................................................ 51

Español ............................................................................................ 56

Italiano.............................................................................................. 61

Türkçe............................................................................................... 66

TGA671EX(ex).book Page 3 Friday, March 9, 2012 5:10 PM

PLEASE READ BEFORE USE AND SAVE

This unit is an additional handset compatible with the following series of

Panasonic Digital Cordless Phone:

KX-TG6711/KX-TG6721(KX-TGA671)

KX-TG8151/KX-TG8161(KX-TGA815)

KX-TG8551/KX-TG8561(KX-TGA855)

(The corresponding models are subject to change without notice.)

You must register this handset with your base unit before it can be used.

This installation manual describes only the steps needed to register and

begin using the handset. Please read the base unit’s operating instructions

for further details.

Supplied accessories

*1 Please read the base unit’s operating instructions for replacement battery

information.

*2 The handset cover comes attached to the handset.

Note:

•

Please read the base unit’s operating instructions for additional/replacement

accessories.

•

Please read "General information" of the base unit's operating instructions for

information regarding R&TTE Directive.

Connection/Wall mounting

(page 2:

)

•

Use only the supplied Panasonic AC adaptor PNLV226CE.

•

The AC adaptor must remain connected at all times. (It is normal for the adaptor

to feel warm during use.)

•

Make sure that the wall and the fixing method are strong enough to support the

weight of the unit. (KX-TGA671/KX-TGA815)

Charger......................................... 1

AC adaptor/PNLV226CE .............. 1

Rechargeable batteries

.............. 2

Belt clip (KX-TGA815/KX-TGA855)

...................................................... 1

Handset cover

............................ 1

English

TGA671EX(ex).book Page 4 Friday, March 9, 2012 5:10 PM

Battery installation/Battery charging

(page 2:

)

Important:

•

Use the supplied rechargeable batteries. For replacement, we recommend

using the Panasonic rechargeable batteries noted in the base unit’s operating

instructions.

•

Wipe the battery ends (

) with a dry cloth.

•

Avoid touching the battery ends (

) or the unit contacts.

•

Confirm correct polarities (

•

USE ONLY Ni-MH batteries AAA (R03) size.

•

Do NOT use Alkaline/Manganese/Ni-Cd batteries.

Place the handset on the charger for about 7 hours before initial use.

Note:

•

The handset display may show

“

Please wait for 1 minute.

”

when the

handset is placed on the charger if it is not registered to the base unit.

•

If the batteries are fully charged, but the operating time seems to be shorter,

clean the battery ends (

) and the charge contacts with a dry cloth and

charge again.

Display language

(middle soft key)

(

)

{

}

: Select your desired language.

}

Registering the handset to the base unit

Ensure that the handset is switched on. If it is not on, press and hold

}

for

few seconds to turn the handset on.

Handset:

Lift the handset and press

}

Base unit:

Press and hold

{x}

for about 5 seconds.

•

Depending on the base unit, a registration tone sounds.

•

If all registered handsets start ringing, press

{x}

again to stop, then repeat

this step.

When the language selection is displayed after installing the batteries for the

first time, you can select your desired language.

{

}

: Select your desired language.

}

TGA671EX(ex).book Page 5 Friday, March 9, 2012 5:10 PM

Handset:

Place the handset on the base unit or charger.

•

Continue the operation even when the handset display shows

“

Please wait for 1 minute.

”

With the handset still on the base unit or charger, wait until a confirmation tone

sounds and

is displayed.

Note:

•

If an error tone sounds, or if

is displayed, register the handset according to

the base unit’s operating instructions.

•

The KX-TG6711/KX-TG8151/KX-TG8551 does not feature an answering

system.

•

Answering system features are available only when this handset is registered

to the KX-TG6721/KX-TG8161/KX-TG8561.

For your safety

To prevent severe injury and loss of life/property, read this section carefully before using the

product to ensure proper and safe operation of your product.

WARNING

Power connection

•

Completely insert the AC adaptor/power plug into the power outlet. Failure to do so may

cause electric shock and/or excessive heat resulting in a fire.

•

Regularly remove any dust, etc. from the AC adaptor/power plug by pulling it from the

power outlet, then wiping with a dry cloth. Accumulated dust may cause an insulation

defect from moisture, etc. resulting in a fire.

•

Unplug the product from power outlets if it emits smoke, an abnormal smell, or makes an

unusual noise. These conditions can cause fire or electric shock. Confirm that smoke has

stopped emitting and contact an authorised service centre.

Installation

•

To prevent the risk of fire or electrical shock, do not expose the product to rain or any type

of moisture.

•

Do not place or use this product near automatically controlled devices such as automatic

doors and fire alarms. Radio waves emitted from this product may cause such devices to

malfunction resulting in an accident.

Operating safeguards

•

The use of excessive sound volume through earphones, headphones, or headsets may

cause hearing loss. (KX-TGA815/KX-TGA855)

CAUTION

Installation and location

•

The AC adaptor is used as the main disconnect device. Ensure that the AC outlet is

installed near the product and is easily accessible.

TGA671EX(ex).book Page 6 Friday, March 9, 2012 5:10 PM

Battery

•

We recommend using the supplied batteries or additional/replacement batteries noted in

the base unit’s operating instructions for replacement battery information.

USE ONLY

rechargeable Ni-MH batteries AAA (R03) size

•

Do not mix old and new batteries.

•

Do not open or mutilate the batteries. Released electrolyte from the batteries is corrosive

and may cause burns or injury to the eyes or skin. The electrolyte is toxic and may be

harmful if swallowed.

•

Exercise care when handling the batteries. Do not allow conductive materials such as

rings, bracelets, or keys to touch the batteries, otherwise a short circuit may cause the

batteries and/or the conductive material to overheat and cause burns.

•

Charge the batteries provided with or identified for use with this product only, in accordance

with the instructions and limitations specified in this manual.

•

Only use a compatible base unit (or charger) to charge the batteries. Do not tamper with

the base unit (or charger). Failure to follow these instructions may cause the batteries to

swell or explode.

Important safety instructions

When using your product, basic safety precautions should always be followed to reduce the

risk of fire, electric shock, and injury to persons, including the following:

1. Do not use this product near water for example, near a bathtub, washbowl, kitchen sink,

or laundry tub, in a wet basement or near a swimming pool.

2. Do not use the telephone to report a gas leak in the vicinity of the leak.

3. Use only the power cord and batteries indicated in this manual. Do not dispose of

batteries in a fire. They may explode. Check with local codes for possible special

disposal instructions.

SAVE THESE INSTRUCTIONS

Other information

•

Operating the product near electrical appliances may cause interference. Move away from

the electrical appliances.

CAUTION:

Risk of explosion if battery is replaced by an incorrect type. Dispose of used

batteries according to the instructions.

Routine care

•

Wipe the outer surface of the product with a soft moist cloth.

•

Do not use benzine, thinner, or any abrasive powder.

Notice for product disposal, transfer, or return

•

This product can store your private/confidential information. To protect your privacy/

confidentiality, we recommend that you erase information such as phonebook or caller list

entries from the memory before you dispose of, transfer, or return the product.

TGA671EX(ex).book Page 7 Friday, March 9, 2012 5:10 PM

Information for Users on Collection and Disposal of Old Equipment and used

Batteries

These symbols (

) on the products,

packaging, and/or accompanying

documents mean that used electrical and

electronic products and batteries should not

be mixed with general household waste.

For proper treatment, recovery and

recycling of old products and used batteries,

please take them to applicable collection

points, in accordance with your national

legislation and the Directives 2002/96/EC and 2006/66/EC.

By disposing of these products and batteries correctly, you will help to save valuable

resources and prevent any potential negative effects on human health and the environment

which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products and batteries, please

contact your local municipality, your waste disposal service or the point of sale where you

purchased the items.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national

legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or

supplier for further information.

Information on Disposal in other Countries outside the European Union

These symbols (

) are only valid in the European Union. If you wish to discard these

items, please contact your local authorities or dealer and ask for the correct method of

disposal.

Note for the battery symbol

This symbol (

) might be used in combination with a chemical symbol (

). In this case it

complies with the requirement set by the Directive for the chemical involved.

123

TGA671EX(ex).book Page 8 Friday, March 9, 2012 5:10 PM

VOR GEBRAUCH LESEN UND ANSCHLIESSEND

AUFBEWAHREN

Dieses Gerät ist ein zusätzliches Mobilteil das mit dem digitalen

schnurlosen Telefon von Panasonic der folgenden Serien kompatibel ist:

KX-TG6711/KX-TG6721(KX-TGA671)

KX-TG8151/KX-TG8161(KX-TGA815)

KX-TG8551/KX-TG8561(KX-TGA855)

(Die entsprechenden Modelle können ohne Ankündigung geändert

werden.)

Bevor dieses Mobilteil verwendet werden kann, müssen Sie es an Ihrer

Basisstation registrieren. Diese Bedienungsanleitung beschreibt nur die

Registrierung des Mobilteils und die ersten Bedienschritte. Weitere

Einzelheiten finden Sie in der Bedienungsanleitung zu Ihrer Basisstation.

Mitgeliefertes Zubehör

*1 Weitere Einzelheiten zum Auswechseln der Akkus finden Sie in der

Bedienungsanleitung zu Ihrer Basisstation.

*2 Das Mobilteil wird mit angebrachter Akkufachabdeckung geliefert.

Hinweis:

•

Weitere Einzelheiten zu Zusatz-/Ersatz-Zubehör finden Sie in der

Bedienungsanleitung zu Ihrer Basisstation.

•

Informationen über die R&TTE-Richtlinie finden Sie in “Allgemeine

Informationen” in der Bedienungsanleitung der Basisstation.

Verbindung/Wandmontage

(Seite 2:

)

•

Verwenden Sie ausschließlich das mitgelieferte Netzteil PNLV226CE von

Panasonic.

•

Das Netzteil muss stets angeschlossen bleiben. (Es ist normal, dass sich das

Netzteil während des Betriebes warm anfühlt.)

•

Stellen Sie sicher, dass die Wand und die Befestigungsmethode stabil genug

sind, um das Gewicht der Einheit zu tragen. (KX-TGA671/KX-TGA815)

Ladeschale ................................... 1

Netzteil/PNLV226CE .................... 1

Standardakkus

........................... 2

Gürtelclip (KX-TGA815/KX-TGA855)

...................................................... 1

Akkufachabdeckung

.................. 1

Deutsch

TGA671EX(ex).book Page 9 Friday, March 9, 2012 5:10 PM

Einsetzen des Akkus/Akku-Aufladung

(Seite 2:

)

Wichtig:

•

Verwenden Sie die mitgelieferten Akkus. Zum Austausch empfehlen wir die

Akkus von Panasonic, die in der Bedienungsanleitung der Basisstation genannt

werden.

•

Die Pole des Akkus (

) mit einem trockenen Tuch abwischen.

•

Achten Sie darauf, die Pole der Akkus (

) und die Kontakte des Gerätes

nicht zu berühren.

•

Achten Sie auf richtige Polung (

•

VERWENDEN SIE NUR Ni-MH-Akkus der Größe AAA (R03).

•

Verwenden Sie KEINE Alkali-/Mangan-/Ni-Cd-Batterien.

Legen Sie das Mobilteil vor dem ersten Gebrauch ca. 7 Stunden lang auf

das Ladegerät.

Hinweis:

•

Im Display des Mobilteils kann

“

Bitte 1 Minute warten.

”

angezeigt

werden, wenn das Mobilteil auf das Ladegerät gelegt wird und nicht an der

Basisstation registriert ist.

•

Wenn die Akkus vollständig geladen sind, aber die Betriebszeit dennoch kurz

zu sein scheint, wischen Sie die Pole des Akkus (

) und die Kontakte des

Geräts mit einem trockenen Tuch ab und wiederholen Sie den Ladevorgang.

Display-Sprache

(mittlere Soft-Taste)

(

)

{

}

: Wählen Sie die von Ihnen gewünschte Sprache aus.

}

Registrieren des Mobilteils an der Basisstation

Stellen Sie sicher, dass das Mobilteil eingeschaltet ist. Andernfalls halten Sie

}

einige Sekunden gedrückt, um das Mobilteil einzuschalten.

Mobilteil:

Nehmen Sie den Hörer ab und drücken Sie

}

Basisstation:

Halten Sie

{x}

ca. 5 Sekunden gedrückt.

•

Abhängig von der Basisstation ertönt ein Registriersignal.

Wenn die Sprachauswahl nach dem erstmaligen Einsetzen der Akkus

angezeigt wird, können Sie die gewünschte Sprache auswählen.

{

}

: Wählen Sie die gewünschte Sprache aus.

}

TGA671EX(ex).book Page 10 Friday, March 9, 2012 5:10 PM

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Auricular de Panasonic

Panasonic

Panasonic KX-TGA828FX Manual de usuario

Panasonic

Panasonic KX-TGA510M - 5.8GHz Accessory Handset Manual de usuario

Panasonic

Panasonic KX-PRWA10EX Manual de usuario

Panasonic

Panasonic KX-TGA510M - 5.8GHz Accessory Handset Instrucciones de funcionamiento e instalación

Panasonic

Panasonic KX-TGMA44C Manual de usuario

Panasonic

Panasonic KX-TGA840EX Manual de usuario

Panasonic

Panasonic KX-TG2559LBS Manual de usuario

Panasonic

Panasonic KX-TD7696 Manual de usuario

Panasonic

Panasonic KXTGA850E Manual de usuario

Panasonic

Panasonic KX-TGA572C Manual de usuario

Panasonic

Panasonic KX-TG5200C Manual de usuario

Panasonic

Panasonic KX-TGJ320 Manual de usuario

Panasonic

Panasonic KX-TD7696 Manual de usuario

Panasonic

Panasonic KXTGA272S - H/S FOR KXTG2700 Manual de usuario

Panasonic

Panasonic KX-TGDA63 Manual de usuario

Panasonic

Panasonic KX-TGA560B - Cordless Extension Handset Manual de usuario

Panasonic

Panasonic KXTGA935 - DIGITAL CORDLESS HANDSET INSTALL Manual de instrucciones

Panasonic

Panasonic KX-TGA750B Manual de usuario

Panasonic

Panasonic KX-TGA800EX Manual de usuario

Panasonic

Panasonic KX-TGA711FX Manual de usuario

Panasonic

Panasonic KX-TGA300B - Cordless Extension Handset Manual de usuario

Panasonic

Panasonic KX-TPA50 Manual de usuario

Panasonic

Panasonic KX-HNH100FX Manual de usuario

Panasonic

Panasonic 2LINE KX-TGA950C Manual de usuario

Manuales populares de Auricular de otras marcas

Swissvoice

Swissvoice ePure HD Manual de usuario

Philips

Philips TD6736/BH051P Manual de usuario

ASCOM

ASCOM I62 - Manual de usuario

LG-Ericsson

LG-Ericsson LIP-9010 Manual de usuario

GE 1583 Manual de usuario

iiNet

iiNet Handset Manual de usuario

ASCOM

ASCOM 9p23 Manual de usuario

AT&T

AT&T DLP70110 Manual de usuario

AirCell

AirCell ST 3100 Manual de usuario

Eaton

Eaton HHIR-LCD-PROG Instrucciones de montaje

Mitel

Mitel 112 Manual de usuario

SBC

SBC SBC-381H Manual de usuario

Mitel

Mitel 5602 Manual de usuario

ASCOM

ASCOM d81 Messenger Instrucciones de instalación

SpectraLink

SpectraLink 7522 Manual de usuario

Avaya

Avaya L100 Series Cómo utilizar

ooma

ooma HD2 Handset Manual de usuario

Yealink

Yealink IPW56 Manual de usuario
