Outback Jupiter 4 Manual de usuario

0359

Assembly and Operating Instructions for Outback®

Jupiter 4 Gas BBQ

Drawings are not to scale.

Specifications subject to change

without prior notice.

WARNING

 For outdoor use only. Not for commercial use.

 Read instructions before using the appliance. Failure to follow instructions could

result in death, serious bodily injury, and/or property loss.

 Warning: accessible parts may be very hot. Keep young children and pets away.

 Do not move the appliance during use.

 Turn off the gas supply at the gas bottle after use.

 Any modification of the appliance, misuse, or failure to follow the instructions may

be dangerous and will invalidate your warranty. This does not affect your statutory

rights.

 Retain these instructions for future reference.

 Leak test annually, and whenever the gas bottle is removed or replaced. Check that

the hose connections are tight and leak test each time you reconnect the gas bottle.

 For Flare-up control please refer to the ‘OPERATION’ section of this manual.

FOR YOUR SAFETY

If you smell gas:

1. Shut off gas to the appliance.

2. Extinguish any open flame.

3. Open barbecue lid or hood.

4. If odour continues, discontinue use and

contact your local dealer.

FOR YOUR SAFETY

1. Do not store or use petrol or other flammable

vapours or liquids in the vicinity of this or any

other appliance.

2. A gas bottle not connected for use must not be

stored in the vicinity of this or any other

appliance.

RS4491C

CODE PART QTY Jupiter 4 Gas BBQ

HOOD

A1 Hood (Pre-Assembled to Body) 1 

A2 Hood Handle 1 

A3 Heat Indicator 1 

A4 Warming Rack 1 

BODY

B1 Barbecue Body 1 

B2 Burner 4 

B3 Control Panel 1 

B4 Knob 4 

B5 Hose and Regulator Assembly 1 

B6 Flame Tamer 4 

B7 Round Grill 1 

B8 Cooking Grill 2 

B10 Charcoal Basket 1 

TROLLEY

C1 Side Burner Shelf 1 

C2 Side Burner Shelf Panel 1 

C3 Side Shelf 1 

C4 Side Shelf Panel 1 

C5 Tool Hook 3 

C6 Side Burner Grid 1 

C7 Knob Bezel 1 

C8 Side Burner Knob 1 

C9 Side Burner 1 

C10 Left Cabinet Panel 1 

C11 Right Cabinet Panel 1 

C12 Upper Support 1 

C13 Door Handle 2 

C14 Left Door 1 

C15 Right Door 1 

C16 Rear Panel 2 

C17 Bottom Panel 1 

C18 Front Wheel Skirt 1 

C19 Storage Unit 1 

C20 Caster 2 

C23 Chopping Board 1 

HARDWARE

D1 M6x35 Bolt 8 

D2 ST4.0x10 Screw 21 

D3 M6x15 Bolt 27 

D4 M6 Nut 12 

D5 M4x10 Bolt 3 

D6 M5x10 Bolt 2 

B9 Drip Tray 1 

C21 Lockable Caster 2 

C22 Hook Rail 1 

 Pre-Assembled Component

 Quantity varies according to model purchased

Appearance, size, and construction may differ according to model purchased

Parts List

Quantity varies according to model purchased. Specifications subject to change without prior notice. For

more details on hardware, please see the corresponding ‘Hardware Reference Diagram’.

Parts Diagram

Quantity varies according to model purchased. Specifications subject to change without prior notice. For

more details on hardware, please see the corresponding ‘Hardware Reference Diagram’.

C16

C13

C14 C15

C20

C21

C12

C11

C10

C17

C18

C19

B10

C23

C22

Hardware Reference Diagram

Specifications subject to change without prior notice.

Assembly

IMPORTANT!

 TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/Crosspoint screwdriver,

adjustable spanner or metric spanner set.

 Remove any internal component or packaging from the barbecue body.

 Whilst every care is taken in the manufacture of this product, care must be taken during assembly in

case sharp edges are present.

 Please read the Important Information section carefully before assembly and use of your

barbecue.

Attach the Left Cabinet Panel (C10) and Right Cabinet Panel (C11) to the Bottom Panel (C17)

using M6x35 Bolts (D1x8pcs) and M6 Nuts (D4x8pcs), ST4.0x10 Screw (D2x6pcs) as shown.

C17

Attach the Front Wheel Skirt (C18) onto the Bottom Panel (C17) using M6x15 Bolts

(D3x3pcs) as shown.

C18

C10 C11

C17

Attach the Rear Panels (C16x2pcs) to the cabinet assembly using ST4.0x10

Screws (D2x11pcs) as shown.

C16

C19

Attach the Storage Unit (C19) onto the Bottom Panel (C17) using M6x15 Bolts

(D3x4pcs) as shown.

Bottom

C16

Attach the Upper Support (C12) to the left/right cabinet panel using M6x15 Bolts (D3x4pcs).

Carefully turn the cabinet upside-down.

Attach the Lockable Casters (C21x2pcs) into the rear side holes of the left/right cabinet panel

and the Casters (C20x2pcs) into the front side holes of the left/right cabinet panel, as shown.

C12

C21

C20

Remove the retaining bolts from one Door Handle (C13), and then attach the door

handle onto the Left Door (C14) using the retaining bolts as shown. Repeat above

process for Right Door (C15).

Fit the doors to the cabinet by depressing the spring pins and placing into the cabinet.

C13

C14

Carefully place the Barbecue Body (B1) onto the cabinet assembly and fix using

M6x15 Bolts (D3x4pcs) as shown.

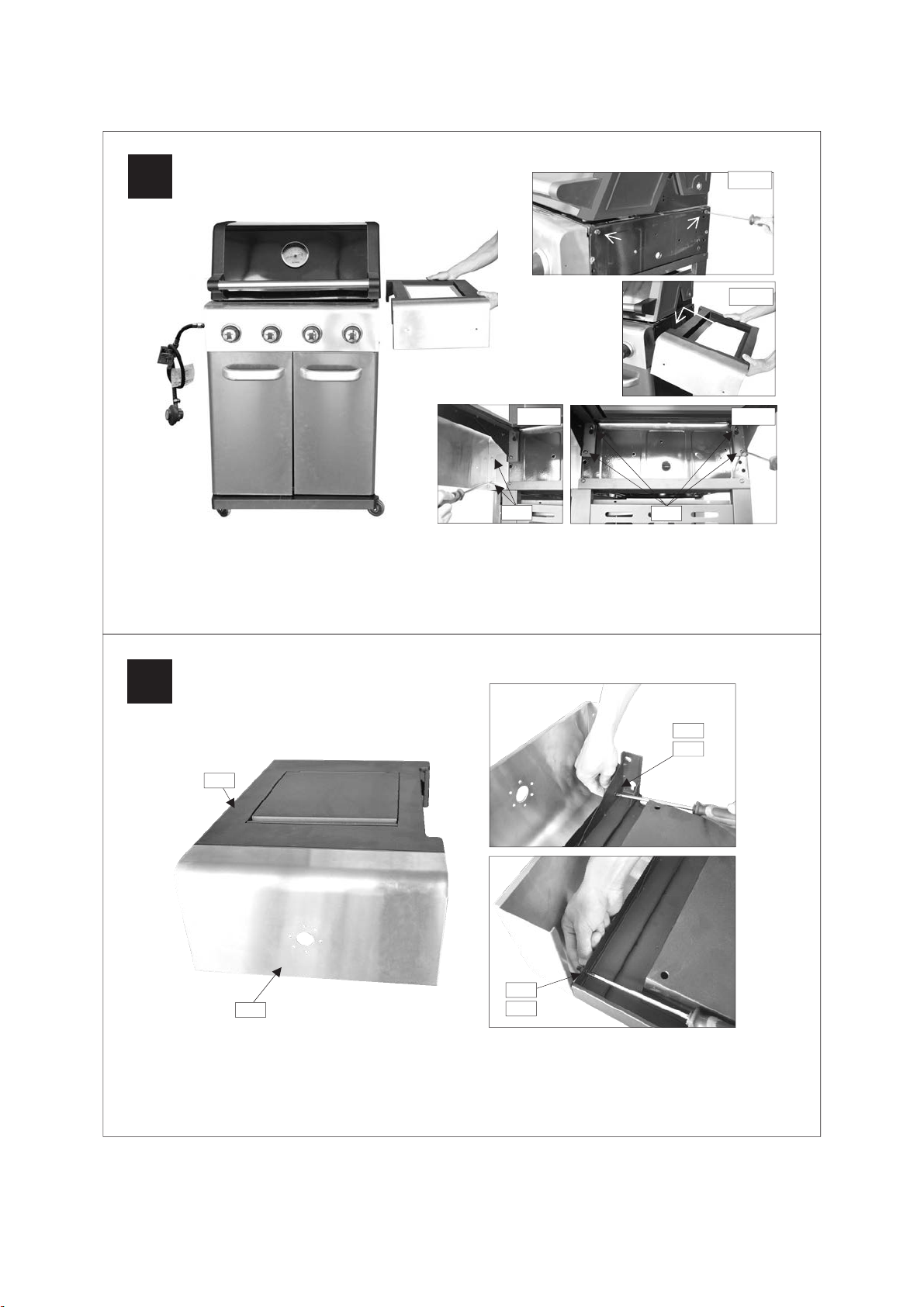

Attach Side Shelf Panel (C4) onto Side Shelf (C3) using M6x15 Bolts (D3x2pcs) and M6 Nut

(D4x2pcs) as shown.

Attach the side shelf assembly to the barbecue body using ST4.0x10 Screw (D2x2pcs) and

M6x15 Bolts (D3x4pcs) as shown.

Attach Side Burner Shelf Panel (C2) onto Side Burner Shelf (C1) using M6x15 Bolts (D3x2pcs)

and M6 Nut (D4x2pcs) as shown.

step1

step2

step4 step3
