Assembly and Operating Instructions for Outback®

Magnum 3 Gas BBQ

WARNING

 For outdoor use only. Not for commercial use.

 Read instructions before using the appliance. Failure to follow instructions could

result in death, serious bodily injury, and/or property loss.

 Warning: accessible parts may be very hot. Keep young children and pets away.

 Do not move the appliance during use.

 Turn off the gas supply at the gas bottle after use.

 Any modification of the appliance, misuse, or failure to follow the instructions may be

dangerous and will invalidate your warranty. This does not affect your statutory rights.

 Retain these instructions for future reference.

 Leak test annually, and whenever the gas bottle is removed or replaced. Check that the

hose connections are tight and leak test each time you reconnect the gas bottle.

 For Flare-up control please refer to the ‘OPERATION’ section of this manual.

FOR YOUR SAFETY

If you smell gas:

1. Shut off gas to the appliance.

2. Extinguish any open flame.

3. Open barbecue lid or hood.

4. If odour continues, discontinue use and

contact your local dealer.

FOR YOUR SAFETY

1. Do not store or use petrol or other flammable

vapours or liquids in the vicinity of this or any

other appliance.

2. A gas bottle not connected for use shall not be

stored in the vicinity of this or any other

appliance.

0359

RC4341PA

Parts List

Quantities vary according to model purchased. Specifications subject to change without prior notice. For

more details on hardware, please see ‘Hardware Reference Diagram’.

CODE PART QTY Magnum 3 Gas BBQ

HOOD

A1 Hood (Pre-Assembled to Body) 1 

A2 Hood Handle 1 

A3 Heat Indicator 1 

A4 Warming Rack 1 

BODY

B1 Cooking Grill 2 

B2 Flame Tamer 3 

B3 Barbecue Body 1 

B4 Knob 3 

B5 Control Panel 1 

B6 Burner 3 

B7 Drip Tray 1 

B8 Drip Tray Left Bracket 1 

B9 Drip Tray Right Bracket 1 

B10 Side burner valve, Hose and Regulator Assembly 1 

TROLLEY

C1 Side Burner Shelf 1 

C2 Side Burner Base 1 

C3 Ignition Button 1 

C4 Side Burner 1 

C5 Side Burner Electrode 1 

C6 Side Burner Grid 1 

C7 Side Burner Knob 1 

C8 Side Shelf 1 

C9 Hook Rail 1 

C10 Tool Hook 3 

C11 Left Front Leg 1 

C12 Left Rear Leg 1 

C13 Right Front Leg 1 

C14 Right Rear Leg 1 

C15 Bottle Opener 1 

C16 Front Screen 1 

C17 Trolley Base 1 

C18 Axle 1 

C19 Wheel 2 

C20 Hubcap 2 



HARDWARE

D1 M5x15 Bolt 4 

D2 Washer 4 

D3 M5 Nut 4 

D4 M6x10 Bolt 19 

D5 M6x15 Bolt 12 

D6 M6x145 Bolt 8 

D7 Spacer 8 

D8 M6 Nut 4 

D9 M4x10 Bolt 2 

D10 Locknut 2 

D11 Wing Nut 1 

 Pre-Assembled Component

Parts Diagrams

Quantities vary according to model purchased. Specifications subject to change without prior notice. For

more details on hardware, please see hardware pack page.

C12C11

B10

C20

C15

C19

C14

C16

C18

C1 B9

C13

D10

C17

D11

C10

Hardware Reference Diagram

Specifications subject to change without prior notice.

D1,D2,D3

D6,D7

D5,D8

M4X10 Bolts （2 pcs）

Assembly

IMPORTANT!

 TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/Crosspoint screwdriver,

adjustable spanner or metric spanner set.

 The assembly of this barbecue at least requires 2 people.

 Remove any internal components or packaging from the barbecue body.

 Whilst every care is taken in the manufacture of this product, care must be taken during assembly in

case sharp edges are present.

 Please read the Important Information section carefully before assembly and use of your

barbecue.

Attach the Left Front Leg (C11) and Right Front Leg (C13) onto the Trolley Base (C17) using

the M6x15 Bolts (D5x4pcs) as shown.

Attach the Left Rear Leg (C12) and Right Rear Leg (C14) onto the Trolley Base (C17) using

the M6x15 Bolts (D5x4pcs) as shown.

C13

C17

C11

C17

C14

C12

Unscrew the Locknuts (D10) from both ends of the Axle (C18). Slide the axle through the

corresponding holes in the left legs. Slide the Wheels (C19) over each end of the axle.

Secure the wheels into place with the locknuts. Place the Hubcaps (C20) onto the outsides

of the wheels.

Insert M6x145 Bolts (D6x8pcs) through the trolley legs, the Spacers (D7x8pcs), and keep the

tip of the bolts inside the spacers. While holding the barbecue body into position (2 people

required), screw the bolts into the barbecue body as shown.

CAUTION! Care must be taken to ensure the hood or lid does not fall open

unexpectedly or becomes damaged when it is set on the ground.

D6 D7

C19

C18

D10C20

Attach the Bottle Opener (C15) to the right front leg using a M6x10 Bolts (D4).

C15

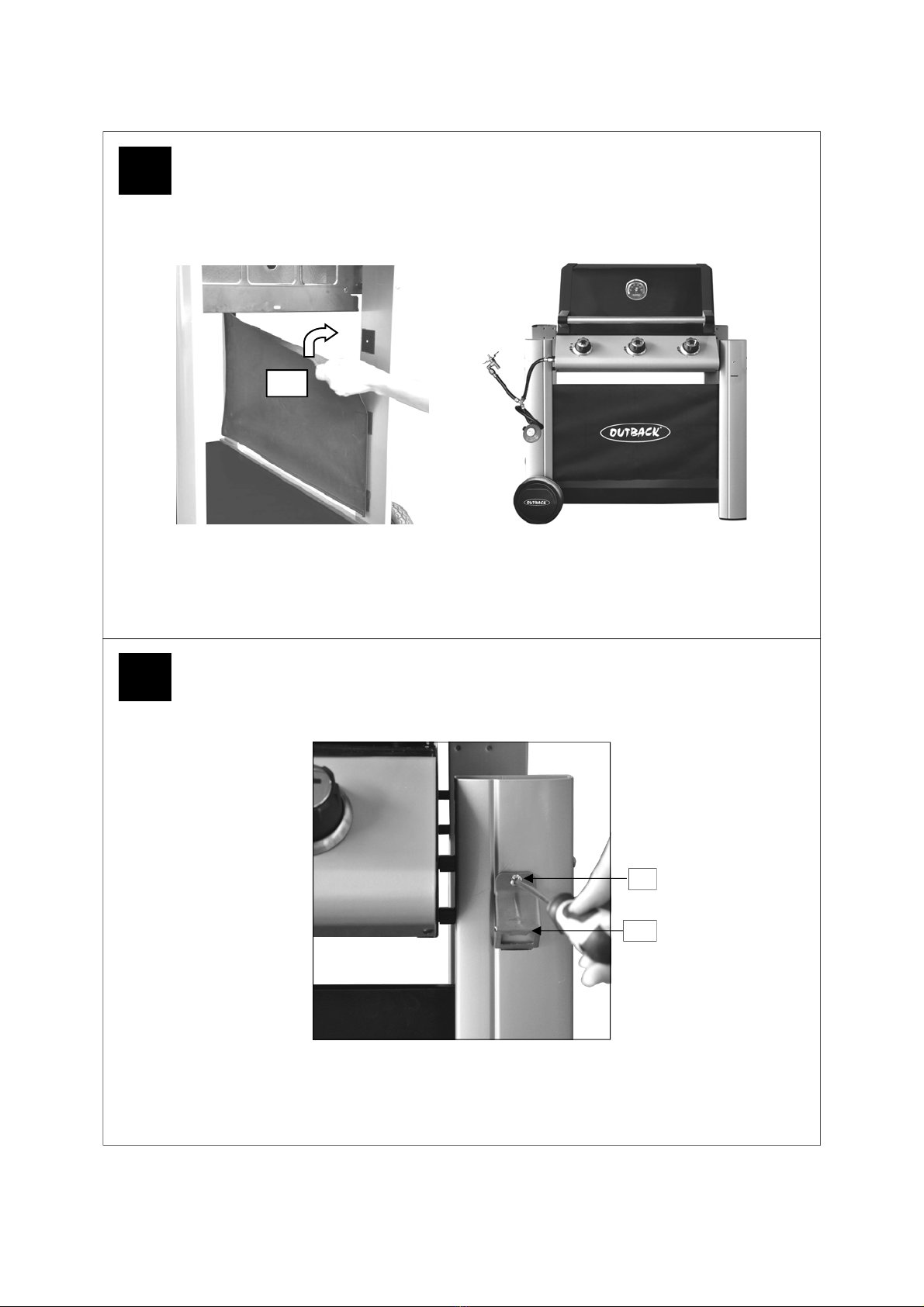

Attach the Front Screen (C16) to the Front Left / Right Legs as shown.

(Rear view of the barbecue trolley.)

C16

Attach the Drip Tray Left Bracket (B8) to barbecue body using M5x15 Bolts (D1x2pcs), Washers

(D2x2pcs) and M5 Nuts (D3x2pcs) as shown. Repeat above process for Drip Tray Right Bracket

(B9).

NOTE: Ensure that the big tabs of the brakets which stop the drip tray are located at the

front of the barbecue.

Attach the Side Burner Shelf (C1) to the left front / rear Legs using M6x10 Bolts (D4x8pcs).

FRONT

REAR

B8D1 D2 D3

FRONT REAR

Attach the side burner valve onto the side burner base using M4x10 Bolts (D9x2pcs) as shown.

Unscrew the pre-assembled nut of the Ignition Button (C3). Insert the ignition button through the

Side Burner Base (C2) and secure with the pre-assembled nut.

Carefully lay the side burner base into the side burner shelf, then fixing it by using M6x15 Bolts

(D5x4pcs) and M6 Nuts (D8x4pcs) as shown.

Pre-assembled Nut

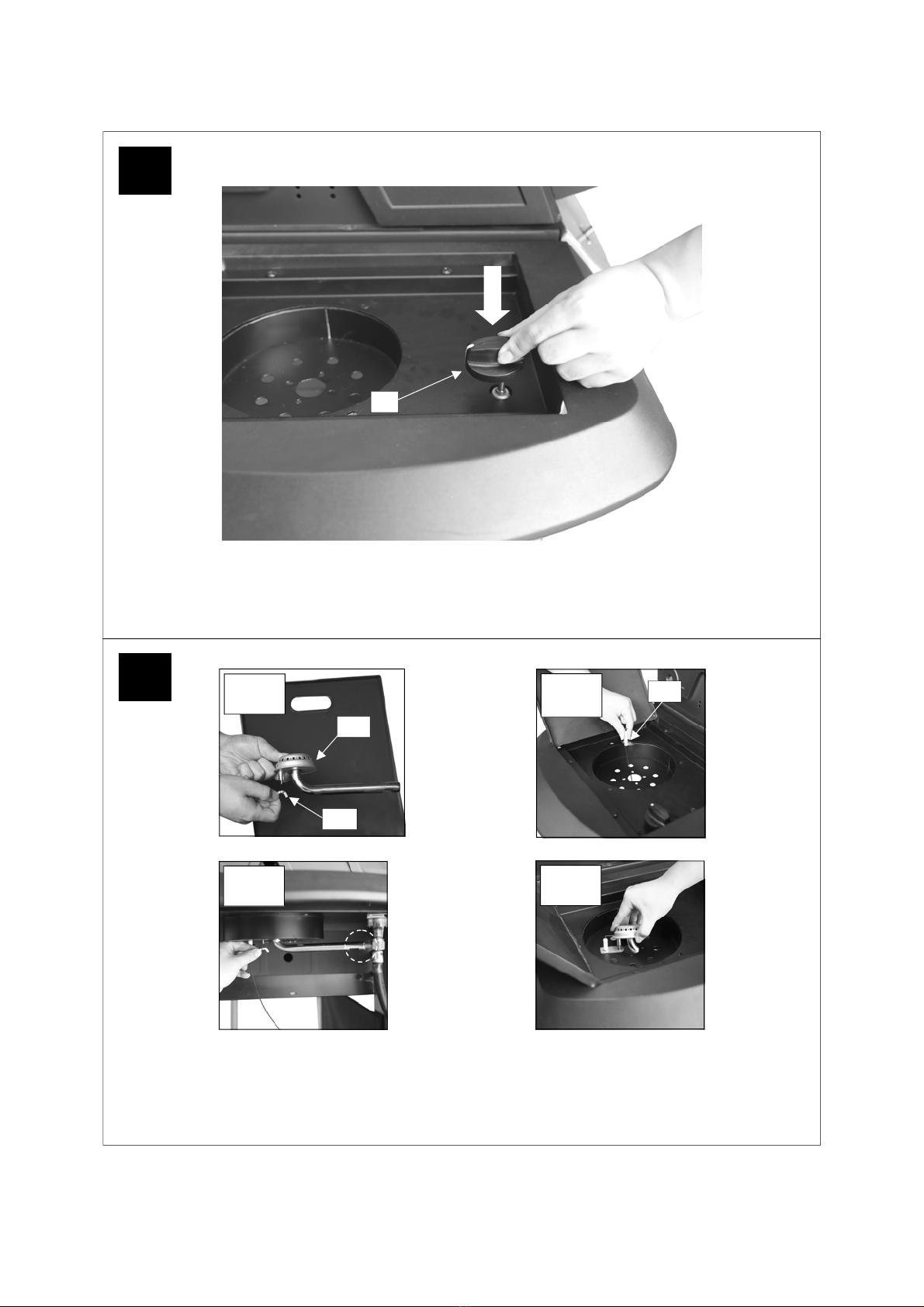

Press the Side Burner Knob (C7) onto side burner valve stem.

Unscrew the Wing Nut (D11) from the Side Burner (C4). Insert the wire of Side Burner Electrode

(C5) into the hole at the side burner base. Feed the venturi tube of the side burner through the hole

in bottom of side burner base as shown, then fix it and the side burner electrode onto side burner

base using the wing nut. Make sure that the end of venturi tube is set over the gas outlet of side

burner valve.

Step②

Step①

Step③

Step④

D11
