Outback Hunter Plus 3 Manual de usuario
Photographs are not to scale.
Specifications subject to change
without prior notice.
Assembly and Operating Instructions for Outback®
Hunter Plus 3 Gas BBQ
WARNING
• For outdoor use only. Not for commercial use.
• Read instructions before using the appliance. Failure to follow instructions could
result in death, serious bodily injury, and/or property loss.
• Warning: accessible parts may be very hot. Keep young children and pets away.
• Do not move the appliance during use.
• Turn off the gas supply at the gas bottle after use.
• Any modification of the appliance, misuse, or failure to follow the instructions may be
dangerous and will invalidate your warranty. This does not affect your statutory rights.
• Retain these instructions for future reference.
• Leak test annually, and whenever the gas bottle is removed or replaced. Check that the
hose connections are tight and leak test each time you reconnect the gas bottle.
• For Flare-up control please refer to the ‘OPERATION’ section of this manual.
FOR YOUR SAFETY
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open barbecue lid or hood.
4. If odour continues, discontinue use and
contact your local dealer.
FOR YOUR SAFETY
1. Do not store or use petrol or other flammable
vapours or liquids in the vicinity of this or any
other appliance.
2. A gas bottle not connected for use shall not be
stored in the vicinity of this or any other
appliance.
0359
THG3302SB-7
2
Parts List
Quantities vary according to model purchased. Specifications subject to change without prior notice. For
more details on hardware, please see ‘Hardware Reference Diagram’.
CODE PART QTY Outback® Hunter Plus 3 Gas BBQ
HOOD
A1 Hood (Pre-Assembled to Body) 1
A2 Hood Handle 1
A3 Heat Indicator 1
A4 Warming Rack 1
BODY
B1 Cooking Grill 2
B2 Cooking Griddle
B3 Lava Rock 2
B4 Lava Rock Basket 2
B5 Barbecue Body 1
B6 Knob 3
B7 Control Panel 1
B8 Burner 3
B9 Drip Tray 1
B10 Drip Tray Left Bracket 1
B11 Drip Tray Right Bracket 1
B12 Drip Pan Handle 1
B13 Hose and Regulator Assembly 1
TROLLEY
C1 Side Burner Shelf 1
C2 Side Shelf 1
C3 Left Front Leg 1
C4 Left Rear Leg 1
C5 Right Front Leg 1
C6 Right Rear Leg 1
C7 Leg Top Support 1
C8 Screen 1
C9 Fixed support 2
C10 Trolley Base 1
C11 Leg Endcap 2
C12 Axle 1
C13 Wheel 2
C14 Hubcap 2
C15 Side Burner Knob 1
C16 Side Burner Grid 1
C17 Axle Washer 2
C18 Locknut 2
HARDWARE
D1 M6x95 Bolt 8
D2 Spacer 8
D3 1/4-20UNCx22 Step Bolt 4
D4 1/4-20UNCx12 Bolt 8
D5 1/4-20UNCx25 Bolt 8
D6 1/4-20UNCx22 Bolt 8
D7 M5x15 Bolt 4
D8 Washer 4
D9 M5 Nut 4
Pre-Assembled Component
Quantity varies according to model purchased
Appearance, size, and construction may differ according to model purchased
3
Parts Diagrams
Quantities vary according to model purchased. Specifications subject to change without prior notice. For
more details on hardware, please see hardware pack page.
B1
A4
B13
C1
C4 C6
C8
C12
C13 C14 C11
C3 C5
B10
B6 B7
B3
B9
B11
C10
B4
C2
C7
B8
C18
C15
C16
C17
B5
A1
A2
A3
B12
C9
4
Hardware Reference Diagram
Specifications subject to change without prior notice.
D7
D8
D9
D5
D1,D2
D3
D4
D6
5
2
Assembly
IMPORTANT!
• TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/Crosspoint screwdriver,
adjustable spanner or metric spanner set.
• Remove any internal components or packaging from the barbecue body.
• Whilst every care is taken in the manufacture of this product, care must be taken during assembly in
case sharp edges are present.
• Please read the Important Information section carefully before assembly and use of your
barbecue.
1
Attach the Front Legs (C3, C5) and one Fixed Support (C9) onto the Trolley Base (C10) by
aligning corresponding holes and fixing with the 1/4-20UNCx25 Bolts (D5x4pcs) as shown.
Ensure Front legs with the hole for assembling Front Screen to them are at the facing inwards of
the barbecue.
C3
C5
C9
C10
Attach the Rear Legs (C4, C6) and other Fixed Support (C9) onto the Trolley Base (C10) by
aligning corresponding holes and fixing with the 1/4-20UNCx25 Bolts (D5x4pcs) as shown.
C6
C4
C9
6
4
3
Place the wheel Hubcaps (C14) onto the outsides of the wheels.
C13
C12
Unscrew the Locknuts (C18x2pcs) from both ends of the Axle (C12) and remove the Axle
Washers (C17x2pcs). Slide the axle through the corresponding holes in the left legs. Place axle
washers on each end of the axle. Slide the Wheels (C13) over each end of the axle. Secure the
wheels into place with the locknuts.
C18
C17
C14
7

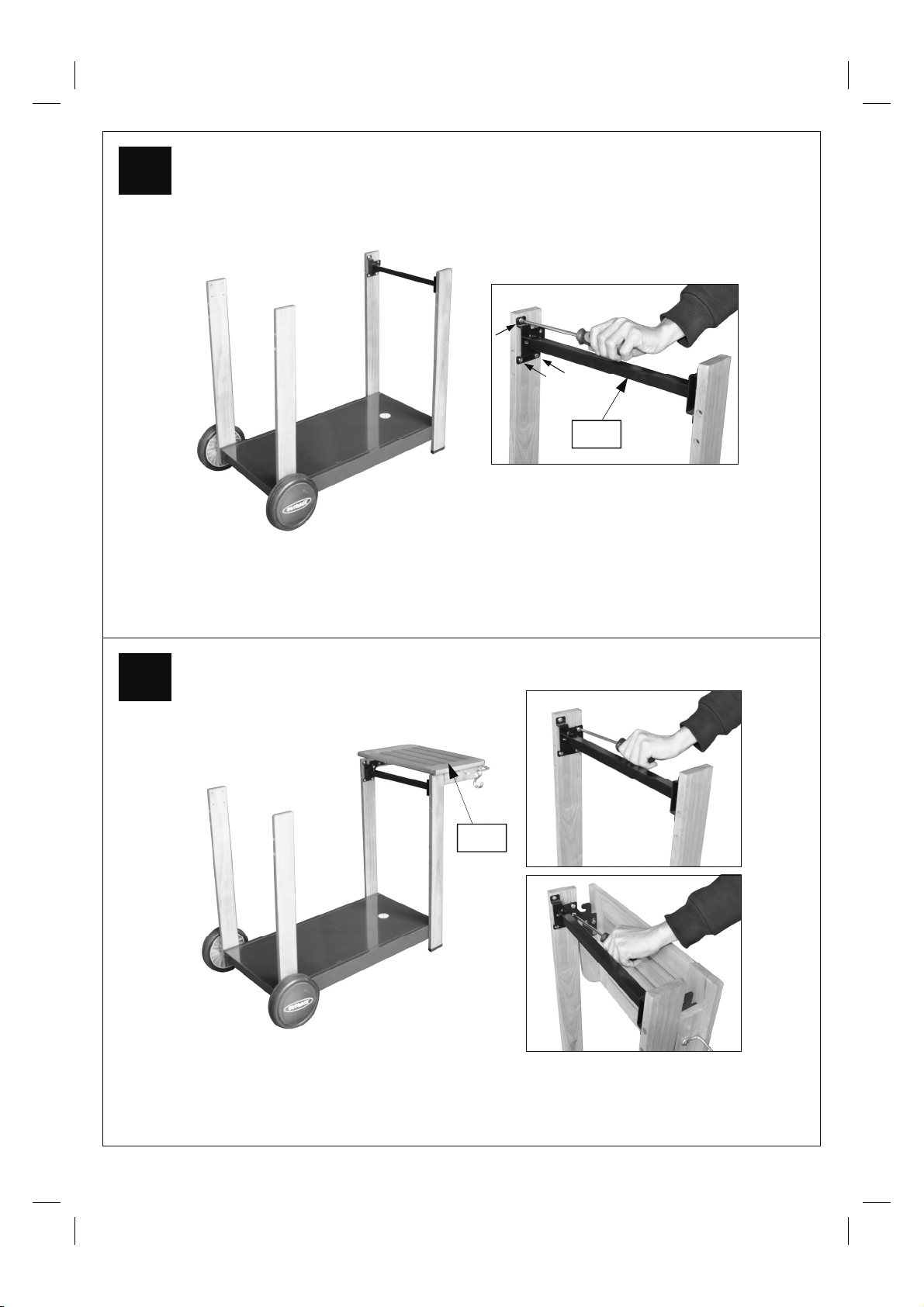

Install a 1/4-20UNCx22 Step Bolts (D3x2pcs) on each leg, and then attach the Side Shelf (C2)
onto right legs using the 1/4-20UNCx22 Step Bolts (D3x2pcs). Hook the side shelves onto the
upper step bolts.
Attach one Leg Top Support (C7) between the left legs using the 1/4-20UNCx12 Bolts (D4x3pcs).
Repeat above process for the other leg top support.
6
5
C2
C7
8
8
7
Press the Side Burner Knob (C15) onto side burner valve stem.
Attach the Side Burner Shelf (C1) onto left legs using the 1/4-20UNCx22 Bolts (D6x8pcs).
C1
C15
D6
Insert M6x95 Bolts (D1x8pcs) through the trolley legs, the Spacers (D2x8pcs), and keep the tip of
the bolts inside the spacers. While holding the barbecue body into position (2-3 people required),
screw the bolts into the barbecue body as shown.
CAUTION! Care must be taken to ensure the hood or lid does not fall open unexpectedly or
becomes damaged when it is set on the ground.
When positioning the body of the barbecue, ensure the control panel is on the same side as the legs
with Velcro fastenings.
D1 D2
9
Attach Drip Tray Left Bracket (B10) to barbecue body using M5x15 Bolts (D7x2pcs), Washers
(D8x2pcs) and M5 Nuts (D9x2pcs) as shown. Repeat above process for Drip Tray Right Bracket
(B11).
NOTE: Ensure that the big tabs of the brakets which stop the drip tray are located at the
front of the barbecue.
10
9
B10
D7 D8
B9
Unscrew retaining bolts from Drip Tray Handle (B12) ,and fix the drip tray handle onto Drip Tray
(B9) using the retaining bolts.
Insert the Drip Tray (B9) by sliding it underneath the barbecue body.
B9 B12
Front
view
Front
view
√ ×
10
Remove the plastic wrap from the Lava Rock (B3x2pcs) and then place a uniform layer into Lava
Rock Basket (B4x2pcs). Lay the lava rock carefully into the body ensuring it lies level within the
body. Lay the cooking grills (B1x2pcs) into place.
NOTE: Ensure that the lava rock lies directly underneath the grills.
12
11
B1
B3
B4
Attach the Warming Rack (A4) to the Hood (A1) and Barbecue Body (B5) as shown. Make sure
that the swing legs fix to the body of the barbecue and the shorter fixed legs go through the holes
in the hood.
Step 1
Step 2
Step 3
Step 4
A4
