Optika B-1000FL HBO Manual de usuario

OPTIKA MICROSCOPES - ITALY

www.optikamicroscopes.com - [email protected]

Ver. 1.0.0

B-1000FL HBO

OPERATION MANUAL

GUIDA UTENTE

MANUAL DE INSTRUCCIONES

MANUEL D’INSTRUCTIONS

BEDIENUNGSANLEITUNG

Page 3

INDEX

1.0 DESCRIPTION page 5

2.0 INTRODUCTION page 6

3.0 UNPACKING AND ASSEMBLY page 6

4.0 USING THE MICROSCOPE page 9

5.0 MAINTENANCE page 12

6.0 ELECTRICAL SPECIFICATION page 12

7.0 RECOVERY AND RECYCLING page 13

Page 4

This microscope is a scientic precision instrument designed to last for many years with a minimum of main-

tenance. It is built to high optical and mechanical standards and to withstand daily use.

Optika reminds you that this manual contains important information on safety and maintenance, and that it

must therefore be made accessible to the instrument users.

Optika declines any responsibility deriving from instrument uses that do not comply with this manual.

Safety guidelines

This manual contains important information and warnings regarding safety about installation, use and

maintenance of the microscope. Please read this manual carefully before using the equipment. To

ensure safe use, the user must read and follow all instructions in this manual. OPTIKA products are

designed for safe use in normal operating conditions. The equipment and accessories described in

the manual are manufactured and tested according to industry standards for safety instrumentation

laboratory. Misuse can cause personal injury or damage to the instrument. Keep this manual at hand

close to the instrument, for an easy consultation.

Electrical safety

Before connecting the power cord to wall outlet, ensure that your mains voltage for your region corre-

sponds to the voltage supply of the instrument, and that the illuminator’s switch is in position OFF. The

user must observe the safety regulations in force in his region. The instrument is equipped with CE

safety marking, in any case the user has full responsibility concerning the safe use of that instrument.

Warning/Caution symbols used in this manual

The user should be aware of safety aspects when using the instrument. Warning or hazard symbols

are shown below. These symbols are used in this manual.

Follow the instructions on this symbol to avoid possible severe personal injuries.

Warning of use; the incorrect operation on the instrument can cause damages

to the person or instrument.

Possibility of electric shock.

Attention: high temperature surfaces. Avoid direct contact.

Technical notes or usage tips.

SAFETY GUIDELINES

Page 5

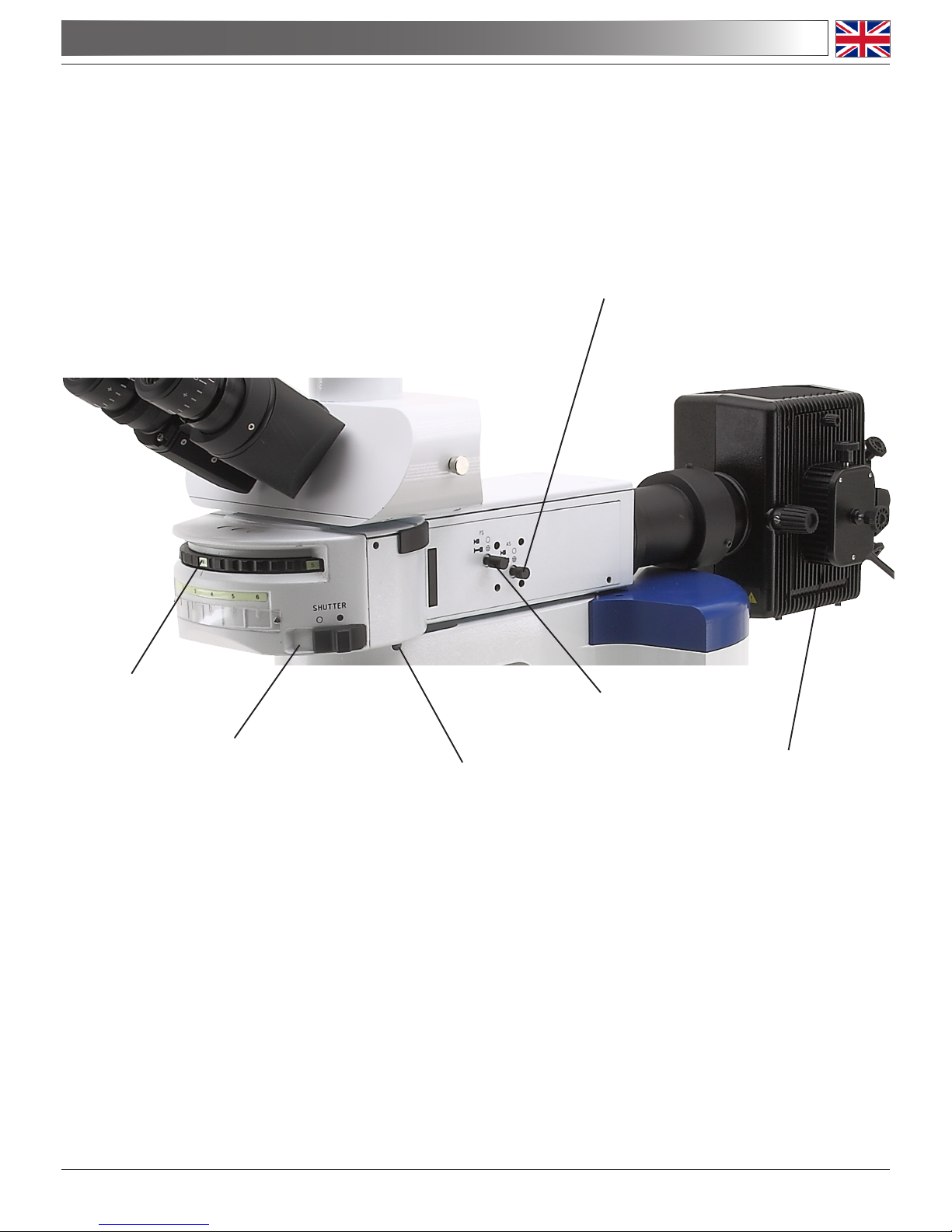

1.0 DESCRIPTION

APERTURE DIAPHGRAM

FILTER WHEEL

FLUORESCENCE LIGHT

SHUTTER ATTACHMENT FIXING

SCREW

HBO LAMP CASE

FIELD DIAPHGRAM

Page 6

2.0 INTRODUCTION

3.0 UNPACKING AND ASSEMBLY

3.1 The components are stored in 2 separated boxes: one containing epiuorescence attachment, and

one containing power supply and mercury lamp case. Remove the protection caps from the top of the

main B-1000 body and from the epiilluminator and place the epiilluminator on the top of the microsco-

pe body. Tighten the screw on the right side using the provided allen wrench.

3.2 Insert the mercury lamp case on the back of the epiilluminator and tighten the screws using the provi-

ded allen wrench.

This equipment is a scientic precision instrument designed to last for many years with a minimum of main-

tenance. It is built to high optical and mechanical standards and to withstand daily classroom and laboratory

use.

Optika reminds you that this manual contains important information on safety and maintenance, and that it

must therefore be made accessible to the instrument users.

Optika declines any responsibility deriving from instrument uses that do not comply with this manual.

Page 7

3.0 UNPACKING AND ASSEMBLY

3.3 Fix the orange protection screen to the front of the epiilluminator with the two provided screws.

3.4 Mercury lamp insertion: Loosen the lock-screw on the top of the lamp case. The lamp holder will

come out with the door.

Lock screw

Page 8

Remove the plastic placeholder.

Use protection glasses as, if handled carelessly, there is a risk that the lamp may shatter and eject

glass splinters. Thus, without touching the glass part of the lamp, take out the uorescence lamp from

its box, taking care not to exert stress on any part of the lamp. Put one end inside the exible metal

holder (note: it ts only in one direction) and then in the xed one. Tighten the screws just enough to

make it stay in place.If you tighten them too much the lamp may shatter.

Put the lamp door with lamp assembly back in place.

3.5 Connect the lamp case to the power supply trough the provided 3-poles cable.

3.0 UNPACKING AND ASSEMBLY

Page 9

4.1 Turn on the power supply using the power switch. Wait until the current display shows about

4.5 A. If the current falls below 4 A, replace the lamp. You should now wait for at least 10

minutes before aligning and using the lamp.

4.2 Aligning the mercury lamp

Move the lter selector of the lter wheel on the desired position, corresponding to an excitation

wavelength.

Insert a specimen slide and focus with 4X objective.

Fully open the eld and aperture diaphgrams.

Adjust the two lamp centering screws on the case, in order to maximize the light intensity emitted by

the sample.

Adjust the focus of the collector lens until the sample is uniformly illuminated (if the lamp is not cor-

rectly focussed, there will be a bright spot of light in the center of the eld, and dark outside).

Note: if the current display shows 0 A for many seconds after switching on, press the Trigger button

(2-3 times if needed) until a current begins to ow in the lamp.

4.0 USING THE MICROSCOPE

Page 10

The lamp case allows also a ne tuning of the orientation of the mirror located at the back of the

lamp, this could improve the intensity of illumination.

4.0 USING THE MICROSCOPE

Y LAMP MOVEMENT

LENS FOCUS

ADJUSTMENT

X LAMP MOVEMENT

MIRROR ALIGNMENT KNOBS

(ON THE BACK OF LAMP

CASE)
