INTRODUCTION

The One For All 3 Device Universal Remote Control (URC-3021) is designed

to remotely operate up to three home entertainment devices. It also

features intuitive and easy-to-use keys for instant control of DVD and PVR

(or DVR) components.Moreover,its sophisticated technology will allow you

to consolidate your original home entertainment remote controls into one

easy-to-use product. Advanced features include:

• Intuitive buttons to allow easy access to functions and menus on your DVD

player, PVR (or DVR), and Cable/Satellite devices

• Direct code setup for easy device programming

•Step-and-Set code search and Code Verification for an alternate way to pro-

gram devices

•Power Macro for master on/off control of all of your equipment with a single

keystroke

•Volume Lock/Unlock feature to lock or unlock the volume control to one mode

or individual modes

•Device Key Re-Assignment to remotely control a second (duplicate) device

•Channel Scan and Favorite Channel Scan for easy channel surfing

• Color-coded keys to quickly locate popular functions

• Extensive code library for popular video devices including DVD players and

PVRs (or DVRs)

The URC-3021 remote control requires two (2) new AAA alkaline batter-

ies (not included) and some easy programming to control your devices.

For best results, please read and perform all instructions listed here. Also,

keep this guide for future reference.

CTGAE3P 3021 manual booklet 5/24/04 12:46 PM Page 3

FEATURES AND FUNCTIONS

Use the illustration below to locate features on the One For All 3 Device

Universal Remote Control (URC-3021) and then study the Key Charts (on

the next two pages) to learn how they function.

To find out what type of devices can be controlled by each device key after

programming, see the Device Table on page 6.

CTGAE3P 3021 manual booklet 5/24/04 12:46 PM Page 4

Key Charts

When the LED (red light) blinks, the remote control

is working and (after programming) is sending

signals.

Press DVD/VCR,CBL/SAT,orTV once to select a

desired home entertainment device to control.

Also see the Device Table on page 6.

Press POWER once to turn on or off the selected

device. For master power control, see Programming

A Master Power Macro on page 10.

Use the keypad (1~ 9and 0) to directly select

channels (e.g., 009 or 031).

Use TV/VID to switch the TV’s input to view TV or

video programs.

Press ENTER once after entering the channel

numbers on some TVs.

Use GUIDE to display your selected device’s

program guide or setup menu.

Press MENU once to display your selected device’s

main menu.

Use INFO to display the current channel and

program or on-screen directory.

Use EXIT to exit from your selected device’s guide

or menu.

Use the Cursor Keys to move the cursor in the pro-

gram guide and menu screens.

Use SELECT (OK) to choose options from your

selected device’s menu or guide.

Press LAST once to recall the last channel.

Use FAV to scan all channels,or after programming,

to scan up to10 favorite channels.

Use CH▲(or CH▼) to select the next higher (or

lower) channel.

Press SUBTITLE/CC once to display (or turn off) sub-

titles or closed captions,if available on your DVD

player or cable/satellite service.

For a PVR (or DVR),press PVR MENU once to dis-

play a list of your recorded shows.

Press MUTE once to turn the sound off or on.

Use VOL▲(or VOL▼) to raise (or lower) the sound

volume.

CTGAE3P 3021 manual booklet 5/24/04 12:46 PM Page 5

Use REW,PLAY,FWD,PAUSE,or STOP to control your VCR,

PVR (or DVR), or DVD player.

For a DVD player, use SKIP F. or SKIP R. to view the next

or previous chapter.

For a VCR, PVR (or DVR), or VOD (if available), use SCAN-

or SCAN+ to quickly scan forward or back through a video

program. Use REPLAY for an instant replay. Use QUICK

SKIP to advance the video program a preset amount (as

set on your device).

Press REC twice to record a VCR or PVR (or DVR)

program.

Use SLEEP to set the sleep timer on a selected device if

equipped with this feature.

Use SET for all programming sequences.

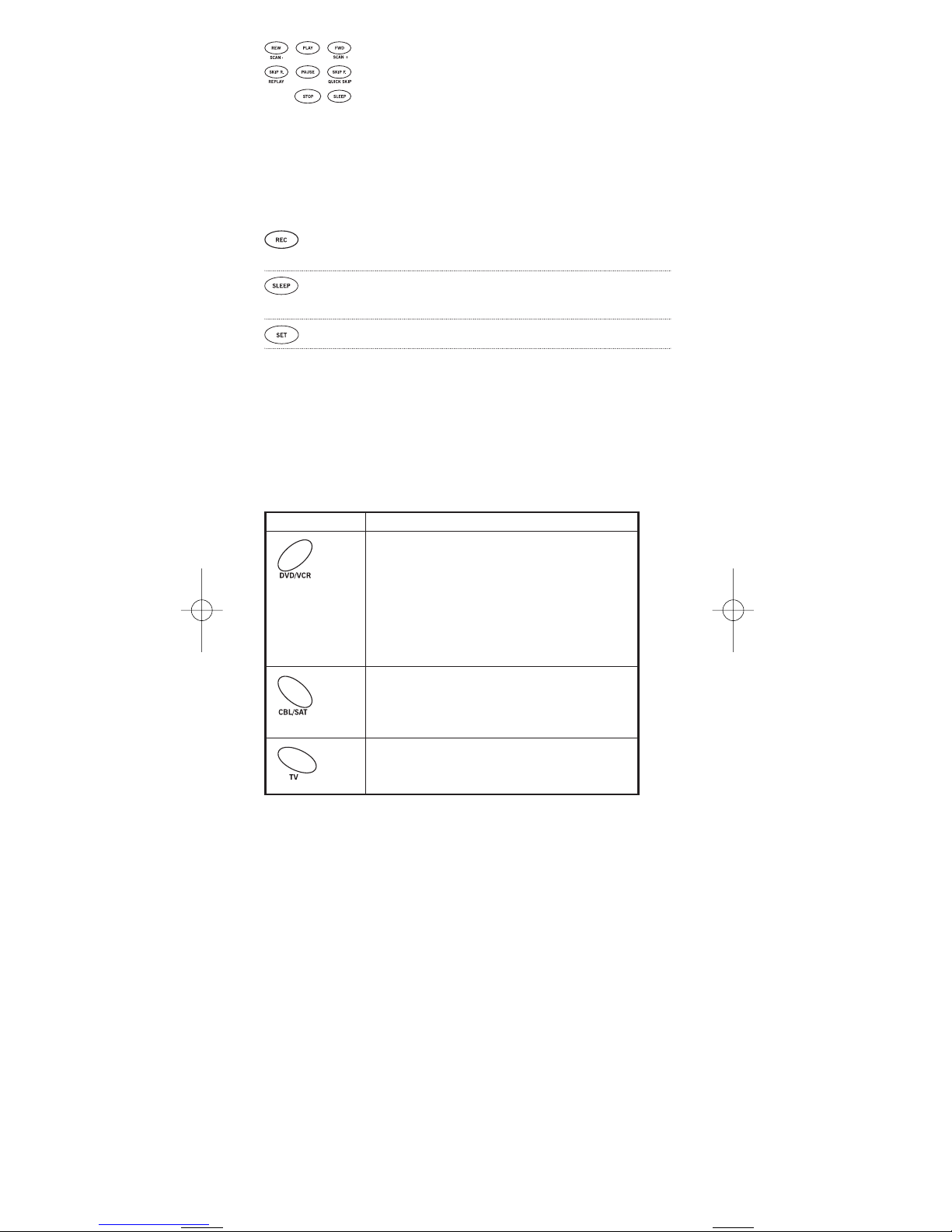

Device Table

NOTE: Please refer to the table below when performing the instructions in“Programming

Device Control” on page 8.

After programming, the One For All 3 Device Universal Remote Control will

be able to control the following types of devices:

DEVICE KEY CONTROLS THESE TYPES OF DEVICES

• DVD Player

•VCR

• PVR (or DVR)

• TV/DVD Player Combo

• VCR/DVD Player Combo

• TV/VCR Combo

• TV/VCR/DVD Player Combo

• VCR/DVD Player Combo

• Cable Box (or Converter)

• Cable Box/PVR (or DVR) Combo

• Satellite Receiver

• Satellite Receiver/PVR (or DVR) Combo

• Television

CTGAE3P 3021 manual booklet 5/24/04 12:46 PM Page 6

INSTALLING BATTERIES

1. On the remote control’s back, push the tab and lift off the

battery cover.

2. Obtain two (2) new AAA alkaline batteries. Match the +

and – marks on the batteries to the + and – marks in the

battery case,then insert the new batteries.

3. Press the battery cover back into place. The tab should

click when the cover is locked.

4. Test the remote control by pressing any mode key (e.g.,

TV). If the batteries are inserted correctly, the LED (red

light) will blink.

NOTE: When batteries need replacement, the remote control will stop operat-

ing. Remove the old batteries and insert new ones within 10 minutes to

ensure all of your programming information is restored.

❶

❸

❷

CTGAE3P 3021 manual booklet 5/24/04 12:46 PM Page 7

PROGRAMMING DEVICE CONTROL

The One For All 3 Device Universal Remote Control is preprogrammed at

the factory to operate an RCA TV, a Toshiba DVD player, and a Motorola

cable box. To control devices other than the default brands,perform the fol-

lowing steps; otherwise skip this section:

1. Turn on a desired device (e.g.,VCR or DVD player) and, if

applicable, insert media (e.g., cassette or disc).

NOTE: Please read steps 2 through 4 completely before proceeding.

Highlight or write down the codes and device you wish to program

before starting step 2.

2. On the remote control,press a device key once (i.e.,DVD/VCR,

CBL/SAT,orTV).

NOTE: To program control of a VCR, PVR (or DVR), TV/VCR Combo,

or TV/VCR/DVD Player Combo press DVD/VCRonce. After program-

ming a VCR Combo device, you will be able to control channel selec-

tion, volume, and VCR functions.

NOTE: To program control of a DVD Player, DVD Player/VCR

Combo, or TV/DVD Player Combo, press DVD/VCR once. After pro-

gramming a DVD Combo device, you will be able to control channel

selection, volume, and DVD functions.

NOTE: To program control of a Cable Box, Cable Box/PVR (or DVR)

Combo, Satellite Receiver, or a Satellite Receiver/PVR (or DVR)

Combo, press CBL/SATonce.

3. Press and hold SET until the LED (red light) blinks twice,

then release SET.

4. Use the Manufacturer’s Codes (starting on page 18) to

locate the type of device and brand name and then enter

the first four-digit code for your device. If performed cor-

rectly, the LED will blink twice.

NOTE: If the LED did not blink twice, repeat steps 2 through 4 and enter

the same code again.

5. Aim the remote control at the device and press POWER

once. The device should turn off. If it does not, repeat

steps 2 through 5, trying each code for your brand until

you find one that works. If it still doesn’t work,try

Searching For Your Code on next page.

NOTE: If the device does not have a POWER key, press PLAY.

6. Repeat steps 1 through 5 for each device you want to con-

trol.For future reference, write down each working device

code in the following boxes:

DVD/VCR Code:

Device Type:__________________

CBL/SAT Code:

Device Type:__________________

TV Code:

Device Type:__________________

CTGAE3P 3021 manual booklet 5/24/04 12:46 PM Page 8

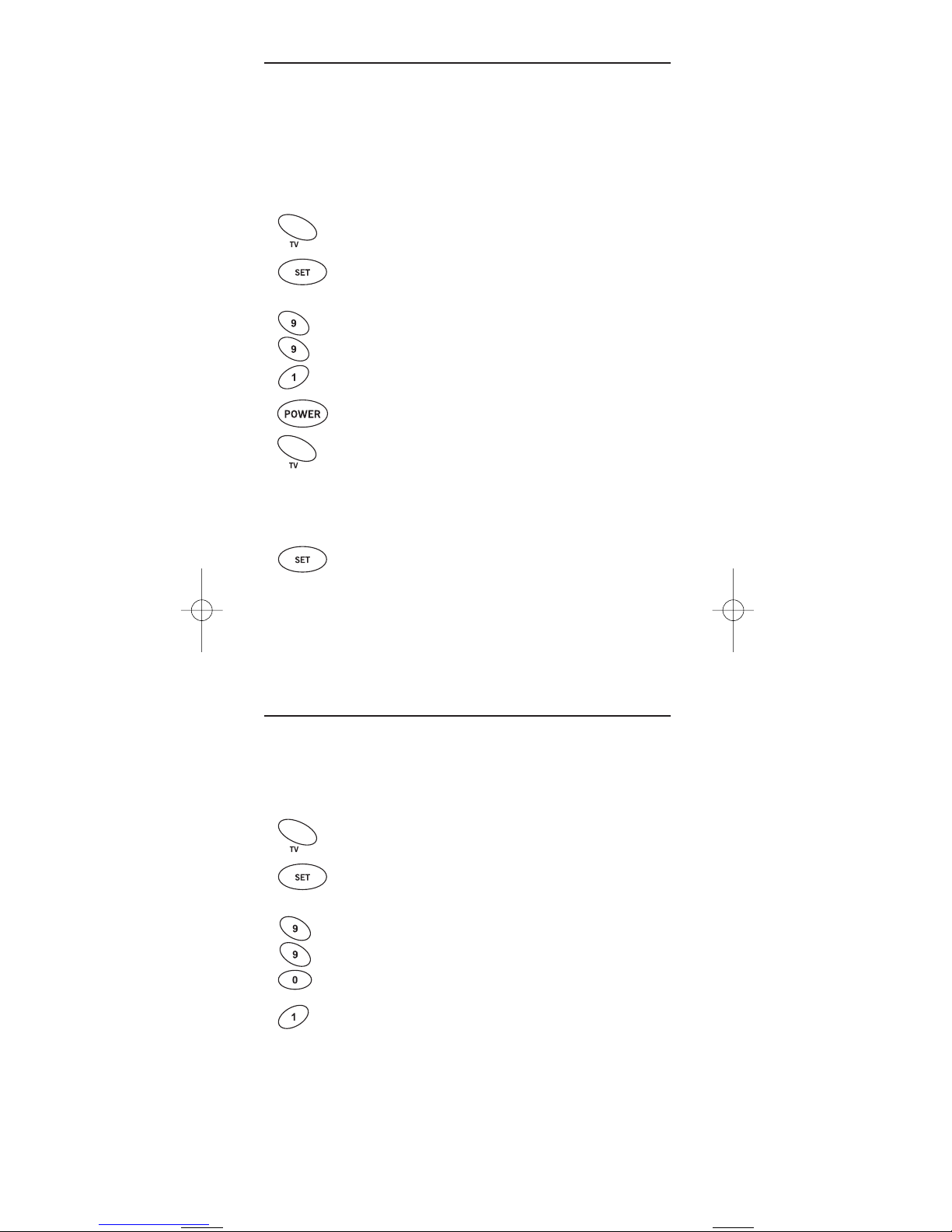

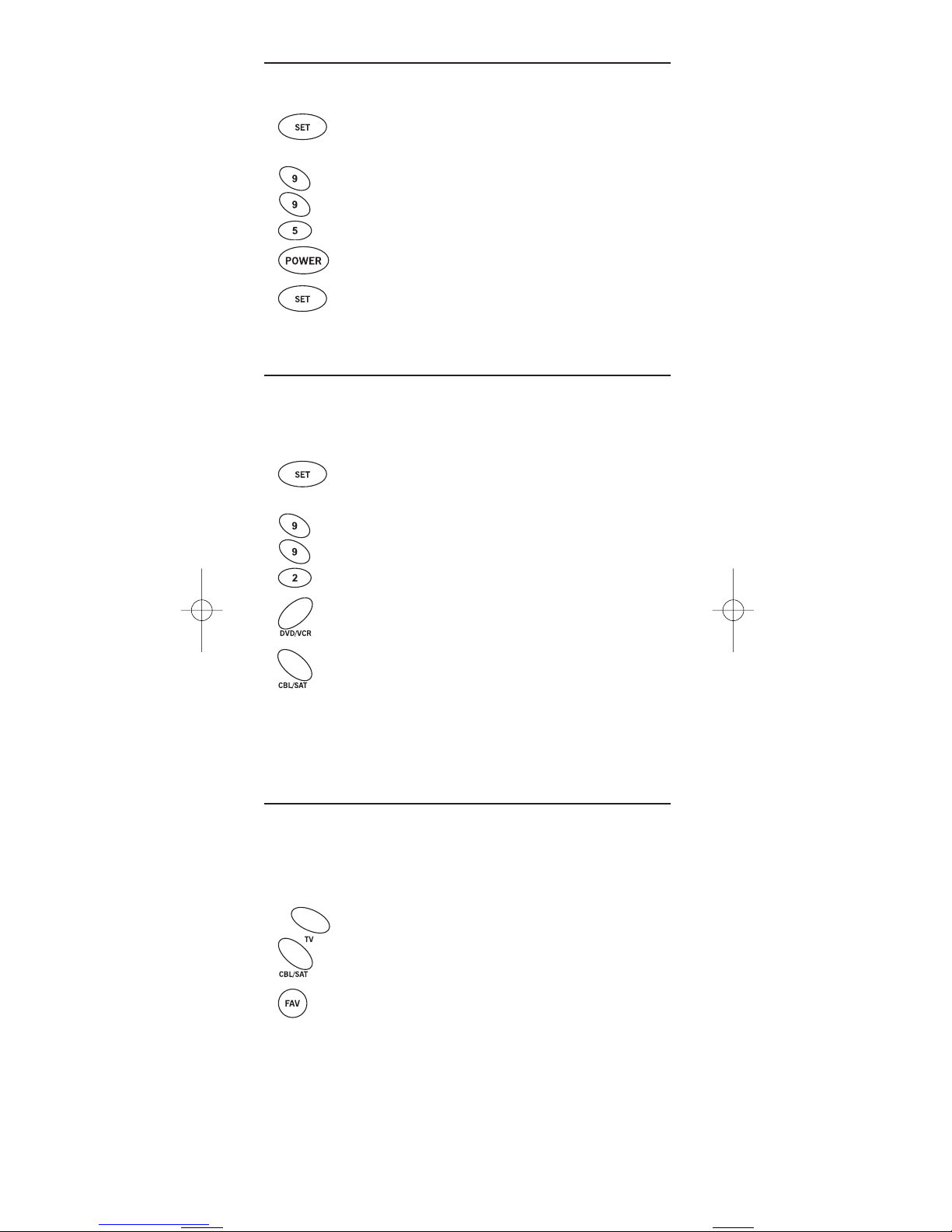

SEARCHING FOR YOUR CODE

If your device does not respond to the remote control after trying all codes

listed for your brand, or if your brand is not listed at all, try searching for

your code.

NOTE: Before performing a code search for a DVD player or a VCR, turn on the device and

insert the required media.

For example, to search for a code for your TV:

1. On the remote control, press TV once.

2. Press and hold SET until the LED (red light) blinks twice,

then release SET.

3. Enter 9- 9- 1.TheLED will blink twice.

4. Aim the remote control at the TV and slowly alternate

between pressing POWER and TV. Stop when the TV turns off

(after pressing POWER). If the device does not have a Power

key, you can substitute another function,such as digits 0~ 9,

CH▲,orPLAY).

NOTE: In the search mode, the remote control will send IR codes from

its library to the selected device, starting with the most popular code

first.

5. To lock in the code, press and release SET.TheLED will

blink twice.

6. To search for the codes of your other devices, repeat steps

1 through 5, but substitute the appropriate device key for

the device you are searching for.

CHECKING THE CODES

If you have set up the remote control using the Searching For Your Code pro-

cedure as above,you may need to find out which four-digit code is operat-

ing your equipment. For example, to find out which code is operating your

TV:

1. On the remote control, press TV once.

2. Press and hold SET until the LED (red light) blinks twice,

then release SET.

3. Enter 9- 9- 0.TheLED will blink twice.

4. To view the code for the first digit,press 1once. Wait 3

seconds, count the LED blinks (e.g., three blinks = 3) and

write down the number in the leftmost box in the TV

code boxes on page 8.

NOTE: If a code digit is “0”, the LEDwill not blink.

CTGAE3P 3021 manual booklet 5/24/04 12:46 PM Page 9

5. Repeat step 4 (on the previous page) three more times for

remaining digits. Use 2for the second digit, 3for the third

digit, and 4for the fourth digit.Write down the code dig-

its in the remaining TV code boxes on page 8.

6. To check for codes of other devices,repeat steps 1

through 5 (starting on the previous page),but substitute

the appropriate device key for each device you are check-

ing.Write down the device’s code digits in the appropriate

code boxes on page 8.

PROGRAMMING A MASTER POWER MACRO

In its default state, the POWER key on the One For All 3 Device Universal

Remote Control will individually power your home entertainment devices

on or off. However, you can also program a Master Power Macro onto the

POWER key that will sequentially turn on or off all the devices with a single

key press.

Programming The Power Key For The Master Power Macro

1. Press and hold SET until the LED (red light) blinks twice,

then release SET.

2. Enter 9- 9- 5.TheLED will blink twice. Then press POWER

once.

3. For the first device you want in the power-on sequence,

press its device key (e.g., CBL/SAT) once.

4. Repeat step 3 up to two more times to add desired

devices to the power-on sequence (e.g., DVD/VCR and TV).

5. To save the settings and exit the program, press and hold

SET until the LED blinks twice, then release SET.

Operating The Master Power Macro

1. After programming, point the remote control at the

devices and press POWER for at least 2 seconds to sequen-

tially turn on (or off) your devices.

NOTE: When POWER is pressed for less than 2 seconds, a power com-

mand will only be sent to the currently-selected device. This allows

you to still individually power devices on or off.

2. Devices will turn on (or off) according to your pro-

grammed sequence.

NOTE: The currently-selected device will always turn on or off first,

followed by the remaining programmed sequence. After the master

power sequence has been completed, the remote control will be set to

control the first powered-on device.

NOTE: If one or more devices does not have a POWERkey, the power

off/on sequence may be slightly delayed when the remote control signals

the device(s). This action is normal.

continued on next page...

CTGAE3P 3021 manual booklet 5/24/04 12:46 PM Page 10

PROGRAMMING A MASTER POWER MACRO

(cont’d)

Clearing The Master Power Macro

1. Press and hold SET until the LED (red light) blinks twice,

then release SET.

2. Enter 9- 9- 5.TheLED will blink twice. Then press POWER

once.

3. Press and hold SET until the LED blinks twice, then release

SET.TheMaster Power Macro is now cleared.

RE-ASSIGNING DEVICE KEYS

The One For All 3 Device Universal Remote Control can be set to control a

DVD player and a VCR (or a PVR) or a second DVD player by re-assigning

the unused CBL/SAT key as follows:

1. On the remote control, press and hold SET until the LED

(red light) blinks twice, then release SET.

2. Enter 9- 9- 2.TheLED will blink twice.

3. Press DVD/VCR once.

4. Press CBL/SAT once. The LED will blink twice. The CBL/SAT key

is now ready to be set up to control your VCR (or PVR) or

second DVD player. See Programming Device Control on page

NOTE: Only one device can be assigned to an unused device key at a time.

USING CHANNEL SCAN

In the CBL/SAT or TV mode, use the FAV key to start a 3-second scan of all

channels. Or, if programmed, use the FAV key to scan only your favorite

channels to view a desired channel (see Programming Favorite Channel Scan

on next page. )

1. Press CBL/SAT or TV once.

2. Press FAV once.

•IfFavorite Channel Scan has been set up, scanning of favorite

channels will start with up to 100 channel changes or until

stopped by pressing any key.

•IfFavorite Channel Scan has not been set up, scanning

will start with the current channel, and continue up to

100 channel changes or until stopped by pressing any key.

3. To stop scanning channels at any time, press any key once.

CTGAE3P 3021 manual booklet 5/24/04 12:46 PM Page 11

Otros manuales para URC-3300

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Control remoto universal de One Forall

One Forall

One Forall 705016 Manual de usuario

One Forall

One Forall SAMSUNG URC-4910 Manual de usuario

One Forall

One Forall URC-7560 Manual de usuario

One Forall

One Forall URC10820N Manual de usuario

One Forall

One Forall URC-6230 Manual de usuario

One Forall

One Forall URC-2981 Hoja de información del producto

One Forall

One Forall URC-7210 Manual de usuario

One Forall

One Forall URC-7530 Manual de usuario

One Forall

One Forall Easy 2 Manual de usuario

One Forall

One Forall URC-7730 Manual de usuario

One Forall

One Forall URC-6210 Manual de usuario

One Forall

One Forall URC-7540 Manual de usuario

One Forall

One Forall iLifeTV Manual de usuario

One Forall

One Forall URC-6210 Manual de usuario

One Forall

One Forall Kameleon Manual de usuario

One Forall

One Forall Xsight Colour Manual de usuario

One Forall

One Forall URC-7800 Cinema 7+ Manual de usuario

One Forall

One Forall URC-6420 Guía del administrador

One Forall

One Forall ZAPPER URC-6010 Manual de usuario

One Forall

One Forall URC-7930 Manual de usuario

One Forall

One Forall URC-6532 Manual de usuario

One Forall

One Forall URC-7940 Manual de usuario

One Forall

One Forall Zapper URC-6512 Manual de usuario

One Forall

One Forall DVD EXPERT URC-4041 Manual de usuario

Manuales populares de Control remoto universal de otras marcas

Pronto

Pronto Peel Manual de usuario

GE 24929 Manual de usuario

Radio Shack

Radio Shack Wireless Remote Control System Manual de usuario

AUVIO

AUVIO Universal Home Theater Remote Manual de usuario

Philips

Philips Icon SRU4106 Manual de usuario

THOMSON

THOMSON ROC4309 Manual de usuario

Philips

Philips pm625S Manual de usuario

GE RM94931 Manual de usuario

RCA

RCA RCU600WMS - Universal Remote Control Manual de usuario

Blackweb

Blackweb BWB17AV002 Manual de usuario

Marmitek

Marmitek DoorGuard 300 Manual de usuario

Chunghop

Chunghop RM-L618 Manual de usuario

GE RM24965 Manual de usuario

Anderic

Anderic KTN828 Manual de usuario

Sunwave Tech.

Sunwave Tech. Touch Screen Remote Control Manual de usuario

Medion

Medion E74023 Manual de usuario

intensity

intensity RM02A Manual de usuario

GE RM24950 Manual de usuario
