GD-1340

for MC760/MC770/MC780/ES7460/ES7470/ES7480/MPS3537/MPS4242

SET-UP GUIDE

Warnings Points

• Theunpackingandsetupprocedureshallbedonebyaqualiedservicetechnician.

• Besuretounplugthepowercableoftheequipmentbeforeinstallingandsettinguptheproduct.

• Disconnectthegroundwireafterunpluggingthepowercable.Inaddition,besuretoconnectthegroundwire

beforepluggingthepowercable.

Cautionary Points

• Installtheequipmentnearanoutlet.Besuretowirethepowercablesecurelysoastounplugiteasilyandnot

totripoverit.

• Accordingtotheequipmentmodel,theseillustrationsmaydiffer.

• Thecoversofthisequipmenthavebeendesignedsoasnottobeeasilyremoved.Therefore,whenusing

tools,besurenottoputyourfaceandhandsinthedirectioninwhichforcewillbeapplied;otherwisethiscould

resultininjury.Inaddition,payattentionnottodeformpartsbyusingtoomuchforce.

• Whenunpackingandsettinguptheproduct,besuretowearglovestoavoidinjury.

 Accessories

B E

2 / 11

GD-1340

 Setup

1. Take out the FAX unit and the accessories.

2. Take off the covers.

•ForJPD:3covers

•OtherthanJPD:2covers

3. Take off the cover.

*Youmustwearglovesforthisprocedure.

1) Remove[b]and[e].

 •b:1

 •e:1

2) Open[F].

3) Pushthelockingbuttontoopen[G].

3 / 11

GD-1340

4) Remove[b].

5) Remove[e].

6) Openthecoversintheorderof(A)and(B).

7) Close[G].

4 / 11

GD-1340

8) Releasethelatches(A)ofthecover.

 •A:2

* Asshowninthegure,insertaathead

screwdriverintothegrooveandpushitin

thedirectionofthearrowtoreleasethe

latches.

When using tools, be sure not to put your

face and hands in the direction in which

force will be applied; otherwise this could

result in injury.

9) Releasethelatches(B)ofthecover.

 •B:2

* Asshowninthegure,insertaathead

screwdriverintothegrooveandpushitin

thedirectionofthearrowtoreleasethe

latches.

When using tools, be sure not to put your

face and hands in the direction in which

force will be applied; otherwise this could

result in injury.

10)Releasethelatch(D)ofthecover.

 •D:1

* Asshowninthegure,insertaathead

screwdriverintothegrooveandpushitin

thedirectionofthearrowtoreleasethe

latches.

When using tools, be sure not to put your

face and hands in the direction in which

force will be applied; otherwise this could

result in injury.

5 / 11

GD-1340

11)Closer[F].

12)Takeofftheuppersideofthecover,release

thelatch(E)andthentakeoffthecover.

 •E:1place

4. Loosen the screws and take off the cover.

•Screws:15places

6 / 11

GD-1340

5. Connect the connectors of [D] and [B] to

the board.

6. Place [A] into the attaching position and

secure it with [a].

•a:4

When installing [A], be careful not to

catch the rear side cables.

7. Connect the cable of [A] to the board.

7 / 11

GD-1340

8. Connect the connectors of [D] and [B] to

[A].

9. Attach the cover and tighten the screws.

•Screws:15places

10. Insert its latch (E) and then the parts

indicated by the arrows as shown in the

ﬁgure.

Perform this operation with care to avoid

injury. In addition, be sure not to damage

the cover.

11. Insert the latches (A) and (B) of the cover.

•A:2places

•B:2places

8 / 11

GD-1340

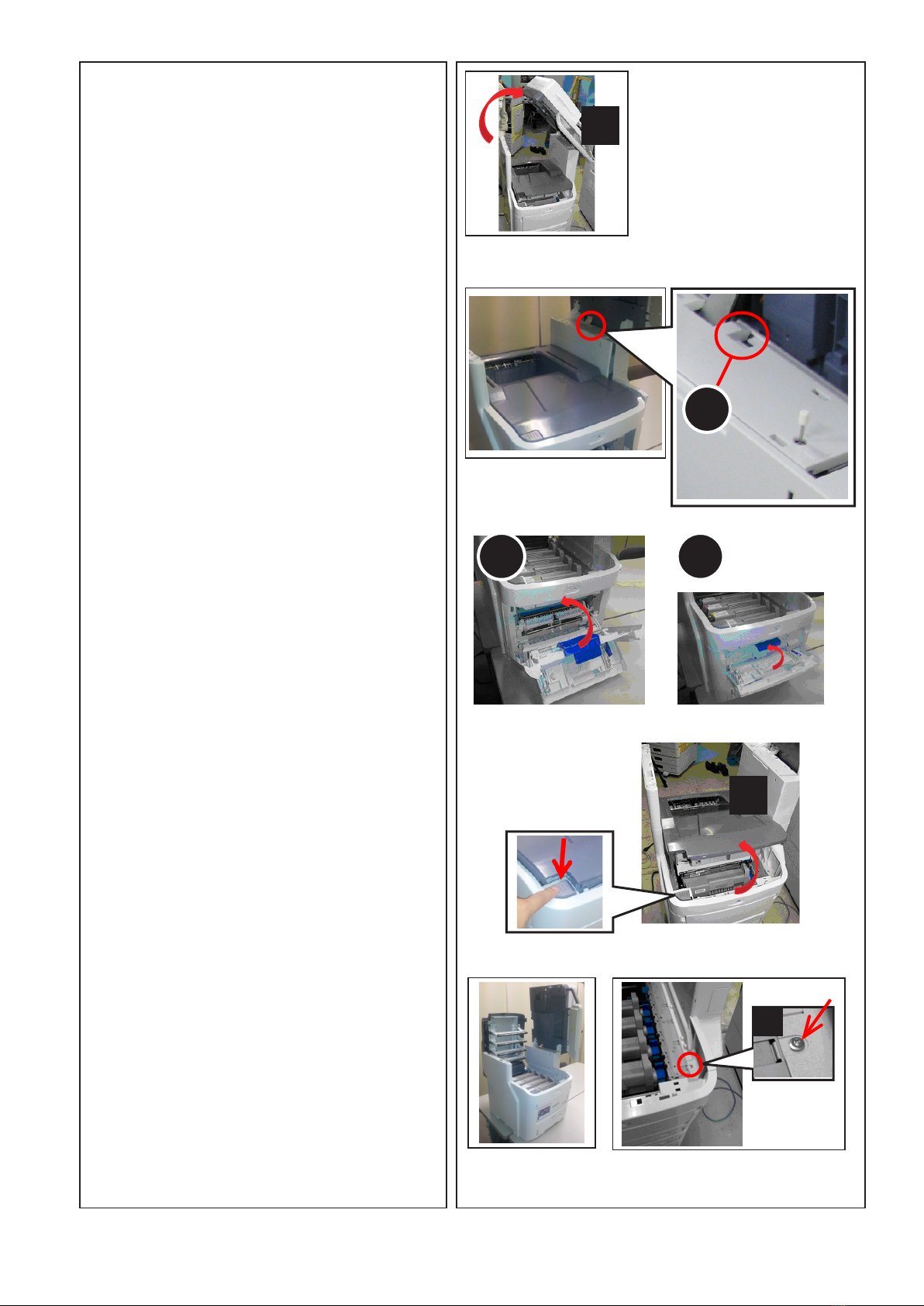

12. Open [F].

13. Insert the latch (D) of the cover.

14. Close the covers in the order of (A) and (B).

15. Push the locking button to open [G].

16. Attach [b].

•b:1

9 / 11

GD-1340

17. Attach [b] and [e].

•b:1

•e:1

18. Attach [e].

•e:1

19. Close in the order of [G] and [F].

20. Connect [E].

21. Connect the cable from the telephone.

10 / 11

GD-1340

22. Attach the label [H].

•H:1

23. Select the corresponding label [J]

according to the destination and applicable

model and attach it.

•J:1

24. The operation is now completed.

 Setting Destination

1. Destination

(1)Plugthepowercable.

(2)TurnthepowerONbymeansofthemainpowerswitchwhilepressing[0]and[8]simultaneously.

(3)[9001]→[START]button

(4)Keyinthedestinationnumbershownbelowandthenpressthe[OK]button.

0:Japan

1:Asia/Chile/Peru/Argentina/SaudiArabia/Singapore/Malaysia

2:Australia/NewZealand 3:HongKong 4:U.S.A/Canada

5:Germany/Cyprus/Luxembourg/Ireland

6:England 7:Italy 8:Belgium

9:Holland 10:Finland 11:Spain

12:Austria 13:Switzerland 14:Sweden

15:Denmark 16:Norway 17:Portugal

18:France 19:Greece 20:Poland

21:Hungary 22:CzechRep. 23:Turkey

24:SouthAfrica 25:Taiwan 26:Russia

27:Brazil

(5)Shutdowntheequipmentbypressingthe[ON/OFF]buttonuntilasoundisaudible.
