Oki 70037301 Manual de usuario
OKI 70037301

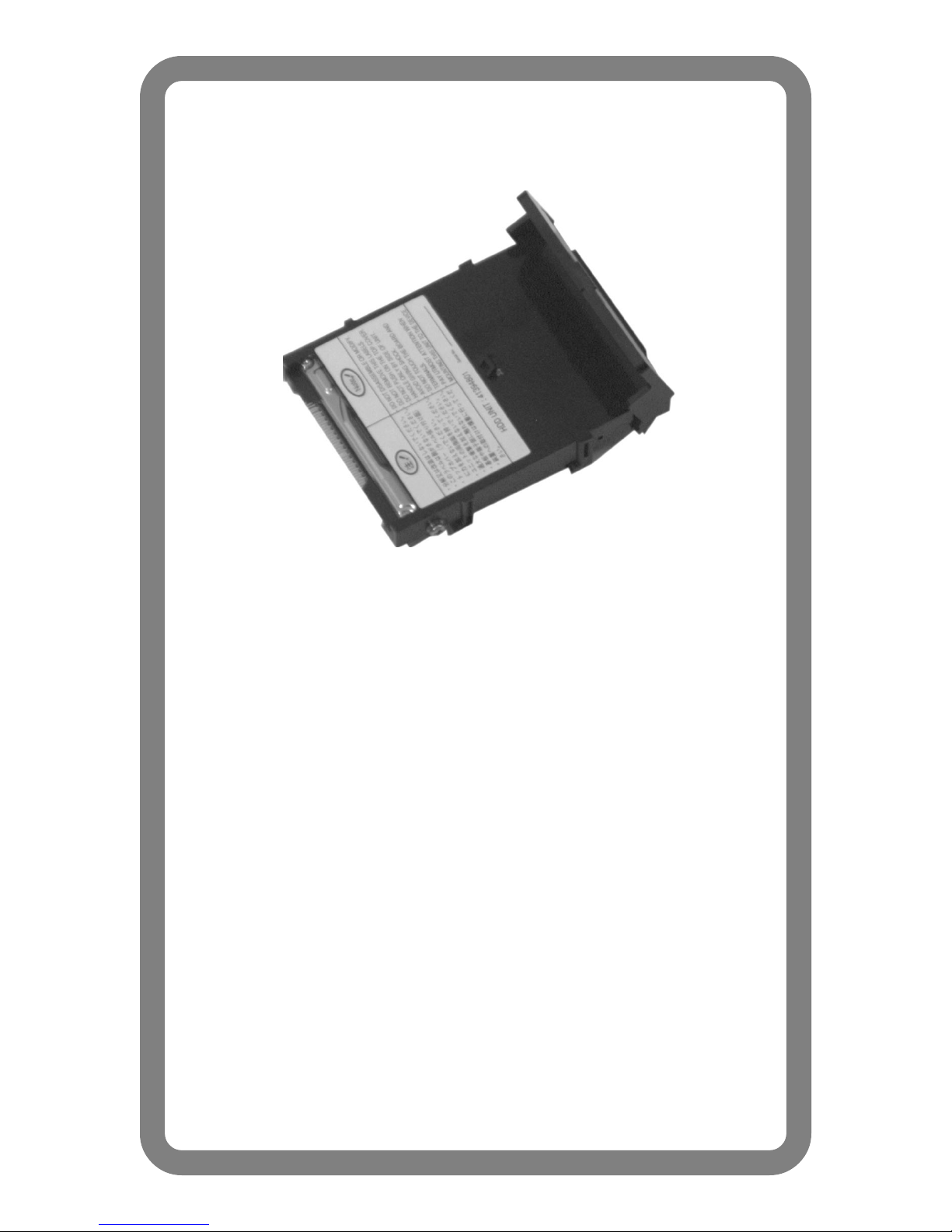

Hard Disk Drive
Installation
Instructions
2
Every effort has been made to ensure that the infor-mation
in this document is complete, accurate, and up-to-date.
Oki Data assumes no responsibility for the results of
errors beyond its control. Oki Data also cannot guarantee
that changes in software and equipment made by other
manufacturers and referred to in this guide will not affect
the applicability of the information in it. Mention of
software products manufactured by other companies does
not necessarily constitute endorsement by Oki Data.
Copyright 2001 by Oki Data Americas, Inc.All rights
reserved.
Written and produced by the Oki Data Training &
Publications Dept. Please address any comments on this
publication
by mail to:
Training & Publications Dept.
Oki Data Americas, Inc.
2000 Bishops Gate Blvd.
Mt. Laurel, NJ 08054-4620
For the latest information, we welcome you to visit our
multilingual web site:
http://www.okidata.com
OKI, R/MD/MR Oki Electric Industry Company, Ltd. Adobe
& PostScript, TMAdobe Systems, Inc. which may be
registered in certain jurisdictions. Macintosh, TM Apple
Computer, Inc., registered in the U.S. and other countries.
Windows & Windows NT, R or TM Microsoft Corporation
in the U.S. and other countries.
3
Prepare The Printer
1Turn the printer off and unplug the power
cord.
2Detach the interface cable from the back of
the printer.
3Remove and save the thumbscrews (1) at the
top and bottom which hold the control board
in place.
C7000 Series C9000 Series
4
4Grasp the control board and loosen it by
wiggling it back and forth, then slide it out of
the printer.
C7000 Series
C9000 Series
5
Install the Hard Disk
Drive (HDD)
1Locate the drive connector (1) on the control
board:
2Remove the HDD from its shipping package.
6
3Lift the handle on the HDD and lower it onto
the control board.
4Insert the board firmly into the connector and
press down on the handle to lock it in place.
7
Complete the Installation
1Align the bottom of the control board with the
track in the printer and slide it back into place.
C7000 Series
C9000 Series
8
2Reinstall the screws at the top and bottom of
the board.
C7000 Series C9000 Series
3Reattach the interface cable, then plug the
power cord into the power outlet and turn the
printer on.
9
Check for Proper
Installation
1On the printer control panel, press MENU
once or twice until INFORMATION MENU
appears on the display.
2Press SELECT.
PRINT MENU MAP
appears on the display.
3Press SELECT.
The MenuMap prints.
4Check the MenuMap printout:
• At the top of the printout you should see
"HDD:5.00 GB"
• In the right column you should see a new
menu section entitled DISK
MAINTENANCE
5If you do not see these, remove the control
board, lift the hard drive handle and check to
be sure that the hard drive is firmly inserted in
the connector. Then reinstall the control board
and print the MenuMap again.
10
Activate the Hard Disk in
the Driver
Windows®PCL Driver
1Click Start
®
Settings
®
Printers.
The Printers dialog box opens.
2Right click the OKI PCL driver icon, then
click Printing Preferences, Properties or
Document Defaults, depending on the
Windows system.
3In the Paper tab, click Device options.
4Click Printer hard disk to select it, then click
OK.
5Click OK, then close the Printers dialog box.
Windows Adobe®PostScript®Driver
1Click Start
®
Settings
®
Printers.
The Printers dialog box opens.
2Right click the OKI PostScript driver icon,
then click Properties.
