Defender™ Series Base

Instruction Manual

This Document is Hosted by: www.oldwillknottscales.com

Defender Series Base EN-1

INTRODUCTION

This manual covers installation, and maintenance instructions for the Ohaus Defender Series Base. Please read this manual

completely before installation and operation.

SAFETY PRECAUTIONS

For safe and dependable operation of this product, please comply with the following precautions:

•Operate the base only under ambient conditions specified in these instructions

•Ensure that the load cell cable does not pose an obstruction or tripping hazard

•Do not operate the base in hazardous environments or unstable locations

•Do not drop loads on the base

•Do not lift the base by the top frame; always lift from the bottom frame when moving the base

•Service should only be performed by authorized personnel

INSTALLATION

Unpacking

Unpack and inspect the product to make sure that all components have been included. The package includes the following:

• Defender TM Series Base • Weighing Pan • Instruction Manual

When purchased as a complete Defender Series Scale, the package will also include:

• Indicator • Column Assembly (optional)

ASSEMBLY

Weighing Pan

Place the weighing pan securely over the rubber load pads on the top frame of the base.

Wiring Connections

DxxxHx, DxxxQx, and DxxxRx Bases

When connecting the DxxxHx, DxxxQx, or DxxxRx base to an Ohaus indicator equipped with the matching circular connector,

push the base connector onto the indicator connector and turn the locking ring clockwise to lock it in place.

When connecting the DxxxHx, DxxxQx, or DxxxRx base to an indicator that does not have the matching connector, install the

optional load cell cable adapter (P/N 80500736 sold separately) to the indicator using the wiring codes in Table 1. Then attach

the load cell cable to the cable adapter.

Note: As an alternate wiring method, cut off the connector, strip the wires and attach them to the indicator using the wiring codes

in Table 1.

DxxxWx Bases

Install the load cell cable to an indicator using the wiring codes in Table 1.

Note:When purchased as a Defender Series Scale, the DxxxWx base is already pre-wired to the indicator.

TABLE 1. LOAD CELL CONNECTION

FUNCTION WIRE COLOR

+ Excitation Green

- Excitation Black

+ Signal Red

- Signal White

+ Sense Blue

- Sense Brown

Shield Yellow

EN-2 Defender Series Base

Selecting the Location

To ensure accuracy, proper performance and safety, locate and operate the base on a stable, level surface. Avoid locations with

rapid temperature changes or excessive dust, air currents, vibrations, electromagnetic fields or heat.

Level the base by adjusting the four leveling feet until the bubble in the level indicator is centered. A wrench may be needed to

loosen the locking nut above each leveling foot. When the base is level, retighten the locking nuts up against the base to lock

each foot into place.

Note: Ensure that the base is level each time its location is changed.

CORRECT INCORRECT

MAINTENANCE

Cleaning

The base components should be kept clean and free of excessive material build up.

•A damp cloth with water and a mild detergent may be used to wipe clean the external surfaces – do not use acids,

alkalis, strong solvents or abrasive materials.

To maintain surface integrity, do not allow food particles or liquids to remain on the surface of the painted or stainless steel base

frame.

•Remove the pan and use fresh water to clean the base frame surface of any food particles or liquids. Dry the base with

a clean cloth or allow to air dry before replacing the pan. Repeat daily for best care.

Troubleshooting

Aside from installing components and leveling adjustments, the Defender Series Base does not require any other adjustments as

shipped from the factory.

Operational difficulties that may be encountered can often be traced to simple causes such as:

•Loose or incorrect wiring connections

•Obstructions to the base frame

•Unstable environments

•Incorrect calibration or setup of the indicator

If the troubleshooting section does not resolve or describe your problem, contact your authorized Ohaus service agent. For

service assistance or technical support in the United States call toll-free 1-800-526-0659 between 8:00 AM and 5:00 PM EST.

An Ohaus product service specialist will be available to provide assistance. Outside the USA, please visit our web site,

www.ohaus.com to locate the Ohaus office nearest you.

Defender Series Base EN-3

TECHNICAL DATA

Technical Specifications

The technical data is valid under the following ambient conditions:

Ambient temperature: -10ºC to +40 ºC

Relative humidity: 10% to 90% relative humidity, non-condensing

Height above sea level: Up to 2,000m

Operability is assured at ambient temperature -10ºC to +40 ºC

Note: not all models may be available in your area. Check with your local Ohaus representative.

TABLE 2.1 SPECIFICATIONS

MODEL D15HR D30HR D60HR

Capacity 15 kg / 30 lb 30 kg / 60 lb 60 kg / 150 lb

Approved Resolution OIML: 3000e, NTEP: 3000d

Safe Overload Capacity 150% of capacity

Pan Dimensions 305 x 355 mm / 12 x 14 in

Base Construction Stainless Steel platform with painted steel frame and rubber leveling feet

Repeatability (std. deviation) 1d

Linearity ±1d

Load Cell Capacity 30 kg 50 kg 100 kg

Load Cell Cable 2 m L x 6-wire

Load Cell Type 350 Ohm, aluminum, single point

Load Cell Excitation 5-15V DC/AC

Load Cell Rated Output 2mV/V

Load Cell Protection IP67

Net Weight 9 kg / 19.8 lb

Shipping Weight 10.9 kg / 24 lb

TABLE 2.2. SPECIFICATIONS

MODEL D60HL D100HL D150HX D300HX

Capacity 60 kg / 100 lb 100 kg / 250 lb 150 kg / 300 lb 300 kg / 600 lb

Approved Resolution OIML: 3000e,

NTEP: 3000d

OIML: 3000e,

NTEP: 2500d

OIML: 3000e,

NTEP: 3000d

Safe Overload Capacity 150% of capacity

Pan Dimensions 400 x 500 mm / 15.7 x 19.7 in 420 x 550 mm / 16.5 x 21.6 in

Base Construction Stainless Steel platform with painted steel frame and rubber leveling feet

Repeatability (std. deviation) 1d

Linearity ±1d

Load Cell Capacity 100 kg 150 kg 300 kg 500 kg

Load Cell Cable 2 m L x 6-wire

Load Cell Type 350 Ohm, aluminum, single point

Load Cell Excitation 5-15V DC/AC

Load Cell Rated Output 2mV/V

Load Cell Protection IP67

Net Weight 19.1 kg / 42.1 lb 24.5 kg

Shipping Weight 22 kg / 48.5 lb 27.1 kg / 59.7 lb

EN-4 Defender Series Base

TABLE 2.3 SPECIFICATIONS

MODEL D10QR D15QR D25QR D30QR D50QL

Capacity 10 kg / 25 lb 15 kg / 30 lb 25 kg / 50 lb 30 kg / 60 lb 50 kg / 100 lb

Approved Resolution NTEP: 5000d OIML: 3000e NTEP: 5000d OIML: 3000e NTEP: 5000d

Safe Overload Capacity 150% of capacity

Pan Dimensions 305 x 305 mm /

12 x 12 in

457 x 457 mm /

18 x 18 in

Base Construction Stainless Steel platform with painted steel frame and rubber leveling feet

Repeatability (std. deviation) 1d

Linearity ±1d

Load Cell Capacity 30 kg 30 kg 50 kg 50 kg 100 kg

Load Cell Cable 2.5 m L x 6-wire

Load Cell Type 350 Ohm, aluminum, single point

Load Cell Excitation 5-15V DC/AC

Load Cell Rated Output 2mV/V

Load Cell Protection IP67

Net Weight 12.2 kg / 26.9 lb 27.2 kg / 60 lb

Shipping Weight 14.2 kg / 31.3 lb 29 kg / 64 lb

TABLE 2.4 SPECIFICATIONS

MODEL D60QL D100QL D150QL D250QX D300QX

Capacity 60 kg / 150 lb 100 kg / 250 lb 150 kg / 300 lb 250 kg / 500 lb 300 kg / 600 lb

Approved Resolution OIML: 3000e NTEP: 5000d OIML: 3000e NTEP: 5000d OIML: 3000e

Safe Overload Capacity 150% of capacity

Pan Dimensions 457 x 457 mm /

18 x 18 in

610 x 610 mm /

24 x 24 in

Base Construction Stainless Steel platform with painted steel frame and rubber leveling feet

Repeatability (std. deviation) 1d

Linearity ±1d

Load Cell Capacity 100 kg 150 kg 200 kg 500 kg 500 kg

Load Cell Cable 2.5 m L x 6-wire

Load Cell Type 350 Ohm, aluminum, single point

Load Cell Excitation 5-15V DC/AC

Load Cell Rated Output 2mV/V

Load Cell Protection IP67

Net Weight 27.2 kg / 60 lb 35 kg / 77 lb

Shipping Weight 29 kg / 64 lb 41 kg / 90 lb

Defender Series Base EN-5

TABLE 2.5 SPECIFICATIONS

MODEL D10WR D15WR D25WR D30WR D50WL

Capacity 10 kg / 25 lb 15 kg / 30 lb 25 kg / 50 lb 30 kg / 60 lb 50 kg / 100 lb

Approved Resolution NTEP: 5000d OIML: 3000e NTEP: 5000d OIML: 3000e NTEP: 5000d

Safe Overload Capacity 150% of capacity

Pan Dimensions 305 x 305 mm /

12 x 12 in

457 x 457 mm /

18 x 18 in

Base Construction Stainless Steel platform with stainless steel frame and rubber leveling feet

Repeatability (std. deviation) 1d

Linearity ±1d

Load Cell Capacity 30 kg 30 kg 50 kg 50 kg 100 kg

Load Cell Cable 2.5 m L x 6-wire

Load Cell Type 350 Ohm, stainless steel, single point

Load Cell Excitation 5-15V DC/AC

Load Cell Rated Output 2mV/V

Load Cell Protection IP67

Net Weight 12.2 kg / 26.9 lb 27.2 kg / 60 lb

Shipping Weight 14.2 kg / 31.3 lb 29 kg / 64 lb

TABLE 2.6 SPECIFICATIONS

MODEL D60WL D100WL D150WL D250WX D300WX

Capacity 60 kg / 150 lb 100 kg / 250 lb 150 kg / 300 lb 250 kg / 500 lb 300 kg / 600 lb

Approved Resolution OIML: 3000e NTEP: 5000d OIML: 3000e NTEP: 5000d OIML: 3000e

Safe Overload Capacity 150% of capacity

Pan Dimensions 457 x 457 mm /

18 x 18 in

610 x 610 mm /

24 x 24 in

Base Construction Stainless Steel platform with stainless steel frame and rubber leveling feet

Repeatability (std. deviation) 1d

Linearity ±1d

Load Cell Capacity 100 kg 200 kg 200 kg 500 kg 500 kg

Load Cell Cable 2.5 m L x 6-wire

Load Cell Type 350 Ohm, stainless steel, single point

Load Cell Excitation 5-15V DC/AC

Load Cell Rated Output 2mV/V

Load Cell Protection IP67

Net Weight 27.2 kg / 60 lb 35 kg / 77 lb

Shipping Weight 29 kg / 64 lb 41 kg / 90 lb

EN-6 Defender Series Base

TABLE 2.7 SPECIFICATIONS

MODEL D5RS D6RS D10RS D15RS D25RR D30RR

Capacity 5 kg / 10 lb 6 kg / 15 lb 10 kg / 25 lb 15 kg / 30 lb 25 kg / 50 lb 30 kg / 60 lb

Approved Resolution NTEP: 5000d OIML: 3000e NTEP: 5000d OIML: 3000e NTEP: 5000d OIML: 3000e

Safe Overload Capacity 150% of capacity

Pan Dimensions 240 x 300 mm /

9.4 x 11.8 in

300 x 400 mm /

11.8 x 15.7 in

Base Construction Stainless Steel platform with painted steel frame and rubber leveling feet

Repeatability (std. deviation) 1d

Linearity ±1d

Load Cell Capacity 11 kg 22 kg 50 kg

Load Cell Cable 1 m L x 6-wire 2 m L x 6-wire

Load Cell Type 350 Ohm, aluminum, single point

Load Cell Excitation 5-15V DC/AC

Load Cell Rated Output 2mV/V

Load Cell Protection IP65

Net Weight 5.9 kg / 13 lb 9.9 kg / 22 lb

Shipping Weight 8.1 kg / 18 lb 12 kg / 26.5 lb

TABLE 2.8 SPECIFICATIONS

MODEL D50RR D50RL D50RX D60RR D60RL D60RX

Capacity 50 kg / 100 lb 50 kg / 100 lb 50 kg / 100 lb 60 kg / 150 lb 60 kg / 150 lb 60 kg / 150 lb

Approved Resolution NTEP: 5000d NTEP: 5000d NTEP: 5000d OIML: 3000e OIML: 3000e OIML: 3000e

Safe Overload Capacity 150% of capacity

Pan Dimensions 300 x 400 mm

11.8 x 15.7 in

400 x 500 mm

15.7 x 19.7 in

500 x 650 mm

19.7 x 25.6 in

300 x 400 mm

11.8 x 15.7 in

400 x 500 mm

15.7 x 19.7 in

500 x 650 mm

19.7 x 25.6 in

Base Construction Stainless Steel platform with painted steel frame and rubber leveling feet

Repeatability (std.

deviation)

Linearity ±1d

Load Cell Capacity 100 kg

Load Cell Cable 2 m L x 6-wire 2.5 m L x 6-wire 2 m L x 6-wire 2.5 m L x 6-wire

Load Cell Type 350 Ohm, aluminum, single point

Load Cell Excitation 5-15V DC/AC

Load Cell Rated Output 2mV/V

Load Cell Protection IP65

Net Weight 9.9 kg / 22 lb 19.4kg / 43lb 22.3 kg / 49 lb 9.9 kg / 22 lb 19.4 kg / 43 lb 22.3 kg / 49 lb

Shipping Weight 12 kg / 26.5 lb 22.3kg / 49lb 27.8 kg / 61 lb 12 kg / 26.5 lb 22.3 kg / 49 lb 27.8 kg / 61 lb

Defender Series Base EN-7

TABLE 2.9 SPECIFICATIONS

MODEL D100RL D100RX D100RV D150RL D150RX

Capacity 100 kg / 250 lb 100 kg / 250 lb 100 kg / 250 lb 150 kg / 300 lb 150 kg / 300 lb

Approved Resolution NTEP: 5000d NTEP: 5000d NTEP: 5000d OIML: 3000e OIML: 3000e

Safe Overload Capacity 150% of capacity

Pan Dimensions 400 x 500 mm

15.7 x 19.7 in

500 x 650 mm

19.7 x 25.6 in

600 x 800 mm

23.6 x 31.5 in

400 x 500 mm

15.7 x 19.7 in

500 x 650 mm

19.7 x 25.6 in

Base Construction Stainless Steel platform with painted steel frame and rubber leveling feet

Repeatability (std. deviation) 1d

Linearity ±1d

Load Cell Capacity 250 kg

Load Cell Cable 2.5 m L x 6-wire

Load Cell Type 350 Ohm, aluminum, single point

Load Cell Excitation 5-15V DC/AC

Load Cell Rated Output 2mV/V

Load Cell Protection IP65

Net Weight 19.4 kg / 43 lb 22.3 kg / 49 lb 36.8 kg / 81 lb 19.4 kg / 43 lb 22.3 kg / 49 lb

Shipping Weight 22.3 kg / 49 lb 27.8 kg / 61 lb 63.2 kg / 139 lb 22.3 kg / 49 lb 27.8 kg / 61 lb

TABLE 2.10 SPECIFICATIONS

MODEL D150RV D250RX D250RV D300RX D300RV

Capacity 150 kg / 300 lb 250 kg / 500 lb 250 kg / 500 lb 300 kg / 600 lb 300 kg / 600 lb

Approved Resolution OIML: 3000e NTEP: 5000d NTEP: 5000d OIML: 3000e OIML: 3000e

Safe Overload Capacity 150% of capacity

Pan Dimensions 600 x 800 mm

23.6 x 31.5 in

500 x 650 mm

19.7 x 25.6 in

600 x 800 mm

23.6 x 31.5 in

500 x 650 mm

19.7 x 25.6 in

600 x 800 mm

23.6 x 31.5 in

Base Construction Stainless Steel platform with painted steel frame and rubber leveling feet

Repeatability (std. deviation) 1d

Linearity ±1d

Load Cell Capacity 250 kg 500 kg

Load Cell Cable 2.5 m L x 6-wire

Load Cell Type 350 Ohm, aluminum, single point

Load Cell Excitation 5-15V DC/AC

Load Cell Rated Output 2mV/V

Load Cell Protection IP65

Net Weight 36.8 kg / 81 lb 22.3 kg / 49 lb 36.8 kg / 81 lb 22.3 kg / 49 lb 36.8 kg / 81 lb

Shipping Weight 63.2 kg / 139 lb 27.8 kg / 61 lb 63.2 kg / 139 lb 27.8 kg / 61 lb 63.2 kg / 139 lb

EN-8 Defender Series Base

Drawings

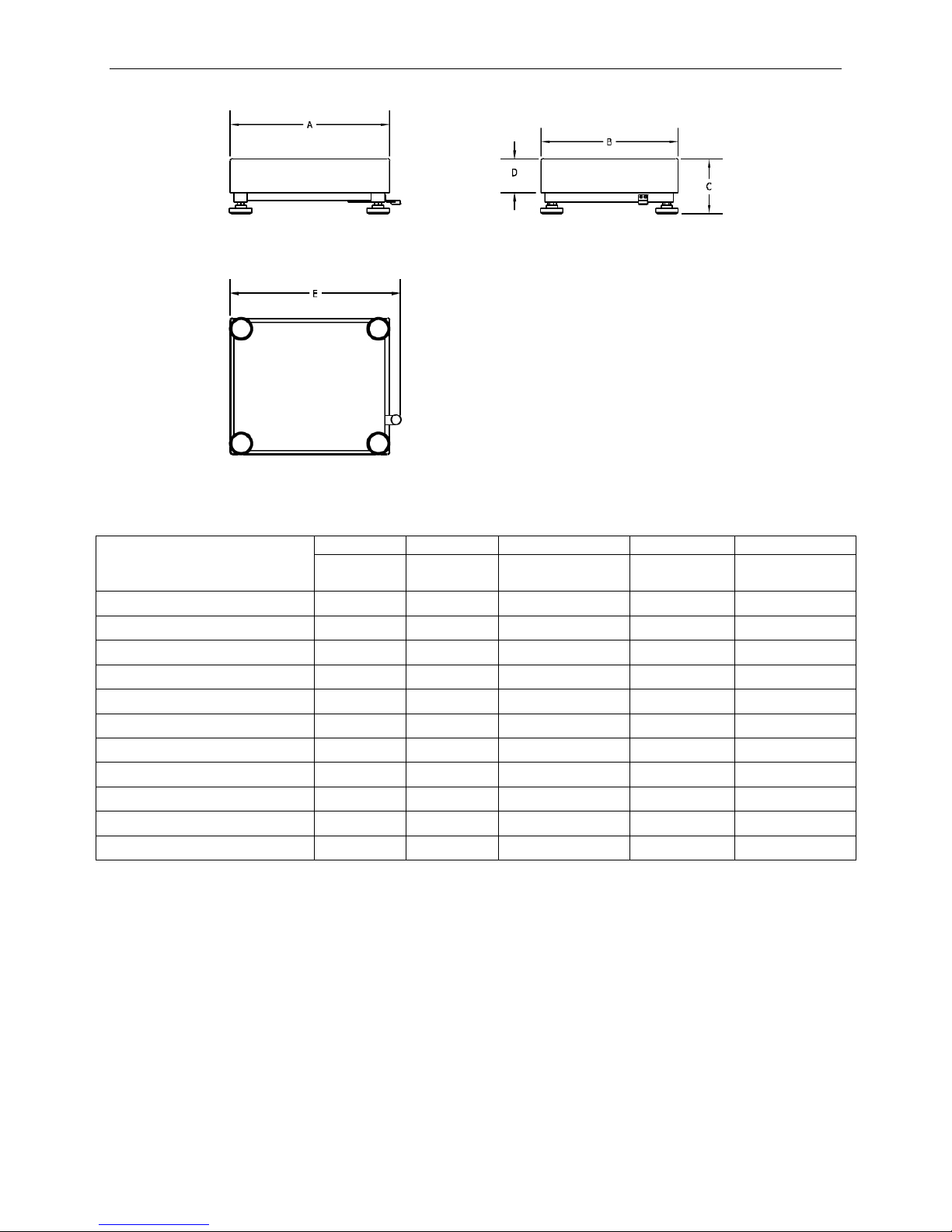

Figure 1. Defender Base Dimension Drawing.

TABLE 3. DIMENSIONS

A B C D E

Base Pan Depth Pan Width Height of Pan to

Surface of Table* Height of Pan Depth Including

Level Indicator

DxxxHR 355 mm 305 mm 95 mm 50 mm 385 mm

DxxxHL 500 mm 400 mm 105 mm 60 mm 530 mm

DxxxHX 550 mm 420 mm 125 mm 70 mm 580 mm

DxxQR, DxxxWR 305 mm 305 mm 95 mm 52 mm 335 mm

DxxxQL, DxxxWL 457 mm 457 mm 115 mm 70 mm 487 mm

DxxxQX, DxxxWX 610 mm 610 mm 137 mm 90 mm 640 mm

DxxxRS 300 mm 240 mm 80 mm 44 mm 330 mm

DxxxRR 400 mm 300 mm 86 mm 50 mm 430 mm

DxxRL 500 mm 400 mm 86 mm 48 mm 530 mm

DxxxRX 650 mm 500 mm 110 mm 73 mm 695 mm

DxxxRV 800 mm 600 mm 120 mm 83 mm 840 mm

*For leveling purposes, the feet may be extended up to an additional 15 mm.

Otros manuales para DEFENDER SERIES

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Escala de OHAUS

OHAUS

OHAUS valor 5000 series Manual de usuario

OHAUS

OHAUS Scout SKX Series Manual de usuario

OHAUS

OHAUS Catapult 1000 Manual de usuario

OHAUS

OHAUS Compass CR221 Manual de usuario

OHAUS

OHAUS Defender 3000 Series Manual de usuario

OHAUS

OHAUS Navigator Manual de usuario

OHAUS

OHAUS VF Series Manual de usuario

OHAUS

OHAUS TP200S Manual de usuario

OHAUS

OHAUS TA152 Manual de usuario

OHAUS

OHAUS Ranger Count 3000 Series Manual de usuario

OHAUS

OHAUS Emerald Manual de usuario

OHAUS

OHAUS ES30R Manual de usuario

OHAUS

OHAUS PS Series Manual de usuario

OHAUS

OHAUS Explorer EX1241 Manual de usuario

OHAUS

OHAUS TROOPER COUNT Manual de usuario

OHAUS

OHAUS Scout SPX Series Manual de usuario

OHAUS

OHAUS RS Series Manual de usuario

OHAUS

OHAUS SCOUT PRO Manual de usuario

OHAUS

OHAUS Emerald Manual de usuario

OHAUS

OHAUS BW1.5 Manual de usuario

OHAUS

OHAUS Pioneer PX125D Manual de usuario

OHAUS

OHAUS FD Series Manual de usuario

OHAUS

OHAUS Harvard Junior Manual de usuario

OHAUS

OHAUS EX124 Manual de usuario

Manuales populares de Escala de otras marcas

AWS

AWS ZEO-50 Manual de usuario

Gima

Gima Glass Body Fat Analyzer Manual de lista de piezas

Seca

Seca 374 Manual de usuario

TEC

TEC TEC SL59 SERIES Manual de usuario

Axis

Axis B/E Series Manual de usuario

Alecto

Alecto ACW-40 Manual de usuario

Rice Lake

Rice Lake MSI-4260 IS Manual de usuario

IKA

IKA RCT basic safety control Manual de usuario

ADE

ADE M20011 Manual de usuario

Duronic

Duronic KS3000 Manual de usuario

Digi

Digi SM-720 Manual de usuario

Cardinal

Cardinal CS Series Manual de usuario

Korona

Korona Kastella Manual de usuario

A&D

A&D FC-50Ki Manual de usuario

BDA

BDA CAMARGUE Manual de usuario

Tanita

Tanita HD-357 Manual de usuario

Leifheit

Leifheit 03173 Manual de usuario

Lumme

Lumme LU-1340 Manual de usuario
