Norac UC5 Topcon X30 Manual de usuario

Spray Height Controlle

John Deere Active Roll

(4720, 4710, 4700)

sta

D07A

Printed in Canada

Reorder P/N: UC5-BC-JD07A-INST Rev G (JD Active Roll 4720, 4710, 4700)

NOTICE: NORAC Systems International Inc. reserves the right to improve products and their specifications without notice and

without the requirement to update products sold previously. Every effort has been made to ensure the accuracy of the information

contained in this manual. The technical information in this manual was reviewed at the time of approval for publication.

Contents

1Introduction.....................................................................................................1

2General UC5 System Layout.........................................................................2

3Kit Parts ...........................................................................................................3

4Pre-Install Checklist .......................................................................................9

5Ultrasonic Sensor Installation .................................................................... 10

6Target Installation and Alignment............................................................. 15

7Module Installation ...................................................................................... 18

8Connecting the Sensors to the CANbus................................................... 22

9Hydraulic Installation .................................................................................. 23

10 Software Setup............................................................................................ 35

11 System Maintenance ................................................................................... 36

12 Cable Drawings ............................................................................................ 38

1 INTRODUCTION

Congratulations on your purchase of the NORAC UC5 Spray Height Controller. This system

is manufactured with top quality components and is engineered using the latest technology to

provide operating reliability unmatched for years to come.

When properly used the system can provide protection from sprayer boom damage, improve

sprayer efficiency, and ensure chemicals are applied correctly.

Please take the time to read this manual completely before attempting to install the system. A

thorough understanding of this manual will ensure that you receive the maximum benefit from

the system.

Your input can help make us better! If you find issues or have suggestions regarding the parts

list or the installation procedure, please don’t hesitate to contact us.

Every effort has been made to ensure the accuracy of the information contained in

this manual. All parts supplied are selected to specially fit the sprayer to facilitate

a complete installation. However, NORAC cannot guarantee all parts fit as

intended due to the variations of the sprayer by the manufacturer.

Please read this manual in its entirety before attempting installation.

2 GENERAL UC5 SYSTEM LAYOUT

Figure 1 illustrates the general layout of the UC5 system components:

Figure 1: General UC5 System Layout

3 KIT PARTS

3.1 Kit Overview

Figure 2: JD07A System Parts

3.2 Hydraulic Plumbing

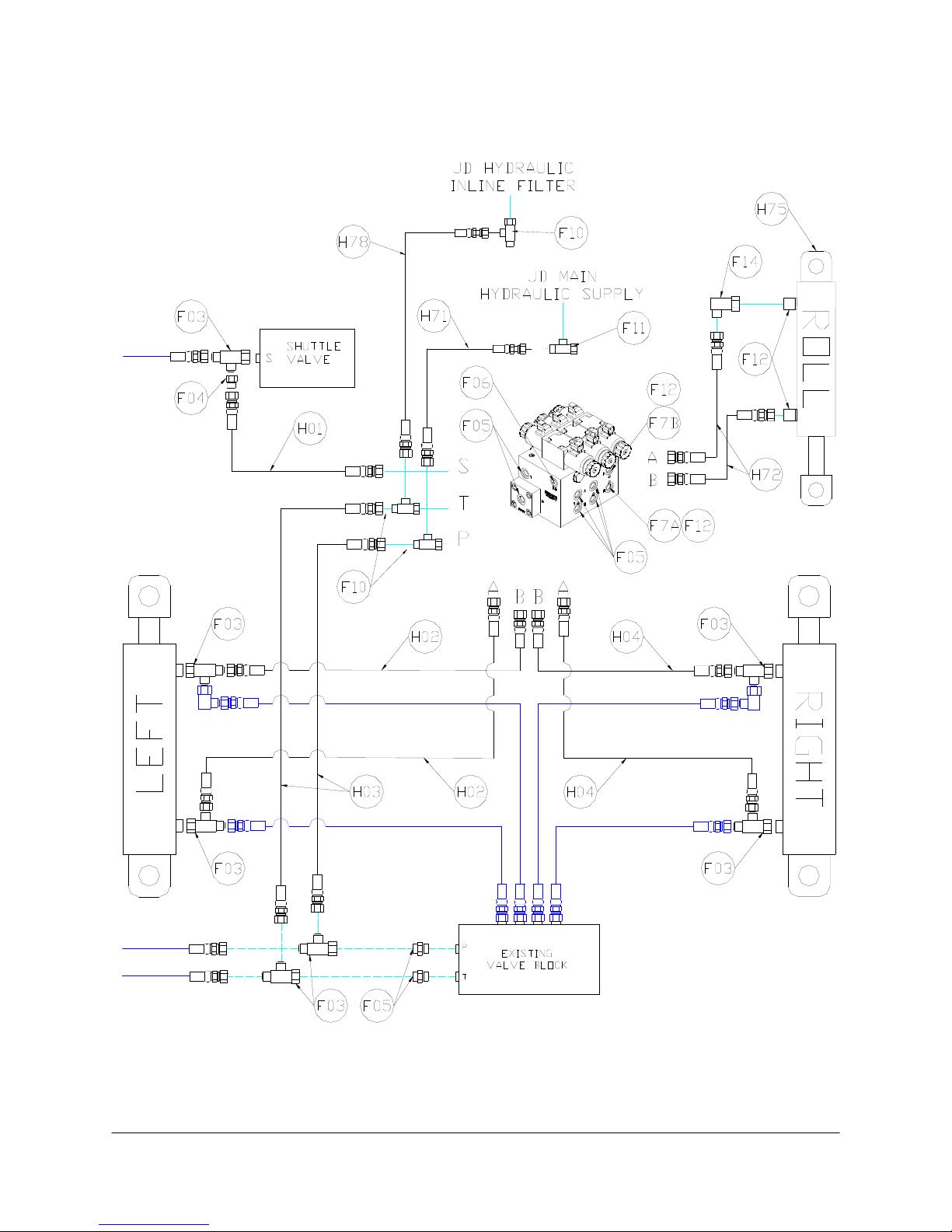

Figure 3: JD07A Hydraulic Plumbing

3.3 List of Parts

Item Part Number Name Quantity

B05 44706-01 KIT CABLE TIE BLACK 10 PCS 21 IN 150 PCS 7.5 IN 1

B07 44695-10 BRACKET SPRAYER FRAME TARGET ROLL BIAS CYLINDER REV C 1

B08 44741 MOUNTING BRACKET ROLL SENSOR TARGET UC4 1

B10 44728 MOUNTING BRACKET COMPLETE UC4 BREAKAWAY EXTENDED 2

B11 44740 MOUNTING BRACKET ROLL SENSOR UC4 REV C 1

B14 44743 MOUNTING BRACKET MAIN LIFT SENSOR UC4 PLUS 1

C01 43220-10 CABLE UC5 NETWORK 14 AWG 10M 1

C02 43220-01 CABLE UC5 NETWORK 14 AWG 1M 2

C03 43210-03 CABLE UC5 NETWORK 18 AWG 3M 1

C04 43210-01 CABLE UC5 NETWORK 18 AWG 1M 2

C05 43210-20 CABLE UC5 NETWORK 18 AWG 20M 2

C10 43230-04 CABLE UC5 VALVE 2PIN DT TO 2PIN DT 6

C20 43240-06 CABLE UC5 INTERFACE TILT JD 1

C21 43240-05 CABLE UC5 INTERFACE MAIN JD 1

C30 43250-07 CABLE UC5 BATTERY JD 1

E01 43710 UC5 CONTROLLER MODULE 1

E02 43720 UC5 VALVE MODULE 1

E03 43732 UC5 INPUT MODULE PASS THRU 1

E05 43750 UC5 ULTRASONIC SENSOR 4

E11 43765 UC5 NETWORK COUPLER 8-WAY 1

E12 43764 UC5 NETWORK COUPLER 2-WAY 2

E20 43764T UC5 NETWORK COUPLER 2-WAY WITH TERMINATOR 2

H01 44862-05 HOSE ASSEMBLY 122R2-04 144 IN L 4FORX 4FORX 1

H02 44863-53 HOSE ASSEMBLY 122R2-06 66 IN L 6FORX 6FORX 2

H03 44863-23 HOSE ASSEMBLY 122R2-06 32IN L 6FORX 6FORX 2

H04 44863-31 HOSE ASSEMBLY 122R2-06 104 IN L 6FORX 6FORX 2

H10 44865-36 HYDRAULICS FITTING KIT - JD8 1

H70 44865-38 HYDRAULICS FITTING KIT - ACTIVE ROLL 1

H71 44864-04 HOSE ASSEMBLY 122R2-08 168 IN L 6FORX 12FORX 1

Item Part Number Name Quantity

H72 44862-11 HOSE ASSEMBLY 122R2-04 60 IN L 4FORX 4FORX 2

H75 105480 HYD CYLINDER ROLL BIAS 1.75IN BORE X 7.125IN STROKE REV A 1

H78 44864-03 HOSE ASSEMBLY 122R2-08 166 IN L 6FORX 6FORX 1

M02 UC5-BC-JD07A-INST MANUAL INSTALLATION UC5 JD ACTIVE ROLL (4720, 4710, 4700) 1

P01 106034 UC5 NETWORK 2 PIN PLUG 2

P02 106035 UC5 NETWORK 12 PIN PLUG (A-KEY) 1

P03 105882 UC5 NETWORK 6 PIN PLUG 3

P04 44695-18 PIN ACTIVE ROLL CYLINDER UPPER JD 20 MM 1

V01 44960D VALVE BLOCK ASSEM 3 STATION CC/LS PROP DT 4 BOLT 1

3.4 Hydraulic Fitting Kit Details (P/N: 44865-36)

Item Part Number Name Quantity Picture

F02 104691 TEE ADAPTER - 4FORXR 4MORT 1

F03 104586 TEE ADAPTER - 6FORXR 6MORT 7

F04 105226 MALE TO FEMALE ADAPTER - 4MOR 6FORX 1

F05 44917 MALE ADAPTER - 6MB-6MOR MACHINED ORB 8

F06 104693 MALE ADAPTER - 4MOR 4MB 1

6 M B - 6 M OR X 90

SIZE IN

1/16TH'S

GENDER: MALE

OR FEMALE

90° ANGLE

SWIVEL

TYPE

GENDER

SIZE

TYPE:

B - ORB

J - JIC

OR - FLAT

FACE

P - PIPE

Fitting Name

Example:
