Norac UC7 Manual de usuario







AirBoomStandardControl

UC7BoomHeightControlSystem

InstallationManual



ReorderP/N:UC7‐BC‐TG03‐INSTRevC(AIRBOOMStandardControl)



NOTICE:NORACSystemsInternationalInc.reservestherighttoimproveproductsandtheirspecificationswithoutnoticeandwithouttherequirementtoupdate

productssoldpreviously.Everyefforthasbeenmadetoensuretheaccuracyoftheinformationcontainedinthismanual.Thetechnicalinformationinthismanual

wasreviewedatthetimeofapprovalforpublication.



WWW.NORAC.CA

PRECISIONDEFINED



Contents



Introduction..........................................................................................................................1



TechnicalSpecifications........................................................................................................2



PartsOverview......................................................................................................................3



Pre‐InstallationChecklist.......................................................................................................5



UltrasonicSensorInstallation................................................................................................6



ElectronicInstallation............................................................................................................9



SoftwareSetup....................................................................................................................14



CableSchematics.................................................................................................................15





WWW.NORAC.CA

PRECISIONDEFINED





Page1

Visitwww.solutions.norac.caformoresystem

installationandtroubleshootinginfo.

1Introduction

CongratulationsonyourpurchaseoftheNORACBoomHeightControlSystem.Thissystemismanufactured

withtopqualitycomponentsandisengineeredusingthelatesttechnologytoprovideoperatingreliability

unmatchedforyearstocome.

Whenproperlyusedthesystemcanprovideprotectionfromsprayerboomdamage,improvesprayerefficiency,

andensurechemicalsareappliedcorrectly.

Pleasetakethetimetoreadthismanualcompletelybeforeattemptingtoinstallthesystem.Athorough

understandingofthismanualwillensurethatyoureceivethemaximumbenefitfromthesystem.

Yourinputcanhelpmakeusbetter!Ifyoufindissuesorhavesuggestionsregardingthepartslistorthe

installationprocedure,pleasedon’thesitatetocontactus.



Everyefforthasbeenmadetoensuretheaccuracyoftheinformationcontainedinthismanual.Allparts

suppliedareselectedtospeciallyfitthesprayertofacilitateacompleteinstallation.However,NORACcannot

guaranteeallpartsfitasintendedduetothevariationsofthesprayerbythemanufacturer.

Pleasereadthismanualinitsentiretybeforeattemptinginstallation.

WWW.NORAC.CA

PRECISIONDEFINED

Page2

Visitwww.solutions.norac.caformoresystem

installationandtroubleshootinginfo.

2TechnicalSpecifications

ThisClassAdigitalapparatuscomplieswithCanadianICES‐003.

PursuanttoEMCDirective–Article9,thisproductisnotintendedforresidentialuse.

Table1:SystemSpecifications

SupplyVoltage(rated) 12VDC

SupplyCurrent(rated) 10A

HydraulicPressure(maximum) 3300psi

BaudRate 250kbps

OperatingTemperatureRange 0°Cto80°C

WWW.NORAC.CA

PRECISIONDEFINED





Page3

Visitwww.solutions.norac.caformoresystem

installationandtroubleshootinginfo.

3PartsOverview

3.1. ElectronicInstallationOverview



Figure1:ElectronicInstallationOverview

ItemsshowninBLUEareincludedinthedisplaypackageandmaynotbeexactlyasshown.



WWW.NORAC.CA

PRECISIONDEFINED





Page4

Visitwww.solutions.norac.caformoresystem

installationandtroubleshootinginfo.

3.2. ListofParts

ItemPartNumberNameQuantity

B0544706‐01KITCABLETIEBLK10x21150x7.51

B091036898‐01BRKTSENSORADAPTERSSFLOATER2

B2044973‐03BRKT,SENSORMNTLOWPROAIRMAX2

C0243220‐05CBL,NETWORK14AWG5M1

C0543220‐15CBL,NETWORK14AWG15M2

C1150130‐27CBL,VLV4PINTO2PINDTTEEDIODE1

C1450130‐28CBL,TILTI/FDT76CM30IN1

C3043250‐22CBL,PWR&CANTERRAGATOR1

C3143250‐24CBL,PWR&CANAIRMAX1

E0150000HCM1MODULE1

E0750300ULTRASONICMAXSENSOR2

E1043760NETWORKCOUPLER3‐WAY1

E2043764TNETWORKCOUPLER2‐WAYWITHTERMINATOR 2

M02UC7‐BC‐TG03‐INSTMANUALINSTALLATIONUC7AIRBOOMSTANDARDCONTROL1

M04100870NUTLOCKNYLONSS3165/16‐184

M05100658BOLTHEXNCSS5/16X14

P01106705NETWORK4PINCAVITYPLUG3

P02106602NETWORK12PINPLUG(A‐KEY)DT1



Donotusehighspeedpowertools/drillswheninstallinghardware.



TheuseofdielectricgreaseisnotrecommendedonanyNORACelectricalconnections.



ToensureallstainlesssteelhardwaredoesnotgallorseizeapplyalightcoatingofthesuppliedPermatex

Anti‐seizegreasetoallthreadedpartsuponinstallation.PermatexAnti‐seizelubricantispreferred,butother

similaranti‐seizeproductsmaybeused.



WWW.NORAC.CA

PRECISIONDEFINED





Page5

Visitwww.solutions.norac.caformoresystem

installationandtroubleshootinginfo.

4Pre‐InstallationChecklist

Thepre‐installchecklistisnecessarytochecktheexistingsprayerfunctionalitybeforetheinstallation.

1. Unfoldthesprayeroveraflat,unobstructedarea(i.e.nopowerlines…etc.).

2. Ensureallboom‐foldoperationsarefunctional(placeacheckmarkinboxesbelow).

3. Bringenginetofield‐operationalRPMandrecordbelow.

4. Recordthetime(seconds)ittakesforafullstrokeforallboomfunctions.Toensurerepeatable

measurements,taketheaverageof3trials.

5. NotallsprayerswillhavethefunctionslistedbelowinFigure2.



Ensuretheboomhassufficienttravelsoitdoesnotcontactthegroundduringthesetests.



Figure2:Pre‐InstallBoomSpeeds





WWW.NORAC.CA

PRECISIONDEFINED





Page6

Visitwww.solutions.norac.caformoresystem

installationandtroubleshootinginfo.

5UltrasonicSensorInstallation

5.1. UltrasonicSensorSerialNumberArrangement

TheMAXSensors™(E07)aremountedintheouterwingpositionswiththelowestserialnumberontheleftside

andthehighestserialnumberontherightside.

Eachsensorhasaserialnumberstampedonthesensorhousing.

ApplyalightcoatingofthesuppliedPermatexAnti‐seizegreasetoallthreadedpartsuponinstallation.



Figure3:SensorSerialNumberArrangement



WWW.NORAC.CA

PRECISIONDEFINED





Page7

Visitwww.solutions.norac.caformoresystem

installationandtroubleshootinginfo.

5.2. UltrasonicSensorMountingGuidelines

Thefollowingguidelineswillensureoptimalsensorperformanceandpreventsensormeasurementerror.

1. Initslowestposition,thesensormustbe9inches(230mm)ormorefromtheground.

2. Ensurethattherearenoobstructionswithina12inch(300mm)diametercircleprojecteddirectlybelow

thecenterofthesensor.

3. Thesensorshouldbeapproximatelyverticalatnormaloperatingheights.



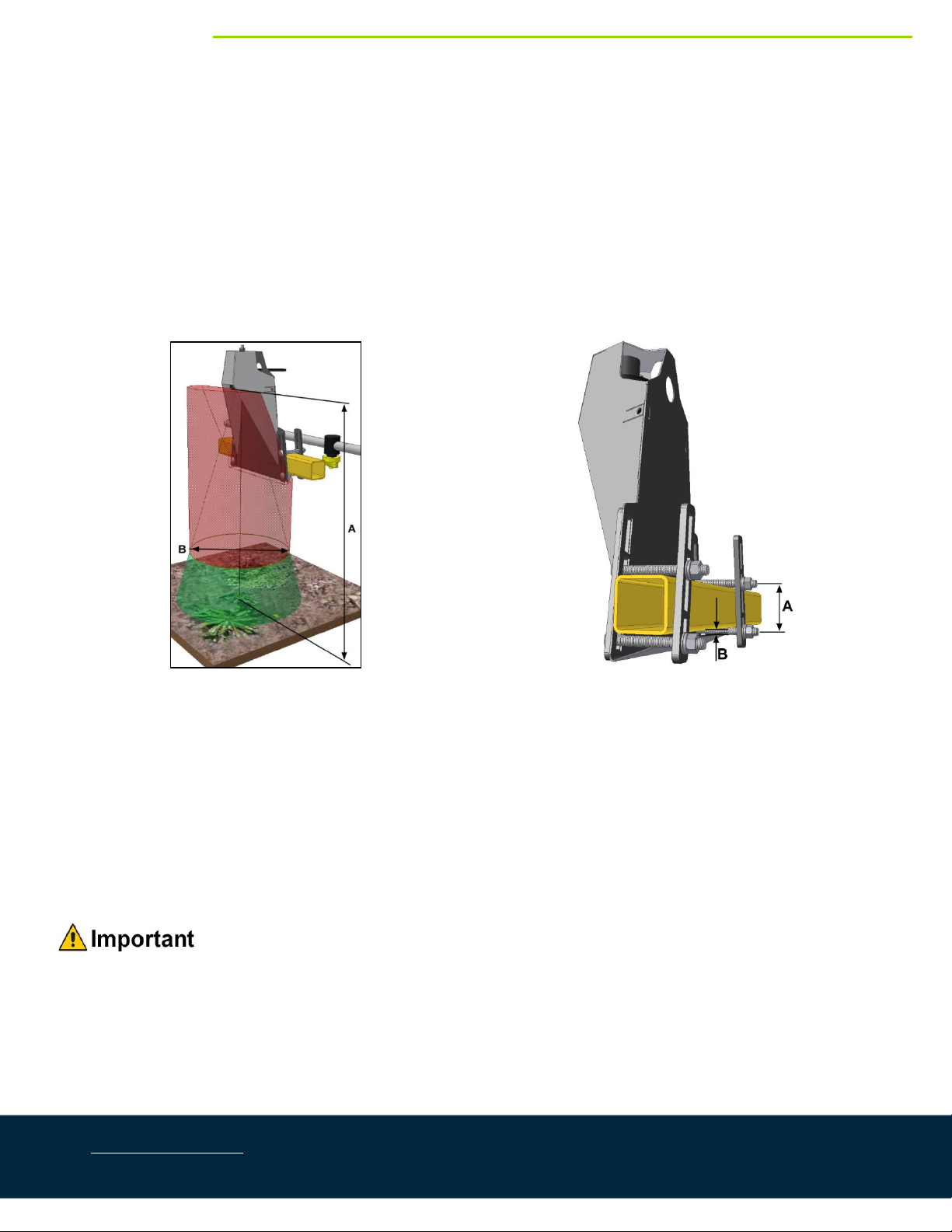

Figure4:SensorMountingGuidelines



Figure5:BracketMountingGuidelines



5.3. LowProfileBracketMountingGuidelines

1. Minimizethedistancebetweentheboltstopreventbendingthebracketandpreventthebracketfrom

looseningovertime.

2. Ensurethebracketismountedtightagainstthebottomoftheboom,minimizingthedistancebetweenthe

boomstructureandtheangledflange.



Aproblemcanariseifasensorisnotmountedcorrectly.Thismayonlybecomeapparentoncethecontrol

systemisswitchedfromsoiltocropmode.

Becarefulthatthesensorbracketdoesnotcollidewithanyotherpartoftheboomwhentheboomisfolded

totransportposition.Ifpossible,mountthesensorbracketswhiletheboomsarefoldedtoensuretheywill

notcauseinterference.
