Norac UC4.5 Manual de usuario

Fast

with Directional Manifold Retrofit

Installation Manual

FT1

Printed in Canada

Reorder P/N: UC4.5-BC-FT1-INST Rev A (Fast with Directional Manifold Retrofit)

NOTICE: NORAC Systems International Inc. reserves the right to improve products and their specifications without notice and

without the requirement to update products sold previously. Every effort has been made to ensure the accuracy of the information

contained in this manual. The technical information in this manual was reviewed at the time of approval for publication.

Contents

1Introduction................................................................................................................ 1

2General UC4.5 System Layout................................................................................. 2

3Kit Parts ...................................................................................................................... 3

4Pre-Install Checklist................................................................................................... 7

5Ultrasonic Sensor Installation .................................................................................. 8

6Roll Sensor Installation............................................................................................ 11

7Electrical Installation ............................................................................................... 14

8Hydraulic Installation .............................................................................................. 16

9Completing the Factory Installation...................................................................... 19

10End User Installation ............................................................................................... 20

11Cable Drawings ........................................................................................................ 22

1Introduction

Congratulations on your purchase of the NORAC UC4.5 Spray Height Control System. This

system is manufactured with top quality components and is engineered using the latest

technology to provide operating reliability unmatched for years to come.

When properly used the system can provide protection from sprayer boom damage, improve

sprayer efficiency, and ensure chemicals are applied correctly.

Please take the time to read this manual completely before attempting to install the system. A

thorough understanding of this manual will ensure that you receive the maximum benefit from

the system.

Your input can help make us better! If you find issues or have suggestions regarding the parts

list or the installation procedure, please don’t hesitate to contact us.

Every effort has been made to ensure the accuracy of the information contained in

this manual. All parts supplied are selected to specially fit the sprayer to facilitate

a complete installation. However, NORAC cannot guarantee all parts fit as

intended due to the variations of the sprayer by the manufacturer.

Please read this manual in its entirety before attempting installation.

2General UC4.5 System Layout

Figure 1 illustrates the general layout of the UC4.5 system components:

Figure 1: General UC4.5 System Layout

3Kit Parts

3.1 Kit Overview

Figure 2: FT1 System Parts

3.2 Hydraulic Plumbing

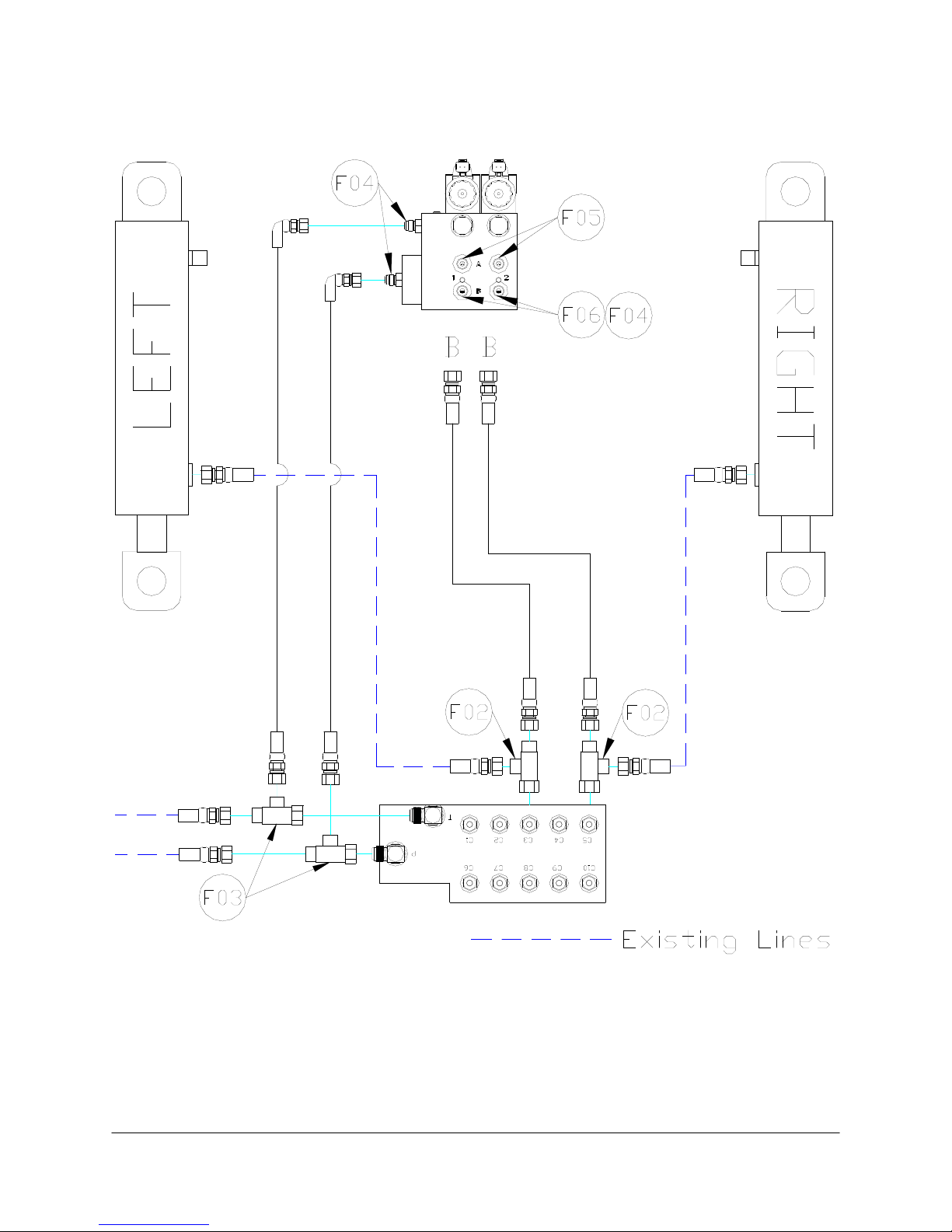

Figure 3: FT1 Hydraulic Plumbing

3.3 List of Parts

Item Part Number Name Quantity

C03 44656D CABLE VALVE VARIABLE RATE DT 1

C05 43210-20 CABLE UC5 NETWORK 18 AWG 20M 2

C10 44650-51 CABLE UC4.5 POWER GENERIC PULL-TYPE 1

C11 44651-50 CABLE UC4.5 EXTENSION VALVE GENERIC 1

C12 44658-19 CABLE UC4 INTERFACE FT1 MAIN 1

C13 44658-20 CABLE UC4 INTERFACE FT1 WINGS 1

C30 43250-06 CABLE UC5 BATTERY PIGTAIL FUSED - 5A 1

E01 45100 UC4.5 BOOM CONTROL PANEL 1

E03 43742 UC5 ROLL SENSOR W TEMPERATURE PROBE 1

E04 43741 UC5 ROLL SENSOR VER. 2 1

E05 43750 UC5 ULTRASONIC SENSOR 2

E11 43765 UC5 NETWORK COUPLER 8-WAY 1

E12 43764 UC5 NETWORK COUPLER 2-WAY 1

E20 43764T UC5 NETWORK COUPLER 2-WAY WITH TERMINATOR 2

H10 44865-09 HYDRAULICS FITTING KIT - FT1 1

M01

UC4.5-BC-MANUAL-

OPERATOR

OPERATOR MANUAL UC4.5 SPRAY HEIGHT CONTROL 1

M02 UC4.5-BC-FT1-INST MANUAL INSTALLATION UC4.5 FAST SPRAYER 1

M06 45015 ANTI-SEIZE LUBRICANT KIT 1

P03 105882 UC5 NETWORK 6 PIN PLUG 3

V01 44963D VALVE BLOCK ASSEMBLY 2 STATION CC/LS PROP DT 4 BOLT 1

3.4 Optional Main Lift Kit

An optional main lift sensor kit is available for purchase from NORAC.

Part Number Name

4570BC UC4.5 MAIN LIFT OPTION - 44743

3.5 Hydraulic Fitting Kit Details (P/N: 44865-09)

Item Part Number Name Quantity Picture

F02 105588 TEE ADAPTER - 4FJXR 4MJT 2

F03 104632 TEE ADAPTER 8FJXR 8MJT 2

F04 103312 MALE ADAPTER - 6MB 6MJ 4

F05 104369 PLUG - 6MBP 2

F06 44928 ORIFICE INSERT .047 IN ONE WAY 2

6 M B - 6 M OR X 90

SIZE IN

1/16TH'S

GENDER: MALE

OR FEMALE

90° ANGLE

SWIVEL

TYPE

GENDER

SIZE

TYPE:

B - ORB

J - JIC

OR - FLAT

FACE

P - PIPE

Fitting Name

Example:

The use of dielectric grease is not recommended on any NORAC electrical

connections.

To ensure all stainless steel hardware does not gall or seize apply a light coating of

the supplied Permatex Anti-seize grease (M06) to all threaded parts upon

installation. Permatex Anti-seize lubricant is preferred, but other similar anti-seize

products may be used.

4Pre-Install Checklist

The pre-install checklist is necessary to check the existing sprayer functionality before the

installation.

1. Unfold the sprayer over a flat, unobstructed area (i.e. no power lines…etc.).

2. Ensure all boom-fold operations are functional (place a check mark in boxes below).

3. Bring engine to field-operational RPM and record below.

4. Record the time (seconds) it takes for a full stroke for all boom functions. To ensure

repeatable measurements, take the average of 3 trials.

5. Not all sprayers will have the functions listed below in Figure 4.

Ensure the boom has sufficient travel so it does not contact the ground during

these tests.

Figure 4: Pre-Install Boom Speeds
