NetComm NB14 Manual de usuario

Broadband Setup

Netcomm NB14

Broadband Setup Netcomm NB14

- Requirements

- Connecting the NB14 to your computer

- Connecting lters

- Logging into your modem

- Connecting your ADSL modem to access ClubTelco

- Email setup

- Homepage setup

Index

Modem Reference Guide

1. Getting Started

2. Conguring Your Modem

3. Email & Homepage Setup

Broadband Setup Netcomm NB14

Modem light status

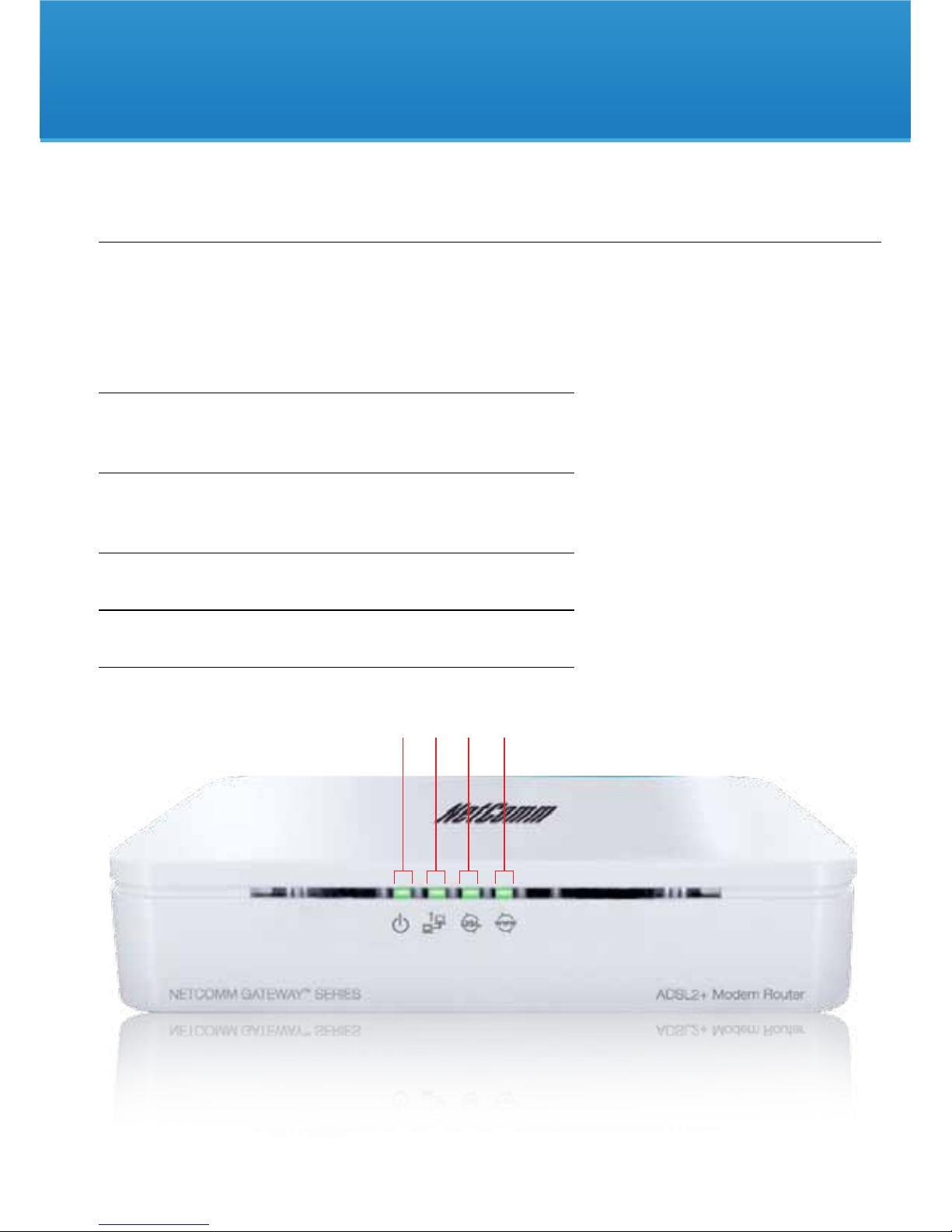

On the front of your modem you will notice a number of lights; the below table will explain

what each of these lights mean:

Diagram (1.1)

Label Action Description

(A) Power On Power is on

Blinking Waiting for device to be ready

O Power is o

(B) Ethernet On Connected via Ethernet

Blinking Data ow

O No Ethernet connection

Blinking No DSL signal

(D) www On The device has connected to internet

Blinking Data ow

(A) (C) (D)(B)

Modem Reference Guide

Broadband Setup Netcomm NB14

Requirements

1. Any operating system is compatible however depending on the version this may aect your

internet experience.

2. Internet Explorer 6.0 or higher/Firefox 2.0 or higher.

3. Ethernet network adapter.

Connecting the NB14 to your computer

1. Connect the network cable to the yellow network port located at the back of the modem; the

other end will connect to your computer.

2. Connect a telephone cable to the black port labelled ADSL at the back of the modem, and

connect the other end to your telephone wall socket.

3. Finally, connect the power cable to your modem and the power adaptor to your power point.

Press the power button to the“ON”state.

Thediagramlocatedbelowshowshowthemodemconnectsphysicallytoyourphoneline,computer

and power point.

1. Getting Started

Broadband Setup Netcomm NB14

4. Now that the modem is connected to your computer, phone line and powered on, you need

to ensure that the lights on the modem indicate the following:

Label Action

Power On

DSL On

Ethernet On or blinking

Once done you will also see a network icon appear in your task bar, you are now ready to setup

your ClubTelco internet connection. The image below shows the message box which should

appear once the modem is connected and powered on.

Connecting Filters

Connecting a Central or Splitter Filter

This lter is used when you need to plug a telephone and the modem in the same telephone

wall socket.

There are three ports on the central lter as follows:

Line – This port connects to your telephone wall socket.

ADSL – This port connects to the modem’s black port labeled ADSL.

Phone – This port connects to a telephone or other types of telephony devices (for example a

fax machine).

Broadband Setup Netcomm NB14

From the diagram below you can see the splitter (micro) lter acts as a double adapter and lter.

Telephone

Wall Socket

Home Phone

Microlter

Phone Jack

Connecting an Inline Filter

This lter is used on all telephones, fax lines, etc.

An inlinelteris placed betweenthe telephonydeviceandthe telephone wallsocketand should

never be installed on the ADSL modem’s phone cable/connection.

The diagram below shows that the inline lter only connects to your telephony devices.

Home Phone

Modem Router

Telephone

Wall Socket

Inline Filter

Phone Jack

IMPORTANT - Do not put

lter on this line

Broadband Setup Netcomm NB14

Logging into your modem

1. Openawebbrowser(usuallyInternetExplorer)andintheaddressbarenter:http://192.168.1.1

2. You will be asked for a username and password, enter the following login details:

Username: admin

Password: admin

Aspicturedbelowyoucanseeoncethemodemaddress(http://192.168.1.1)hasbeenenteredthelogin

page will automatically appear.

2. Conguring Your Modem

Broadband Setup Netcomm NB14

Connecting your ADSL modem to access ClubTelco

1. Once you have logged into your modem, at the top of the screen click on Quick Start followed

by the Run Wizard button once the screen has loaded.

2. The Quick Start screen will now load, providing you with the steps for the setup. Please

click Next to continue.

Broadband Setup Netcomm NB14

3. If you want to change the password for your modem you can by entering in a new password.

If you choose to do so please note down the new password somewhere safe as you will need

it later should you need to login to the modem.

If you do not want to change the modem’s password simply type “admin”in both the New

Password and Conrmed Password boxes. Click Next to continue.

4. Please select your time zone and click Next.

Broadband Setup Netcomm NB14

5. From the connection types please select PPPoE/PPPoA. Click Next to continue.

6. You will now need to enter in your ADSL connection settings. Please complete these as

follows and click Next when completed:

 •Username: Simply enter your ClubTelco username but much like your email address, for

example; johnsmith@clubtelco.com

 •Password: Enter the password you’ve selected at sign-up

 •VPI: 8

 •VCI: 35

 •Connection Type: PPPoE LLC

username@clubtelco.com
