NetComm NF4V Manual de usuario

NetCommWireless

QUICK START GUIDE

NetComm

Wireless

VDSL/ADSL WiFi Gigabit

Modem Router

NF4V

NetComm

Wireless

THANKS FOR PURCHASING

NETCOMM WIRELESS

This quick start guide is designed to get you up and running quickly with your new router, more

advanced set up instructions can be found in the user manual which can be downloaded from

www.netcommwireless.com

INSTALLING THE DEVICE

1. Connect the supplied RJ-11 cable to the DSL port on the back of your device and to the

phone port that supplies your DSL service.

2. Connect the supplied RJ-45 Ethernet cable from one of the Ethernet Ports on the back

of the device to your computer.

3. Connect the supplied power adapter to your router and press the on/off button to

power the router on.

Optional

Connect an RJ-11 cable from the telephone port on the back of your device to a

telephone handset to enable VOIP service usage.

VDSL/ADSL WiFi Gigabit Modem Router - NF4V

LOGGING IN TO THE WEB INTERFACE

1. Open a web browser (such as Internet Explorer, Google Chrome or Firefox), type

http://192.168.20.1 into the address bar and press enter.

2. At the login screen, type admin into both the Username and the Password elds and

click OK.

CONFIGURING THE DEVICE FOR USE WITH AN

ADSL / VDSL SERVICE

1. Click on the Basic menu at the top of the page and then click on Quick Setup.

2. Select either VDSL or ADSL depending on your connection type and click Next.

ADSL:

1. Select either PPP over Ethernet (PPPoE) or PPP over ATM (PPPoA) depending on

your Internet Service Provider’s requirements. Click Next.

2. In the User ID and Password elds, enter the User ID and password supplied to you

by your Internet Service Provider (ISP). If required by your ISP, you may also adjust the

VPI and VCI gures here. Click the Finish button when you have entered the required

information.

NetComm

Wireless

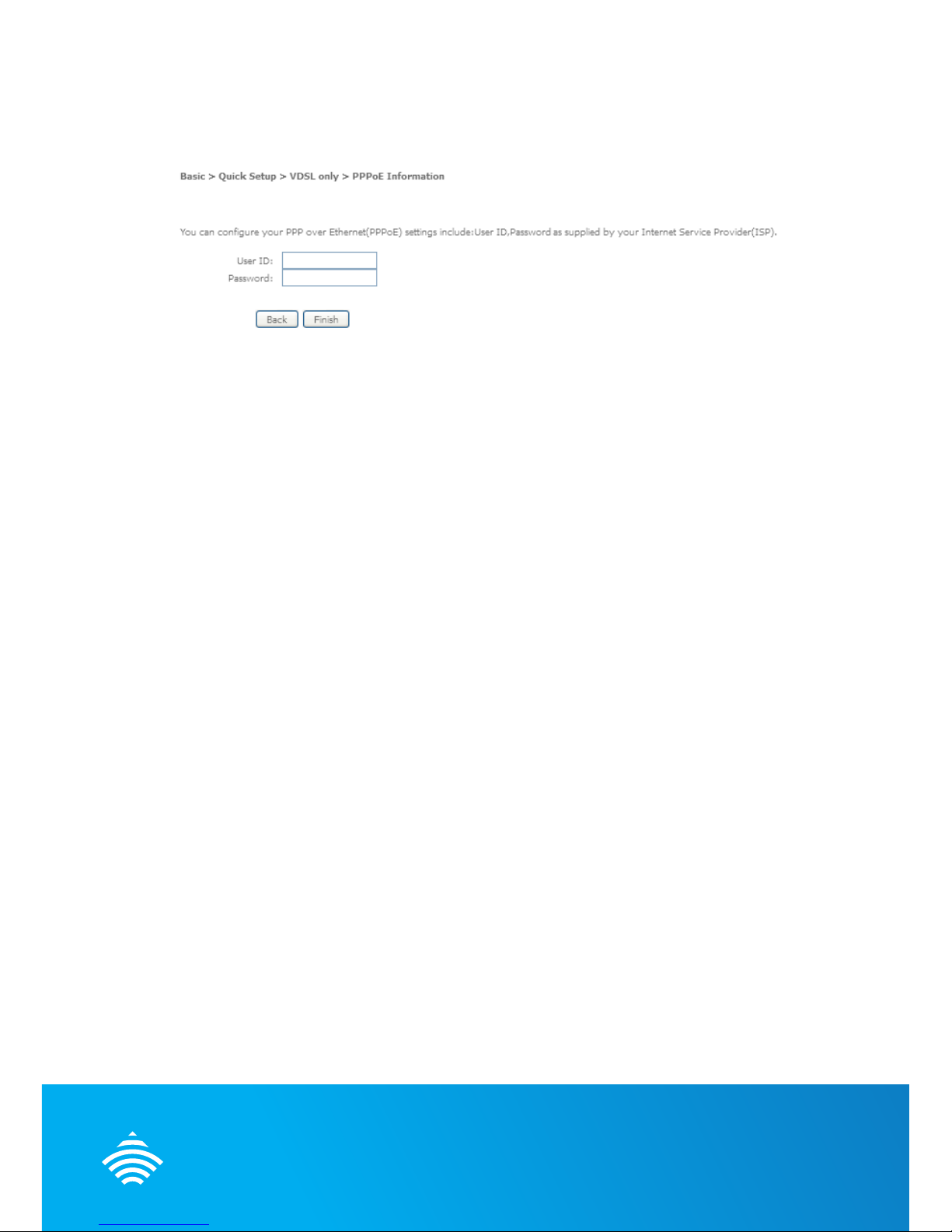

VDSL:

1. In the User ID and Password elds, enter the User ID and Password assigned to you by

your Internet Service Provider (ISP).

2. Click the Finish button when you have entered the required details.

WIRELESS

The router comes shipped with the wireless function enabled so there is no conguration

necessary in order to use the wireless function.

To connect to the router wirelessly, search for wireless network on your WiFi enabled device

(laptop, tablet, smart phone) and select the wireless network name that is listed on your

wireless security card. When prompted enter the wireless security key that is listed on your

wireless security card for the password.

If you wish to disable the wireless function, change the default network name or password

you will need to change the settings on the wireless setup pages. You can nd instructions

for this in the user guide.

QSG-00042-rev1
