Quick Start Guide

NB9, NB9W

ADSL2+ VoIP Modem Router

NB9, NB9W Quick Start Guide YML789Rev1

2 www.netcomm.com.au

WARNING

For your safety the Antenna must be ﬁtted before any cables are connected to the unit, and all cables

should be removed before the Antenna is removed. All replacement Antennas should be of a type

approved by NetComm.

VERY IMPORTANT NOTE:

1. The NB9/NB9W is equipped with an automatic ‘back-up’ telephone line which will connect you to the

emergency operator when 000 is dialled on the handset. For this feature to function correctly, you need

a functioning telephone line and that line needs to be correctly connected to the NB9/NB9W’s line port.

NetComm will not be liable to any person for any expenses, losses, damages or costs if the emergency

operator cannot be reached for any reason beyond NetComm’s control, including but not limited to the

non-existent or incorrect connection of the telephone line to the NB9/NB9W; faults in line cords, plugs or

other cabling/exchange faults; lightning strikes disabling the NB9/NB9W line circuits; the user disabling

the LifeLine support in the NB9/NB9W advanced features; problems with the user’s handset or damage

caused to the NB9/NB9W by it; the user not having a valid account with the telephone service providers

for a regular telephone service; and the ‘000’ service being congested or not operational.

2. NetComm will not be liable to any person for any expenses, losses, damages or costs from a user

inadvertently using the PSTN Service to make calls.

Please note that documentation and features of this product are subject to change, please visit the

support downloads section of the NetComm website - http://www.netcomm.com.au/Support/index.

php to obtain the latest versions of these documents. Alternatively you can visit the NetComm

Knowledge Base for answers to common questions – http://kb.netcomm.com.au/kb/

YML789 Rev1 NB9, NB9W Quick Start Guide

www.netcomm.com.au 3

SECTION 1 OVERVIEW

Thank you for purchasing the NetComm NB9/NB9W ADSL2+ VoIP Router. NetComm is proud to introduce

this entirely new class of all-in-one device incorporating ADSL2+, VoIP and Wireless in a single compact

unit. The NB9/NB9W is truly a ‘broadband communications gateway’ that, when attached to the appropriate

ISP services, will enable multiple broadband communications streams to run concurrently into your home or

ofﬁce. Data and voice services can be delivered and distributed to multiple PCs at the same time, while the

data packets can be managed via ‘Quality of Service’ (QoS) controls to ensure that priority is given to voice

trafﬁc, or to the trafﬁc of your choice.

The VoIP ‘terminal adaptor’ capability enables you to connect existing telephones to the device to make

inexpensive or free VoIP phone calls to any destination, while simultaneously providing internet connectivity for

multiple computers.

Let’s look at some of the capabilities offered by the NB9/NB9W in brief:

ADSL Broadband

The NB9/NB9W offers the next generation of broadband ADSL technology with ADSL2/2+, which boosts

ADSL’s performance signiﬁcantly, improves interoperability, and supports new applications, services and

deployment conditions.

VoIP (Voice over Internet Protocol)

The NB9/NB9W connects one or two analogue telephones to a VoIP service as well as providing a pass

through connection for your existing landline. The two Phone (FXS) ports even allow two separate VoIP

numbers with a VoIP Service Provider (VSP). The PSTN Line (FXO) port provides telephone back-up should

your VSP, ADSL service or power to the NB9/NB9W fail.

Wireless (NB9W only)

In addition to fast, standard 802.11g-based wireless, the NB9W incorporates Broadcom’s state-of-the-art

XPress and Afterburner technology* to radically improve the performance of wirelessly-connected devices.

* Your wireless device must have a suitable wireless card to take advantage of these technologies.

QoS

With the addition of bandwidth-hungry applications to the SOHO/Home network the NB9/NB9W has not

overlooked one of the most important features for a home Internet gateway – Quality of Service (QoS) The

QoS implementation in the NB9/NB9W is extremely sophisticated allowing you to prioritise data on your

network according to rules you make.

NB9, NB9W Quick Start Guide YML789Rev1

4 www.netcomm.com.au

NB9/NB9W Package Contents

Your NB9/NB9W contains the following items:

• NB9 or NB9W ADSL2+ Modem Router

• 15VDC 1.6 Amps power supply

• RJ-11 ADSL Line connection cable

• RJ-45 10/100 Ethernet cable

• Removable Antenna

• User Guide (on CD)

• Quick Start Guide

Selected terminology used in this manual

POTS A telephone line used for a standard phone-line and service will be referred to as

POTS (=Plain Old Telephone Service)

Pass-through Line The line that connects the NB9/NB9W to a POTS line may be referred to as a pass-

through line

RJ11 Telephone cables may be referred to as RJ11 which is the format of the connection

plug used for telephones

Ethernet Local area network trafﬁc will be carried by standard Category 5 cable referred to

as Ethernet

RJ45 Ethernet cables may also be referred to as ‘RJ45’ which is the format of the

connection plug used for network devices

LAN Local Area Network

WLAN Wireless Local Area Network

VSP VoIP Service provider

Do I need a micro ﬁlter?

Micro ﬁlters are used to prevent interference between phones and fax machines, and your ADSL service. If

your ADSL-enabled phone line is being used with any equipment other than your ADSL Modem then you will

need to use one Micro ﬁlter for each phone device in use. Telephones and/or facsimiles in other rooms that

are using the same line will also require Microﬁlters. A suitable Microﬁlter can be purchased from NetComm

or your Service Provider, if required.

Multi-purpose Gateways and In-line Splitters

The multi-purpose ADSL/VoIP gateway uses a different micro ﬁlter conﬁguration to an ADSL modem/router.

With the NB9/NB9W, an in-line splitter is placed between a telephone outlet and the NB9/NB9W. One RJ11

cable is then connected from the splitter’s PHONE port to the NB9/NB9W LINE port. Another is connected

from the splitters ADSL or MODEM port to the NB9/NB9W ADSL port. This is to allow the ‘pass-through’ line

to connect via the POTS if necessary. (See diagram on page 9)

YML789 Rev1 NB9, NB9W Quick Start Guide

www.netcomm.com.au 5

SECTION 2 MINIMUM SYSTEM REQUIREMENTS:

Different aspects of the NB9/NB9W have different requirements, so let’s look at them in turn. We’ll start with

your computer, which ought to match the following requirements if you are to enjoy the beneﬁts of a high-

speed ADSL connection and use of VoIP and Wireless Networking.

PC Requirements:

• Any computer running Windows 98/2000/Me/XP/Vista or Macintosh OSX

• Ethernet or Wireless Network card

• CD-ROM drive

• Web browser e.g.

• Internet Explorer 5.1 (or better)

• Netscape Navigator

• Mozilla FireFox 1.0.4

ADSL Requirement:

• ADSL broadband connection to an ISP (Internet Service Provider)

• ADSL In-line Splitter/Filter (Please refer to Do I need a micro ﬁlter? for more information)

Note: Connection at ADSL2 or 2+ rate depends on the service offered by your ISP; the device will operate at standard ADSL rates in

the absence of the 2 or 2+ service. Consult your ISP for details.

VoIP Requirements:

• One or two telephone handsets for VoIP service

Note: The NB9/NB9W serves as an Analogue Terminal Adaptor so any touch-tone phone may be used for VoIP services.

• Account with a VoIP Service Provider (VSP) including relevant account details

Wireless Requirements (for NB9W only):

• Wireless Network Interface Card (NIC) for each intended computer

NB9, NB9W Quick Start Guide YML789Rev1

6 www.netcomm.com.au

SECTION 3 GETTING TO KNOW THE NB9/NB9W

It is recommended that you take a moment to acquaint yourself with the indicator lights, ports and default

settings of the NB9/NB9W prior to commencing with installation.

LED INDICATORS

LED Colour Mode Function

POWER Green On The router is powered up

Off The router is powered down

ADSL Green On The ADSL Link is established

Off The ADSL Link is not established

Green Blink The ADSL line is training or trafﬁc is passing through

LINE Green On FXO (Pass through) Line is off hook

Off FXO Line is on hook

PHONE1 Green On FXS (VoIP) Phone 1 is off hook

Off FXS Phone 1 is on hook

PHONE2 Green On FXS Phone 2 is off hook

Off FXS Phone 2 is on hook

LAN 1x ~4x Green On Ethernet link is established

Off Ethernet link is not established

Green Blink Data transmitting/receiving over Ethernet

NB9W only

WLAN Green On Wireless module is ready

Off Wireless module is not installed

Green Blink Data transmitting/receiving over Wireless

WLAN ACC See User Guide WLAN Access Control

YML789 Rev1 NB9, NB9W Quick Start Guide

www.netcomm.com.au 7

Back Panel Ports

Port Name Function

WLAN ACC (for NB9W only) WLAN Access Control.

Antenna (for NB9W only) Wireless LAN antenna.

4 x LAN 4 x 10/100 Base-T Ethernet jack (RJ-45) to connect to your Ethernet Network card or

Ethernet Hub / Switch.

ADSL Telephone jack (RJ-11) to connect to your Telephone Wall Socket (ADSL line).

Line Telephone jack (RJ-11) to connect to your Telephone Wall Socket (note you will

require an in-line splitter to split your telephone line if one wall point is used for both

your ADSL and telephone service).

Power Connect the power adaptor that comes with your NB9/NB9W.

Reset Reset button. Depress for 10 seconds to return your NB9/NB9W to its default

settings.

NB9, NB9W Quick Start Guide YML789Rev1

8 www.netcomm.com.au

SECTION 4 DEFAULT SETTINGS

The following are the default LAN (Local Area Network) and WAN (Wide Area Network).

LAN (Management)

• Static IP Address: 192.168.1.1;

• Subnet Mask: 255.255.255.0;

• Default Gateway: blank;

WAN (Internet)

• Empty: Once you have run through ‘ADSL Quick Setup’ you will have a saved WAN connection;

• Default connection type: PPPoE (most common for Australian ISPs);

• VPI / VCI: 8 / 35;

Modem Access

• Username: admin

• Password: admin

Restore Factory Default Setting

Restore Factory Defaults will reset the NB9/NB9W to its factory default conﬁguration.Occasionsmay present

themselves where you need to restore the factory defaults on your NB9/NB9W such as:

• You have lost your username and password and are unable to login to your NB9/NB9W’s web

conﬁgurationpage;

• You have purchased your NB9/NB9W from someone else and need to reconﬁgurethedevice to work with

your ISP;

• You are asked to perform a factory reset by NetComm Support staff

In order to restore your NB9/NB9W to its factory default settings, please follow these steps:

• Ensure that your NB9/NB9W is powered on (for at least 10 seconds);

• Use a paper clip or a pencil tip to depress the reset button for ten seconds and release. At this point, the

reset is in progress. Do not power off the unit at this point;

• When indicator lights return to steady green, reset is complete. The default settings are now restored. The

entire process takes about 45 seconds to complete;

• Once you have reset your NB9/NB9W to its default settings you will be able to access the device’s

conﬁgurationwebinterfaceusinghttp://192.168.1.1withusername‘admin’and password ‘admin’;

YML789 Rev1 NB9, NB9W Quick Start Guide

www.netcomm.com.au 9

SECTION 5 CONNECTING THE NB9/NB9W

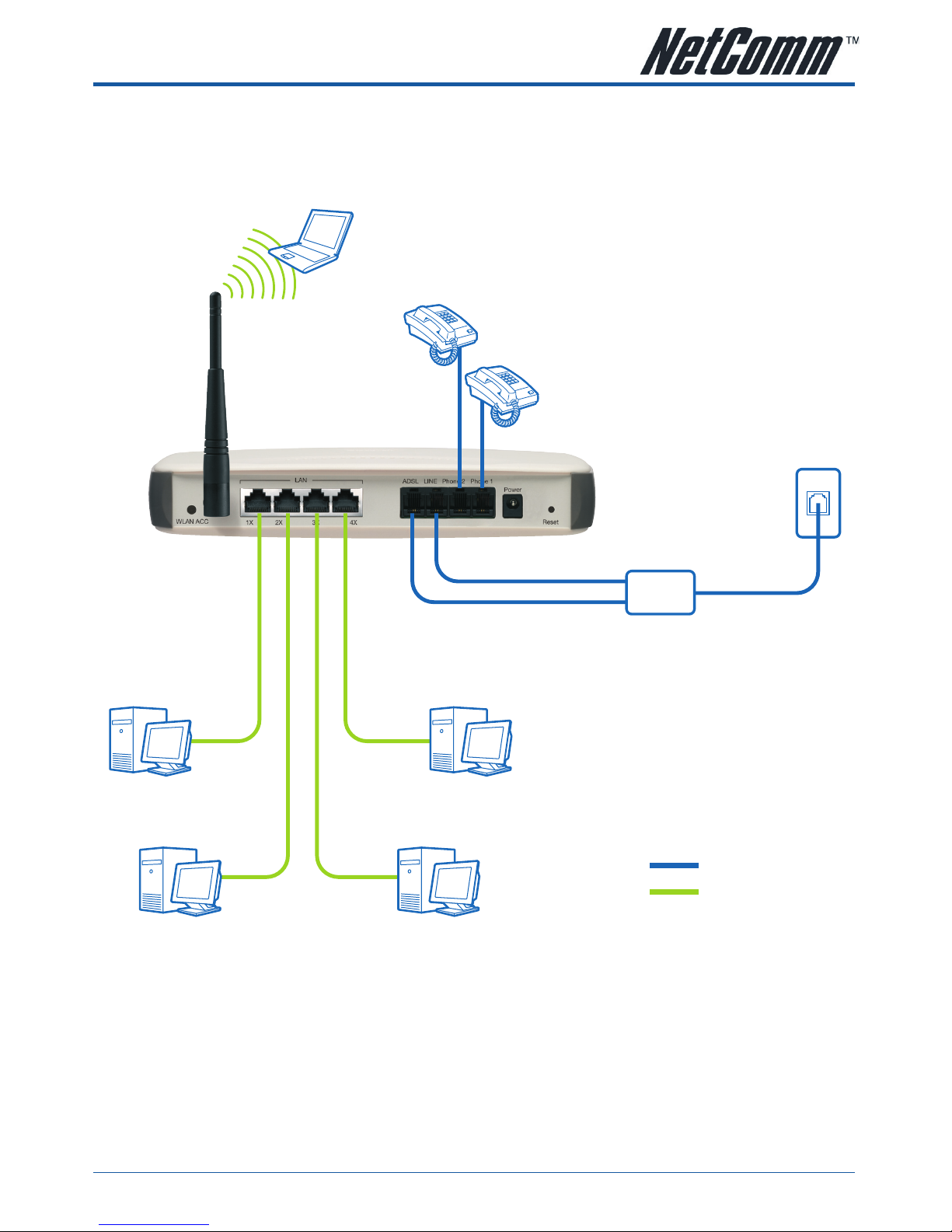

Follow the steps in this section to conﬁgure ADSL, VoIP, Wireless, only one, or any combination of these. The

diagram below shows you how to connect the NB9/NB9W to your PC, ADSL and POTS service.

Phone

ADSL/Modem

1 or 2 Analogue

Telephones

Laptop Computer

connected wirelessly

Computer connected

via Ethernet

Computer connected

via Ethernet

Computer connected

via Ethernet

Computer connected

via Ethernet

RJ-11 Telephone line

RJ-45 Ethernet cable

Telephone

Socket

NB9, NB9W Quick Start Guide YML789Rev1

10 www.netcomm.com.au

5.1 Connecting the Cables

Note: If you wish to link to the NB9W wirelessly at the outset, see Establishing a Wireless Connection below.

1. Connect your PC using Ethernet cable to one of the LAN ports of your NB9/NB9W;

2. Connect the POTS pass-through line ;

i. Connect telephone wall-socket to port on in-line splitter called LINE;

ii. Connect one end of an RJ11 (telephone) cable to PHONE port of the in-line splitter and connect the

other end to the LINE port on NB9/NB9W;

3. Connect the ADSL service - connect one end of a second RJ11 (telephone) cable to the ADSL/Modem

port of the in-line splitter and connect the other end to the ADSL port of the NB9/NB9W;

4. Connect the power cable to the Power socket and plug into a power source;

5. Switch your NB9/NB9W on at the powerpoint;

6. Switch on your PC.

Make sure the LAN LED (light) on your NB9/NB9W is on, which indicates that network function is active.

Note that the pass-through service is provided as a back-up and that calls made through this line are not the same VoIP calls and will

be subject to normal telecommunications charges.

The next section explains how to establish your ADSL connection to the Internet.

Otros manuales para Freshtel NB9

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Enrutador de red de NetComm

NetComm

NetComm NTC-140W Series Manual de usuario

NetComm

NetComm NTC-400 Series Manual de usuario

NetComm

NetComm NTC-6200 Manual de usuario

NetComm

NetComm XBox NF1901ACV Manual de usuario

NetComm

NetComm ROUTER WITH VOICE 3G10WV Manual de usuario

NetComm

NetComm NB5 Manual de usuario

NetComm

NetComm MyWay YMLO-3G8WV Manual de usuario

NetComm

NetComm CloudMesh Manual de usuario

NetComm

NetComm RTA1320 Manual de usuario

NetComm

NetComm NB6PLUS4WN Manual de usuario

NetComm

NetComm NF12 Manual de usuario

NetComm

NetComm NB6 Manual de usuario

NetComm

NetComm V200 Manual de usuario

NetComm

NetComm VELOCITY NP805N Manual de usuario

NetComm

NetComm Liberty 3GM2WN Manual operacional

NetComm

NetComm NB702 SHDSL Manual de usuario

NetComm

NetComm NB724 Manual de usuario

NetComm

NetComm RTA100 Manual de usuario

NetComm

NetComm V200 Manual de usuario

NetComm

NetComm 3G38WV Manual de usuario

NetComm

NetComm NP5410 Manual de usuario

NetComm

NetComm V300 Manual de usuario

NetComm

NetComm 3G27WV-R Manual operacional

NetComm

NetComm V200 Manual de usuario

Manuales populares de Enrutador de red de otras marcas

Allnet

Allnet ALL0333AU Manual de usuario

HomeSeer

HomeSeer HT-SEL Manual de usuario

Sercomm

Sercomm Genesis OC3505D Manual de usuario

Billion

Billion BIPAC 5102 Series Manual de usuario

TP-Link

TP-Link TD-8817 Manual de usuario

Motorola

Motorola MR1900 Manual de usuario

Digi

Digi IX14 Manual de usuario

Cisco

Cisco NCS 540 Manual

XAVi

XAVi X8821e Manual de usuario

BEC

BEC 6200WZL Manual de usuario

MikroTik

MikroTik hAP ac3 Series Manual de usuario

Korenix

Korenix JetNet 5428G Series Manual de usuario

NETGEAR

NETGEAR FS526T - Switch Manual de usuario

Korenix

Korenix JetNet 5710G Series Manual de usuario

Automated Logic

Automated Logic ZN551 Manual del propietario

Cisco

Cisco ASR 1000 Series Manual del operador

EnGenius

EnGenius ESR-9710 Manual de usuario

Cisco

Cisco 805 Series Instrucciones de funcionamiento y seguridad
