NI-9381 Getting
Started
2022-07-06
Contents
Before You Begin. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Safety Guidelines. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Safety Voltages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Safety Guidelines for Hazardous Locations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Electromagnetic Compatibility Guidelines. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Special Conditions for Marine Applications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Preparing the Environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
NI 9381 Pinout. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Single-Ended Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Analog Output Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Digital Input/Output Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Timing Guidelines. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Where to Go Next. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
NI Services. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
ni.com
2
NI-9381 Getting Started
Before You Begin
Read the NI-9381 Safety, Environmental, and Regulatory Information and
complete the soware and hardware installation procedures in your chassis
documentation.
Safety Guidelines
Caution Observe all instructions and cautions in the user documentation.
Using the product in a manner not specified can damage the product and
compromise the built-in safety protection.
Attention Suivez toutes les instructions et respectez toutes les mises
en garde de la documentation d'utilisation. L'utilisation du produit de
toute autre façon que celle spécifiée risque de l'endommager et de
compromettre la protection de sécurité intégrée.
Safety Voltages
Isolation
Channel-to-channel None
Channel-to-earth ground None
Safety Guidelines for Hazardous Locations
The NI-9381 is suitable for use in Class I, Division 2, Groups A, B, C, D, T4 hazardous
locations; Class I, Zone 2, AEx nA IIC T4 Gc and Ex nA IIC T4 Gc hazardous locations;
and nonhazardous locations only. Follow these guidelines if you are installing the
NI-9381 in a potentially explosive environment. Not following these guidelines may
result in serious injury or death.
© National Instruments 3
NI-9381 Getting Started
Caution Do not disconnect I/O-side wires or connectors unless power has
been switched o or the area is known to be nonhazardous.
Caution Do not remove modules unless power has been switched o or
the area is known to be nonhazardous.
Caution Substitution of components may impair suitability for Class I,
Division 2, or Zone 2.
Caution The system must be installed in an enclosure certified for the
intended hazardous (classified) location, having a tool secured cover/door,
where a minimum protection of at least IP54 is provided.
Special Conditions for Hazardous Locations Use in Europe and
Internationally
The NI-9381 has been evaluated as Ex nA IIC T4 Gc equipment under
DEMKO 12ATEX 1202658X and is IECEx UL 14.0089X certified. Each NI-9381 is marked
II 3G and is suitable for use in Zone 2 hazardous locations, in ambient
temperatures of -40 °C ≤ Ta ≤ 70 °C . If you are using the NI-9381 in Gas Group IIC
hazardous locations, you must use the device in an NI chassis that has been
evaluated as Ex nC IIC T4, Ex IIC T4, Ex nA IIC T4, or Ex nL IIC T4 equipment.
Caution Transient protection shall be provided that is set at a level not
exceeding 140% of the peak rated voltage value of 85 V at the supply
terminals to the equipment.
Caution The system shall only be used in an area of not more than
Pollution Degree 2, as defined in IEC/EN 60664-1.
ni.com
4
NI-9381 Getting Started
Caution The system shall be mounted in an ATEX/IECEx-certified
enclosure with a minimum ingress protection rating of at least IP54 as
defined in IEC/EN 60079-15.
Caution The enclosure must have a door or cover accessible only by the
use of a tool.
Electromagnetic Compatibility Guidelines
This product was tested and complies with the regulatory requirements and limits
for electromagnetic compatibility (EMC) stated in the product specifications. These
requirements and limits provide reasonable protection against harmful interference
when the product is operated in the intended operational electromagnetic
environment.
This product is intended for use in industrial locations. However, harmful
interference may occur in some installations, when the product is connected to a
peripheral device or test object, or if the product is used in residential or
commercial areas. To minimize interference with radio and television reception and
prevent unacceptable performance degradation, install and use this product in strict
accordance with the instructions in the product documentation.
Furthermore, any changes or modifications to the product not expressly approved
by National Instruments could void your authority to operate it under your local
regulatory rules.
Special Conditions for Marine Applications
Some products are approved for marine (shipboard) applications. To verify marine
approval certification for a product, visit ni.com/product-certifications, search by
model number, and click the appropriate link.
Notice In order to meet the EMC requirements for marine applications,
install the product in a shielded enclosure with shielded and/or filtered
power and input/output ports. In addition, take precautions when
© National Instruments 5
NI-9381 Getting Started
designing, selecting, and installing measurement probes and cables to
ensure that the desired EMC performance is attained.
Preparing the Environment
Ensure that the environment in which you are using the NI-9381 meets the following
specifications.
Operating temperature (IEC 60068-2-1, IEC 60068-2-2) -40 °C to 70 °C
Operating humidity (IEC 60068-2-78) 10% RH to 90% RH, noncondensing
Pollution Degree 2
Maximum altitude 2,000 m
Indoor use only.
Note Refer to the device datasheet on ni.com/manuals for complete
specifications.

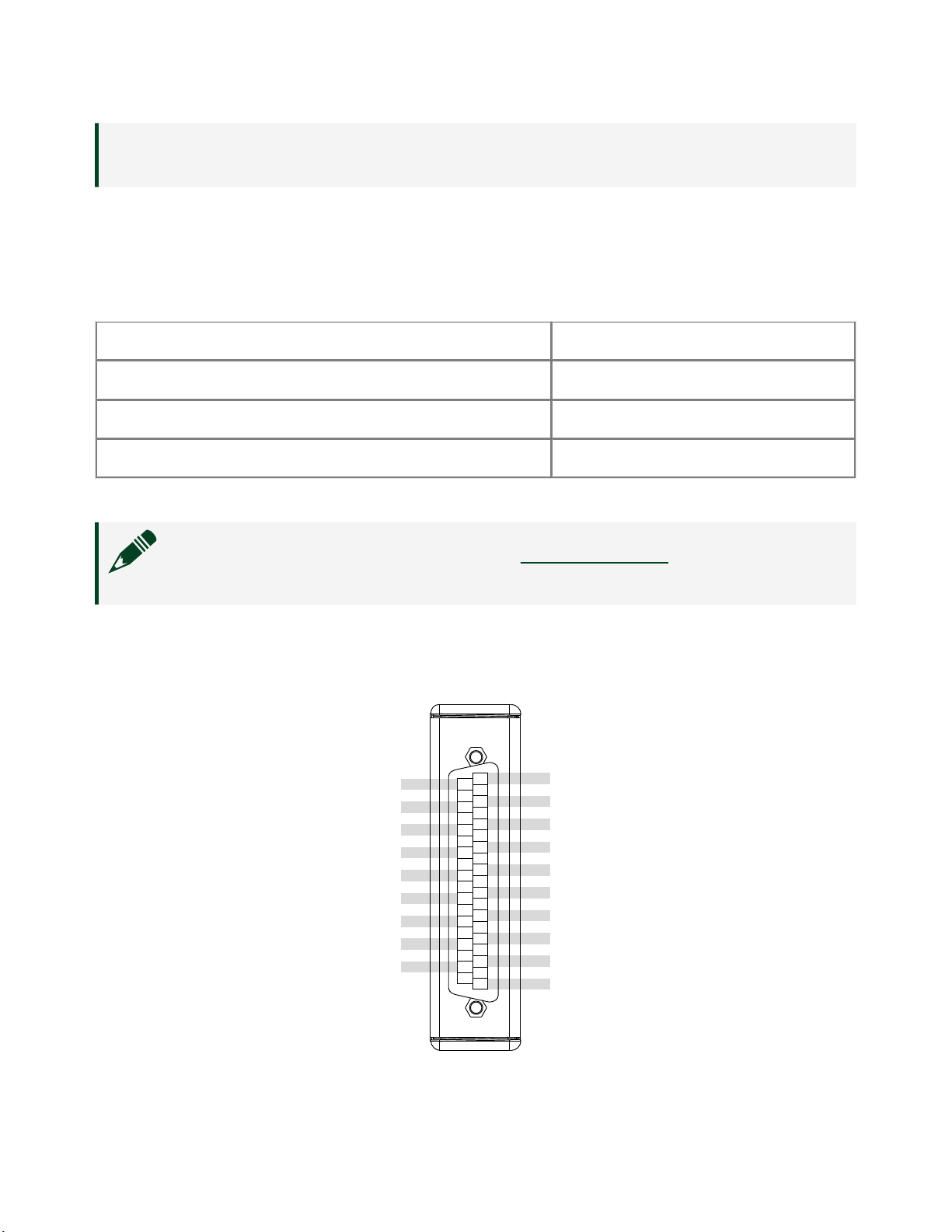

NI 9381 Pinout
GND
AO2
AO3
GND
AO6
AO7
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
AO0
AO1
GND
AO4
AO5
GND
AI0
AI1
AI2
AI3
AI4
AI5
AI6
AI7
DIO0
DIO1
DIO2
DIO3
GND
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
ni.com
6
NI-9381 Getting Started
Signal Description
AI Analog input signal connection
AO Analog output signal connection
DIO Digital input/output signal connection
GND Ground connection
Table 1. Signal Descriptions
Single-Ended Connections
GND
AI
+
–
Voltage
Source
NI 9381
Analog Output Connections
NI 9381
GND
AO
Load

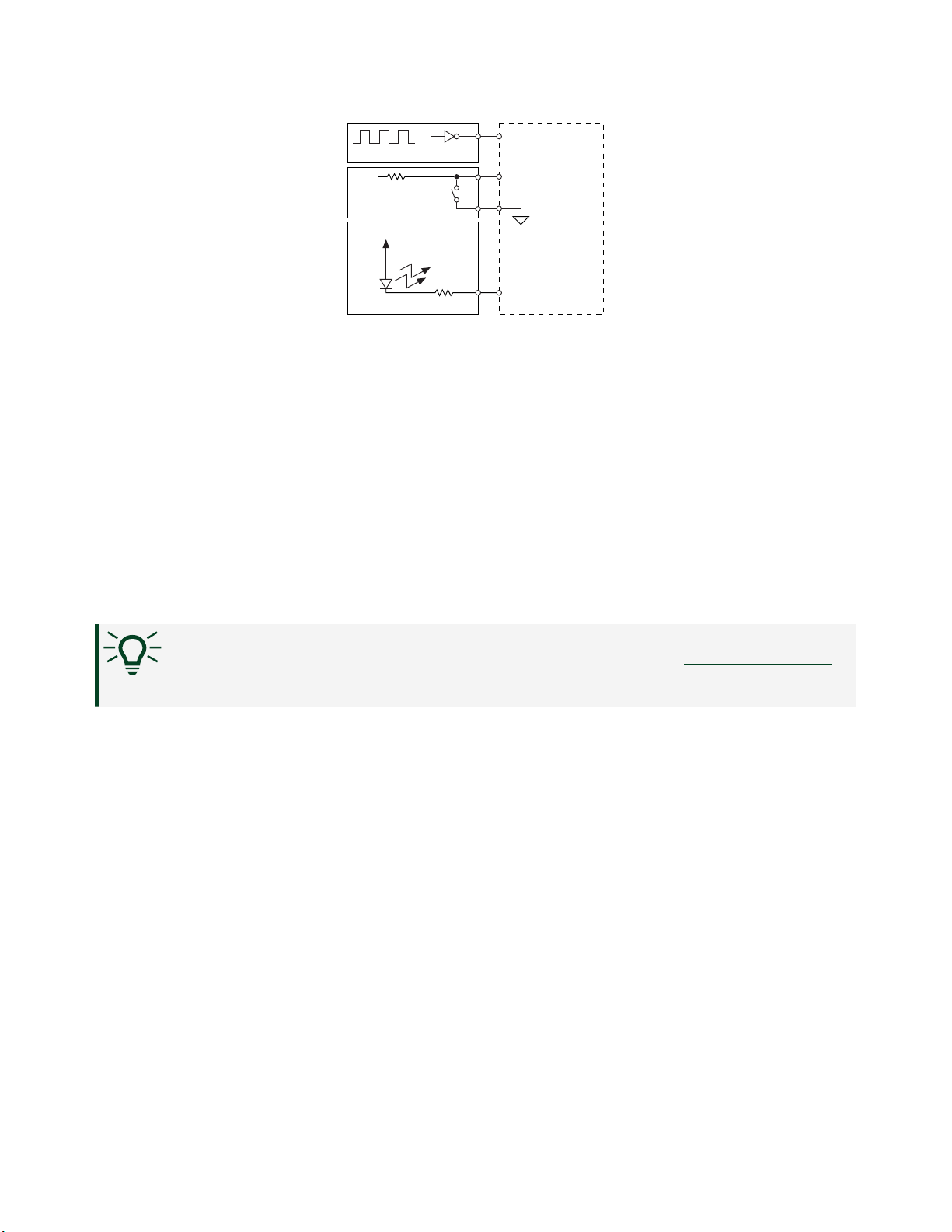

Digital Input/Output Connections
© National Instruments 7
NI-9381 Getting Started
LVTTL Signal
+2.7 V
+5 V
LED
DIO0 as Input
DIO1 as Input
GND
DIO2 as Output
NI 9381Device 3
Device 2
Device 1
Timing Guidelines
When using the AI, AO, and DIO channels on the NI-9381 concurrently, follow these
guidelines to ensure high accuracy.
■Use a single I/O Node to access AI and AO operations to ensure proper
sequencing.
■Configure the line direction of the DIO channels before performing
operations on other channels or stop all operations to change the line
direction of a DIO channel.
Tip Refer to the NI CompactRIO Device Drivers Help on ni.com/manuals
for more information about NI-9381 timing.
Where to Go Next
ni.com
8
NI-9381 Getting Started
Located at ni.com/manuals Installs with the software
Hardware Software
RELATED INFORMATION
NI 9381 Datasheet CompactRIO Device
Drivers Help
LabVIEW FPGA Help
C Series Documentation
& Resources
ni.com/info cseriesdoc
Services
ni.com/services
NI Services
Visit ni.com/support to find support resources including documentation,
downloads, and troubleshooting and application development self-help such as
tutorials and examples.
Visit ni.com/services to learn about NI service oerings such as calibration options,
repair, and replacement.
Visit ni.com/register to register your NI product. Product registration facilitates
technical support and ensures that you receive important information updates from
NI.
NI corporate headquarters is located at 11500 N Mopac Expwy, Austin, TX,
78759-3504, USA.
© National Instruments 9
NI-9381 Getting Started
© 2022 National Instruments Corporation.
