GETTING STARTED GUIDE

NI PXIe-5694

IF Conditioning Module

Note Before you begin, install and configure your chassis and controller.

This document explains how to install, configure, and test the NI PXIe-5694 (NI 5694). The

NI 5694 is an IF conditioning module. The NI 5694 ships with the NI-RFSA instrument

driver, which you use to program the device.

To access NI 5694 documentation, navigate to Start»All Programs»National Instruments»

NI-RFSA»Documentation.

Caution The protection provided by this product may be impaired if it is used in a

manner not described in this document.

Hot Surface If the NI 5694 has been in use, it may exceed safe handling

temperatures and cause burns. Allow the NI 5694 to cool before removing it from

the chassis.

Contents

Electromagnetic Compatibility Guidelines...............................................................................2

Verifying the System Requirements......................................................................................... 2

Unpacking the Kit.....................................................................................................................2

Verifying the Kit Contents................................................................................................ 3

Preparing the Environment....................................................................................................... 3

Installing the Software.............................................................................................................. 4

Installing the NI 5694............................................................................................................... 4

Direct Connections to the NI 5694................................................................................... 5

NI 5694 Front Panel..........................................................................................................6

Configuring the NI 5694 in MAX............................................................................................ 8

Troubleshooting........................................................................................................................ 9

Why Is the ACCESS LED Off When the Chassis is On?.................................................9

What Should I Do if the NI 5694 Doesn't Appear in MAX?..........................................10

What Should I Do if the Module Fails the Self-Test?.....................................................10

Where to Go Next................................................................................................................... 11

Worldwide Support and Services............................................................................................11

Electromagnetic Compatibility Guidelines

This product was tested and complies with the regulatory requirements and limits for

electromagnetic compatibility (EMC) stated in the product specifications. These requirements

and limits are designed to provide reasonable protection against harmful interference when the

product is operated in the intended operational electromagnetic environment.

This product is intended for use in industrial locations. However, harmful interference may

occur in some installations, when the product is connected to a peripheral device or test object,

or if the product is used in residential or commercial areas. To minimize interference with

radio and television reception and prevent unacceptable performance degradation, install and

use this product in strict accordance with the instructions in the product documentation.

Furthermore, any modifications to the product not expressly approved by National Instruments

could void your authority to operate it under your local regulatory rules.

Caution To ensure the specified EMC performance, operate this product only with

shielded cables and accessories.

Caution To ensure the specified EMC performance, the length of all I/O cables

must be no longer than 3 m (10 ft).

Verifying the System Requirements

To use the NI-RFSA instrument driver, your system must meet certain requirements.

For more information about minimum system requirements, recommended system, and

supported application development environments (ADEs), refer to the product readme, which

is available on the driver software media or online at ni.com/updates.

Unpacking the Kit

Caution To prevent electrostatic discharge (ESD) from damaging the device,

ground yourself using a grounding strap or by holding a grounded object, such as

your computer chassis.

1. Touch the antistatic package to a metal part of the computer chassis.

2. Remove the device from the package and inspect the device for loose components or any

other sign of damage.

Caution Never touch the exposed pins of connectors.

Notify NI if the device appears damaged in any way. Do not install a damaged device.

3. Unpack any other items and documentation from the kit.

Store the device in the antistatic package when the device is not in use.

2| ni.com | NI PXIe-5694 Getting Started Guide

Verifying the Kit Contents

1234

578

1. NI 5694 IF Conditioning Module

2. SMA Driver Bit, Part Number 190487A-01

3. Screwdriver, Part Number 772006-01

4. Plastic Cap (x3), Part Number 775067-01

5. Driver Software DVD

6. NI 5694 IF Conditioning Module Getting Started

Guide (This Document)

7. Read Me First: Safety and Electromagnetic

Compatibility

8. Maintain Forced-Air Cooling Note to Users

Preparing the Environment

Ensure that the environment you are using the NI 5694 in meets the following specifications.

............................................................................Operating ambient temperature

(IEC-60068-2-1, IEC-60068-2-2)

0 °C to 55 °C

............................................................................Operating relative humidity

(IEC-60068-2-56)

10% to 90%, noncondensing

............................................................................Maximum altitude 2,000 m (800 mbar) (at 25 °C ambient

temperature)

............................................................................Pollution Degree 2

Indoor use only.

Caution Clean the hardware with a soft, nonmetallic brush. Make sure that the

hardware is completely dry and free from contaminants before returning it to

service.

Note Refer to the NI PXIe-5694 Specifications at ni.com/manuals for complete

specifications.

NI PXIe-5694 Getting Started Guide | © National Instruments | 3

Installing the Software

You must be an Administrator to install NI software on your computer.

1. Install an ADE, such as LabVIEW or LabWindows™/CVI™.

2. Insert the driver software media into your computer. The installer should open

automatically.

If the installation window does not appear, navigate to the drive, double-click it, and

double-click autorun.exe.

3. Follow the instructions in the installation prompts.

Note Windows users may see access and security messages during

installation. Accept the prompts to complete the installation.

4. When the installer completes, select Restart in the dialog box that prompts you to restart,

shut down, or restart later.

Installing the NI 5694

Caution To prevent damage to the device caused by ESD or contamination, handle

the device using the edges or the metal bracket.

1. Ensure the AC power source is connected to the chassis before installing the modules.

The AC power cord grounds the chassis and protects it from electrical damage while you

install the modules.

2. Power off the chassis.

3. Inspect the slot pins on the chassis backplane for any bends or damage prior to

installation. Do not install a module if the backplane is damaged.

4. Remove the black plastic connectors from all the captive screws on the module front

panel.

5. Identify a supported slot in the chassis. The following figure shows the symbols that

indicate the slot types.

Figure 1. Chassis Compatibility Symbols

NI PXIe-1062Q

12 3 45

1. PXI Express System Controller Slot

2. PXI Peripheral Slot

3. PXI Express Hybrid Peripheral Slot

4. PXI Express System Timing Slot

5. PXI Express Peripheral Slot

The NI 5694 module can be placed in PXI Express peripheral slots or PXI Express

Hybrid peripheral slots.

4| ni.com | NI PXIe-5694 Getting Started Guide

6. Touch any metal part of the chassis to discharge static electricity.

7. Ensure that the ejector handle is in the unlatched (downward) position.

8. Place the module edges into the module guides at the top and bottom of the chassis. Slide

the device into the slot until it is fully inserted.

Figure 2. Module Installation

NI PXIe-1075

1. Chassis

2. Hardware Module

3. Ejector Handle in Down (Unlatched) Position

9. Latch the module in place by pulling up on the ejector handle.

10. Secure the device front panel to the chassis using the front-panel mounting screws.

Note Tightening the top and bottom mounting screws increases mechanical

stability and also electrically connects the front panel to the chassis, which can

improve the signal quality and electromagnetic performance.

11. Cover all empty slots using filler panels or slot blockers to maximize cooling air flow.

12. Power on the chassis.

Related Information

Installing the Software on page 4

Direct Connections to the NI 5694

The NI 5694 is a precision RF instrument that is sensitive to ESD and transients. Ensure you

take the following precautions when making direct connections to the NI 5694 to avoid

damaging the device.

NI PXIe-5694 Getting Started Guide | © National Instruments | 5

Caution Apply external signals only while the NI 5694 is powered on. Applying

external signals while the device is powered off may cause damage.

• Ensure you are properly grounded when manipulating cables or antennas connected to the

NI 5694 IF IN connector.

• If you are using noninsulated devices, such as a noninsulated RF antenna, ensure the

devices are maintained in a static-free environment.

• If you are using an active device, such as a preamplifier or switch routed to the NI 5694

IF IN connector, ensure that there are no signal transients greater than the RF and DC

specifications for the device that are being generated and sourced to the NI 5694 IF IN

connector.

NI 5694 Front Panel

The NI 5694 IF conditioning module front panel contains five connectors and two LEDs.

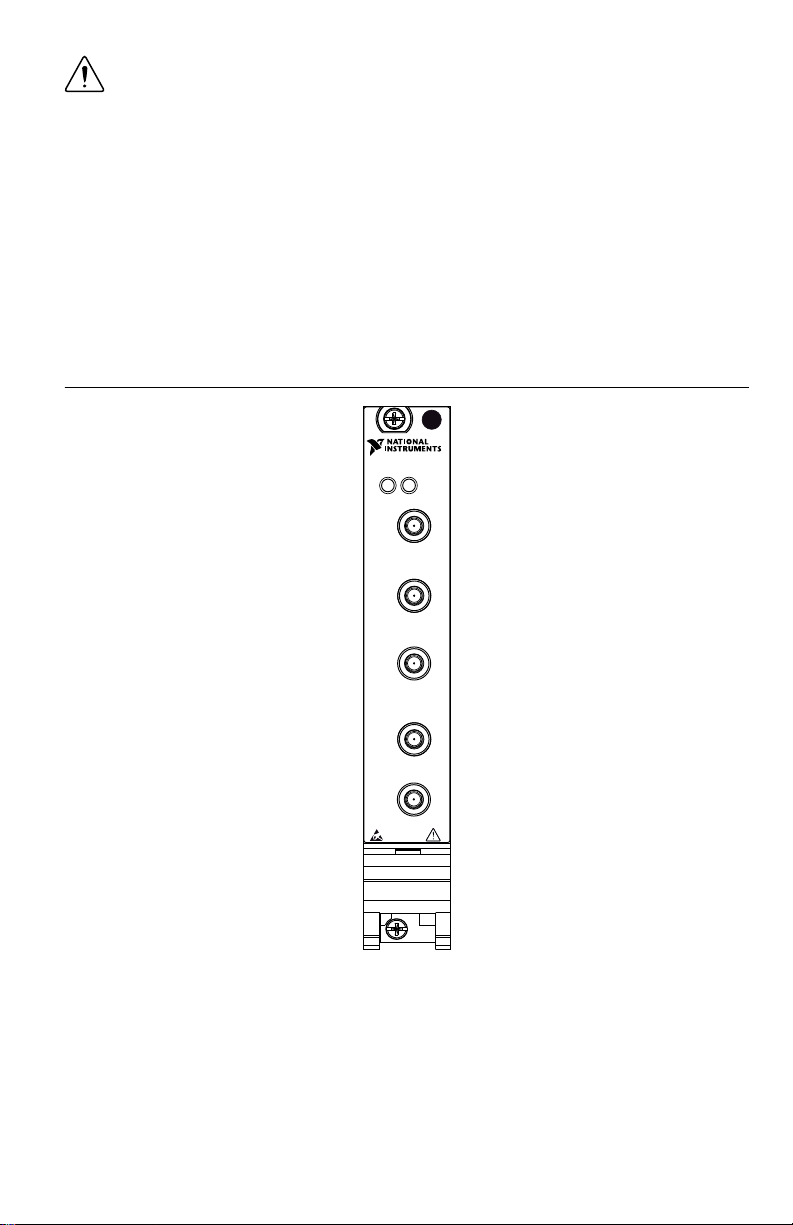

Figure 3. NI 5694 IF Conditioning Module Front Panel

ACCESS ACTIVE

IF Conditioning Module

NI PXIe-5694

ESD

SENSITIVE

REF/LO

10 MHz/

215 MHz

+10 dBm NOM, +18 dBm MAX

12 VDC MAX

OUT

187.5 MHz/

193.6 MHz/

21.4 MHz

+22 dBm MAX

0 VDC MAX

187.5 MHz/

193.6 MHz

+18 dBm MAX

12 VDC MAX

REF

OUT

10 MHz

+10 dBm NOM

12 VDC MAX

OUT

215 MHz

+10 dBm NOM

12 VDC MAX

6| ni.com | NI PXIe-5694 Getting Started Guide

Table 1. Device Front Panel Icon Definitions

Refer to the user documentation for required maintenance measures to ensure user

safety and/or preserve the specified EMC performance.

The signal pins of this product's input/output ports can be damaged if subjected to

ESD. To prevent damage, turn off power to the product before connecting cables and

employ industry-standard ESD prevention measures during installation, maintenance,

and operation.

Table 2. NI 5694 IF Conditioning Module Front Panel Connectors

Connector Use

IF OUT Provides the conditioned intermediate frequency (IF) signal to the input

connector on a digitizer, for example, the IF IN connector on the

NI PXIe-5622.

IF IN Receives a signal from the IF OUT connector of an RF downconverter, for

example, the IF OUT connector of the NI PXIe-5603 or NI PXIe-5605.

REF/LO IN Connects to a 10 MHz clock signal or a 215 MHz LO signal.

If your application uses the NI 5694 in downconversion mode in a phase-

coherent system, connect the REF/LO IN connector on a slave NI 5694 to a

215 MHz LO signal.

REF OUT Output terminal for a 10 MHz signal received at the REF/LO IN connector.

LO OUT Output terminal for either a 215 MHz LO signal received at the REF/LO IN

connector or an internally generated 215 MHz LO signal.

NI PXIe-5694 Getting Started Guide | © National Instruments | 7

Table 3. NI 5694 IF Conditioning Module Front Panel LEDs

LED Indications

ACCESS Indicates the basic hardware status of the module.

OFF—The module is not yet functional, or the module has detected a problem

with a power rail.

AMBER—The module is being accessed. Accessed means that the device setup

registers are being written to in order to control the device.

GREEN—The module is ready to be programmed by NI-RFSA.

ACTIVE Indicates the module state.

OFF—The module is in a quiescent state.

AMBER—The module is waiting for a Reconfiguration Trigger from the

configuration list.

GREEN—The module is triggered and is running a step from the configuration

list.

RED—The module has detected an error state. An error state may indicate the

module has exceeded approved operating temperature and thermal shutdown has

occurred or that the module has detected a power supply failure. If the power

supply fails, contact NI technical support.

Configuring the NI 5694 in MAX

Use Measurement & Automation Explorer (MAX) to configure your National Instruments

hardware. MAX informs other programs about which devices reside in the system and how

they are configured. MAX is automatically installed with NI-RFSA.

1. Launch MAX.

2. In the configuration tree, double-click Devices and Interfaces to see the list of installed

devices.

Note If you are using the NI 5694 with the LabVIEW Real-Time Module,

expand Remote Systems. Find your target IP address or name, expand it, and

then expand Devices and Interfaces.

Installed devices appear under the name of their associated chassis.

3. Expand your Chassis tree item.

8| ni.com | NI PXIe-5694 Getting Started Guide

MAX lists all devices installed in the chassis. Your default device names may vary.

Note If you do not see your device listed, press <F5> to refresh the list of

installed devices. If the device is still not listed, power off the system, ensure

the device is correctly installed, and restart.

4. Record the device identifier MAX assigns to the hardware. Use this identifier when

programming the NI 5694.

5. To use the NI 5694 with the NI 5667 spectrum monitoring receiver, you must associate

the NI 5694 with the RF downconverter in MAX.

Note This step is not required if you are using the NI 5694 as a stand-alone

device.

a) Select the system device with the appropriate downconverter in the configuration

tree.

b) In the Associated Devices section, use the IF Conditioning drop-down listbox to

select the NI 5694.

c) Click Save in the MAX toolbar.

Note Module associations may be lost when you move the modules to

different chassis slots.

6. Self-test the device by selecting the device in the configuration tree and clicking Self-

Test in the MAX toolbar.

The MAX self-test performs a basic verification of hardware resources.

Related Information

Troubleshooting on page 9

If an issue persists after you complete a troubleshooting procedure, contact NI technical

support or visit ni.com/support.

Refer to the NI RF Vector Signal Analyzers Help for more information about renaming

devices.

Troubleshooting

If an issue persists after you complete a troubleshooting procedure, contact NI technical

support or visit ni.com/support.

Why Is the ACCESS LED Off When the Chassis is

On?

The LEDs may not light until the device has been configured in MAX. Before proceeding,

verify that the NI 5694 appears in MAX.

If the ACCESS LED fails to light after you power on the chassis, a problem may exist with the

chassis power rails, a hardware module, or the LED.

NI PXIe-5694 Getting Started Guide | © National Instruments | 9

Caution Apply external signals only while the NI 5694 is powered on. Applying

external signals while the device is powered off may cause damage.

1. Disconnect any signals from the module front panels.

2. Power off the chassis.

3. Remove the module from the chassis and inspect it for damage. Do not reinstall a

damaged device.

4. Reinstall the module in a different chassis slot.

5. Power on the chassis.

6. Verify that the device appears in MAX.

7. Reset the device in MAX and perform a self-test.

What Should I Do if the NI 5694 Doesn't Appear in

MAX?

1. In the MAX configuration tree, click Devices and Interfaces.

2. Expand the Chassis tree to see the list of installed devices, and press <F5> to refresh the

list.

3. If the module is still not listed, power off the system, ensure that all hardware is correctly

installed, and restart the system.

4. Navigate to the Device Manager.

Operating System Description

Windows 8 Right-click the Start screen, and select All apps»Control Panel»

Hardware and Sound»Device Manager.

Windows 7 Select Start»Control Panel»Device Manager.

Windows Vista Select Start»Control Panel»System and Maintenance»Device

Manager.

Windows XP Select Start»Control Panel»System»Hardware»Device

Manager.

5. If you are using a PXI controller, verify that a National Instruments entry appears in the

system device list. Reinstall NI-RFSA and the device if error conditions appear in the list.

If you are using an MXI controller, right-click PCI-to-PCI Bridge, and select Properties

from the shortcut menu to verify that the bridge is enabled.

What Should I Do if the Module Fails the Self-Test?

1. Restart the system.

2. Launch MAX, and perform the self-test again.

3. Power off the chassis.

4. Reinstall the failed module in a different slot.

5. Power on the chassis.

6. Perform the self-test again.

10 | ni.com | NI PXIe-5694 Getting Started Guide

Otros manuales para PXIe-5694

Tabla de contenidos

Otros manuales de Unidad de control de National Instruments

National Instruments

National Instruments cRIO-9068 Manual de usuario

National Instruments

National Instruments NI 9770 Manual de usuario

National Instruments

National Instruments NI 9802 Manual de usuario

National Instruments

National Instruments NI 9237 Manual de usuario

National Instruments

National Instruments FlexRIO PXIe-7975R Manual de usuario

National Instruments

National Instruments PXI-2568 Manual de usuario

National Instruments

National Instruments NI 9217 Manual de usuario

National Instruments

National Instruments NI 9213 Manual de usuario

National Instruments

National Instruments SCXI-1000 Manual de usuario

National Instruments

National Instruments NI 9265 Manual de usuario

National Instruments

National Instruments Isolated Analog Output Module SCC-AO10 Manual de usuario

National Instruments

National Instruments sbRIO-9205 Manual de usuario

National Instruments

National Instruments Module SCXI-1125 Manual de usuario

National Instruments

National Instruments FieldPoint cFP-DI-304 Manual de usuario

National Instruments

National Instruments 9503 Manual de usuario

National Instruments

National Instruments PXImc Series Manual de usuario

National Instruments

National Instruments PXIe-8861 Manual de usuario

National Instruments

National Instruments NI 9503 Manual de usuario

National Instruments

National Instruments SCXI-1581 Manual de usuario

National Instruments

National Instruments PXIe-8522 Manual de usuario

National Instruments

National Instruments PXIe-4302 Manual de usuario

National Instruments

National Instruments NI 9474 Manual de usuario

National Instruments

National Instruments NI FlexRIO PXIe-7971R Manual de usuario

National Instruments

National Instruments PXIe-4339 Manual de usuario

Manuales populares de Unidad de control de otras marcas

Festo

Festo Compact Performance CP-FB6-E Manual de lista de piezas

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manual de usuario

JS Automation

JS Automation MPC3034A Manual de usuario

JAUDT

JAUDT SW GII 6406 Series Guía rápida

Spektrum

Spektrum Air Module System Manual de usuario

BOC Edwards

BOC Edwards Q Series Manual de usuario

KHADAS

KHADAS BT Magic Manual de usuario

Etherma

Etherma eNEXHO-IL Manual de usuario

PMFoundations

PMFoundations Attenuverter Manual de usuario

GEA

GEA VARIVENT Manual de usuario

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manual de usuario

Altronix

Altronix LINQ8PD Instrucciones de montaje

Eaton

Eaton Powerware Series Manual de usuario

WAGO

WAGO 750-407/040-000 Manual de usuario

Sony

Sony CCU-590 Manual de usuario

Graco

Graco 25D614 Manual de usuario

Task Force Tips

Task Force Tips YE-RF-900 Manual de programación

Shini

Shini SPV-U Series Manual de usuario
