CVI™, National Instruments™, NI™, ni.com™, NI-VISA™, and NI-VXI™ are trademarks of National Instruments

Corporation. Product and company names mentioned herein are trademarks or trade names of their respective

companies.

October 2001

323066C-01

VXI-8340 SERIES INSTALLATION

AND CONFIGURATION

Installation Guide

This document explains how to install and configure your VXI-8340 series

controller.

Installing the Software

Use the Setup program that came with your NI-VISA/NI-VXI software to install

the entire software package or a software update, or to reinstall software in the

event that your files are accidentally erased.

Some of the utilities rely on the LabWindows/CVI Run-Time Engine.

This software is installed, if necessary, during the NI-VISA/NI-VXI installation.

To be compliant with VXIplug&play specifications, a VXI controller must

provide the VISA I/O driver library standardized by VXIplug&play. VISA ensures

that your controller can run all VXIplug&play-compatible software now and in the

future.

ni.com

VXI-8340 Series 2 ni.com

The NI-VISA software in this kit is compatible with the WINNT/GWINNT

framework. With NI-VISA installed on your computer, you can run any

VXIplug&play software that is compatible with this framework. This includes

instrument drivers and executable soft front panel software that are included

with VXIplug&play-compatible instruments from a variety of vendors.

Install the NI-VISA and NI-VXI Software

This section describes how to install the NI-VISA and NI-VXI software.

Read these directions carefully along with any messages on the screen before

making your selections.

YoucanquittheSetupprogramatanytimebypressingtheCancel button.

Setup is an interactive, self-guiding program that installs the NI-VISA and

NI-VXI software and configures your system to use the software with the

VXI-8340 series. Follow these steps to perform the installation:

1. Insert the CD-ROM labeled NI-VXI v. 3.2 for Windows.

2. Wait for Windows to launch the CD-ROM installation menu automatically.

(If this does not happen, open the CD-ROM from Windows Explorer and

double-click Autorun.)

3. Click on Install NI-VXI Software for Windows.

4. Click on the Next button at the Welcome screen to start the installation.

Note If you have a previous 32-bit (Windows 2000/NT4/98) version

of the NI-VXI software installed, Setup installs the new version over

the previous version.

©National Instruments Corporation 3 VXI-8340 Series

5. Select the destination for the installed files. The default is C:\Program

Files\National Instruments.

6. Select the type of installation from the Installation Options screen:

•Typical setup prompts you to make high-level choices of which driver(s)

to install and the destination directories.

•Custom setup gives you more control over which driver components you

want installed on your system. This option is recommended for advanced

users.

7. Follow the prompts. Confirm that you are ready to install and click Next to

begin the installation.

8. Setup now copies the necessary files to your hard drive and creates program

icons.

Complete the Software Installation

1. Review the information in any readme files that Setup prompts you to read.

2. When the installation process completes, restart the system for the changes

to take effect.

Note On some Windows systems, the OS will detect the MXI-3

interface as a “PCI Standard PCI-to-PCI Bridge,” and Windows may ask

you to specify the location of a driver information file (.inf)forthe

device. If this occurs, accept the default choices by clicking Next when

prompted.

VXI-8340 Series 4 ni.com

Installing the Hardware

This section summarizes how to install your VXI-8340 series hardware. Your kit

contains a VXI-8340 series interface module and may also contain a PCI-8330

series interface board and MXI-3 cable.

Caution To guard against electrostatic discharge, touch the antistatic

plastic packages to a metal part of your computer or chassis before

removing the boards from their packages. Your computer or chassis

should be plugged in but powered off.

Figure 1 shows a system with a PCI bus-equipped computer and a VXI chassis

with a VXI-8340 series module.

Figure 1. Typical VXI System with a VXI-8340 Series Interface Module

©National Instruments Corporation 5 VXI-8340 Series

Install Your PCI-8330 Series Interface Board

If your kit includes a PCI-8330 series board, follow these installation instructions:

1. Shut down and power off the computer.

2. Remove the computer chassis cover to expose the expansion slots and covers.

3. Select an available PCI slot in your computer. The slot you select should

support bus mastering. Refer to your computer documentation to determine

if the slot you select supports bus mastering.

4. Remove the corresponding expansion slot cover from the chassis.

5. Align the bus connector on the PCI-8330 series with the PCI bus slot.

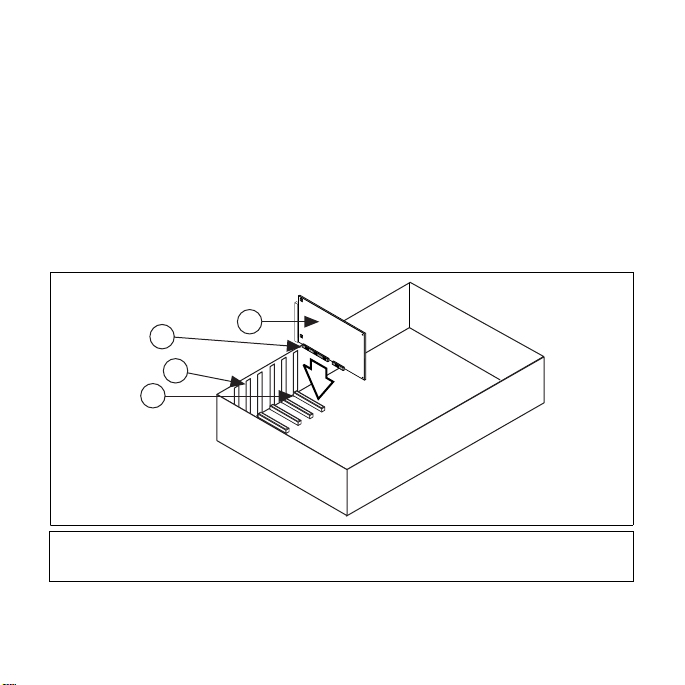

Figure 2. Installing the PCI-8330 Series Interface Board

1 PCI Bus Slot

2 Expansion Slot Cut-Outs

3 Bus Connector

4 PCI-8330 Series Board

VXI-8340 Series 6 ni.com

6. Carefully press the host adapter into the slot.

7. Secure the PCI-8330 series bracket to the computer chassis with the screw

from the removed expansion slot cover.

Install Your VXI-8340 Series Interface Module

Install the VXI-8340 series in Slot 0 of your VXI chassis by doing the following:

1. Turn off the power.

2. Insert the VXI-8340 series into the chassis in Slot 0 as shown in Figure 1.

3. Verify that all other VXI devices with system controller capability that are in

thesamechassisarenot configured as system controller. The VXI-8340 series

default configuration automatically detects whether it should be the VXI

system controller.

Caution Having more than one device configured as system controller

can damage the VXI system.

4. For VXI systems that include VME devices, ensure that the VME devices are

not configured in the upper 16 KB (starting from 0xC000) of the A16 address

space. This region is reserved for VXI device configuration registers, which

are used for initializing, configuring, and interacting with VXI devices.

Note Also ensure that no other VXI devices in your system are

configured for logical address 0. This is the default configuration for the

VXI-8340 series.

©National Instruments Corporation 7 VXI-8340 Series

Connect the Cable

Connect the MXI-3 cable to the PCI-8330 series and the MXI IN port of the

VXI-8340 series as shown in Figure 1.

Power on the System

1. Be sure the MXI-3 cable is connected securely.

2. Turn on the VXI chassis.

Note Always power on the VXI-8340 series at least 8 seconds before

your PC. Refer to Appendix D, Power Sequencing Requirements,ofthe

VXI-8340 Series User Manual for more information regarding power-up

requirements for the VXI-8340 series controllers. (The manual is in

PDF format on the NI-VXI v. 3.2 for Windows CD-ROM.)

3. Turn on the host computer.

4. If your system CMOS setup requires you to adjust PCI bus parameters, do so

at this time.

Note The PCI bus usually assigns IRQs and port addresses

automatically. However, in some PC systems, you may need to edit the

PCI bus parameters manually in your CMOS setup. Some older PCs also

require bus mastering to be enabled. Refer to your computer

documentation for further instructions.

VXI-8340 Series 8 ni.com

Software Configuration and Verification

Run MAX and Resman

1. Launch MAX from its desktop icon or Start»Programs»National

Instruments»Measurement & Automation Explorer. MAX allows you

to run Resman, the National Instruments Resource Manager. You must run

Resman every time the chassis power is cycled so that your application can

access devices in the VXI chassis. Refer to Appendix D, Power Sequencing

Requirements,oftheVXI-8340 Series User Manual for more information

regarding power-cycling requirements for the VXI-8340 series controllers.

2. After you run Resman, you are ready to use MAX to configure the National

Instruments hardware in your system interactively. You can also configure

MAX to run Resman automatically at every computer startup by selecting

Tools»NI-VXI»VXI Options.

3. After you finish configuring the system through MAX, verify the system

configuration through one of the interactive control utilities. Use VISAIC

under NI-VISA or VIC under NI-VXI. You can also open VISA sessions

using MAX by right-clicking on the device and selecting Open VISA

Session.

For more details about the utilities in NI-VISA/NI-VXI, refer to Chapter 3,

Developing Your Application,intheVXI-8340 Series User Manual.
