FP-1600 FieldPoint Quick Start Guide

Install the Network Module

Panel MountDIN Rail Mount

A. Unlock rail clip.

Network Module

Mounting Hardware (DIN rail

or panel mount accessory)

Terminal Base(s)

·I/O Module(s)

·Power Supply

·FieldPoint Software CD

·Accessories: Ethernet cable,

screwdriver

What You Need to Get Set Up

fpoint cd.qxd 11/13/00 1:23 PM Page 1

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

B. Hook lip on back of module onto top

of DIN rail, press down, and snap

into place.

B. Snap panel mount accessory

(which you can order separately)

onto module.

Panel MountDIN Rail Mount

NOTE: Do not use spliced DIN

rails. Use only a single DIN rail.

C. Slide module into position and lock

rail clip.

C. Lock rail clip.

D. Use template that came with your

accessory to drill pilot holes and

mount module onto

panel using

accessory.

fpoint cd.qxd 11/13/00 1:23 PM Page 2

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Install the Terminal Base(s)

CAUTION: Terminal bases must be connected to the network module

before applying power to the module. Do

not

connect or disconnect

terminal bases while power is applied to the network module.

DIN Rail Mount

A. Unlock rail clip.

B. Press base onto rail.

Panel Mount

A. Use template that came with your

accessory to drill pilot holes.

B. Connect terminal base to network

module connector, being careful not

to bend any connector pins.

C. Fasten terminal base to panel.

fpoint cd.qxd 11/13/00 1:23 PM Page 3

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

DIN Rail Mount Panel Mount

D. Repeat for each terminal base, up

to nine for each network module in

most cases. You can use one or

two extender cables (which you can

order separately) if your FieldPoint

bank is too long for your available

space.

E. Place protective cover on last base,

and install rail locks at each end.

C. Slide into position and lock the rail

clip. Be careful not to bend any pins. D. Repeat for each terminal base, up to

nine for each network module in

most cases. You can use one or two

extender cables (which you can order

separately) if your FieldPoint bank is

too long for your available space.

E. Place protective cover on last base.

fpoint cd.qxd 11/13/00 1:23 PM Page 4

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Install the I/O Module(s)

A. Align slots on module with guide rails on

base, and press onto base until terminal

base’s latch locks the module in place.

B. Repeat for each I/O module.

It does not matter where you install each I/O module, except for

these types of situations:

··

·· If you plan to cascade power between any I/O modules using the

V and C terminals, those modules should be grouped together.

··

·· For more accurate measurements, you might want to locate any

thermocouple modules away from heat sources, including network

modules or relay modules, unless you are mounting them on an FP-TB-3.

Connect the Network Cables

Connect the FP-1600 to an Ethernet network by connecting the RJ-45

Ethernet port of the FP-1600 to an Ethernet hub using a standard Category 5

Ethernet cable.

Straight-Through

UTP Cable Straight-Through

UTP Cable

fpoint cd.qxd 11/13/00 1:23 PM Page 5

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Do not use a cable longer than 100 m. If you are using a 100 Mbps Ethernet,

National Instruments recommends using a Category 5 shielded twisted-pair

Ethernet. If you need to build your own cable, refer to the FP-1600 User

Manual for cabling details.

Wire Power to Your FieldPoint System

A. Connect 11-30 VDC power supply leads to V and C terminals of the

network module. If you want to verify that your power supply is sufficient

for your modules and devices, refer to your FieldPoint hardware

documents for instructions on calculating power requirements.

B. Connect power to the FieldPoint modules that require external power for

outputs (output modules, counter modules, PWM, PG, QUAD). Refer to

the I/O module’s operating instructions for power requirement details.

You can power a module by connecting the V and C inputs on its terminal

base to a separate power supply, connecting the V and C outputs of a

neighboring terminal base or network module, or using a combination of

both methods. If you want to power field I/O devices from a terminal

base, supply power to the terminal base, and then connect the terminal

base V and C output terminals to the field device.

Optionally, you can connect an FP-1600 directly to a computer using an

Ethernet crossover cable.

Cross-Over Cable

fpoint cd.qxd 11/13/00 1:23 PM Page 6

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

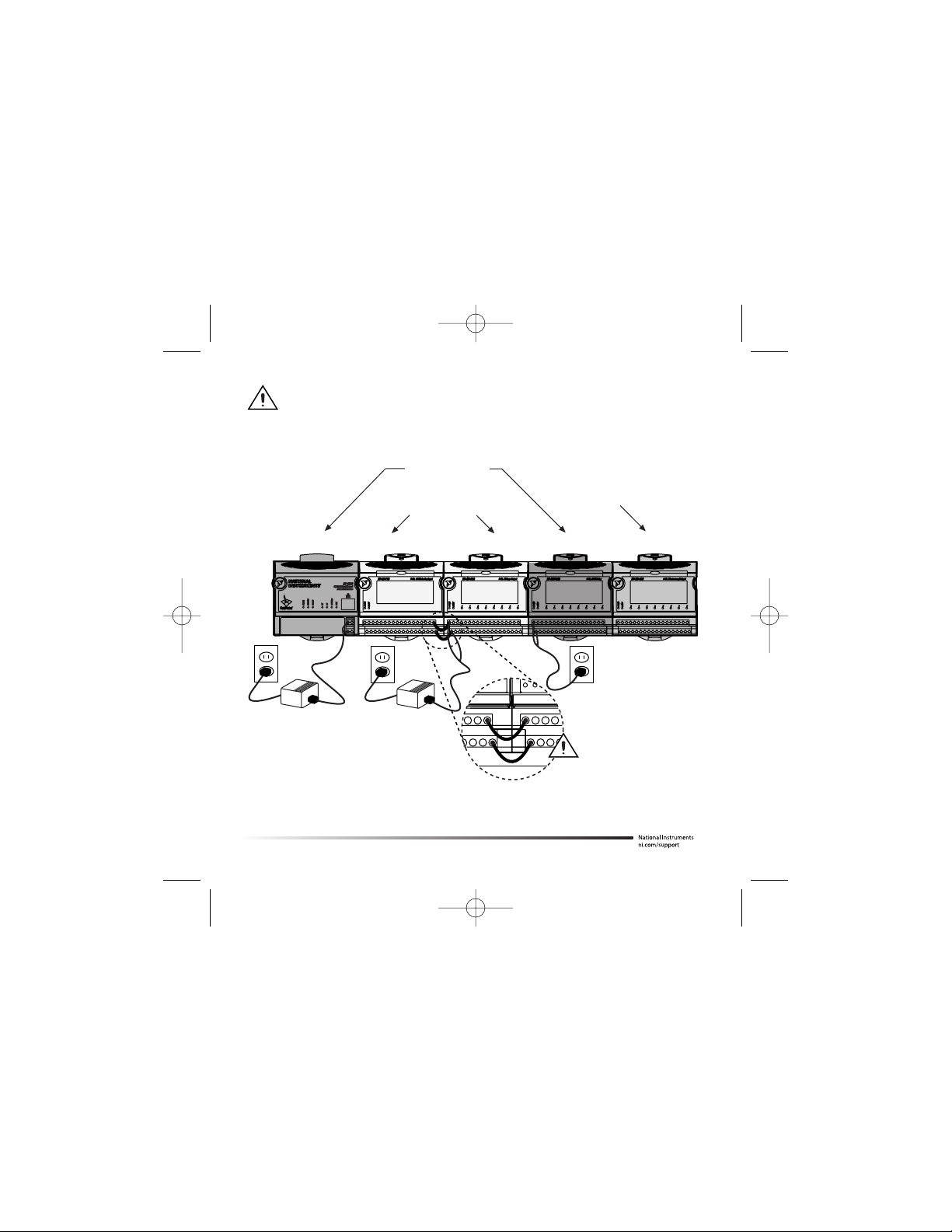

CAUTION: Cascading power from neighboring bases or network modules

defeats isolation between cascaded modules.

15 16 V

31 32 C

V132

C17 18

CAUTION: Cascading

power defeats isolation.

Shades of gray indicate

different voltage potentials.

Separate Power Supply

(Recommended)

Cascaded Power

(Reduces Isolation)

FP-1600 FP-AI-100 FP-AO-200 FP-RLY-420 FP-TC-120

No External

Power Required

Power Supply Power Supply

fpoint cd.qxd 11/13/00 1:23 PM Page 7

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Connect to Field Devices

Use each I/O module’s operating instructions, or the diagram under its

removable label, to help you connect your field devices.

FP-AI-110

8 Channel, 16-Bit Analog Input Module

Highlights

Overview

FP-AI-110

Self-Powered

Floating Sensor

15 32

Loop-Powered

Sensor

17 2

ISensor

Channel 0

VSensor

Channel 7

To P o w e r

Supply

NOTE: Either the self-powered

sensor or power supply should be

floating (not tied to earth ground).

823

CH3

CH7 15

CH4

CH5

CH6

16 32

COM

VOLTAGE

SOURCE

POWERED

COM

CH1

CH2

CH0

SUP

SOURCE

CURRENT

SUP

OUT

mV,V,20mA

FP-AI-110FP-AI-110

8-Ch. 16-Bit Analog Input

POWER

8-Ch. 16-Bit Analog Input

READY

FP-AI-110

EMP

fpoint cd.qxd 11/13/00 1:23 PM Page 8

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Power Up Your FieldPoint System

CAUTION: Terminal bases must be connected to the FP-1600 before

power is applied to the FP-1600.

Plug in each power supply to

your FieldPoint bank. You should

see all except the STATUS and

PROCESS LEDs flash once, and

the POWER LED come on and

stay on. After a few seconds, the

POWER and READY LEDs should

be lit on each I/O module. If this

is not the case, refer to your

FP-1600 user manual for

troubleshooting instructions.

The READY LEDs will not light until an IP address is assigned. Likewise, the

STATUS LED will stay lit until an IP address is assigned.

After the hardware is installed, you should verify communication, configure

the modules, configure your power-up states and watchdog settings. If you

are using National Instruments FieldPoint software for these tasks, continue

to the following section.

POWER and READY LEDs Stay Lit

fpoint cd.qxd 11/13/00 1:23 PM Page 9
