OPERATING INSTRUCTIONS AND SPECIFICATIONS

NI 9802

2 SD Card Memory Module

ni.com/manuals

DeutschFrançais

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

NI 9802 Operating Instructions and Specifications 2 ni.com

This document describes how to use the National Instruments 9802

and includes specifications for the NI 9802. Visit ni.com/info and

enter rdsoftwareversion to determine which software youneed

for the modules youare using. For information about installing,

configuring, and programming the system, refer to the system

documentation. Visit ni.com/info and enter cseriesdoc for

information about C Series documentation.

Note The NI 9802 is supported only in CompactRIO

reconfigurable chassis, such as the cRIO-910x, and

Single-Board RIO devices.

Note The safety guidelines and specifications in this

document are specific to the NI 9802. The other

components in the system might not meet the same safety

ratings and specifications. Refer to the documentation for

each component in the system to determine the safety

ratings and specifications for the entire system. Visit

ni.com/info and enter cseriesdoc for information

about C Series documentation.

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Safety Guidelines

Operate the NI 9802 only as described in these operating

instructions.

Hot Surface This icon denotes that the component may be

hot. Touching this component may result in bodily injury.

Safety Guidelines for Hazardous Locations

The NI 9802 is suitable for use in Class I, Division 2, Groups A, B,

C, D, T4 hazardous locations; Class I, Zone 2, AEx nA IIC T4, and

Ex nA IIC T4 hazardous locations; and nonhazardous locations

only. Follow these guidelines if youare installing the NI 9802 in a

potentially explosive environment. Not following these guidelines

may result in serious injury or death.

Caution Do not insert or remove SD Cards unless power

has been switched off or the area is known to be

nonhazardous.

Caution Do not remove modules unless power has been

switched off or the area is known to be nonhazardous.

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

NI 9802 Operating Instructions and Specifications 4 ni.com

Caution Substitution of components may impair

suitability for Class I, Division 2.

Caution For Zone 2 applications, install the system

in an enclosure rated to at least IP 54 as defined by

IEC 60529 and EN 60529.

Special Conditions for Hazardous Locations Use in Europe

This equipment has been evaluated as Ex nA IIC T4 equipment

under DEMKO Certificate No. 07 ATEX 0626664X. Each module

is marked II 3G and is suitable for use in Zone 2 hazardous

locations, in ambient temperatures of –40 °C ≤Ta ≤70 °C. If you

are using the NI 9802 in Gas Group IIC hazardous locations, you

must use the device in an NI chassis that has been evaluated as

Ex nC IIC T4, EEx nC IIC T4, Ex nA IIC T4, or Ex nL IIC T4

equipment.

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Special Conditions for Marine Applications

Some modules are Lloyd’s Register (LR) Type Approved for

marine applications. To verify Lloyd’s Register certification, visit

ni.com/certification and search for the LR certificate, or

look for the Lloyd’s Register mark on the module.

Caution To meet radio frequency emission requirements

for marine applications, use shielded cables and install

the system in a metal enclosure. Suppression ferrites

must be installed on power supply inputs near power

entries to modules and controllers. Power supply and

module cables must be separated on opposite sides of the

enclosure and must enter and exit through opposing

enclosure walls.

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

NI 9802 Operating Instructions and Specifications 6 ni.com

Inserting and Removing SD Cards

The NI 9802 is an SD Card storage module that can read from and

write to SD Cards. The NI 9802 has two SD Card slots into which

youcan insert NI-approved SD Cards.

Note Using SD Cards that are not approved by NI might

invalidate specifications and result in unreliable

performance.

Note The NI 9802 supports only SD Cards formatted in

FAT16.

The card slots each have a door to protect the SD Cards while in

the module. Each door is connected to a switch that indicates to the

NI 9802 software when it is safe to read from or write to the

SD Card.

The NI 9802 has four LEDs that indicate which slots contain an

SD Card and if the SD Card is active. Refer to Figure 1 for the

designation of SD Card slots and LEDs. Refer to Table 1 for

descriptions of each of the LEDs on the NI 9802 and when it is safe

to remove SD Cards from the NI 9802.

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

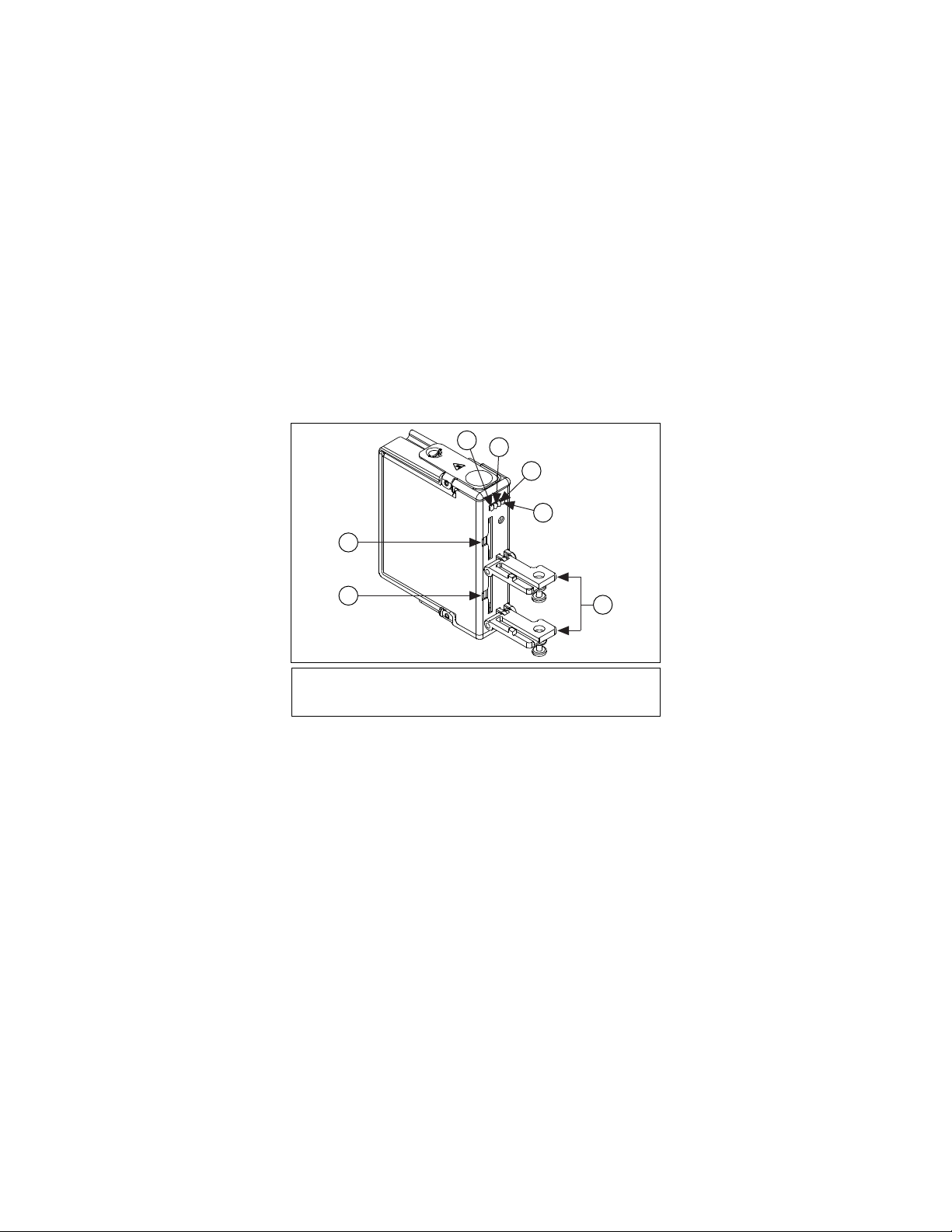

Figure 1. NI 9802 Card Slots and LEDs

1 Present (Card 0)

2 Busy (Card 0)

3 Present (Card 1)

4 Busy (Card 1)

5 Card Slot Doors

6 SD Card Slot 1

7 SD Card Slot 0

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

NI 9802 Operating Instructions and Specifications 8 ni.com

LEDs

Table 1. LED Descriptions

LED SD Card Slot Description

Present (Card 0),

Green

SD Card Slot 0 This LED is lit when an SD Card is

in Slot 0 and the SD Card slot door

is closed.

Busy (Card 0),

Yellow

SD Card Slot 0 This LED is lit when the card in

Slot 0 is active. This LED is

flashing when the NI 9802 is

performing I/O on the card in

Slot 0. Do not remove the SD Card

while this LED is lit or flashing.

Present (Card 1),

Green

SD Card Slot 1 This LED is lit when an SD Card is

in Slot 1 and the SD Card slot door

is closed.

Busy (Card 1),

Yellow

SD Card Slot 1 This LED is lit when the card in

Slot 1 is active. This LED is

flashing when the NI 9802 is

performing I/O on the card in

Slot 1. Do not remove the SD Card

while this LED is lit or flashing.

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

SD Card Slot Doors

Do not open an SD Card slot door or remove an SD Card while the

yellow LED for that card is lit or flashing. If youopen an SD Card

slot door while the yellow LED for that card is lit or flashing, the

NI 9802 software acts to protect the file system of the SD Card.

Refer to the software help for more information. Visit ni.com/

info and enter cseriesdoc for information about C Series

documentation.

Caution Opening an SD Card slot door or removing an

SD Card while the yellow LED for that card is lit or

flashing might result in incomplete or lost data.

Yo umust close the slot door for the NI 9802 software to read from

or write to the SD Card.

Note Screw the slot doors closed completely using a

#1 Phillips screwdriver. Do not overtighten.
