National Instruments 9225 Manual

CALIBRATION PROCEDURE

NI 9225

3-Channel, 300 Vrms, 24-Bit, Simultaneous,

Channel-to-Channel Isolated Analog Input Module

This document contains the verification and adjustment procedures for the National Instruments

9225. For more information about calibration solutions, visit ni.com/calibration.

Contents

Software.................................................................................................................................... 1

Documentation.......................................................................................................................... 2

Test Equipment......................................................................................................................... 3

Test Conditions......................................................................................................................... 3

Initial Setup............................................................................................................................... 4

Verification ............................................................................................................................... 4

Accuracy Verification....................................................................................................... 5

Gain Matching Verification.............................................................................................. 6

Phase Matching Verification ............................................................................................ 8

Adjustment................................................................................................................................ 9

Accuracy Adjustment ....................................................................................................... 9

EEPROM Update ..................................................................................................................... 10

Reverification ........................................................................................................................... 10

Accuracy Under Calibration Conditions .................................................................................. 10

Where to Go for Support .......................................................................................................... 11

Software

Calibrating the NI 9225 requires the installation of NI-DAQmx 9.3 or later on the calibration

system. You can download NI-DAQmx from ni.com/downloads. NI-DAQmx supports

LabVIEW, LabWindows™/CVI™, ANSI C, and .NET. When you install NI-DAQmx, you only

need to install support for the application software that you intend to use.

ni.com/manuals

DeutschFrançais

2|ni.com | NI 9225 Calibration Procedure

Documentation

Consult the following documents for information about the NI 9225, NI-DAQmx, and your

application software. All documents are available on ni.com and help files install with the

software.

NI cDAQ-9174/9178 Quick Start Guide

NI-DAQmx installation and hardware setup

NI 9225 Operating Instructions and Specifications

NI 9225 specific information, specifications, and calibration interval

NI-DAQmx Readme

Operating system and application software support in NI-DAQmx

LabVIEW Help

LabVIEW programming concepts and reference information about NI-DAQmx

VIs and functions

NI-DAQmx C Reference Help

Reference information for NI-DAQmx C functions and NI-DAQmx C properties

NI-DAQmx .NET Help Support for Visual Studio

Reference information for NI-DAQmx .NET methods and NI-DAQmx .NET

properties, key concepts, and a C enum to .NET enum mapping table

NI 9225 Calibration Procedure |© National Instruments |3

Test Equipment

Table 1 lists the equipment recommended for the performance verification and adjustment

procedures. If the recommended equipment is not available, select a substitute using the

requirements listed in Table 1

Test Conditions

The following setup and environmental conditions are required to ensure the NI 9225 meets

published specifications.

• Keep connections to the NI 9225 as short as possible. Long cables and wires act as

antennas, picking up extra noise that can affect measurements.

• Use shielded copper wire for all cable connections to the NI 9225. Use twisted-pairs wire

to eliminate noise and thermal offsets.

• Maintain an ambient temperature of 23 °C ±5 °C. The NI 9225 temperature will be greater

than the ambient temperature.

• Keep relative humidity below 80%.

• Allow a warm-up time of at least 10 minutes to ensure that the NI 9225 measurement

circuitry is at a stable operating temperature.

Table 1. Recommended Equipment

Equipment

Recommended

Model Where Used Requirements

Calibrator Fluke 5500A Accuracy,

Adjustment

Use a high-precision voltage

source with an accuracy

≤100 ppm.

Function

Generator

NI 4461 Gain Matching,

Phase Matching

Use a function generator capable

of sourcing both 1 kHz and

20 kHz ±10 Vpk AC sinusoidal

signals with amplitude

uncertainty of ±10%.

Chassis NI cDAQ-9178 All —

4|ni.com | NI 9225 Calibration Procedure

Initial Setup

Complete the following steps to set up the NI 9225.

1. Install NI-DAQmx.

2. Make sure the NI cDAQ-9178 power source is not connected.

3. Connect the NI cDAQ-9178 to the system safety ground.

a. Attach a ring lug to a 14 AWG (1.6 mm) wire.

b. Connect the ring lug to the ground terminal on the side of the NI cDAQ-9178 using

the ground screw.

c. Attach the other end of the wire to the system safety ground.

4. Install the module in slot 8 of the NI cDAQ-9178 chassis. Leave slots 1 through 7 of the

NI cDAQ-9178 chassis empty.

5. Connect the NI cDAQ-9178 chassis to your host computer.

6. Connect the power source to the NI cDAQ-9178 chassis.

7. Launch Measurement & Automation Explorer (MAX).

8. Right-click the device name and select Self-Test to ensure that the module is working

properly.

Verification

The following performance verification procedures describe the sequence of operation and test

points required to verify the NI 9225 and assumes that adequate traceable uncertainties are

available for the calibration references.

NI 9225 Calibration Procedure |© National Instruments |5

Accuracy Verification

Complete the following procedure to determine the As-Found status of the NI 9225.

1. Set the calibrator to Standby mode (STBY).

2. Connect the NI 9225 to the calibrator as shown in Figure 1.

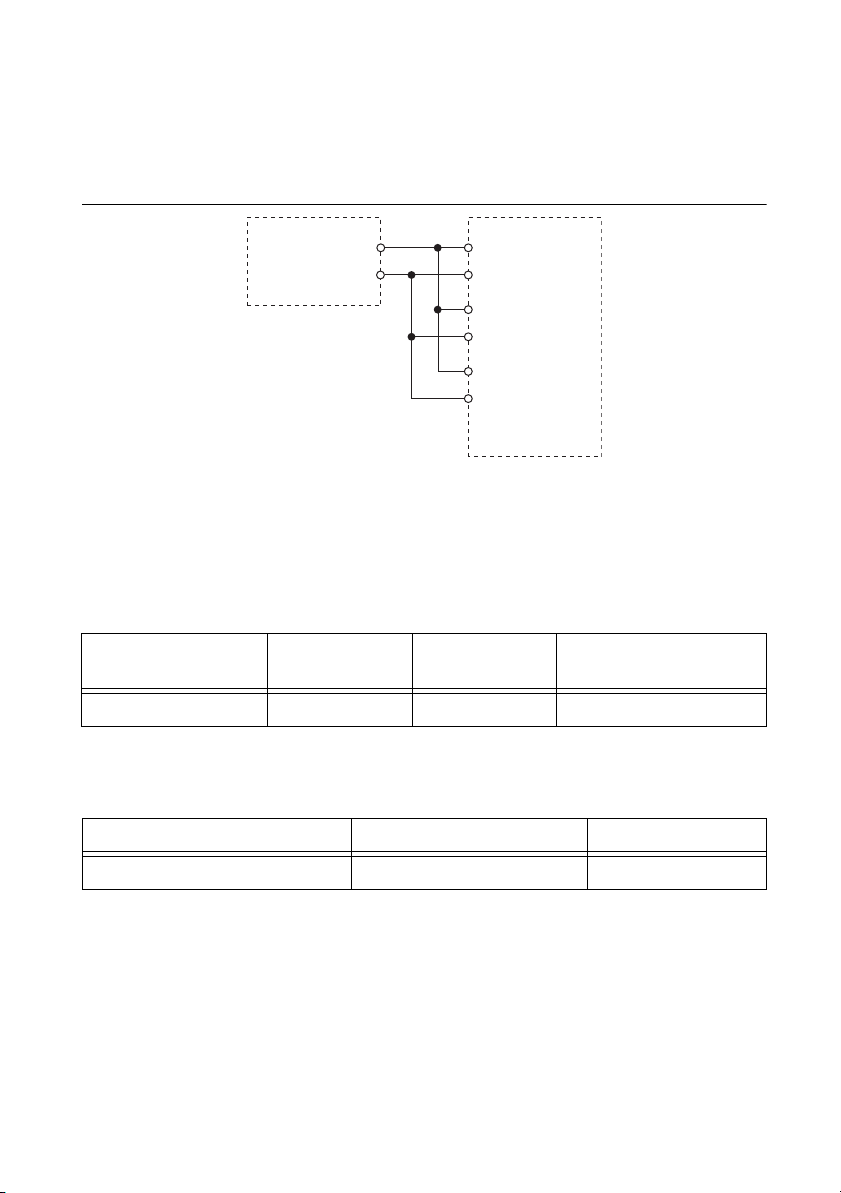

Figure 1. Accuracy Verification Connections

3. Set the calibrator voltage to a Test Point value indicated in Table 4.

4. Set the calibrator to Operate mode (OPR).

5. Acquire and average samples.

a. Create and configure an AI voltage task according to Table 2.

b. Configure the task timing according to Table 3.

c. Start the task.

d. Read samples from the NI 9225.

e. Average the samples.

f. Stop the task.

g. Clear the task.

Table 2. NI 9225 AI Voltage Task Configuration for Phase Matching

Physical Channels

Minimum

(Vrms)

Maximum

(Vrms)

Terminal

Configuration

AI0:3 -300 300 Differential

Table 3. NI 9225 Voltage Task Timing Configuration for Phase Matching

Sample Mode Samples Per Channel Rate (kS/s)

Finite Samples 4167 50

NI 9225

Calibrator

AI1

–

AI0

–

AI2

–

6|ni.com | NI 9225 Calibration Procedure

6. Compare the per-channel averages to the limits in Table 4.

7. Set the calibrator to Standby mode (STBY).

8. Repeat steps 3 through 7 for each test point in Table 4.

9. Disconnect the calibrator from the device.

Note The test limits listed in Table 4 are derived using the values in Table 17.

Gain Matching Verification

Complete the following procedure to determine the As-Found status of the NI 9225.

1. Connect the NI 9225 to the function generator as shown in Figure 2.

Figure 2. Gain Matching Verification Connections

2. Configure function generator according to Table 5.

Table 4. NI 9225 Verification Test Limits for Accuracy

Range Test Point 1-Year Limits

Min

(Vrms)

Max

(Vrms)Location

Value

(VDC)

Lower Limit

(VDC)

Upper Limit

(VDC)

-300 300

Max 403.75 403.431250 404.068750

Mid 0.00 -0.052275 0.052275

Min -403.75 -404.068750 -403.431250

Table 5. Function Generator Configuration for Gain Matching Verification

Signal Type Amplitude (Vpk)Frequency (kHz)

Sinewave 9 20

NI 9225

Function

Generator

AI1

–

AI0

–

AI2

–

NI 9225 Calibration Procedure |© National Instruments |7

3. Enable the function generator.

4. Acquire samples.

a. Create and configure an AI voltage according to Table 6.

b. Configure the task timing according to Table 7.

c. Start the task.

d. Read samples from the NI 9225. Record this measurement as AmplitudeAcq for each

channel. NI recommends using the Extract Single Tone Information VI to determine

the amplitude.

e. Stop the task.

f. Clear the task.

5. Calculate the gain for each channel using the AmplitudeAcq value.

6. Compare the channel-to-channel gain difference to the maximum limit of ±0.25 dB.

7. Disable the function generator.

8. Disconnect the function generator from the device.

If the Gain Matching verification procedure determines that the NI 9225 is outside of the limits,

refer to Where to Go for Support for assistance in returning the device to NI.

Table 6. NI 9225 Configuration Task for Gain Matching Verification

Physical Channels Terminal Configuration

AI0:2 Differential

Table 7. NI 9225 Configuration Task for Gain Matching Verification

Sample Mode Samples Per Channel Rate (kS/s)

Finite Samples 25000 50

Amplitude dB() 20 log10

×AmplitudeAcq

----------------------------------- 











8|ni.com | NI 9225 Calibration Procedure

Phase Matching Verification

Complete the following procedure to determine the As-Found status of the NI 9225.

1. Connect the NI 9225 to the function generator as shown in Figure 3.

Figure 3. Phase Matching Verification Connections

2. Configure function generator according to Table 8.

3. Set the function generator frequency to a value indicated in Table 11.

4. Enable the function generator.

5. Acquire samples.

a. Create and configure an AI voltage task according to Table 9.

b. Configure the task timing according to Table 10.

c. Start the task.

d. Read samples from the NI 9225.

e. Clear the task.

Table 8. Function Generator Configuration for Phase Matching Verification

Signal Type Amplitude (Vpk)

Sinewave 9

Table 9. NI 9225 Voltage Task Configuration for Phase Matching Verification

Physical Channels Terminal Configuration

AI0:2 Differential

Table 10. NI 9225 Voltage Task Timing Configuration for Phase Matching Verification

Sample Mode Samples Per Channel Rate (kS/s)

Finite Samples 25000 50

NI 9225

Function

Generator

AI1

–

AI0

–

AI2

–

NI 9225 Calibration Procedure |© National Instruments |9

6. Calculate the phase for each channel on the NI 9225. NI recommends using the Extract

Single Tone Information VI to calculate phase.

7. Compare the channel-to-channel phase difference to the limits in Table 11.

8. Repeat steps 2 through 7 for each test point in Table 11.

9. Disable the function generator.

10. Disconnect the function generator from the device.

If the Phase Matching verification procedure determines that the NI 9225 is outside of the limits,

refer to Where to Go for Support for assistance in returning the device to NI.

Adjustment

The following performance adjustment procedure describes the sequence of operation required

to adjust the NI 9225.

Accuracy Adjustment

Complete the following procedure to adjust the accuracy performance of the NI 9225.

1. Set the calibrator to Standby mode (STBY).

2. Connect the NI 9225 to the calibrator as shown in Figure 1.

3. Adjust the NI 9225.

a. Initialize a calibration session on the NI 9225. The default password is NI.

b. Input the external temperature in degrees Celsius.

c. Call the NI 9225 get C Series adjustment points function to obtain an array of

recommended calibration voltages for the NI 9225.

d. Set the calibrator to a reference value determined by the array of recommended

calibration voltages.

e. Set the calibrator to Operate mode (OPR).

f. Call and configure the NI 9225 adjustment function according to Table 12.

g. Set the calibrator to Standby mode (STBY).

Table 11. NI 9225 Verification Test Limits for Phase Matching

Generator Frequency (kHz) Phase Matching Channel-to-Channel Limit

1±0.035°

20 ±0.700°

Table 12. Adjustment Configuration

Physical Channel Reference Value

cDAQMod8/aixThe actual value of the voltage output of the calibrator

10 |ni.com | NI 9225 Calibration Procedure

h. Repeat steps d through g for each point in the array.

i. Close the calibration session.

4. Disconnect the NI 9225 from the calibrator.

EEPROM Update

When an adjustment procedure is completed, the NI 9225 internal calibration memory

(EEPROM) is immediately updated.

If you do not want to perform an adjustment, you can update the calibration date and onboard

calibration temperature without making any adjustments by initializing an external calibration,

setting the C Series calibration temperature, and closing the external calibration.

Reverification

Repeat the Verification section to determine the As-Left status of the device.

Note If any test fails Reverification after performing an adjustment, verify that you

have met the Test Conditions before returning your device to NI. Refer to Where to

Go for Support for assistance in returning the device to NI.

Accuracy Under Calibration Conditions

The values in the following table are based on calibrated scaling coefficients, which are stored

in the onboard EEPROM.

The following accuracy table is valid for calibration under the following conditions:

• Ambient temperature 23 °C ±5 °C

• NI 9225 installed in slot 8 of an NI cDAQ-9178 chassis

• Slots 1 through 7 of the NI cDAQ-9178 chassis are empty

Note For operational specifications, refer to the most recent NI 9225 Operating

Instructions and Specifications online at ni.com/manuals.

Table 13. NI 9225 Accuracy Under Calibration Conditions

Percent of Reading (Gain Error) Percent of Range* (Offset Error)

±0.066% ±0.0123% (±52.3 mV)

* Range equals 425 VDC

Otros manuales para 9225

Tabla de contenidos

Otros manuales de Unidad de control de National Instruments

National Instruments

National Instruments SCC-LP Series Manual de usuario

National Instruments

National Instruments NI PXI/e-4000 Series Manual de usuario

National Instruments

National Instruments NI 9211 Manual de usuario

National Instruments

National Instruments FP-AI-102 Manual de usuario

National Instruments

National Instruments PXIe-8830mc Manual de usuario

National Instruments

National Instruments NI-9208 Manual de usuario

National Instruments

National Instruments NI-SPEEDY-33 Manual de usuario

National Instruments

National Instruments SCC-TC Series Manual de usuario

National Instruments

National Instruments 9871 Manual de usuario

National Instruments

National Instruments NI 9882 Manual de usuario

National Instruments

National Instruments Phase Matrix PXI-1420 Manual de usuario

National Instruments

National Instruments NI PXI-665 Series Manual de usuario

National Instruments

National Instruments NI 9930 Manual de usuario

National Instruments

National Instruments NI WLS-9000 Series Manual de usuario

National Instruments

National Instruments NI 9871 Manual de usuario

National Instruments

National Instruments 9220 Manual

National Instruments

National Instruments TB-4304 Manual de usuario

National Instruments

National Instruments PXIe-6594 Manual de usuario

National Instruments

National Instruments NI 9516 Manual de usuario

National Instruments

National Instruments NI 9264 Manual de usuario

National Instruments

National Instruments NI 9758 Manual de usuario

National Instruments

National Instruments PXIe-4480 Manual de usuario

National Instruments

National Instruments PXIe-6591R Manual de usuario

National Instruments

National Instruments PXIe-4310 Manual de usuario

Manuales populares de Unidad de control de otras marcas

Festo

Festo Compact Performance CP-FB6-E Manual de lista de piezas

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manual de usuario

JS Automation

JS Automation MPC3034A Manual de usuario

JAUDT

JAUDT SW GII 6406 Series Guía rápida

Spektrum

Spektrum Air Module System Manual de usuario

BOC Edwards

BOC Edwards Q Series Manual de usuario

KHADAS

KHADAS BT Magic Manual de usuario

Etherma

Etherma eNEXHO-IL Manual de usuario

PMFoundations

PMFoundations Attenuverter Manual de usuario

GEA

GEA VARIVENT Manual de usuario

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manual de usuario

Altronix

Altronix LINQ8PD Instrucciones de montaje

Eaton

Eaton Powerware Series Manual de usuario

WAGO

WAGO 750-407/040-000 Manual de usuario

Sony

Sony CCU-590 Manual de usuario

Graco

Graco 25D614 Manual de usuario

Task Force Tips

Task Force Tips YE-RF-900 Manual de programación

Shini

Shini SPV-U Series Manual de usuario
