Owners Manual

MultiMobileTM

Model # MT10100ZLX/E

P/N 82071601

This publication may not be reproduced, in whole or in part,

without prior expressed written permission from Multi-Tech

Multi-Tech Systems, Inc. makes no representations or warranties

with respect to the content hereof and specifically disclaims any

implied warranties of merchantability or fitness for any particular

purpose. Furthermore, Multi-Tech Systems, Inc. reserves the right

to revise this publication and to make changes from time to time

in the content hereof without obligation of Multi-Tech Systems,

Inc. to notify any person or organization of such revisions or

changes.

Record of Revisions

Revision Description

B Documented additional Troubleshooting

(12/8/97) information in Chapter 4; minor technical,

editorial and format changes made

throughout this manual.

TRADEMARKS

Trademarks of Multi-Tech Systems, Inc. are as follows:

MultiMobile, Multi-Tech, and the Multi-Tech logo. All other

trademarks are owned by their respective companies.

Multi-Tech Systems, Inc.

2205 Woodale Drive

Mounds View, Minnesota 55112 U.S.A.

(612) 785-3500 or (800) 328-9717

U. S. FAX 612-785-9874

Fax-Back Service 612-717-5888

Technical Support (800) 972-2439

BBS (612) 785-3702 or (800) 392-2432

Internet Address: http://www.multitech.com

Technical Writer: mark@ multitech.com

All manuals and user guides at all-guides.com

Contents

3-MultiMobile

Contents

Chapter 1 - Introduction and Description ............ 5

About This Manual ................................................. 5

About This Product ................................................6

Network Interface Specifications ..........................6

System Requirements .............................................7

Ship Kit Contents....................................................8

Chapter 2 - Installation .......................................... 9

Chapter 3 - Software Installation ........................ 12

Novell NetWare .....................................................12

Menu Installation..................................................13

Manual Driver Installation ..................................14

Novell Client Installation .....................................14

MS LAN Manager ................................................16

Packet Driver ........................................................18

Windows for Workgroups 3.11 ........................... 18

Windows NT 3.51 ..................................................22

Windows NT 4.0 ....................................................22

Windows 95 Installation....................................... 23

Artisoft Lantastic 6.0 Installation ....................... 24

IBM OS/2 Warp ....................................................24

NOTES FOR NDIS DRIVER .............................. 28

NOTES FOR PACKET DRIVER .......................29

NOTES FOR WINDOWS FOR WORKGROUPS

DRIVER ................................................................29

Chapter 4 - Troubleshooting ................................31

Introduction ..........................................................31

Chapter 5 - Service ...............................................40

Limited Warranty .................................................40

Software User License Agreement....................... 41

Tech Support .........................................................43

Recording MT10100ZLX/E Information ..........43

All manuals and user guides at all-guides.com

Contents

4-MultiMobile

Service ....................................................................44

About the Multi-Tech BBS...................................45

How to Use the Multi-Tech BBS ..........................45

About CompuServe/Internet ...............................46

About the Multi-Tech Fax-Back System .............47

Appendix A - Regulatory Agency Information ..48

Index ......................................................................55

All manuals and user guides at all-guides.com

Introduction/Description

5-MultiMobile

Chapter 1 - Introduction and Description

About This Manual

This manual explains how to install and use your Fast

Ethernet PC Card, model MT10100ZLX/E from Multi-

Tech Systems. This manual is divided into 5 chapters

and one appendix. The information contained in each

chapter and appendix is as follows:

Chapter 1 - Introduction and Description

Chapter 1 begins with a short product introduction and

description; followed by a guide (which you are now

reading) to the use of this manual; and ends with a sec-

tion on technical specifications.

Chapter 2 - Hardware Installation

This chapter provides you with procedures for making

the physical connections attaching the MT10100ZLX/

E to portable computers, as well as this components

LED descriptions which can help verify proper opera-

tion and report operating status.

Chapter 3 - Software Installation

Chapter 3 contains information on PCMCIA setup,

manual installation of PCMCIA Software, and infor-

mation about supported drivers.

Chapter 4 - Troubleshooting Your

MT10100ZLX/E

Chapter 4 provides tips and advice if you think your

Fast Ethernet PC Card isnt working correctly.

Chapter 5 - Service/Warranty/Tech Support

Chapter 5 provides service and product warranty in-

formation.

Appendix

Appendix A - Regulatory Information

All manuals and user guides at all-guides.com

Introduction/Description

6-MultiMobile

About This Product

The MT10100ZLX/E is a credit-card-sized Type II

PCMCIA card that complies with the PCMCIA 2.1 and

JEIDA 4.1 standards and works with computers incor-

porating a compatible interface.

Connectivity to your Local Area Network (LAN) is ac-

complished when using an RJ-45 network cable con-

nection, and installing software and drivers respective

to your LAN environment.

Network Interface Specifications

Operating Environment:

•Novell Netware 3.x, 4.x

•Microsoft LAN Manager

•Packet Driver Applications

•Microsoft Windows for Workgroups 3.11

•Microsoft Windows 3.1

•Microsoft Windows NT 3.51, NT 4.0

•Windows 95

•Lantastic 6.0

•IBM OS/2 Warp Version 3

Features:

•Compatible with most notebook, laptop and portable

computers

•Compatible with Card and Socket Services

•Easy to install and use

•Card is hot swappable

•NE2000 compatible

•10Mbps Ethernet: IEEE 802.3 standard 10BaseT

baseband CSMA/CD local area network

•100Mbps Ethernet: IEEE 802.3 standard 100Base-TX

baseband CSMA/CD local area network

All manuals and user guides at all-guides.com

all-guides.com

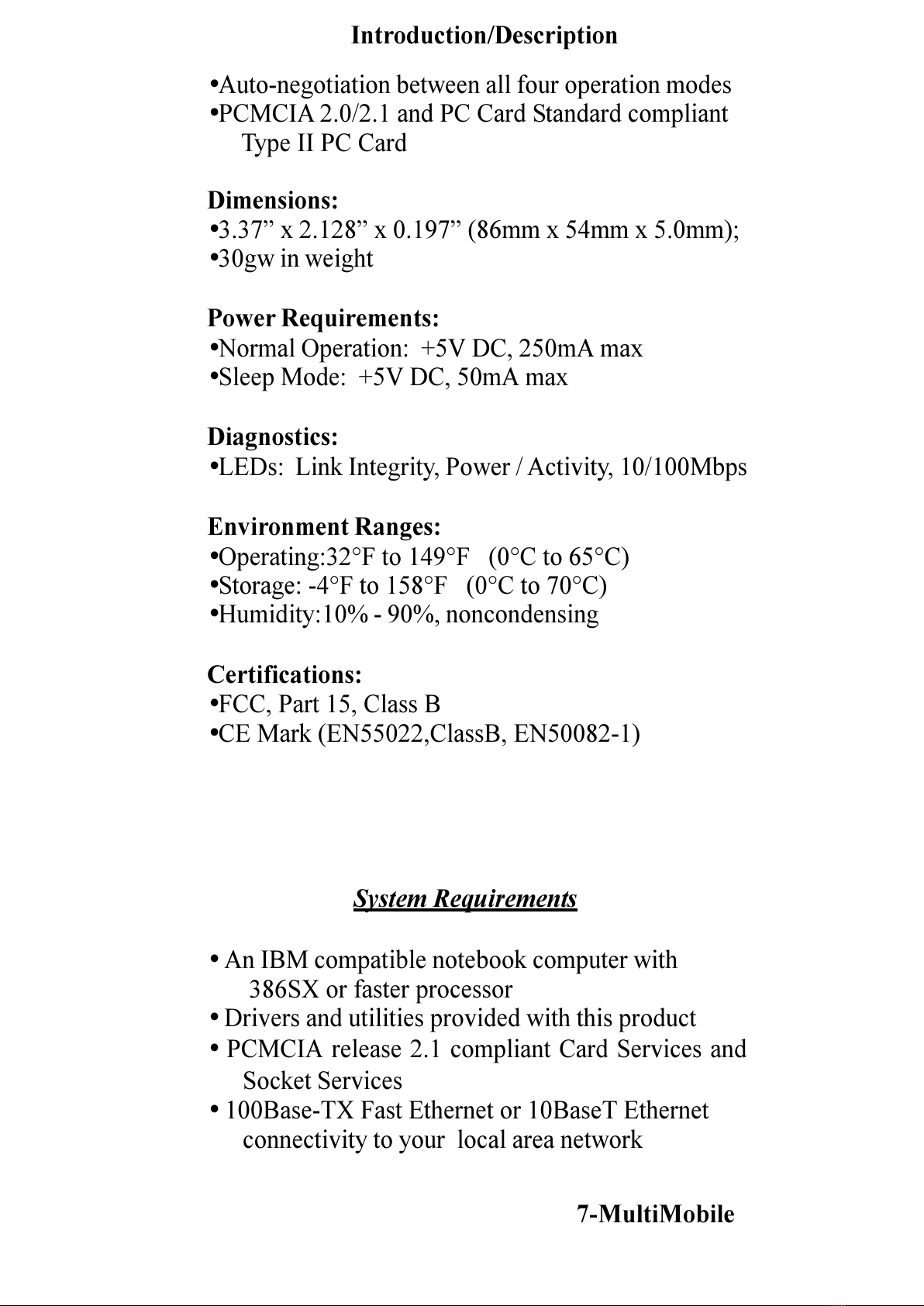

Introduction/Description

7-MultiMobile

•Auto-negotiation between all four operation modes

•PCMCIA 2.0/2.1 and PC Card Standard compliant

Type II PC Card

Dimensions:

•3.37 x 2.128 x 0.197 (86mm x 54mm x 5.0mm);

•30gw in weight

Power Requirements:

•Normal Operation: +5V DC, 250mA max

•Sleep Mode: +5V DC, 50mA max

Diagnostics:

•LEDs: Link Integrity, Power / Activity, 10/100Mbps

Environment Ranges:

•Operating:32°F to 149°F (0°C to 65°C)

•Storage: -4°F to 158°F (0°C to 70°C)

•Humidity:10% - 90%, noncondensing

Certifications:

•FCC, Part 15, Class B

•CE Mark (EN55022,ClassB, EN50082-1)

System Requirements

• An IBM compatible notebook computer with

386SX or faster processor

• Drivers and utilities provided with this product

• PCMCIA release 2.1 compliant Card Services and

Socket Services

• 100Base-TX Fast Ethernet or 10BaseT Ethernet

connectivity to your local area network

All manuals and user guides at all-guides.com

Introduction/Description

8-MultiMobile

Ship Kit Contents

Your MT10100ZLX/E is shipped from the factory with

the following:

• Fast Ethernet PC Card Adapter

• Media coupler with single RJ-45 connector for

10BASE-T and 100BASE-TX network

• 3.5 driver diskette

• Users Manual (this manual)

• Plastic protection case for base PC Card

All manuals and user guides at all-guides.com

Hardware Installation

9-MultiMobile

Chapter 2 - Installation

This chapter describes how to install the dual speed

Fast Ethernet PC Card into your notebook computer

and connect it to the network. The PC Card can con-

nect to either 100Mbps Fast Ethernet or 10Mbps

Ethernet over unshielded twisted pair (UTP) cable; and

can automatically sense and operate at either speed with-

out having to be manually reconfigured.

Please refer to Software Installation in Chapter 3 for

installing network drivers using menu driven installa-

tion utilities.

*: hardware installation must occur before driver in-

stallation is attempted.

Installing The MT10100ZLX/E

1. Insert the MT10100ZLX/E into the computers

PCMCIA slot with the 68-pin connector facing the

PCMCIA slot and the label facing up.

Figure 2-1. PC Card Installation

All manuals and user guides at all-guides.com

Hardware Installation

10-MultiMobile

2. Plug the 15 pin connector into the 15 pin socket of

the PC card. On the other end of the 15-pin cable,

leave the RJ-45 network cable exposed until the

LAN connection is made; hardware installation is

now complete. The MT10100ZLX/E is powered di-

rectly from the PC.

3. Connect the MT10100ZLX/E to the network (LAN)

using the bundled RJ-45 (8-pin) plug.

For operation in a 100Mbps (100Base-TX) Ethernet

network, a Category 5 unshielded twisted pair (UTP)

cable should be used to connect between media cou-

pler and 100Mbps hub or switch.

For operation in a 10Mbps (10Base-T) Ethernet net-

work, a Category 3, 4or 5UTP cable could be used to

connect between the media coupler and a 10Mbps hub

or switch. Speak to your Network Administrator for

more details.

*: Removal of the MT10100ZLX/E from a notebook

computer is contingent upon notebook computer design.

Please refer to PC Card removal instruction specific to

your notebook computer.

LED Functions

The MT10100ZLX/E has three LEDs (Figure 2-2) that

report Ethernet Link and Network status.

All manuals and user guides at all-guides.com

Otros manuales para Multimobile MT10100ZL-X/E

Tabla de contenidos

Otros manuales de Módem de Multitech

Multitech

Multitech MultiConnect microCell MTCM2-L6G1 Manual de usuario

Multitech

Multitech MultiModem MT2834MR6 Manual de usuario

Multitech

Multitech MultiModem II MT5600BA-V.92 Manual de usuario

Multitech

Multitech Modem Module MT3334SMI Manual de instrucciones

Multitech

Multitech MTCBA-C-EN-N1 Manual de usuario

Multitech

Multitech MultiModem II BA-Series Manual de usuario

Multitech

Multitech MMCModem MTMMC-G-F4 Manual de instrucciones

Multitech

Multitech SocketModem Cell Cat M1 Guía de aplicación

Multitech

Multitech MultiModem ZBA USB MT5634ZBA-USB Manual de usuario

Multitech

Multitech MultiModem iCell MTCMR-E1 Manual de usuario

Multitech

Multitech MT5634MU Manual de usuario

Multitech

Multitech MultiModem MT5634ZBA-V-V92 Manual de usuario

Multitech

Multitech MultiModem MT5634ZPX-V.92-ISA Manual de usuario

Multitech

Multitech SocketModem MT5600SMI Manual de usuario

Multitech

Multitech MTMC8-USB Manual de usuario

Multitech

Multitech MultiModem MT5656ZDX-Series Manual de usuario

Multitech

Multitech Multimodem MTCBA-G-F1 Manual de usuario

Multitech

Multitech MultiModem Cell MTCBA-E1 Manual de usuario

Multitech

Multitech MTCBA-C-U Manual de usuario

Multitech

Multitech MultiConnect microCell MTCM2-L4G1 Manual de usuario

Multitech

Multitech MultiModem II MT5600BA-V.90 Manual de usuario

Multitech

Multitech MultiConnect Cell 100 series Manual de usuario

Multitech

Multitech MultiModemISDN MTA128ST-USB Manual de usuario

Multitech

Multitech MultiModem MT5600ZDX Manual de usuario

Manuales populares de Módem de otras marcas

Davicom

Davicom DM562AP Manual de usuario

EpiValley

EpiValley TATA indicom SXC-1080 Manual de usuario

Zte

Zte WiMAX Manual de usuario

Intelimax

Intelimax MA-2060 Manual de usuario

SMC Networks

SMC Networks D3CM1604V Manual de uso y cuidado

Telstra

Telstra Wi-Fi 4G Advanced Pro X Manual de usuario

Thrane&Thrane

Thrane&Thrane imarsat EXPLORER 300 Manual de usuario

Samsung

Samsung AceLink SAM-335A Manual de usuario

Enfora

Enfora Enabler-G Guía de configuración rápida

iRZ

iRZ ATM2-232 Manual de usuario

Zhone

Zhone 6310 Manual de usuario

Paradyne

Paradyne Hotwire 7976 Manual de usuario

US Robotics

US Robotics 3453C Manual de usuario

MaxTech

MaxTech Plug & Play Internal Voice/FAX/Data/SVD... Manual de usuario

Zte

Zte MF823 Manual de usuario

Four-Faith

Four-Faith F1403 Manual de usuario

Sierra Wireless

Sierra Wireless AIRLINK MP595W Manual de usuario

Gemtek

Gemtek WiMAX WIXFBR-103 Manual de usuario
