Multitech MultiConnect MicroCell MTCM-LAT3 Manual de usuario

MultiConnect®MicroCell Cellular Modem

(MTCM-LAT3 and MTCM-LSP3 )

MTCM-LAT3 and MTCM-LSP3 Quick Start

MultiConnect®MicroCell Cellular Modem (MTCM-LAT3 and MTCM-LSP3 ) MultiTech Systems MultiConnect®MicroCell Cellular Modem (MTCM-LAT3 and MTCM-LSP3 ) MultiTech Systems

Quick Start Quick Start

Mounting Device

1. Locate the groove on the bottom of the cellular modem.

2. Slide the mounting rod through the groove.

3. To secure the rod to the desired surface, place and tighten

two screws in the holes on either end of the mounting rod.

Refer to the user guide for an illustration of the mounting

rod, as well as the dimensions for placement of the screws.

Regulatory Information

For additional regulatory information, see your device’s user guide or go

to your device’s page at http://www.multitech.com

47 CFR Part 15 Regulation Class B Devices

This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses,

and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

■Reorient or relocate the receiving antenna.

■Increase the separation between the equipment and receiver.

■Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

■Consult the dealer or an experienced radio/TV technician for

help.

Warning: Changes or modifications to this unit not expressly approved by

the party responsible for compliance could void the user’s authority to

operate the equipment.

MultiConnect®Cell 100 Series Cellular Modem (MTCM-

LAT3 and MTCM-LSP3)

Document Part Number: 82103452L

This publication may not be reproduced, in whole or in part, without the

specific and express prior written permission signed by an executive

by Multi-Tech Systems, Inc.

Multi-Tech Systems, Inc. makes no representations or warranties,

whether express, implied or by estoppels, with respect to the content,

information, material and recommendations herein and specifically

disclaims any implied warranties of merchantability, fitness for any

particular purpose and non-infringement. Multi-Tech Systems, Inc.

reserves the right to revise this publication without obligation to notify any

person or organization of such revisions or changes.

MultiConnect, MultiTech and the MultiTech logo are registered

trademarks of Multi-Tech Systems, Inc. All other brand and product

names are trademarks or registered trademarks of their respective

companies.

MultiConnect®MicroCell Cellular Modem (MTCM-LAT3 and MTCM-LSP3 ) MultiTech Systems MultiConnect®MicroCell Cellular Modem (MTCM-LAT3 and MTCM-LSP3 ) MultiTech Systems MultiConnect®MicroCell Cellular Modem (MTCM-LAT3 and MTCM-LSP3 ) MultiTech Systems

Quick Start Quick Start Quick Start

Overview

The MultiConnect®MicroCell Cellular Modem (MTCM-LAT3 and MTCM-

LSP3) provides secure data communication between many types of

devices that use legacy and the latest communication technologies.

Package Contents

Your MultiConnect®MicroCell 100 Series Cellular Modem (MTCM-LAT3

and MTCM-LSP3) typically includes the following (varies with model):

Antennas 2 - external antennas

Documents 1 - Quick Start Guide, 1 - Warranty Plans, 1 -

Activation, Support & Regulatory Information

Other Items 1 - Mounting rod, 4 - Clear adhesive bumpons or

mounting feet

Device 1- MultiConnect®MicroCell 100 Series Cellular

Modem

Additional Information

For more information on your device, refer to the appropriate user guide:

https://www.multitech.com/brands/multiconnect-microcell.

Note: If this quick start has been updated, the update will be available

at that location.

Dimensions

The device dimensions are:

■2.105 in x 0.780 in x 1.79 in (5.35 cm x 1.98 cm x 4.55 cm)

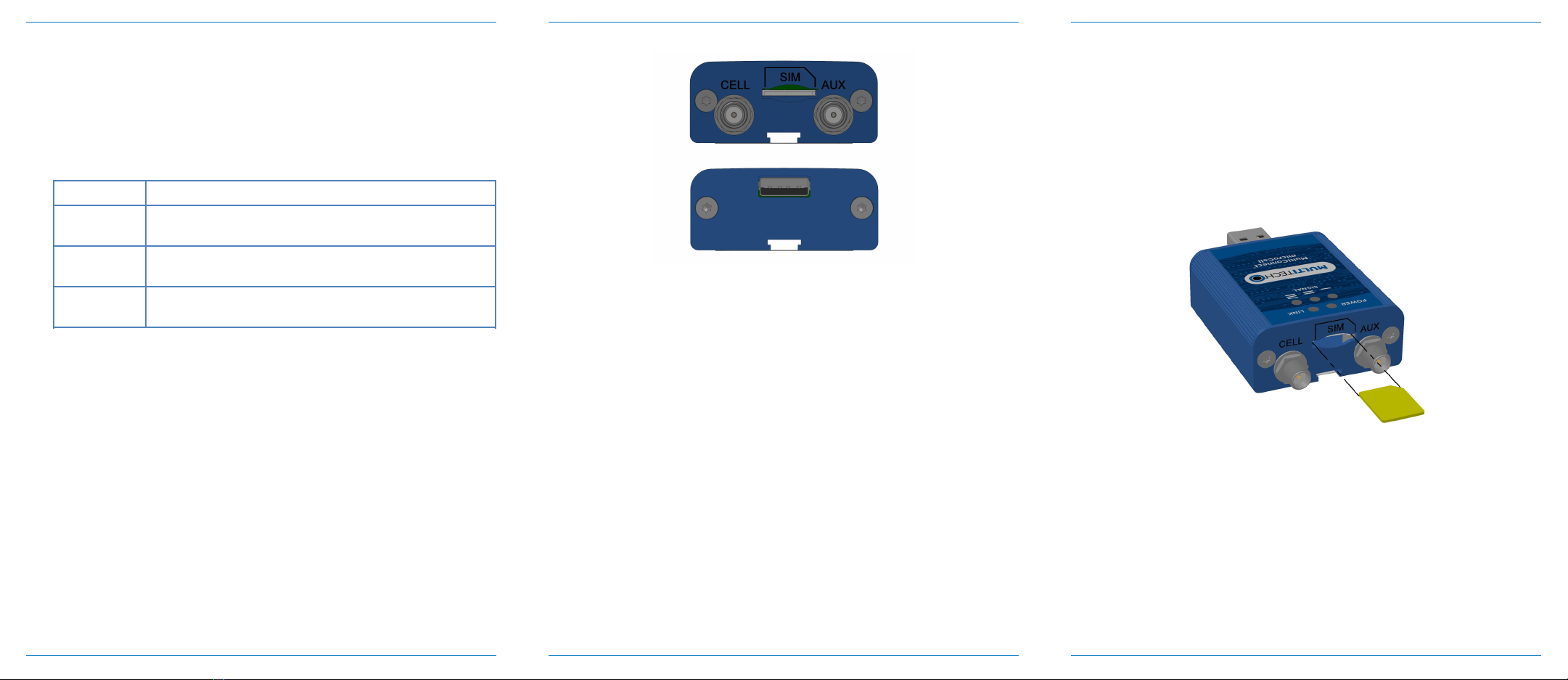

Side Panels for MTCM-LAT3

Connectors

The device has the following connectors:

■USB 1 USB connector,

■SMA 2 female SMA connectors, labeled CELL and AUX

■SIM 1 micro-SIM slot, between the SMA connectors

LED Descriptions

The top panel contains the following LEDs:

■POWER - Lights when the device has power.

■LINK - Blinks when the unit is functioning normally.

■SIGNAL - Three programmable signal LEDs do not function by

default and require the user to write code in order to control

them.

Installing a SIM Card

To operate the device on a cellular network, you need a micro-SIM card

(3FF) from your carrier.

To install the SIM card:

1. Locate the SIM card slot on the side of the cellular modem.

The slot is labeled SIM.

2. Push the SIM card into the slot with the contact side facing

down as shown. When the SIM card is installed, it locks into

place.

Installing the Cellular Modem

1. Connect antennas to the antenna connectors.

2. Connect the USB connector to your computer, either

directly or through a hub.

The USB connection powers the device and the POWER LED lights.
