Multitech GFU19 Manual de usuario

GFU19 Multi-Tech CDMA Quick Guide

July, 2005

GFU19 Multi-Tech CDMA Modem

This guide describes how to configure your GPS1200

sensor and Multi-Tech CDMA for connection to a network

using a Verizon WirelessInternet data plan.

Topics • (Over the air) OTA Activation Using Your Internet Data Plan

• Setting Up the Multi-Tech CDMA Modem

• Connecting to a Network Using the Multi-Tech CDMA Modem

GPS1200 GFU19 MultiTech CDMA Modem Quick Guide July, 2005

Page 2/18

GFU19 Multi-Tech CDMA Modem

Table of Contents

Introduction..........................................................................................................................3

OTA Activation Using Your Internet Data Plan ...................................................................4

Setting Up the Multi-Tech CDMA Modem ...........................................................................8

Connecting to a Network Using the Multi-Tech CDMA Modem ........................................16

GPS1200 GFU19 MultiTech CDMA Modem Quick Guide July, 2005

Page 3/18

GFU19 Multi-Tech CDMA Modem

Introduction

About this

Quick Guide

This Quick Guide is designed to provide a step by step guide to configuring the

GPS1200 sensor and Multi-Tech CDMA for connection to a network using a Verizon

WirelessInternet data plan.

This Quick Guide assumes that the user is familiar with general GPS surveying

procedures and real time applications.

Note: Please setup an Internet Data plan from Verizon Wireless and have it

activated before using this manual. Also, be sure to obtain your MIN and MDM

number. If the two numbers are different, please refer to Appendix 1 for activation.

Firmware

Version 2.00

This Quick Guide has been designed for GPS System 1200 – Firmware Version 2.00

or higher. If using a different firmware version, you may notice slight differences in

the menu commands.

User Manuals A number of user manuals are available on the GPS System 1200 Software CD.

These manuals are provided in Adobe Acrobat format and include Adobe Acrobat

Reader. They contain a wealth of information about the GPS1200 System, including

system specifications and operation procedures for real time as well as post-

processed static, rapid static and kinematic surveys.

More detailed information relative to real time surveying is also available in the

following Leica manuals:

GPS Equipment User Manual – provides a general system overview and contains

information on technical specifications and care and usage of the equipment.

Getting Started with Real Time Surveys – contains instructions on equipment

setup and procedures specific to real time surveying.

Technical Reference Manual – this comprehensive manual provides detailed

information on nearly all aspects of the GPS System 1200, including many of the

procedures mentioned in this quick guide.

GPS1200 GFU19 MultiTech CDMA Modem Quick Guide July, 2005

Page 4/18

GFU19 Multi-Tech CDMA Modem

OTA Activation Using Your Internet Data Plan

Activate your

Internet plan

Follow the steps below to configure and activate your Verizon WirelessInternet

plan for use with the GPS1200 sensor and the Multi-Tech CDMA modem.

Step Action Display

Begin with the sensor turned off.

• Attach your CDMA module to Port 1

or 3on the sensor.

• Press the ON (PROG) button to turn

on the sensor.

• Select 5 Config… from the Main

Menu.

This takes you to the GPS1200 Configuration

screen

From the GPS1200 Configuration screen:

• Select 4 Interfaces…

This takes you to the CONFIGURE Interfaces

screen.

From the CONFIGURE Interfaces screen:

• Highlight Real-Time and press the F3

(EDIT) button.

This takes you to the CONFIGURE Real-

Time Interface screen

Continued on next page

GPS1200 GFU19 MultiTech CDMA Modem Quick Guide July, 2005

Page 5/18

GFU19 Multi-Tech CDMA Modem

OTA Activation Using Your Internet Data Plan

Step Action Display

From the CONFIGURE Real-Time Mode

screen:

• Ensure that the R-Time Mode and R-

Time Data fields are set

appropriately.

• Select the port to which your modem

is attached in the Port field.

• Press the F5 (DEVCE) button.

This takes you to the CONFIGURE Devices

screen.

From the CONFIGURE Devices screen:

• Press the F6 (PAGE) button once to

access the “Modems/GSM” page.

• Highlight the MultiTech CDMA

modem and press the SHIFT – F5

(DEFLT) button to ensure that the

modem’s default settings are active.

• Press the F1 (CONT) button to

accept this device configuration and

return to the CONFIGURE Interfaces

screen.

• At this point a “Warning: This port

is already configured to be used

by the Internet interface. Do you

wish to close the Internet

interface?” message might appear.

If it does, press the F6 (YES) button.

This returns you to the CONFIGURE

Interfaces screen.

Continued on next page

GPS1200 GFU19 MultiTech CDMA Modem Quick Guide July, 2005

Page 6/18

GFU19 Multi-Tech CDMA Modem

OTA Activation Using Your Internet Data Plan

Step Action Display

From the CONFIGURE Interfaces screen:

• Highlight Real-Time and press the F4

(CTRL) button.

This takes you to the CONFIGURE

GPRS/Internet Connection screen.

In the CONFIGURE GPRS/Internet

Connection screen:

• Press the SHIFT button and the

following screen appears.

• Press the F3 (REG) button

This takes you to the CONFIGURE CDMA

Registration screen.

From the CONFIGURE CDMA Registration

screen:

• Enter the Verizon number assigned

to your modem in the My Phone No

field.

• Press the F1 (CONT) button.

This begins the modem activation process.

Continued on next page

GPS1200 GFU19 MultiTech CDMA Modem Quick Guide July, 2005

Page 7/18

GFU19 Multi-Tech CDMA Modem

OTA Activation Using Your Internet Data Plan

Step Action Display

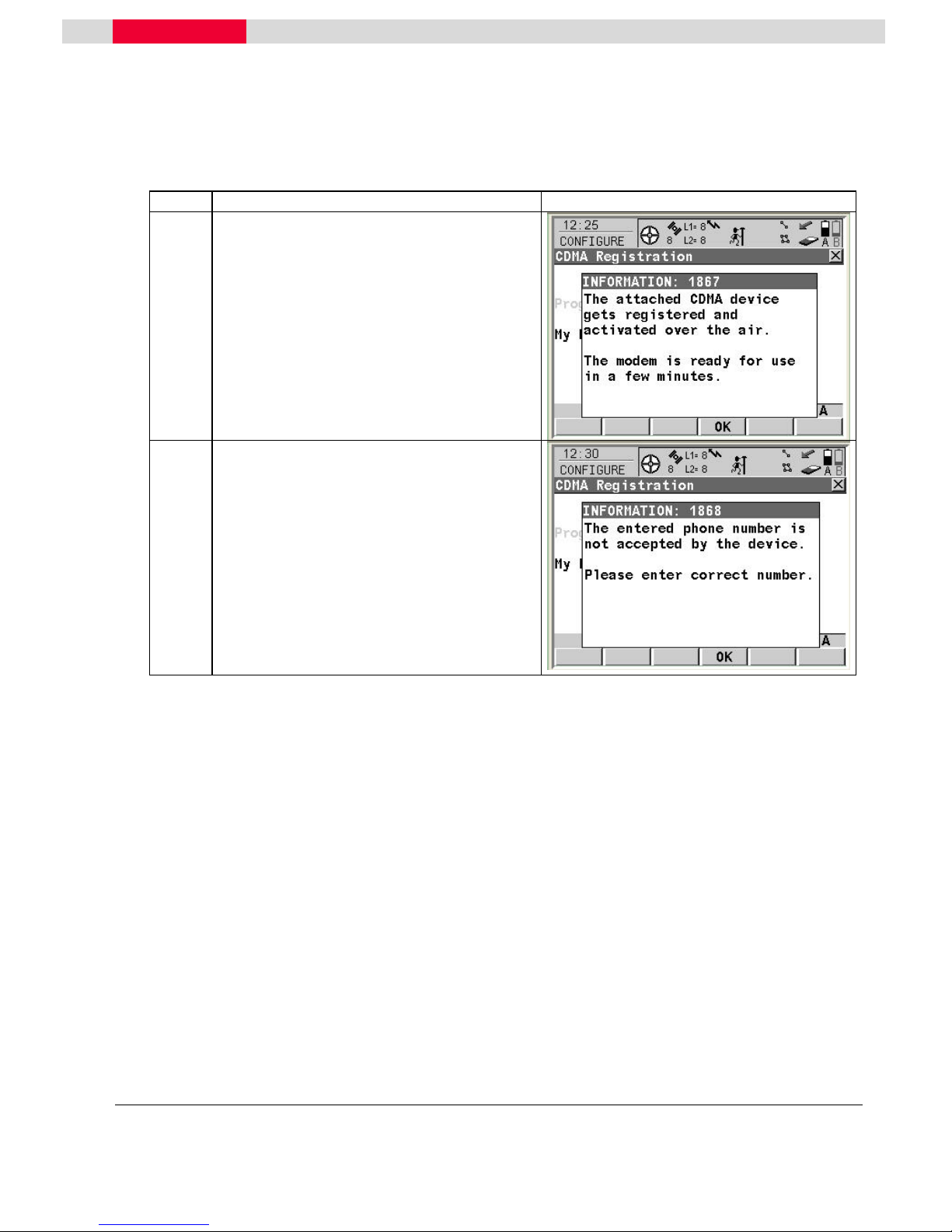

During the modem activation process:

• Press the F4 (OK) button when the

Information box shown on the right

appears. The activation might take

up to a few minutes. The modem will

be ready for use a few minutes after

activation.

If the modem activation process fails:

• Re-enter your phone number and

Retry.

Note: If modem activation still fails, refer to

Appendix 1 for an alternative method of

activation.

GPS1200 GFU19 MultiTech CDMA Modem Quick Guide July, 2005

Page 8/18

GFU19 Multi-Tech CDMA Modem

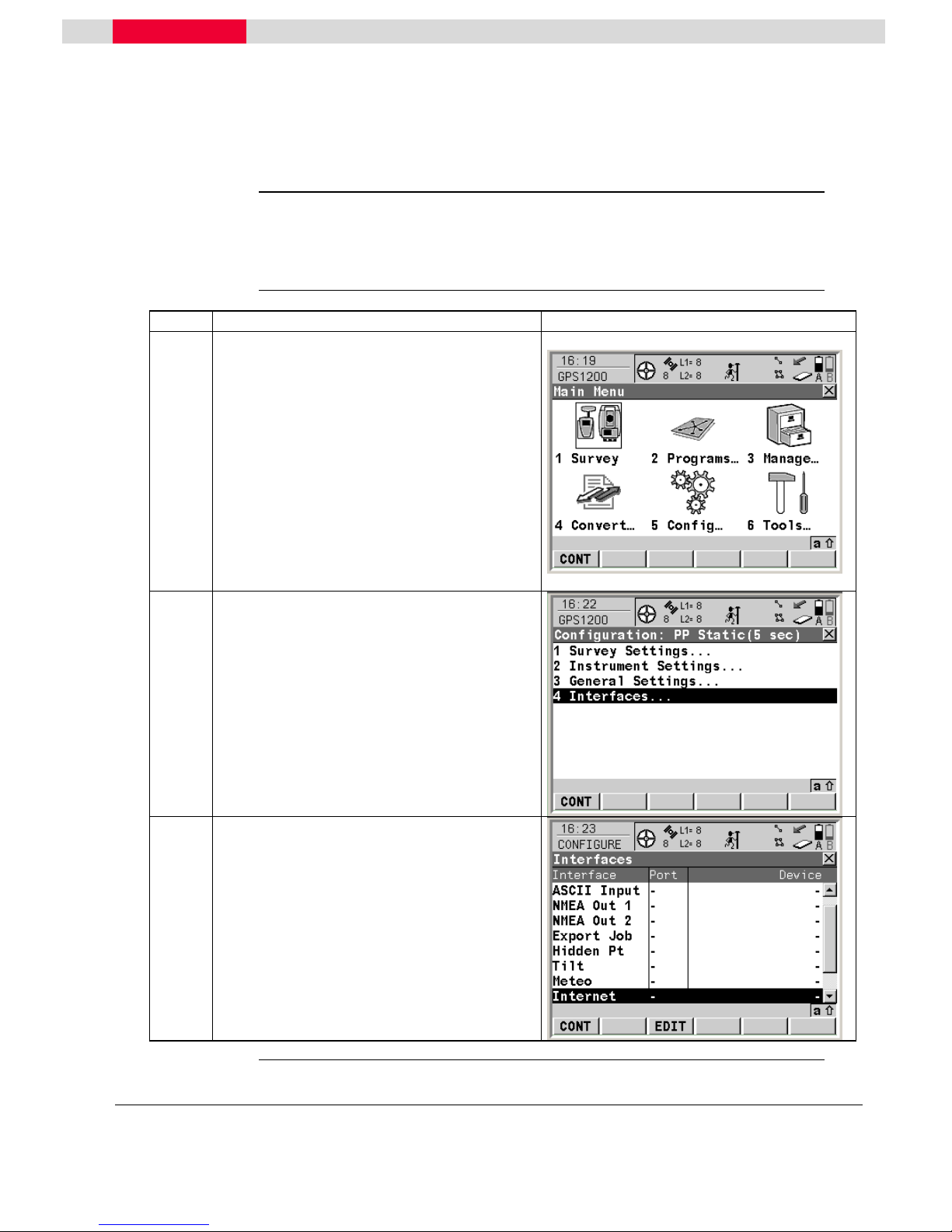

Setting Up the Multi-Tech CDMA Modem

Set up the

Multi-Tech

CDMA Modem

Follow the steps below to setup the GPS1200 sensor to use the GFU19 Multi-Tech

CDMA modem.

Step Action Display

Begin with the sensor turned off.

• Attach your CDMA module to Port 1

or 3on the sensor.

• Press the ON (PROG) button to turn

on the sensor.

• Select 5 Config… from the Main

Menu.

This takes you to the GPS1200 Configuration

screen.

From the GPS1200 Configuration screen:

• Select 4 Interfaces…

This takes you to the CONFIGURE Interfaces

screen.

From the CONFIGURE Interfaces screen:

• Highlight Internet and press the F3

(EDIT) button.

This takes you to the CONFIGURE Internet

Interface screen.

Continued on next page

GPS1200 GFU19 MultiTech CDMA Modem Quick Guide July, 2005

Page 9/18

GFU19 Multi-Tech CDMA Modem

Setting Up the Multi-Tech CDMA Modem

Step Action Display

From the CONFIGURE Internet Interface

screen:

• Set Internet to Yes.

• Set the Port to 1or 3as applicable.

• Set the IP Address to Dynamic or

Static, depending on your plan.

Note: If you are using a Static IP Address,

be sure to obtain it from Verizon Wireless and

enter it in the Set IP Adr field.

• Press the F5 (DEVCE) button.

This takes you to the CONFIGURE GPRS

Internet Devices screen.

From the CONFIGURE GPRS Internet

Devices screen:

• Highlight MultiTech CDMA and

press the F3 (EDIT) button.

This takes you to the CONFIGURE Edit

Device: Multitech CDMA screen.

Continued on next page

GPS1200 GFU19 MultiTech CDMA Modem Quick Guide July, 2005

Page 10/18

GFU19 Multi-Tech CDMA Modem

Setting Up the Multi-Tech CDMA Modem

Step Action Display

From the CONFIGURE Edit Device:

MultiTech CDMA screen:

• Ensure the settings are as shown:

GPRS/Internet: Yes

Baud Rate: 115200

Parity: None

Data Bits: 8

Stop Bit: 1

Flow Control: RTS/CTS

• Press the F4 (ATCMD) button.

This takes you to the CONFIGURE

GSM/Modem AT Command Lines screen.

In the CONFIGURE GSM/Modem AT

Command Lines screen:

• Press the F6 (PAGE) button to

access the GPRS/Internet tab.

• Enter the AT commands as shown on

the right.

Note: These commands are correct for

Verizon Wireless modems.

• Press the F1 (STORE) button to save

the changes.

This returns you to the CONFIGURE Edit

Device: MultiTech CDMA screen.

Continued on next page
