Multitech - MTE-Series Cell Modem



Overview

The purpose of this article is to provide a quick guidance on how to configure Multitech MTE-Series cell modem to

connect it to a Swift Navigation Device and get corrections from Skylark or a third party RTK correction service.



Prerequisites

Ensure device is powered properly to the voltage level suggested by the manufacturer.

Steps

1. Before starting, check with the selected service provider :

a. SIM card APN information, to be used later during cell modem configuration

b. If data plan has been activated on the SIM card to be used.



2. Insert the SIM card on the SIM slot as instructed on the Multitech MTE-Series User Manual.



3. Connect your computer to the cell modem via ethernet cable and turn the device on.



4. On your computer, turn-off your wireless network and enable DHCP on the physical ethernet interface to be used.



5. Open your internet browser and type the following ip : 192.168.2.1

Note : If you are not able to establish connection with the cell modem, check your network settings on your

computer.



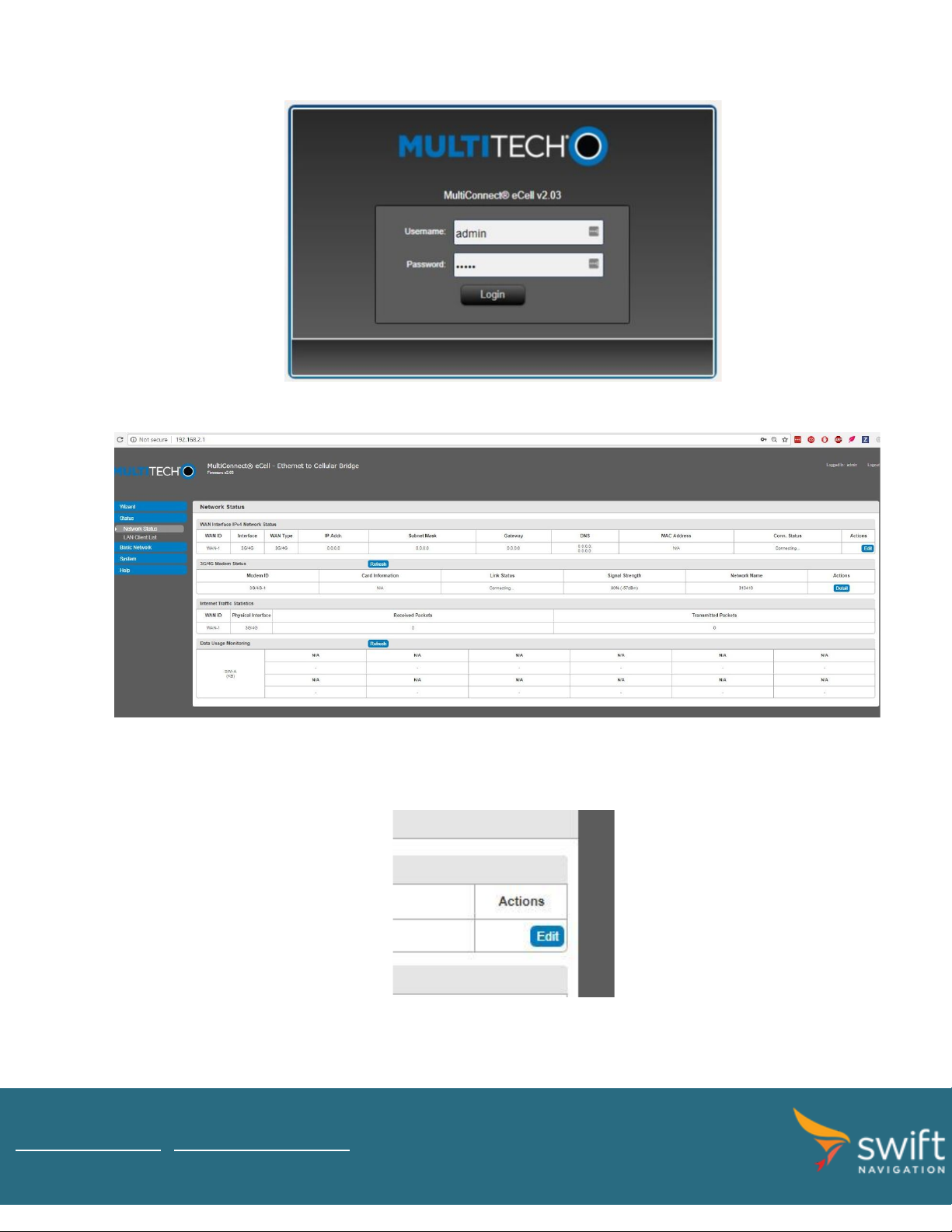

6. You will land into the Multitech default credentials screen. Please enter the default username and password as

indicated below:



www.swiftnav.com | [email protected]



Username : admin

Password : admin



7. You will be directed to the main configuration menu screen



8. In order to configure your cell-modem, go to Status >> Networking and then click on the "edit" button the "Wan

Interface IPV4 Network Status" on the far right side of your screen.



9. In top section "Connection with SIM-A Card"



www.swiftnav.com | [email protected]



a. Change Dial-up Profile from Auto-detection to Manual-detection.

b. Change Country to the corresponding one where SIM Card has been purchased, in our case we will select

the "USA".

c. Go to "Service Provider" and select the carrier that fit the one you have purchased.Ensure the information

matches with the information from your SIM and APN information. As soon as one service provider is

selected, it auto populates the rest of the configuration. No further modification are needed in this

section. For example, we have tested it with AT&T.



10. In lower section "3G/4G Connection Common Configuration":

a. Go to "IP Passthrough" and deactivate the checkbox.

b. Right after, ensure "NAT" is "Enable".



11. As mentioned before and for the purpose of this guide, we have selected USA as country and AT&T as service

provider. The configuration for this example will look like the following image:



12. Proceed to Save the configuration. The device will reboot and you will be ready to connect it to your Swift

Navigation Device via ethernet port.



Multitech MTE-Series product listing for this configuration

MTE-LAT2

Region

MTE-LAT2-B07-US

North America



www.swiftnav.com | [email protected]



For technical support or questions in regards to the Multitech cell modem devices, please contact Multitech

Support at https://www.multitech.com/support



www.swiftnav.com | [email protected]


