MultiModem®ZBA

MT9234ZBA-USB-CDC-XR

User Guide

MT9234ZBA-USB-CDC-XR User Guide 2

MultiModem ZBA User Guide

MT9234ZBA-USB-CDC-XR

S000524C Revision C

Multi-Tech Systems, Inc.

Multi-Tech Systems, Inc. makes no representations or warranties with respect to the contents hereof and specifically disclaims any

implied warranties of merchantability or fitness for any particular purpose. Furthermore, Multi-Tech Systems, Inc. reserves the right

to revise this publication and to make changes in the content hereof without obligation of Multi-Tech Systems, Inc. to notify any

person or organization of such revisions or changes. Check Multi-Tech’s Web site for current versions of our product

documentation.

Record of Revisions

Revision

Date

Description

01/20/12

Initial release of MT9234ZBA-USB-CDC-XR

01/04/13

RoHS update.

12/19/13

UL translations.

Trademarks

MultiModem, Multi-Tech, and the Multi-Tech logo are registered trademarks of Multi-Tech Systems, Inc.

Windows is a registered trademark of Microsoft Corporation in the United States and/or other countries. Other trademarks and

trade names mentioned in this publication belong to their respective owners.

Patents

This device is covered by one or more of the following patents: 6,031,867; 6,012,113; 6,009,082; 5,905,794; 5,864,560; 5,815,567;

5,815,503; 5,812,534; 5,809,068; 5,790,532; 5,764,628; 5,764,627; 5,754,589; D394,250; 5,724,356; 5,673,268; 5,673,257;

5,644,594; 5,628,030; 5,619,508; 5,617,423; 5,600,649; 5,592,586; 5,577,041; 5,574,725; D374,222; 5,559,793; 5,546,448;

5,546,395; 5,535,204; 5,500,859; 5,471,470; 5,463,616; 5,453,986; 5,452,289; 5,450,425; D361,764; D355,658; D355,653;

D353,598; D353,144; 5,355,365; 5,309,562; 5,301,274;7082106;7082141;7092406 . Other patents pending.

World Headquarters

Multi-Tech Systems, Inc.

2205 Woodale Drive, Mounds View, Minnesota 55112

Phone: 763-785-3500 or 800-328-9717 Fax: 763-785-9874

www.multitech.com

Contacting Multi-Tech Support

Online Support Portal: https://support.multitech.com

In order to better serve our customers, manage support requests and shorten resolution times, we have created the online web

portal allowing you to submit questions regarding Multi-Tech products directly to our technical support team. Get answers to your

most complex questions, ranging from implementation, troubleshooting, product configuration, firmware upgrades and much

more.

To create an account and submit a Support Case on the Portal, visit https://support.multitech.com.

Knowledge Base and Support Services: www.multitech.com/support.go

The Knowledge Base provides immediate answers to your questions and gives you access to support resolutions for all Multi-Tech

products. Visit our support area on the website for other support services.

Technical Support

U.S. office hours are 9am –5pm, CST

Country

By Email

By Phone

Europe, Middle East, Africa:

[email protected]

(44) 118 959 7774

U.S., Canada, all others:

[email protected]

(800) 972-2439 or (763) 717-5863

Warranty

You can find warranty information at: http://www.multitech.com/warranty.go

3 MT9234ZBA-USB-CDC-XR User Guide

Chapter 1 –Product Overview ..........................................................................................................................5

Package Contents............................................................................................................................................................ 5

Other Documentation ..................................................................................................................................................... 5

Technical Specifications .................................................................................................................................................. 5

Chapter 2 –Installing the Modem.....................................................................................................................7

Analog Telecom Safety Warning ..................................................................................................................................... 7

Connecting the Modem to Your PC ................................................................................................................................. 8

Connecting the USB ......................................................................................................................................................... 8

Connecting the Line ......................................................................................................................................................... 8

Connecting a Phone ......................................................................................................................................................... 8

Installing the Modem Driver ........................................................................................................................................... 8

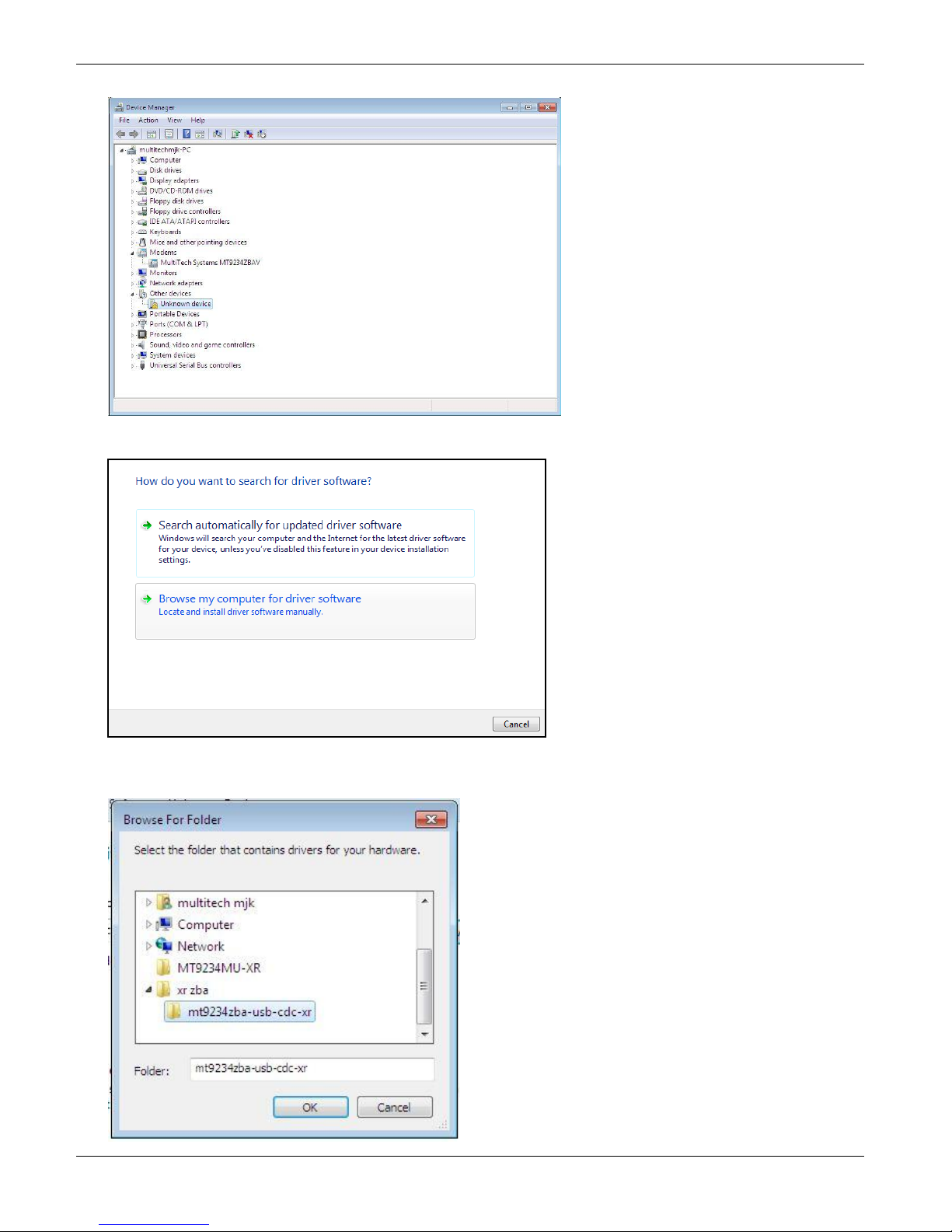

Manually Installing the MT9234ZBA-USB-CDC in Windows 7.......................................................................................... 8

Installing the Modem Driver for use with Windows Vista ............................................................................................. 12

Installing the Modem in Windows Server 2008, 2003 and XP ....................................................................................... 13

Configuring the Country Where Modem is Used ........................................................................................................... 16

Using the Global Wizard to Configure Your Modem ..................................................................................................... 16

Using AT Commands to Configure Your Modem ........................................................................................................... 16

Chapter 3 –Operating the Modem .................................................................................................................17

Front Panel Overview.................................................................................................................................................... 17

Connecting to the Internet ............................................................................................................................................ 17

Setting Up Remote-Node Client Program...................................................................................................................... 17

Chapter 4 –Remotely Configuring the Modem................................................................................................18

Remotely Configuring the Modem ................................................................................................................................ 18

Changing Default Passwords and Escape Character....................................................................................................... 18

Changing the Setup Password ....................................................................................................................................... 18

Changing the Remote Escape Character........................................................................................................................ 18

Chapter 5 –Troubleshooting ..........................................................................................................................19

None of the Indicators Light .......................................................................................................................................... 19

The Modem Does Not Respond to Commands ............................................................................................................. 19

The Modem Cannot Connect When Answering ............................................................................................................ 19

The Modem Doesn’t Work with Caller ID ...................................................................................................................... 20

Fax and Data Software Can’t Run at the Same Time ..................................................................................................... 20

The Modem Dials But Cannot Connect.......................................................................................................................... 20

The Modem Disconnects While Online.......................................................................................................................... 21

Appendix A –Regulatory Information.............................................................................................................22

Contents

MT9234ZBA-USB-CDC-XR User Guide 4

FCC Part 68 Telecom...................................................................................................................................................... 22

47 CFR Part 15 Regulation Class B Devices..................................................................................................................... 23

Canadian Limitations Notice ......................................................................................................................................... 23

Industry Canada ............................................................................................................................................................ 24

International Modem Restrictions ................................................................................................................................ 24

EMC, Safety, and R&TTE Directive................................................................................................................................. 24

South African Notice ..................................................................................................................................................... 24

Thailand Approval......................................................................................................................................................... 25

Restriction of the Use of Hazardous Substances (RoHS) ................................................................................................ 25

REACH Statement.......................................................................................................................................................... 26

Registration of Substances:............................................................................................................................................ 26

Substances of Very High Concern (SVHC) ...................................................................................................................... 26

Waste Electrical and Electronic Equipment Statement .................................................................................................. 26

WEEE Directive............................................................................................................................................................... 26

Instructions for Disposal of WEEE by Users in the European Union.............................................................................. 26

Information on HS/TS Substances According to Chinese Standards............................................................................... 27

Information on HS/TS Substances According to Chinese Standards (in Chinese) ........................................................... 28

依照中国标准的有毒有害物质信息............................................................................................................................ 28

Appendix B –ASCII Conversion .......................................................................................................................29

ASCII Conversion Chart.................................................................................................................................................. 29

Index .............................................................................................................................................................30

5 MT9234ZBA-USB-CDC-XR User Guide

Thank you for using the MultiModem ZBA-USB modem. Your MultiModem product data/fax modem supports

remote configuration and dial-up connections. It offers V.34/33.6K fax and Error Correction Mode that reduces fax

transmission time by more than half when compared to traditional fax modems. In addition, these modems are

globally approved for use in many countries around the world.

Package Contents

The MultiModem USB package contains:

●A MultiModem data/fax modem

●A set of four self-adhesive plastic feet

●One USB cable

●One modular telephone cable

Other Documentation

The AT Commands for the MultiModem are described in a separate reference guide. You can find this guide on

the Multi-Tech website.

Technical Specifications

Your MultiModem ZBA-USB-CDC modem has the following specifications.

Trade Name

MultiModem® ZBA

Model Number

MT9234ZBA-USB-CDC-XR

Server-to-Client Data Rates

V.90 speeds when accessing a V.90 or V.92 server (actual speed depends on server

capabilities and line conditions)

Client-to-Server Data Rates

Up to 50Kbps when accessing a V.92 server (actual speed depends on server capabilities

and line conditions); otherwise, the same as client-to client data lines.

Client-to-Client Data Rates

33600, 31200, 28800, 26400, 24000, 21600, 19200, 16800, 14400, 12000, 9600, 7200,

4800, 2400, 1200, 0-300 bps

Fax Data Rates

33600, 31200, 28800, 26400, 24000, 21600, 19200, 16800, 14400, 12000, 9600, 7200,

4800, 2400, 1200, 0-300 bps

Modem Compatibility

ITU-T V.92, V.90, V.34 enhanced, V.34, V.34bis, V.32, V.32bis, V.22; Bell 212A and 103;

ITU-T V.21, V.42, V.42bis, V.44

Fax Compatibility

ITU-T “Super” Group 3, Class 1.0, 2.0, 2.1, T.4, T.30, V.21, V.27ter, V.29, V.34, V.17; TIA/EIA

578 Class 1, 2, TR29.2

Error Correction

ITU-T V.42

Data Compression

ITU-T V.44 (4:1 throughput), V.42bis (4:1 throughput), MNP 5 (2:1 throughput)

Flow Control

XON/XOFF (software), RTS/CTS (hardware)

Intelligent Features

Plug and play; fully AT command compatible; autodial, redial, repeat dial; pulse or tone

dial; dial pauses; auto answer; caller ID; EIA extended automode; adaptive line probing;

automatic symbol and carrier frequency during start-up, retrain, and rate renegotiation;

DTMF detection; call status display, auto-parity and data rate selections; keyboard-

controlled modem options; non-volatile memory; on-screen displays for modem option

parameters; command lines of up to 40 characters each; remote configuration.

Command Buffer

40 characters

Transmit Level

-12 dBm (Euro/NAM) –varies by country/region setting

Chapter 1 –Product Overview

MT9234ZBA-USB-CDC-XR User Guide 6

Frequency Stability

±0.01%

Receiver Sensitivity

-43 dBm under worst-case conditions

AGC Dynamic Range

43 dB

Connectors

USB connector; two RJ-11 phone jacks

Cables

One RJ11 phone cable

One USB cable

Note: To reduce interference, shield cables connected to the computer.

Diagnostics

Power-on self test, local analog loop, local digital loop, remote digital loop.

Environmental

Temperature range 0°–50° C (32°–120° F); humidity range 20–90% (non-condensing)

Dimensions

10.9 cm wide x 14.5 cm long x 2.5 cm high (4.3”x 5.7”x 1.10”)

Weight

227 g (8 oz)

Power

Typical Maximum

Measured Volts 4.96 4.94

Current (AMPS) 0.136 0.176

Watts 0.675 0.869

Limited Warranty

2 year

7 MT9234ZBA-USB-CDC-XR User Guide

Analog Telecom Safety Warning

Before servicing, disconnect this product from its power source and telephone network. Also:

Never install telephone wiring during a lightning storm.

Never install a telephone jack in wet locations unless the jack is specifically designed for wet locations.

Use this product with UL and cUL listed computers only.

Never touch uninsulated telephone wires or terminals unless the telephone line has been disconnected at

the network interface.

Use caution when installing or modifying telephone lines.

Avoid using a telephone during an electrical storm. There may be a remote risk of electrical shock from

lightning.

Do not use a telephone in the vicinity of a gas leak.

CAUTION: To reduce the risk of fire, use only 26 AWG or larger UL Listed or CSA Certified telecommunication

line cord.

Avertissements de sécurité télécom analogique

Avant de l'entretien, débrancher ce produit de son réseau d'alimentation et de téléphone. également:

Ne jamais installer du câblage téléphonique pendant un orage électrique.

Ne jamais installer de prises téléphoniques à des endroits mouillés à moins que la prise ne soit conçue

pour de tels emplacements.

Utilisez ce produit avec UL et cUL ordinateurs répertoriés seulement.

Ne jamais toucher fils ou des bornes téléphoniques non isolés à moins que la ligne téléphonique n'ait été

déconnectée au niveau de l'interface réseau.

Faire preuve de prudence au moment d'installer ou de modifier des lignes téléphoniques.

Éviter d'utiliser le téléphone pendant un orage électrique. Il peut y avoir un risque de choc électrique

causé par la foudre.

N'utilisez pas un téléphone à proximité d'une fuite de gaz.

ATTENTION: Pour réduire les risques d’incendie, utiliser uniquement des conducteurs de télécommunications 26 AWG au

de section supérleure.

Chapter 2 –Installing the Modem

MT9234ZBA-USB-CDC-XR User Guide 8

Connecting the Modem to Your PC

Placing the modem in a convenient location, connect it to your computer’s USB port, to the telephone line, and,

optionally, to your telephone.

Connecting the USB

Plug one end of the USB cable into the USB connector on the modem, and the other end into a USB port

connector on your computer.

Connecting the Line

Plug one end of the phone cable into the modem’s LINE jack and the other end into a phone line wall jack.

Note: The LINE jack is not interchangeable with the PHONE jack. Do not plug the phone into the LINE jack or the

line cable into the PHONE jack.

Note: The Federal Communications Commission (FCC), and Industry Canada impose certain restrictions on

equipment connected to public telephone systems. See Appendix A for more information. .

Connecting a Phone

For voice-only calls, you can optionally plug a telephone into the modem’s PHONE jack.

Installing the Modem Driver

After you install the driver, test the operation of your new MT9234ZBA-USB by registering it. Open an Internet browser, then

go to the URL that follows. Instructions at the website explain how to register the modem.

http://www.multitech.com/en_US/TOOLS/Forms/register/warranty.asp

Manually Installing the MT9234ZBA-USB-CDC in Windows 7

1. Connect the MT9234ZBA-USB-CDC to an available USB port.

Windows 7 reports that the driver software was not successfully installed. You must manually point Windows 7 to the

drivers needed.

2. From Windows Start button, select Control Panel.

3. Click Hardware and Sound.

Chapter 2 –Installing the Modem

9MT9234ZBA-USB-CDC-XR User Guide

4. In the Devices and Printers group click Device Manager.

Chapter 2 –Installing the Modem

MT9234ZBA-USB-CDC-XR User Guide 10

5. In the list of devices, from the Other devices item, right click on Unknown device and select Update Driver Software.

6. Click Browse my computer for driver software.

7. Click Browse and navigate to the folder where you stored the driver that you downloaded from the MultiTech website.

Click OK.

Tabla de contenidos

Otros manuales de Módem de Multitech

Multitech

Multitech MultiModem DSVD MT5600DSVD Manual de usuario

Multitech

Multitech MultiModem MT5600ZDX Manual de usuario

Multitech

Multitech MultiModem MT2834ZDXI Manual de usuario

Multitech

Multitech MultiConnect MTC-LAT1-B02 Manual de usuario

Multitech

Multitech Multimodem MTCBA-G-F1 Manual de usuario

Multitech

Multitech MultiMobile MT9234MU-CDC Manual de usuario

Multitech

Multitech MultiModem MT5634ZPX-PCI-U-NV Manual de usuario

Multitech

Multitech Dragonfly Nano MTQN-MNG3-B02 Guía de aplicación

Multitech

Multitech MultiModem MT2834ZDX Series Manual de usuario

Multitech

Multitech MultiModemUSB MT5634ZBA-USB Manual de usuario

Multitech

Multitech MT5634MU Manual de usuario

Multitech

Multitech MultiModem II MT5600BA-V.90 Manual de usuario

Multitech

Multitech MultiModem DID MT5634ZBA-DID Manual de usuario

Multitech

Multitech MultiModem Cell MTCBA-E1 Manual de usuario

Multitech

Multitech MultiModem V.90/K56FLEX MT5600ZDX Manual de usuario

Multitech

Multitech QuickCarrier USB-D MTD-H5 Manual de usuario

Multitech

Multitech MultiConnect microCell MTCM2-L4G1 Manual de usuario

Multitech

Multitech MultiConnect microCell Manual de usuario

Multitech

Multitech MultiModem MT5600ZDX Manual de usuario

Multitech

Multitech SocketModem Guía de aplicación

Multitech

Multitech MultiConnect Cell 100 series Manual de usuario

Multitech

Multitech MTD-H5 Manual de usuario

Multitech

Multitech MultiModem IND MT5634IND Manual de usuario

Multitech

Multitech SocketModem MT2456SMI-22 Manual de instrucciones

Manuales populares de Módem de otras marcas

Davicom

Davicom DM562AP Manual de usuario

EpiValley

EpiValley TATA indicom SXC-1080 Manual de usuario

Zte

Zte WiMAX Manual de usuario

Intelimax

Intelimax MA-2060 Manual de usuario

SMC Networks

SMC Networks D3CM1604V Manual de uso y cuidado

Telstra

Telstra Wi-Fi 4G Advanced Pro X Manual de usuario

Thrane&Thrane

Thrane&Thrane imarsat EXPLORER 300 Manual de usuario

Samsung

Samsung AceLink SAM-335A Manual de usuario

Enfora

Enfora Enabler-G Guía de configuración rápida

iRZ

iRZ ATM2-232 Manual de usuario

Zhone

Zhone 6310 Manual de usuario

Paradyne

Paradyne Hotwire 7976 Manual de usuario

US Robotics

US Robotics 3453C Manual de usuario

MaxTech

MaxTech Plug & Play Internal Voice/FAX/Data/SVD... Manual de usuario

Zte

Zte MF823 Manual de usuario

Four-Faith

Four-Faith F1403 Manual de usuario

Sierra Wireless

Sierra Wireless AIRLINK MP595W Manual de usuario

Gemtek

Gemtek WiMAX WIXFBR-103 Manual de usuario
