Moxa Technologies PowerTrans PT-7728-PTP Manual

Reproduction without permission is prohibited.

P/N: 1802077280030

PT-7728-PTP

Hardware Installation Guide

Moxa PowerTrans Switch

First Edition, August 2010

Package Checklist

The Moxa PowerTrans switch is shipped with the following items. If any of

these items are missing or damaged, please contact your customer

service representative for assistance.

•1 Moxa PowerTrans Switch

•Hardware Installation Guide

•CD-ROM with User’s Manual and SNMP MIB file

•Moxa Product Warranty Statement

•RJ45 to DB9 console port cable

•Protective caps for unused ports

•2 rack-mount ears

Panel Layout

M3 M4

M1 M2

Front view (Front Cabling)

Front view (Rear Cabling)

Rear view (Front Cabling)

Rear view (Rear Cabling)

M4M3M2M1 PT-7728-PTP

CONSOLE

123 4

PT-7728-PTP

659

1. System status LEDs

2. Interface Module mode LEDs

3. Interface Module port LEDs

4. Push-button switch to select mode for Interface Module

5. Model Name

6. Fast Ethernet Interface Modules with PPS (pulse per second) output

signal

7. Serial Console port

8. 10-pin terminal block for power inputs, and relay output

9. Rack Mounting Kit

- 2 -

Dimensions (unit = mm)

M4M3M2M1 PT-7728-PTP

CONSOLE

123 4

325

349.3

440

480 44

Fast Ethernet Interface Modules (slots 1, 2, and 3)

96.8 96.8 96.8

40.7

PM-7200-8TX PM-7200-1LSC6TX PM-7200-4MSC2TX/PM-7200-4SSC2TX

96.8 96.8 96.8

PM-7200-6MSC/PM-7200-6SSC PM-7200-2MSC4TX/PM-7200-2SSC4TX PM-7200-4MST2TX

96.8 96.8 96.8

PM-7200-6MST PM-7200-2MST4TX PM-7200-1MST6TX

40.7

96.8 96.8 96.8

PM-7200-1SSC6TX/PM-7200-1MSC6TX PM-7200-8SFP PM-7200-4MST/4MST-PTP

96.8 96.8 96.8

40.7

PM-7200-4M12 PM-7200-8MTRJ PM-7200-2MTRJ

96.8 96.8

PM-7200-4TX-PTP PM-7200-4MST/PM-7200-4MST-PTP

- 3 -

Gigabit Ethernet Interface Modules (for slot 4)

40.7

86.6

40.7

PM-7200-4GTXSFP PM-7200-2GTXSFP

40.7

86.6

PM-7200-1BNC2MST-PTP

Rack Mounting

Use four screws to attach the PT switch to a standard rack.

NOTE Two additional rack-mount ears can be ordered as an option. Use

them to secure the rear of the chassis in high-vibration

environments.

Wiring Requirements

WARNING

Safety First!

Be sure to disconnect the power cord before installing and/or

wiring your Moxa PowerTrans Switch.

Calculate the maximum possible current in each power wire and

common wire. Observe all electrical codes dictating the

maximum current allowable for each wire size.

If the current goes above the

maximum ratings, the wiring could

overheat, causing serious damage to your equipment.

Grounding Moxa PowerTrans Switch

Grounding and wire routing help limit the effects of noise due to

electromagnetic interference (EMI). Run the ground connection from the

ground screw to the grounding surface prior to connecting devices.

Wiring the Power Inputs

The PT series of switches supports dual redundant power supplies:

“Power Supply 1 (PWR1)” and “Power Supply 2 (PWR2)”. The connections

for PWR1, PWR2 and the RELAY are located on the terminal block. The

front view of the terminal block connectors are shown below.

- 4 -

Wiring the Relay Contact

Each PT switch has one relay output. Refer to the next section for detailed

instructions on how to connect the wires to the terminal block connector,

and how to attach the terminal block connector to the terminal block

receptor.

FAULT: The relay contact of the 10-pin terminal block connector are used

to detect user-configured events. The two wires attached to the RELAY

contacts form an open circuit when a user-configured event is triggered.

If a user-configured event does not occur, the RELAY circuit will be closed.

Wiring the Redundant Power Inputs

Each PT switch has two sets of power inputs: power input 1 and power

input 2.

STEP 1: Insert the dual set positive/negative DC wires into PWR1 and

PWR2 terminals (+ →pins 1, 9; - →pins 2, 10). Or insert the L/N AC

wires into PWR1 and PWR2 terminals (L →pin 1, 9; N →pin 2,10)

STEP 2: To keep the DC or AC wires from pulling loose, use a screwdriver

to tighten the wire-clamp screws on the front of the terminal block

connector.

Note 1: The PT switch with dual power supplies uses PWR2 as the first

priority power input by default.

Note 2: For dielectric strength (HIPOT) test, users must remove the

metal jumper located on terminals 3, 4, and 7, 8 of the terminal block to

avoid damage.

- 5 -

LED Indicators

System LEDs

LED Color State Description

On System has passed self-diagnosis

test on boot-up and is ready to run.

GREEN

Blinking

System is undergoing the

self-diagnosis test.

STAT

RED On System failed self-diagnosis on

boot-up.

On Power is being supplied to the main

module’s power input PWR1.

PWR1 AMBER

Off Power is not being supplied to the

main module’s power input PWR1.

On Power is being supplied to the main

module’s power input PWR2.

PWR2 AMBER

Off Power is not being supplied to the

main module’s power input PWR2.

On The corresponding PORT alarm is

enabled and a user-configured

event has been triggered.

FAULT RED

Off The corresponding PORT alarm is

enabled and a user-configured

event has not been triggered, or

the corresponding PORT alarm is

disabled.

On This PT switch is set as the Master

of the Turbo Ring, or as the Head of

the Turbo Chain.

Blinking

The PT switch has become the Ring

Master of the Turbo Ring, or the

Head of the Turbo Chain, after the

urbo Ring or the Turbo Chain went

down.

MSTR/HEAD GREEN

Off The PT switch is not the Maste

this Turbo Ring or is set as a r of

Member of the Turbo Chain.

On The PT switch coupling function is

enabled to form a back-up path, or

it is set as the Tail of the Turbo

Chain.

Blinking

Turbo Chain is down.

CPLR/TAIL GREEN

Off This PT switch disabled

the coupling

function, or is set as a Member of

the Turbo Chain.

- 6 -

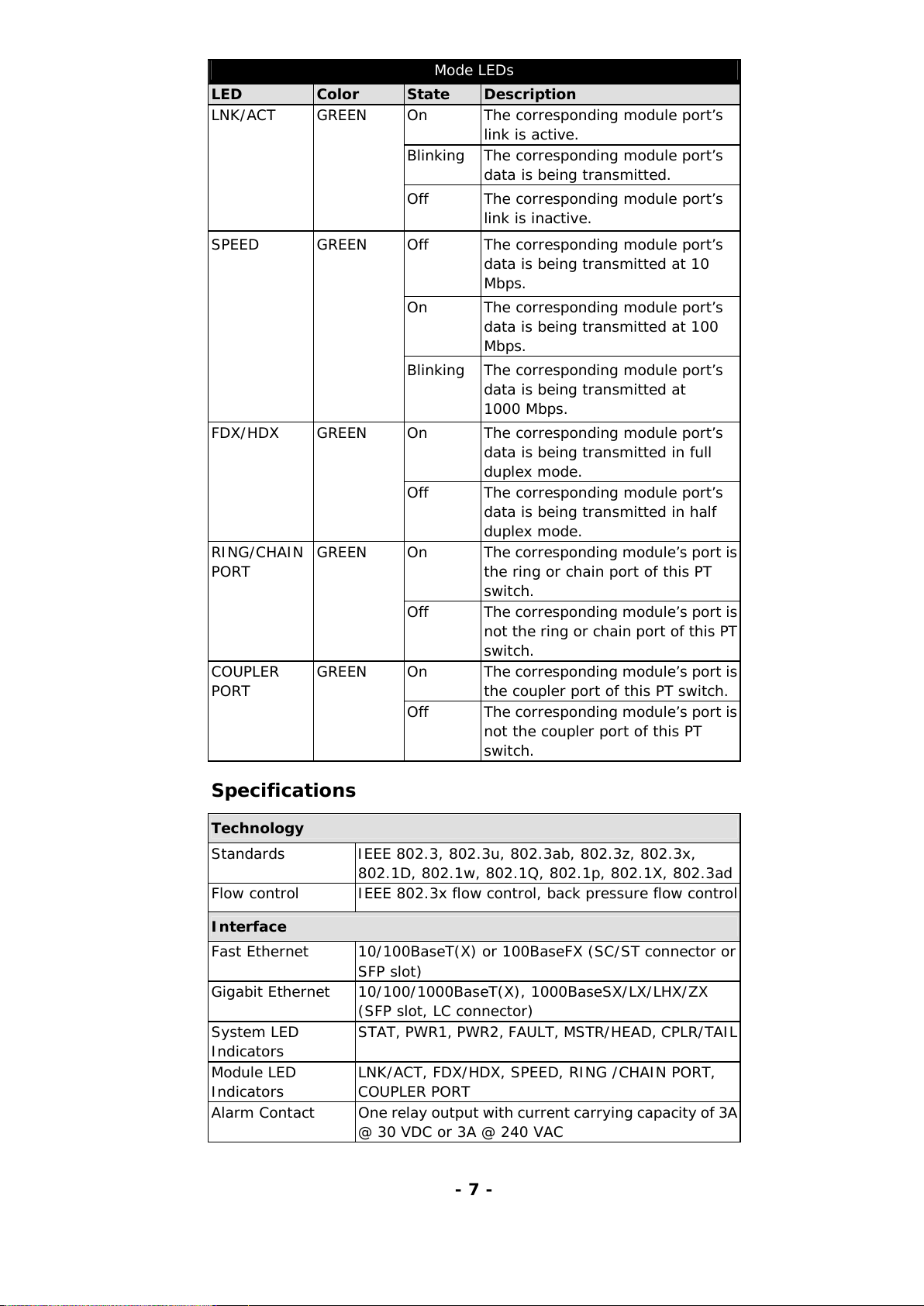

Mode LEDs

LED Color State Description

On The corresponding module port’s

link is active.

Blinking

The corresponding module port’s

data is being transmitted.

LNK/ACT GREEN

Off The corresponding module port’s

link is inactive.

Off The corresponding module port’s

data is being transmitted at 10

Mbps.

On The corresponding module port’s

data is being transmitted at 100

Mbps.

SPEED GREEN

Blinking

The corresponding module port’s

data is being transmitted at

1000 Mbps.

ansmitted in full

The corresponding module port’s

data is being tr

duplex mode.

FDX/HDX GREEN

Off ansmitted in half

The corresponding module port’s

data is being tr

duplex mode.

On isThe corresponding module’s port

the ring or chain port of this PT

switch.

RING/CHAIN

PORT GREEN

Off The corresponding module’s port is

not the ring or chain

port of this PT

switch.

On The corresponding module’s port is

the coupler port of this PT switch.

COUPLER

PORT GREEN

Off t isThe corresponding module’s por

not the coupler port of this PT

switch.

Specifications

Technology

Standards IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x,

802.1D, 802.1w, 802.1Q, 802.1p, 802.1X, 802.3ad

Flow control IEEE 802.3x flow control, back pressure flow control

Interface

Fast Ethernet e10/100Bas

(X) or 100BaseFX (SC/ST connector or

SFP slot)

Gigabit Ethernet 00BaseSX/LX/LHX/ZX10/100/1000BaseT(X), 10

(SFP slot, LC connector)

System LED STAT, PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAIL

Indicators

Module LED DX, SPEED, RING /CHAIN PORT,

Indicators LNK/ACT, FDX/H

COUPLER PORT

Alarm Contact carrying capacity of 3AOne relay output with current

@ 30 VDC or 3A @ 240 VAC

- 7 -

- 8 -

Optical Fiber (100BaseFX)

Multi-mode

0 to 5 km, 1300 nm (50/125

0 to 4 km, 130 μm, 800 MHz*km)

0 nm (62.5/125μm, 500 MHz*km)

Distance

m))

Single-mode )0 to 40 km, 1310 nm (9/125μm, 3.5 PS/(nm*km)

0 to 80 km, 1550 nm (9/125um, 19 PS/(nm*k

Min. TX Output Multi-mode: -20 dBm; Single-mode: -5 dbm

Single-mode 80 km: -5 dBm

Max. TX Output Multi-mode: -10 dBm; Single-mode: 0 dbm

Single-mode 80 km: 0 dBm

RX Sensitivity ode: -34 dbm

Single-mode 80 km: -34 dBm

Multi-mode: -32 dBm; Single-m

Power

Input Voltage 024 VDC (18 to 36V)or 48 VDC (36 to 72V)or 110/22

VDC/VAC

(88 to 300 VDC and 85 to 264 VAC)

Input Current

53/0.28A @ 110/220VAC

Max. 2.58A @ 24VDC

Max. 1.21A @ 48VDC

Max. 0.64/0.33A @ 110/220VDC

Max. 0.

Physical Characteristics

Housing IP 30 protection, metal case

Dimensi

(W x H x

ons

D) mm (17.32 x 1.73 x 12.76 in.)440 x 44 x 325

Weight 5900 g

Installation 19” rack mounting

Regulatory Approvals

Safety UL60950-1, CSA C22.2 No. 60950-1, EN60950-1

Power Automaton IEC61850-3, IEEE 1613

Rail Traffic EN50121-4, EN50155

EMI FCC Part 15, CISPR (EN55022) class A

Environmental Limits

Operating Temp. -40 to 85°C (-40 to 185°F)

Cold start of min. 100 VAC at -40°C

Storage Temp. -40 to 85°C (-40 to 185°F)

Ambient Relative ondensing)

Humidity. 5 to 95% (non-c

Warranty 5 years

Technical Support Contact Information

www.moxa.com/support

Moxa Americas:

Toll-free: 1-888-669-2872

Tel: 1-714-528-6777

Fax: 1-714-528-6778

Moxa China (Shanghai office):

Toll-free: 800-820-5036

Tel: +86-21-5258-9955

Fax: +86-21-5258-5505

Moxa Europe:

Tel: +49-89-3 70 03 99-0

Fax: +49-89-3 70 03 99-99

Moxa Asia-Pacific:

Tel: +886-2-8919-1230

Fax: +886-2-8919-1231

Otros manuales para PowerTrans PT-7728-PTP

Tabla de contenidos

Otros manuales de Cambiar de Moxa Technologies

Moxa Technologies

Moxa Technologies EDS-516A Series Manual de usuario

Moxa Technologies

Moxa Technologies PowerTransPT-7528 Series Manual

Moxa Technologies

Moxa Technologies EDS-316 EtherDevice Manual

Moxa Technologies

Moxa Technologies NPort S8000 Series Manual de usuario

Moxa Technologies

Moxa Technologies NSwitch Outdoors Manual de usuario

Moxa Technologies

Moxa Technologies ICS-G7828A-T Series Manual de usuario

Moxa Technologies

Moxa Technologies EtherDevice EDS-G205A-4POE-1GSFP-T Manual de usuario

Moxa Technologies

Moxa Technologies PT-G510 Series Manual de usuario

Moxa Technologies

Moxa Technologies MDS-G4000-4XGS Series Manual de usuario

Moxa Technologies

Moxa Technologies PT-G503-PHR-PTP Series Manual de usuario

Moxa Technologies

Moxa Technologies ToughNet TN-5524-8PoE-P24-T Manual de usuario

Moxa Technologies

Moxa Technologies SDS-3016 Series Manual de usuario

Moxa Technologies

Moxa Technologies NPORT 6610 Manual de usuario

Moxa Technologies

Moxa Technologies EtherDevice EDS-208A series Manual

Moxa Technologies

Moxa Technologies ioLogik E1200 Series Manual de usuario

Moxa Technologies

Moxa Technologies EDS-G512E-8PoE Manual

Moxa Technologies

Moxa Technologies NPort S8458 Series Manual de usuario

Moxa Technologies

Moxa Technologies IESH-MB205G-C2E-R Series Manual de usuario

Moxa Technologies

Moxa Technologies EDS-405A Manual de usuario

Moxa Technologies

Moxa Technologies ToughNet Switch TN-5500 series Manual de usuario

Moxa Technologies

Moxa Technologies EDS-408A Manual de usuario

Moxa Technologies

Moxa Technologies EtherDevice EDS-P510 Series Manual de usuario

Moxa Technologies

Moxa Technologies EDS-2010-ML Series Manual de usuario

Moxa Technologies

Moxa Technologies SPL-24 Manual de usuario

Manuales populares de Cambiar de otras marcas

URC

URC Total Control MFS-8 Manual de usuario

Azbil

Azbil HPQ-D11 Manual de usuario

Sony

Sony DFS-900M Manual de usuario

SICK

SICK i17S Manual de usuario

F&F

F&F SZR-277 Manual de usuario

Shure

Shure UAMS/BK Manual de usuario

Dräger

Dräger X-zone Switch Off Manual de usuario

Asco

Asco Joucomatic 349 Series Manual de usuario

BT Mini Hub Manual de usuario

D-Link

D-Link DES-1226G Manual de usuario

Johnson Controls

Johnson Controls FS80-C Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manual de usuario

MicroNet

MicroNet SP1200A Manual de usuario

Ruijie

Ruijie RG-PF2920 Series Manual de instalación y funcionamiento

Altinex

Altinex DA1914SX Manual de usuario

MiLAN

MiLAN MIL-SM2401M Manual de usuario

RJM

RJM MASTERMIND PBC/6X Manual de usuario

Atlas

Atlas MMK-KVM8 Manual de usuario
