MDS-G4000/MDS-G4000-L3

Series

Quick Installation Guide

Version 1.2, June 2021

Technical Support Contact Information

www.moxa.com/support



- 2 -

Package Checklist

Moxa’s MDS-G4000/MDS-G4000-L3 Series industrial modular DIN-rail

switch is shipped with the following items. If any of these items are

missing or damaged, please contact your customer service

representative for assistance.

•1 MDS-G4000 or MDS-G4000-L3 Series switch

•RJ45-to-RS-232 9-pin female console cable

•2 protective caps for unused ports

•Pre-installed DIN-rail kit

MDS-G4012 and MDS-G4012-L3: x 1

MDS-G4020 and MDS-G4020-L3: x 2

MDS-G4028 and MDS-G4028-L3: x 2

•Quick installation guide (printed)

•Substance Disclosure Table

•Product Certificate of Quality Inspection (Simplified Chinese)

•Product Notices (Simplified Chinese)

•Warranty card

NOTE

You can find information and software downloads on the

relevant p

roduct pages located on Moxa’s website:

www.moxa.com

Default Settings

•IP address: 192.168.127.253

•Subnet Mask: 255.255.255.0

•Username: admin

•Password: moxa

Panel Layouts

1. System status LEDs (from left to right, top to bottom)

STATE, FAULT, MASTER/HEAD, COUPLER/TAIL, and SYNC LED

indicators

2. USB port (Reserved for future use)

- 3 -

3. Module status

4. Switch and Control module slot 1 (Embedded)

5. Ethernet module slot 2

6. Ethernet module slot 3

7. Ethernet module slot 4 (For MDS-G4020/28, MDS-G4020/28-L3)

8. Ethernet module slot 5 (For MDS-G4020/28, MDS-G4020/28-L3)

9. External power input status from EPS

10. Ethernet module slot 6 (For MDS-G4028, MDS-G4028-L3)

11. Ethernet module slot 7 (For MDS-G4028, MDS-G4028-L3)

12. External power supply input for PoE

13. Redundant power module slot 1

14. Redundant power module slot 2

15. RS232 console port with RJ45 interface

16. Reset button (Pin hole 0.9 mm)

17. Relay output and Digital Input port

18. Relay output

19. Power input

20. Grounding screw

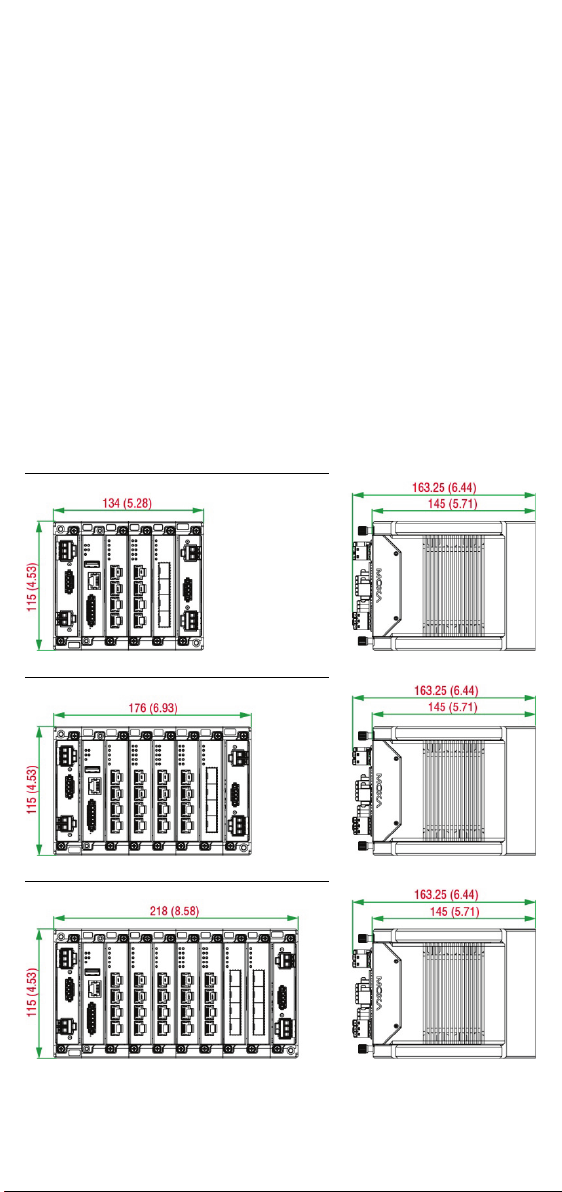

Dimensions

MDS-G4012 and MDS-G4012-L3 Series

MDS-G4020 and MDS-G4020-L3 Series

MDS-G4028 and MDS-G4028-L3 Series

Unit: mm (inch)

- 4 -

Ethernet Modules (Hardware Rev.2.0.0 and above)

NOTE

Transceivers for the LM-7000H-4GSFP module are sold

separately. Refer to

Supported SFP Modules for list of

supported transceivers.

LM-7000H-4GTX

LM-7000H-4GSFP

LM-7000H-4GPoE

LM-7000H-4TX

LM-7000H-4PoE

Power Modules (Hardware Rev.2.1.0 and above)

NOTE

The PWR-LV-P48 power module is certified for Hazardous

Location use.

PWR-HV-P48

PWR-LV-P48

PWR-HV-NP

PWR-LV-NP

DIN-rail Dimensions and Instructions

NOTE

The DIN rail kit is certified for Hazardous Location usage.

MDS-G4012 and MDS-G4012-L3 Series

- 5 -

MDS-G4020/28 and MDS-G4020/28-L3 Series

1. Insert the upper lip of the DIN rail into the DIN-rail mounting kit.

2. Press the device towards the DIN rail until it snaps into place.

3. Pull down the two latches one by one to release the DIN-rail kit

and lift up to remove the device from the DIN rail.

NOTE

The DIN rail must use the TS35 (15 mm) specification.

Wall-mounting Dimensions and Instructions

(Optional: WK-112-01)

NOTE

The wall-mount kit is certified for Hazardous Location usage.

Mounting the switch to a wall requires

four

screws. The

heads of the screws should be between 6.0 to

9.0 mm

in diameter, and the diameter of screw thread should

be between 3.5 to 4 mm, as shown in the figure on the

right

. Use the switch with the wall-mounting kit

attached as a guide to mark the correct locations of

the eight screws.

- 6 -

Rack-mounting Dimensions and Instructions

(Optional: RK-3U-01)

The rack mount kit is designed for two MDS-G4028 or MDS-G4028-L3

products.

1. Assemble the right and left part of the kit (indicated with No. 1 in

the diagram) with four screws each.

2. Assemble the part of the rack kit (indicated with No. 2 in the

diagram) with eight screws in order to combine two MDS-G4028 or

MDS-G4028-L3 products.

Rack Mount Top View

- 7 -

Rack Mount Front View

Rack Mount Rear View

Matters That Require Attention

1. Elevated Operating Temperature:If installed in a closed or

multi-unit rack assembly, the operating ambient temperature of

the rack environment may be greater than room temperature.

Therefore, consideration should be given to installing the

equipment in an environment compatible with the maximum

ambient temperature (Tma) specified by the manufacturer.

NOTE

In order to ensure reliable operations, please make sure the

operating temp

erature of the environment does not exceed the

spec. When moun

ting a rack-mounted switch with other

operating units in a cabinet without forced ventilation, it is

recommended that 1U of space is reserved between each rack

mounted switch and/or device.

2. Required Air Flow: Installation of the equipment in a rack should

be such that the amount of air flow required for safe operation of

the equipment is not compromised.

NOTE

The optimal keep-out zone is 50 mm for the top, bottom, left,

and right side of the device.

3. Mechanical Loading: Mounting of the equipment in the rack

should be such that a hazardous condition is not achieved due to

uneven mechanical loading.

4. Circuit Overloading: Consideration should be given to the

connection of the equipment to the supply circuit and the effect

that overloading of the circuits might have on overcurrent

protection and supply wiring. Appropriate consideration of

equipment nameplate ratings should be used when addressing this

concern.

5. Reliable Grounding: Reliable grounding of rack-mounted

equipment should be maintained. Particular attention should be

- 8 -

given to supply connections other than direct connections to the

branch circuit (e.g. use of power strips).

ATTENTION

Safety First

Be sure to disconnect the power cord

before installing and/or

wiring your Ethernet Switch. Calculate the maximum possible

current in each power wire and common wire. Observe all

electrical codes dictating the maximum current allowable for

each wire size. If the current goes above the maximum ratings,

the wiring could overheat,

which can cause serious damage to

your equipment.

Connecting the Power Inputs

The MDS-G4000 and MDS-G4000-L3 Series support 4 types of power

supply:

•PWR-HV-P48: one 110/220 VAC/VDC (90 to 264 VAC, 88 to 300

VDC), one 48 VDC PoE power input for PoE+ ports.

•PWR-LV-P48: one 24/48 VDC (18 to 72 VDC), one 48 VDC PoE

power input for PoE+ ports.

NOTE

The PWR-LV-P48 power module is certified for Hazardous

Location use.

•PWR-HV-NP: one 110/220 VAC/VDC (90 to 264 VAC, 88 to 300

VDC) power input.

•PWR-LV-NP: one 24/48 VDC (18 to 72 VDC) power input.

For the PWR-HV-P48, the 110/220 VAC/VDC power supplies provide

power to the switch. Separate 48 VDC power supplies are required to

provide power to all PoE+ ports (50 to 57 VDC is recommended for

IEEE 802.3at devices. The max. PoE output from an external power

supply is 720 W when the operating temperature is under 60°C; 360 W

when the operating temperature is under 75°C.).

For the PWR-LV-P48 models, the 24/48 VDC power supplies provide

power to the switch. Separate 48 VDC power supplies are required to

provide power to all PoE+ ports (50 to 57 VDC is recommended for

IEEE 802.3at devices. The max. PoE output from an external power

supply is 720 W when the operating temperature is under 60°C; 360 W

when the operating temperature is under 75°C.).

- 9 -

ATTENTION

or Hazardous Location Use

The

PoE capacity of the PWR-LV-P48 is only certified for use in

azardous locations up to a maximum power budget of 369.6

W and a maximum output of up to 15.4 W per port.

For the PWR-HV-NP, the 110/220 VAC/VDC power supplies provide

power to the switch.

For the PWR-LV-NP, the 24/48 VDC power supplies provide power to

the switch.

Power Terminal Blocks

The connection for power input and PoE external power supply is on the

power modules.

PWR-HV-P48/PWR-HV-NP

1. Insert the neutral/line (L/N/Ground) AC wires into the terminals.

2. Insert the terminal block connector into the terminal block

receptor.

PWR-LV-P48/PWR-LV-NP

1. Remove 8 to 9 mm of the DC wires’ protective cover.

2. Use a tool to push the spring mechanism inwards to open it.

3. Insert the negative/positive (-/+) DC wires into the terminals.

4. Release the spring mechanism.

5. Insert the terminal block connector prongs into the terminal block

receptor.

- 10 -

PoE Power Terminal Blocks

1. Remove 8 to 9 mm of the DC wires’ protective cover.

2. Use a tool to push the spring mechanism inwards to open it.

3. Insert the negative/positive (-/+) DC wires into the terminals.

4. Release the spring mechanism.

5. Insert the terminal block connector prongs into the terminal block

receptor.

NOTE

In order to have higher l

evels of protection against surge, it is

suggested to install a surge protector in front of the power

input

of the PoE powered device so that it is suitable for use in

IEC 61850 conditions.

NOTE

When wiring the power input, we suggest using the cable type -

AWG (American Wire Gauge) 1

6-20 (1.31-0.519 mm2) and the

corresponding pin type cable terminals. The rated temperature

of wiring should be at least 105°C.

NOTE

When wiring the PoE power input, we suggest using the cable

type

- AWG (American Wire Gauge) 16 (1.31 mm2) and the

corresponding pin type cable terminals. The rated temperature

of wiring should be at least 105°C.

NOTE

When two power units are installed on the switch, both power

units will be activated simultaneously, which will

enable power

redundancy.

NOTE

The reverse power input connection will not activate the device

or PoE input

. In addition, the PoE will only activate when the

external power supply is installed on the same power unit.

Otros manuales para MDS-G4000 Series

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cambiar de Moxa Technologies

Moxa Technologies

Moxa Technologies UPort 400A Series Manual de usuario

Moxa Technologies

Moxa Technologies TRC-190 Manual de usuario

Moxa Technologies

Moxa Technologies IESH-MB205G-C2E-R Series Manual de usuario

Moxa Technologies

Moxa Technologies EtherDevice EDS-P506A-4PoE Series Manual de usuario

Moxa Technologies

Moxa Technologies PT-G7828 Manual de usuario

Moxa Technologies

Moxa Technologies EtherDevice EDS-4008 Series Manual de usuario

Moxa Technologies

Moxa Technologies TN-G4516-8GPoE-4XGPoE-WV-T Manual de usuario

Moxa Technologies

Moxa Technologies PowerTrans PT-7728-PTP Manual

Moxa Technologies

Moxa Technologies PT-7828 Series Manual de usuario

Moxa Technologies

Moxa Technologies EDS-G2005-EL Series Manual de usuario

Moxa Technologies

Moxa Technologies ioLogik E1200 Series Manual de usuario

Moxa Technologies

Moxa Technologies PT-G7509 Manual

Moxa Technologies

Moxa Technologies ThinkCore DA-660-8-CE Manual de usuario

Moxa Technologies

Moxa Technologies EDS-508 Series Manual de usuario

Moxa Technologies

Moxa Technologies EDS-2005-EL Series Manual de usuario

Moxa Technologies

Moxa Technologies EDS-G308-T Manual

Moxa Technologies

Moxa Technologies EOM-104 Series Manual de usuario

Moxa Technologies

Moxa Technologies EtherDevice EDS-305-T Manual

Moxa Technologies

Moxa Technologies PowerTrans PT-7828 Manual

Moxa Technologies

Moxa Technologies EtherDevice EDS-205A series Manual

Moxa Technologies

Moxa Technologies EtherDevice EDS-205A series Instrucciones de montaje

Moxa Technologies

Moxa Technologies PT-7728 Series Manual

Moxa Technologies

Moxa Technologies EDS-2008-EL Series Manual de usuario

Moxa Technologies

Moxa Technologies EDS-516A Series Manual

Manuales populares de Cambiar de otras marcas

URC

URC Total Control MFS-8 Manual de usuario

Azbil

Azbil HPQ-D11 Manual de usuario

Sony

Sony DFS-900M Manual de usuario

SICK

SICK i17S Manual de usuario

F&F

F&F SZR-277 Manual de usuario

Shure

Shure UAMS/BK Manual de usuario

Dräger

Dräger X-zone Switch Off Manual de usuario

Asco

Asco Joucomatic 349 Series Manual de usuario

BT Mini Hub Manual de usuario

D-Link

D-Link DES-1226G Manual de usuario

Johnson Controls

Johnson Controls FS80-C Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manual de usuario

MicroNet

MicroNet SP1200A Manual de usuario

Ruijie

Ruijie RG-PF2920 Series Manual de instalación y funcionamiento

Altinex

Altinex DA1914SX Manual de usuario

MiLAN

MiLAN MIL-SM2401M Manual de usuario

RJM

RJM MASTERMIND PBC/6X Manual de usuario

Atlas

Atlas MMK-KVM8 Manual de usuario
