NPort 5200A Series

Quick Installation Guide

Edition 2.0, December 2015

Technical Support Contact Information

www.moxa.com/support

Moxa Americas:

Toll

-free: 1-888-669-2872

Tel:

1-714-528-6777

Fax:

1-714-528-6778

Moxa China (Shanghai office):

Toll

-free: 800-820-5036

Tel:

+86-21-5258-9955

Fax:

+86-21-5258-5505

Moxa Europe:

Tel:

+49-89-3 70 03 99-0

Fax:

+49-89-3 70 03 99-99

Moxa Asia-Pacific:

Tel:

+886-2-8919-1230

Fax:

+886-2-8919-1231

Moxa India:

Tel:

+91-80-4172-9088

Fax:

+91-80-4132-1045



- 2 -

Overview

NPort 5200A series device servers are compact, palm-sized data

communication devices that allow you to control RS-232 (NPort 5210A),

RS-422/485 (NPort 5230A), and RS-232/422/485 (NPort 5250A) serial

devices over a TCP/IP-based Ethernet.

NOTE

“-T” indicates an extended temperature model.

Package Checklist

Before installing the NPort 5200A series device server, verify that the

package contains the following items:

•1 NPort 5200A serial device server

•4 stick-on pads

•Document & Software CD

•Quick Installation Guide

•Product Warranty Statement

Optional Accessory

•DK-35A: DIN-Rail Mounting Kit (35 mm)

Notify your sales representative if any of the above items are missing or

damaged.

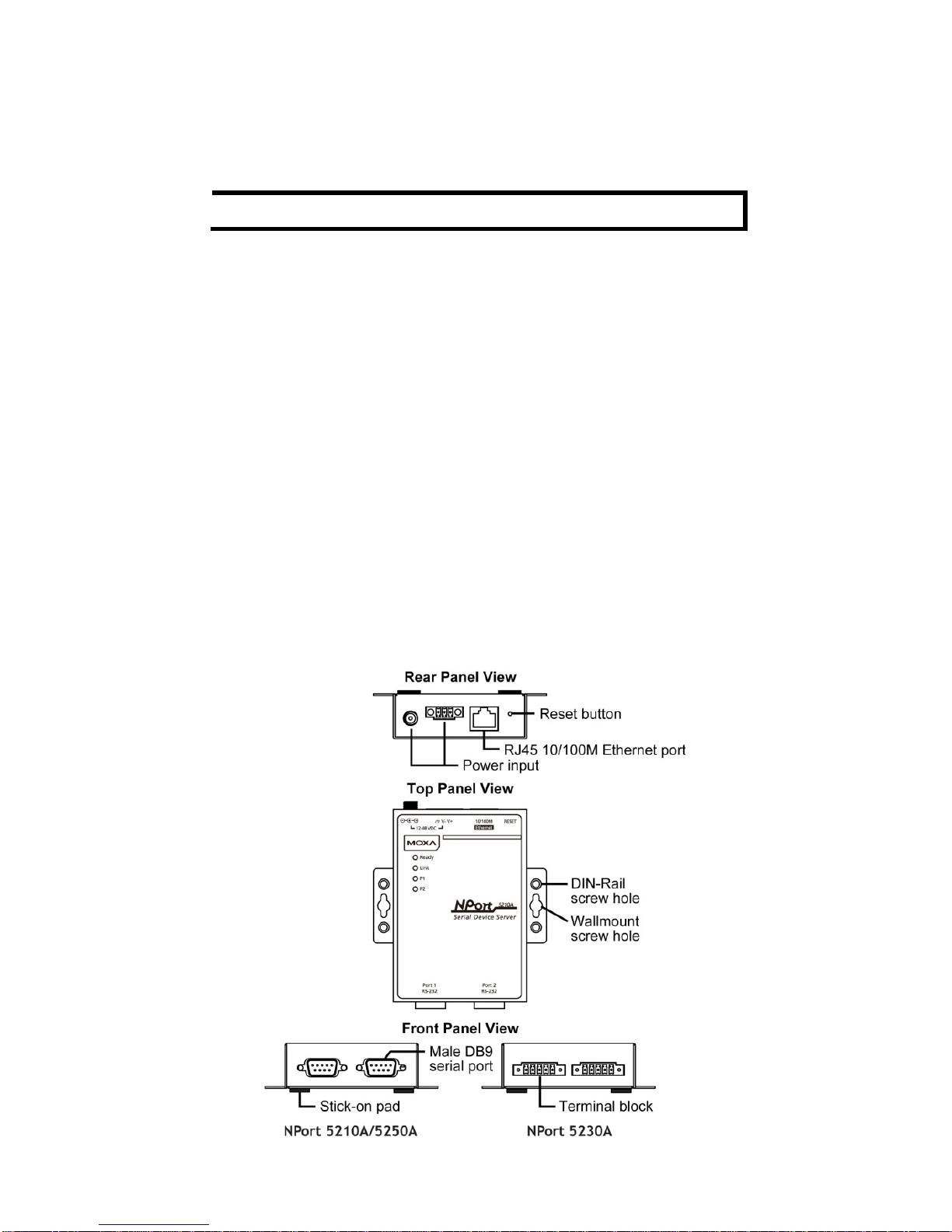

Hardware Introduction

As shown in the following figures, NPort 5200A series device servers have

two male DB9 ports for transmitting RS-232 (NPort 5210A), or

RS-232/422/485 (NPort 5250A) serial data and have two 5-pin terminal

block ports for transmitting RS-422/485 (NPort 5230A).

- 3 -

Reset Button—Press and hold the Reset button for 5 seconds to load

factory defaults: Use a pointed object, such as a straightened paper clip

or toothpick, to depress the reset button. This will cause the Ready LED to

blink on and off. The factory defaults will be loaded once the Ready LED

stops blinking (after about 5 seconds). At this point, release the reset

button.

LED Indicators—NPort 5200A’s top panel has four LED indicators, which

are described in the following table.

LED

Name

LED

Color

LED Function

Ready

Red

Steady on:

Power is on and the NPort is booting up.

Blinking:

Indicates an IP conflict, or DHCP or BOOTP

server is not responding properly.

Green

Steady on:

Power is on and the NPort is functioning

normally.

Blinking:

The NPort has been located by the NPort

Administrator’s Location function.

Off

Power is off, or a power error..

Link

Orange

10 Mbps Ethernet connection.

Green

100 Mbps Ethernet connection.

Off

Ethernet cable is disconnected.

P1, P2

Orange

Serial port is receiving data.

Green

Serial port is transmitting data.

Off

No data is being transmitted or received through the

serial port.

Adjustable pull high/low resistor and terminator for RS-422/485

Remove the NPort 5230A/5250A’s top

cover and you will find DIP switches to

adjust each serial port’s pull

-high,

pull

-low, and terminator. Do not use th

e 1

Ωsetting with RS-

232 mode, as doing so

will degrade the RS

-232 signals and

shorten the communications range.

Pull-high resistor

Terminator

1 KΩ

120 Ω

OFF

*150 KΩ

*–

*Default

- 4 -

Hardware Installation Information

STEP 1: After removing the NPort 5200A series device server from the

box, connect the NPort 5200A series device server to a network. Use a

standard straight-through Ethernet cable to connect to a hub or switch.

When setting up or testing the NPort 5200A series device server, you

might find it convenient to connect directly to your computer’s Ethernet

port. In this case, use a cross-over Ethernet cable.

STEP 2: Connect the NPort 5200A series device server’s serial port to a

serial device.

STEP 3: Connect the power adaptor.

STEP 4: Placement options.

In addition to placing the NPort 5200A on a desktop or other horizontal

surface, you may also make use of the DIN-Rail or Wall Mount options, as

illustrated below.

Wall Mount

DIN-Rail

Software Installation Information

To install NPort Administration Suite, insert the NPort Document &

Software CD into your computer’s CD-ROM drive. Once the NPort

Installation CD window opens, click on the Software folder, and then

follow the instructions on the screen.

To view detailed information about NPort Administration Suite, click

on the Documents folder, and then select “NPort 5200A Series User’s

Manual” to open the pdf version of the user’s guide.

- 5 -

Pin Assignments

Ethernet Port Pinouts

Pin No.

Ethernet

Tx+

Tx-

Rx+

Rx-

NPort 5210A—DB9 male (RS-232) port pinouts

Pin No.

RS-232

DCD

RxD

TxD

DTR

GND

DSR

RTS

CTS

–

NPort 5230A—Terminal Block (RS-422/485) port pinouts

Pin No.

RS-422/485-4W

RS-485-2W

TxD+(B)

–

TxD-(A)

–

RxD+(B)

Data+(B)

RxD-(A)

Data-(A)

GND

NPort 5250A—DB9 male (RS-232/422/485) port pinouts

Pin No.

RS-232

RS-422/485-4W

RS-485-2W

DCD

TxD-(A)

–

RxD

TxD+(B)

–

TxD

RxD+(B)

Data+(B)

DTR

RxD-(A)

Data-(A)

GND

DSR

–

RTS

–

CTS

–

- 6 -

Specifications

Power Requirements

Power Input

12 to 48 VDC

Power Consumption

119 mA @ 12V, 65 mA @ 24V

Environmental Limits

Operating Temperature

Standard Models:

0 to 60°C (32 to 140°F)

Wide Temp. Models:

-40 to 75°C (-40 to 167°F)

Ambient Humidity

5 to 95% RH

Dimensions

With ears

100 x 111 x 26 mm (3.94 x 4.37 x 1.02 in)

Without ears

77 x 111 x 26 mm (3.03 x 4.37 x 1.02 in)

Protection

Serial Line Protection

Level 1 Surge, EN61000-4-5

Magnetic Isolation

1.5 KV for Ethernet

Power Line Protection

Level 2 Burst (EFT), EN61000-4-4

Level 3 Surge, EN61000-4-5

Regulatory Approvals

FCC Class A, CE Class A, UL, LVD
