CN2510 Series

Quick Installation Guide

Edition 7.1, November 2018

Technical Support Contact Information

www.moxa.com/support

Moxa Americas:

Toll

-free: 1-888-669-2872

Tel:

1-714-528-6777

Fax:

1-714-528-6778

Moxa China (Shanghai office):

Toll

-free: 800-820-5036

Tel:

+86-21-5258-9955

Fax:

+86-21-5258-5505

Moxa Europe:

Tel:

+49-89-3 70 03 99-0

Fax:

+49-89-3 70 03 99-99

Moxa Asia-Pacific:

Tel:

+886-2-8919-1230

Fax:

+886-2-8919-1231

Moxa India:

Tel:

+91-80-4172-9088

Fax:

+91-80-4132-1045



- 2 -

Overview

Welcome to the Moxa CN2510 Async Server, a communication server

with 8/16 asynchronous RS-232 ports and 1 10/100 Mbps Ethernet LAN

port. The CN2510 Async Server can be used to connect terminals,

modems, printers, and other asynchronous serial devices to LAN hosts.

The CN2510 complies with TCP/IP and IEEE 802.3 specifications using

standard Ethernet 10/100BaseT and twisted pair 10/100BaseTX cable

as the physical medium.

Package Checklist

CN2510 Async Server products are shipped with the following items:

•CN2510 Async Server

•AC power cord (only for the CN2510-8 and CN2510-16)

•RJ45 loopback tester

•Rackmount kit, including 2 brackets and 8 screws

•CBL-RJ45F9-150

•CBL-RJ45M25-150

•Quick installation guide (printed)

•Warranty card

Optional Accessories

•CBL-RJ45M9-150: 8-pin RJ45 to male DB9 cable, 150 cm

•CBL-RJ45F9-150: 8-pin RJ45 to female DB9 cable, 150 cm

•CBL-RJ45M25-150: 8-pin RJ45 to male DB25 cable, 150 cm

•CBL-RJ45F25-150: 8-pin RJ45 to female DB25 cable, 150 cm

NOTE: Please notify your Moxa sales representative if any of the above

items are missing or damaged.

Hardware Introduction

Front Panel

LED

Color

Description

Reset

None

If you forget the password, use a pointed

object, such as a straightened paper clip or

toothpick, to press the reset button. The Ready

LED will blink on and off while the factory

default settings are being loaded. Once the

Ready LED stops blinking (after about 5

seconds), release the reset button.

You will hear

a beep, which indicates that the default settings

have been restored, and the CN2510 has

rebooted.

Ready

Red

Power is on and the CN2510 is booting up.

Ready

Green

Power is on and the CN2510 is ready.

Serial Tx

Green

Serial port is transmitting data.

Serial Rx

Yellow

Serial port is receiving data.

- 3 -

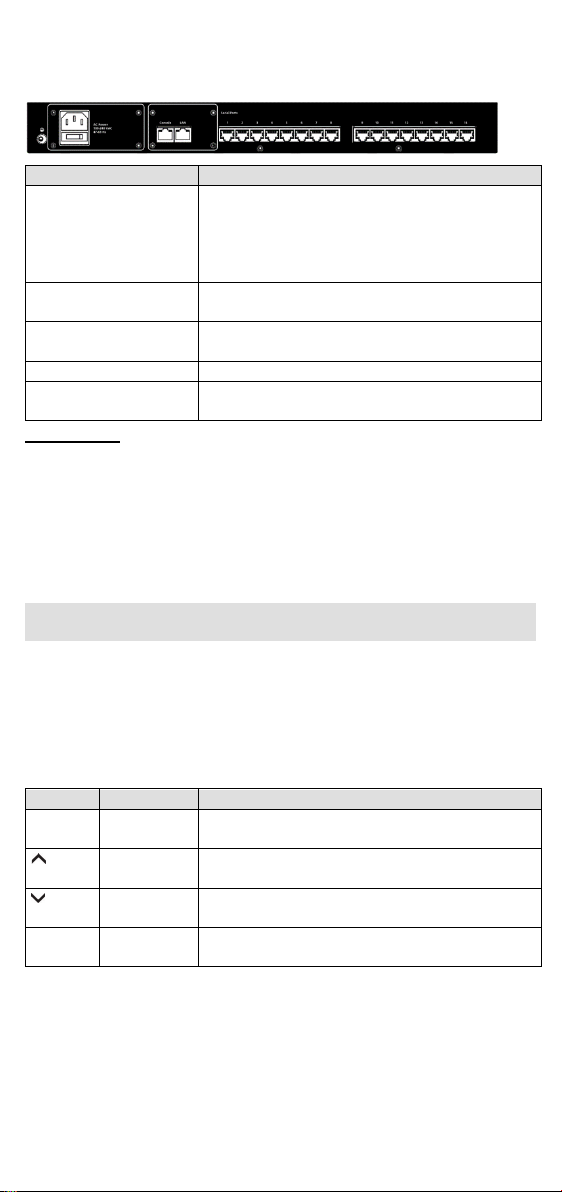

Rear Panel

Connector

Function

AC Power Input

Automatic detection of 100-240V, 47-63 Hz AC

power supply (CN2510-8 and CN2510-16).

Automatic detection of ±48 VDC (38 to 72

VDC, -38 to -72 VDC) power supply (CN2510-

8-48V and CN2510-16-48V)

Power On/Off Switch

I indicates power on,

O indicates power off

RS-232 Console Port One RJ45 connector for console terminal

connection

LAN

Auto detecting 10/100 Mbps port

Serial Ports

8 or 16 RJ45 connectors for DCE (modem)

connections

LCM Display

We recommend using the LCM display and four push buttons to

configure the IP address for the first time.

Basic Operation:

If the CN2510 is working properly, the LCM panel will display a green

color. The red Ready LED will also light up, indicating that the CN2510

is receiving power. After the red Ready LED turns to green, you will see

a display similar to:

This is where:

•CN2510-16 is the CN2510’s name

•3is this CN2510’s local sequence number

•192.168.127.254 is the CN2510’s IP address

There are four push buttons on CN2510’s nameplate. Going from left to

right, the buttons are:

Button

Name

Action

activates the main menu, or returns to an

upper level

up cursor

scrolls up through a list of items shown on the

LCM panel’s second line

down cursor scrolls down through a list of items shown on

the LCM panel’s second line

SEL

select

selects the option listed on the LCM panel’s

second line

As you move through the various functions and setting options, note

that the top line shows the current menu or submenu name, and the

bottom line shows the submenu name or menu item that is activated

by pressing the SEL button.

Refer to the CN2510 Async Server User’s Manual for more details.

- 4 -

Hardware Installation

1. Installing the CN2510

Place the CN2510 on a desktop, or attach it to a standard rack

cabinet.

2. Wiring Requirements

Use separate paths to route wiring for power and devices. If

power wiring and device wiring paths must cross, make sure

the wires are perpendicular at the intersection point.

NOTE

Do not run signal or communication wiring and power wiring in

the same wire conduit. To avoid interference, wires with

different signal characteristics should be routed separately.

We strongly advise that you label wiring to all devices in the

system.

3. Connecting the Power

AC:

Connect the CN2510 100-240 VAC power line with its AC

connector. If the power is properly connected, the “Ready”

LED will

show a solid red color until the system is ready, at

which time the “Ready” LED will change to a green color.

DC:

Connect the CN2510-16/8-48V’s power cord to the CN2510’s

DC connector, and then follow the steps given below:

Loosen the screws on the V+ and V-

terminals of the CN2510-8/16-

48V’s terminal

block.

Connect the power cord’s 48 VDC wire to the

terminal block’s V+ terminal, and the power

cord’s DC Power Ground wire to the terminal

block’s V- terminal, and then tighten the

terminal block screws. (Note: the CN2510-

8/16-

48V can still operate even if the DC 48V

and DC Power Ground are reversed.)

If the power is properly connected, the “Ready” LED will show a

solid red color until the system is ready, at which time the “Ready”

LED will change to a green color.

Grounding CN2510-16/8-48V:

Grounding and wire routing helps limit the effects

of noise due to electromagnetic interference

(EMI).

Run the ground connection from the

ground screw to the grounding surface prior to

connecting devices

. The Shielded Ground

(sometimes called Protected Ground) contact is

the second contact from the right of the 5

-pin

power terminal block connector located on the

rear panel of

the CN2510-8/16-48V. Connect the

SG wire to the Earth ground.

4. Connecting to the Network

Connect one end of the Ethernet cable to the CN2510’s 10/100M

Ethernet port and the other end of the cable to the Ethernet

network. There are 2 LED indicators located on the top left and

right corners of the Ethernet connector. If the cable is properly

- 5 -

connected, the CN2510 will indicate a valid connection to the

Ethernet in the following ways:

The top right corner LED indicator maint

ains a solid

green color when the cable is properly connected to a

100 Mbps Ethernet network.

The top left corner LED indicator maintains a solid

orange color when the cable is properly connected to a

10 Mbps Ethernet network.

5. Connecting to a Serial Device

Connect the serial data cable between the CN2510 and the serial

device.

6. Connecting to a Console

A console is a combination of keyboard and monitor used to

configure settings and monitor the status of your system. If you

do not have a network environment, use a terminal, a PC running

UNIX, or a PC with terminal emulation software (e.g.,

HyperTerminal in Windows; PComm by Moxa). Use an RJ45-to-

DB25 or RJ45-to-DB9 cable to connect the terminal to the console

socket. Refer to the CN2510 Async Server User’s Manual for more

details.

Software Installation

For the NPort’s configuration, the default IP address of the NPort is:

LAN: Static; IP = 192.168.127.254; netmask = 255.255.255.0.

NOTE

If you have forgotten the NPort's IP address, use the Device

Search Utility (DSU) from your PC to locate the NPort. After

searching the LAN for NPort units, the DSU will display the IP

address of each unit.

You may log in with the password moxa to change any setting to meet

your network topology (e.g., IP address) or serial device (e.g., serial

parameters). For first-time use, click the Wizard in the left navigation

panel. The wizard will prompt you to configure the IP address, SSID,

and security mode. For other settings, use the factory defaults or

modify the settings for your application.

For software installation, download the relative utilities from Moxa's

website:

https://www.moxa.com/support/support_home.aspx?isSearchShow=1

•Download the NPort Windows Driver Manager and install it as the

driver to run with Real COM mode of the NPort Series.

•Execute NPort Windows Driver Manager; then map the virtual COM

ports on your Windows platform.

•You may refer to Pin Assignment Async RS-232 port section to loop

back pin 4 and pin 5 for the RS-232 interface to carry out a self test

on the device.

•Use HyperTerminal or a similar program (you may download Moxa's

program, called PComm Lite) to test whether the device is good or

not.

Please refer to the CN2510 Async Server User’s Manual for more

details.

- 6 -

Pin Assignments and Cable Wiring

10/100BaseTX Port Pinouts

Async RS-232 Port and Console Port Pinouts

10/100BaseTX Cable Wiring

NOTE

The following cables are optional accessories.

CBL-RJ45M9-150

CBL-RJ45F9-150

CBL-RJ45M25-150

CBL-RJ45F25-150

DB9 and DB25 connector pinouts:

The following figures illustrate standard connector pinouts. However,

pinouts for serial devices differ from manufacturer to manufacturer.

- 7 -

Refer to the serial device’s user’s manual for the exact pinouts of your

device.

DB9 Male Connector

DB9 Female Connector

DB25 Male Connector

DB25 Female Connector

Environmental Specifications

Power requirements

Power Input

100 to 240 VAC, 47 to 63 Hz, or ±48 VDC

Power Consumption

CN2510-8/16

CN2510-8/16-48V

125 mA @ 110 VAC

180 mA @ 48 VDC

Operating temp.

0 to 55°C (32 to 131°F)

Operating humidity

5 to 95% RH

Dimensions (W×D×H)

190 × 44.5 × 478 mm (including ears)

190 × 44.5 × 440 mm (without ears)

Serial line protection

15 kV ESD for all signals

Magnetic isolation

1.5 kV for Ethernet

Power line protection

4 kV Burst (EFT), EN61000-4-4

2 kV Surge, EN61000-4-5

Regulatory approvals

FCC Class A, CE Class A, UL, CUL, TÜV

Otros manuales para CN2510 Series

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Servidor de Moxa Technologies

Moxa Technologies

Moxa Technologies NPort IA5000A Series Manual de usuario

Moxa Technologies

Moxa Technologies NPort 5200 Serie Manual de usuario

Moxa Technologies

Moxa Technologies NPort P5150A Series Manual de usuario

Moxa Technologies

Moxa Technologies NPort 5200 Series Manual de usuario

Moxa Technologies

Moxa Technologies NPort IA5150A Manual de usuario

Moxa Technologies

Moxa Technologies EtherDevice Manual de usuario

Moxa Technologies

Moxa Technologies NPort 6150 Series Manual de usuario

Moxa Technologies

Moxa Technologies NPort IA5250I/5250I-T Series Manual de usuario

Moxa Technologies

Moxa Technologies NPort IA-5150-M-SC Manual de usuario

Moxa Technologies

Moxa Technologies NPort Express DE-211 Manual de usuario

Moxa Technologies

Moxa Technologies NPort 5610-8 Manual de usuario

Moxa Technologies

Moxa Technologies NPort 5210 Manual de usuario

Moxa Technologies

Moxa Technologies NPort IA5150A Manual de usuario

Moxa Technologies

Moxa Technologies NPort S8455I Manual de usuario

Moxa Technologies

Moxa Technologies CN2610-8 Manual de usuario

Moxa Technologies

Moxa Technologies NPort IA5150 series Manual de usuario

Moxa Technologies

Moxa Technologies NPort W2250A-T-EU Manual de usuario

Moxa Technologies

Moxa Technologies CN2500 Manual de usuario

Moxa Technologies

Moxa Technologies NPort 5100A Series Manual de usuario

Moxa Technologies

Moxa Technologies NPort IA5000A Series Manual de usuario

Moxa Technologies

Moxa Technologies NPort S8000 Series Manual de usuario

Moxa Technologies

Moxa Technologies VPort 2110 Manual de usuario

Moxa Technologies

Moxa Technologies NPORT 6600 series Manual de usuario

Moxa Technologies

Moxa Technologies NPort 5100 Series Manual de usuario

Manuales populares de Servidor de otras marcas

HP AlphaServer ES47 Manual de usuario

Dell

Dell PowerEdge R410 Manual de usuario

PowerNAS

PowerNAS CMA Manual de usuario

Supero

Supero FatTwin F617R3-FT Manual de usuario

MSI

MSI P1-109N-L70 Manual de usuario

Dell

Dell PowerEdge XE9640 Manual

Dell

Dell PS4100 Instrucciones de montaje

EtroVISION

EtroVISION EV3151 Manual de usuario

NEC

NEC Express5800/T110j Manual de usuario

HP ProLiant Gen9 Manual de usuario

Compaq

Compaq ProLiant 3000 Manual

Dell

Dell PowerEdge 3YPMN Manual de usuario

iRobo

iRobo IPC2U Manual de usuario

Nortel

Nortel 1000 Con?guration guide Manual de usuario

Asus

Asus AP7500 Manual de operación y mantenimiento

Avid Technology

Avid Technology AirSpeed 5000 Manual de usuario

HP Integrity rx2600 Guía de instalación

Milestone

Milestone Husky IVO 350T Manual de usuario
