UC-7400 Hardware User’s Manual

First Edition, March 2006

www.moxa.com/product

Moxa Systems Co., Ltd.

Tel: +886-2-8919-1711

Fax:+886-2-8919-1722

Web: www.moxa.com

MOXA Technical Support

Worldwide: [email protected]

The Americas suppor[email protected]

UC-7400 Hardware User’s Manual

The Hardware described in this manual is furnished under a license agreement and may be used only in

accordance with the terms of that agreement.

Reproduction without permission is prohibited.

Trademarks

MOXA is a registered trademark of The Moxa Group.

All other trademarks or registered marks in this manual belong to their respective manufacturers.

Disclaimer

Information in this document is subject to change without notice and does not represent a commitment on the

part of Moxa.

Moxa provides this document “as is,” without warranty of any kind, either expressed or implied, including, but

not limited to, its particular purpose. Moxa reserves the right to make improvements and/or changes to this

manual, or to the products and/or the programs described in this manual, at any time.

Information provided in this manual is intended to be accurate and reliable. However, Moxa Technologies

assumes no responsibility for its use, or for any infringements on the rights of third parties that may result from

its use.

This product might include unintentional technical or typographical errors. Changes are periodically made to the

information herein to correct such errors, and these changes are incorporated into new editions of the

publication.

Table of Contents

Chapter 1 Introduction..................................................................................................1-1

Overview.................................................................................................................................. 1-2

Package Checklist....................................................................................................... 1-2

Product Features......................................................................................................... 1-3

Product Hardware Specifications ............................................................................... 1-4

Hardware Introduction............................................................................................................. 1-5

Appearance and Dimensions...................................................................................... 1-5

Hardware Block Diagram......................................................................................... 1-12

LED Indicators......................................................................................................... 1-13

Reset-type Buttons ................................................................................................... 1-13

Real Time Clock....................................................................................................... 1-14

Placement Options................................................................................................................. 1-14

Wall or Cabinet ........................................................................................................ 1-14

DIN-Rail Mounting.................................................................................................. 1-15

Hardware Connection Description......................................................................................... 1-16

Wiring Requirements ............................................................................................... 1-16

Connecting the Power .............................................................................................. 1-16

Grounding UC-7400................................................................................................. 1-16

Connecting to the Network....................................................................................... 1-17

Connecting to a Serial Device.................................................................................. 1-17

Connecting to the Console Port................................................................................ 1-18

PCMCIA................................................................................................................... 1-18

CompactFlash........................................................................................................... 1-18

USB.......................................................................................................................... 1-18

DI/DO....................................................................................................................... 1-18

Appendix A Service Information.....................................................................................A-1

MOXA Internet Services......................................................................................................... A-2

Problem Report Form .............................................................................................................A-3

Product Return Procedure....................................................................................................... A-4

Chapter 1 Introduction

Thank you for purchasing the MOXA UC-7400 RISC-based ready-to-run embedded computer.

The product’s features include eight RS-232/422/485 serial ports, dual 10/100 Mbps Ethernet ports,

8 digital input channels and 8 digital output channels, a PCMCIA interface for wireless LAN

communication, and CompactFlash and USB ports for mass storage disk expansion. All these

make the UC-7400 series ideal for your embedded applications.

This manual introduces the hardware that makes the UC-7400 series embedded computers tick.

After a brief introduction of the hardware features, this manual focuses on installation and

hardware configuration with device interfaces.

The following topics are covered in this chapter:

Overview

¾Package Checklist

¾Product Features

¾Product Hardware Specifications

Hardware Introduction

¾Appearance and Dimensions

¾Hardware Block Diagram

¾LED Indicators

¾Reset-type Buttons

¾Real Time Clock

Placement Options

¾Wall or Cabinet

¾DIN-Rail Mounting

Hardware Connection Description

¾Wiring Requirements

¾Connecting the Power

¾Grounding UC-7400

¾Connecting to the Network

¾Connecting to a Serial Device

¾Connecting to the Console Port

¾PCMCIA

¾CompactFlash

¾USB

¾DI/DO

UC-7400 Hardware User’s Manual Introduction

1-2

Overview

The MOXA UC-7400 Series (herein after referred to as UC-7400) includes UC-7420, UC-7410,

UC-7408, and UC-7402. These RISC-based ready-to-run embedded computers are ideal for

embedded applications. UC-7400 series feature 8 RS-232/422/485 serial ports, dual 10/100 Mbps

Ethernet ports, 8 digital input channels and 8 digital output channels, a PCMCIA interface for

wireless LAN communication, a CompactFlash slot for flash disk expansion, and USB ports for

adding additional memory (such as a USB Flash disk).

The UC-7400 series use an Intel XScale IXP-422 266 MHz RISC CPU. Unlike the X86 CPU,

which uses a CISC design, the IXP-422’s RISC design architecture and modern semiconductor

technology provide UC-7400 with a powerful computing engine and communication functions, but

without generating a lot of heat. The built-in 32 MB NOR Flash ROM and 128 MB SDRAM give

you enough memory to run your application software directly on UC-7400. As the dual LAN ports

are built right into the IXP-422 CPU, UC-7400 makes an ideal communication platform for

Network Security applications. If your application requires placing UC-7400 at a site that is not

located near an Ethernet LAN connection, you can connect to the network by using UC-7400’s

PCMCIA port to attach a wireless LAN card.

Package Checklist

All models of the UC-7400 series are shipped with the following items:

y1 UC-7400 Series Embedded Computer

yWall-Mounting Kit

yDIN-Rail Mounting Kit

yQuick Installation Guide

yDocument & Software CD

yCross-over Ethernet cable

yCBL-RJ45M9-150: 150 cm, 8-pin RJ45 to Male DB9 serial port cable (Except UC-7402)

yCBL-RJ45F9-150: 150 cm, 8-pin RJ45 to Female DB9 console port cable

yUniversal Power Adapter

yProduct Warranty Booklet

NOTE: Notify your sales representative if any of the above items is missing or damaged.

UC-7400 Hardware User’s Manual Introduction

1-3

Product Features

yIntel XScale IXP-422 266 MHz Processor

yOn-board 128 MB RAM, 32 MB Flash ROM

yEight RS-232/422/485 serial ports (UC-7420/7410/7408 only)

y8 digital input channels and 8 digital output channels (UC-7408 only)

yDual 10/100 Mbps Ethernet

yUSB 2.0 host for mass storage devices (UC-7420 only)

yPCMCIA, wireless LAN expansion (supports 802.11b/802.11g)

yCompactFlash for storage expansion (UC-7420/7408/7402 only)

yLCM display and keypad for HMI (UC-7420/7410 only)

yReady-to-run Linux / WinCE 5.0 .NET platform

yDIN-Rail or wall mounting installation

yRobust, fanless design

UC-7420/7410 UC-7408 UC-7402

UC-7400 Hardware User’s Manual Introduction

1-4

Product Hardware Specifications

UC-7420 UC-7410 UC-7408 UC-7402

CPU Intel Xscale

IXP-422 266MHz Intel Xscale

IXP-422 266MHz

RAM 128 MB 128 MB 128 MB 128 MB

Flash 32 MB 32 MB 32 MB 32 MB

LAN Auto-sensing 10/100 Mbps x 2 with built-in 1.5 KV magnetic isolation protection

RJ45 Connector

Serial Port RS-232/422/485 ×8

RJ45 Connector RS-232/422/485 ×8

RJ45 Connector N/A

Serial Protection 15 KV ESD for all signals N/A

Data Bits 5, 6, 7, 8 N/A

Stop Bits 1, 1.5, 2 N/A

Parity none, even, odd, space, mark N/A

Flow Control RTC/CTS, XON/XOFF, RS-485 ADDC™ N/A

Speed 50 bps to 921.6 Kbps N/A

Serial Console RS-232 ×1

RJ45 Connector RS-232 ×1

RJ45 Connector

DI/DO N/A DI ×8, DO ×8 N/A N/A

USB 2.0 Hosts 2 N/A N/A N/A

USB 1.1 Client 1* 1* 1* 1*

PCMCIA Cardbus x 1** N/A Cardbus x 1** Cardbus x 1**

Storage

Expansion CompactFlash ×1*** N/A CompactFlash ×

1*** CompactFlash ×1***

LCM 128 ×64 dots 128 ×64 dots N/A N/A

Keypad 5 5 N/A N/A

Real Time Clock Yes Yes Yes Yes

Buzzer Yes Yes Yes Yes

Rest Button HW Reset ×1

Reset to Default ×1 HW Reset ×1

Reset to Default ×1

Power Input 12 to 48 VDC 12 to 48 VDC 12 to 48 VDC 12 to 48 VDC

Power

Consumption 12W 10W 8W 7W

Dimension

(W x D x H) 197 ×125 ×44 mm 197 ×125 ×44 mm 197 ×125 ×44 mm 197 ×125 ×44 mm

Weights 875 g 810 g 870 g 830 g

Operating

temperature -10 to 60°C, (14 to 140°F), 5 to 95% RH

Storage

temperature -20 to 80°C, (-4 to 176°F), 5 to 95% RH

Regulatory

Approvals EMC: CE Class A, FCC Class A

Safety: UL, cUL, TÜV

Warranty 5 years 5 years 5 years 5 years

* USB Client function is reserved for future enhancement

** PCMCIA is designed for 802.11b/g wireless LAN card expansion

*** CompactFlash is designed for Flash memory card or Microdrive

UC-7400 Hardware User’s Manual Introduction

1-5

Hardware Introduction

Appearance and Dimensions

Appearance

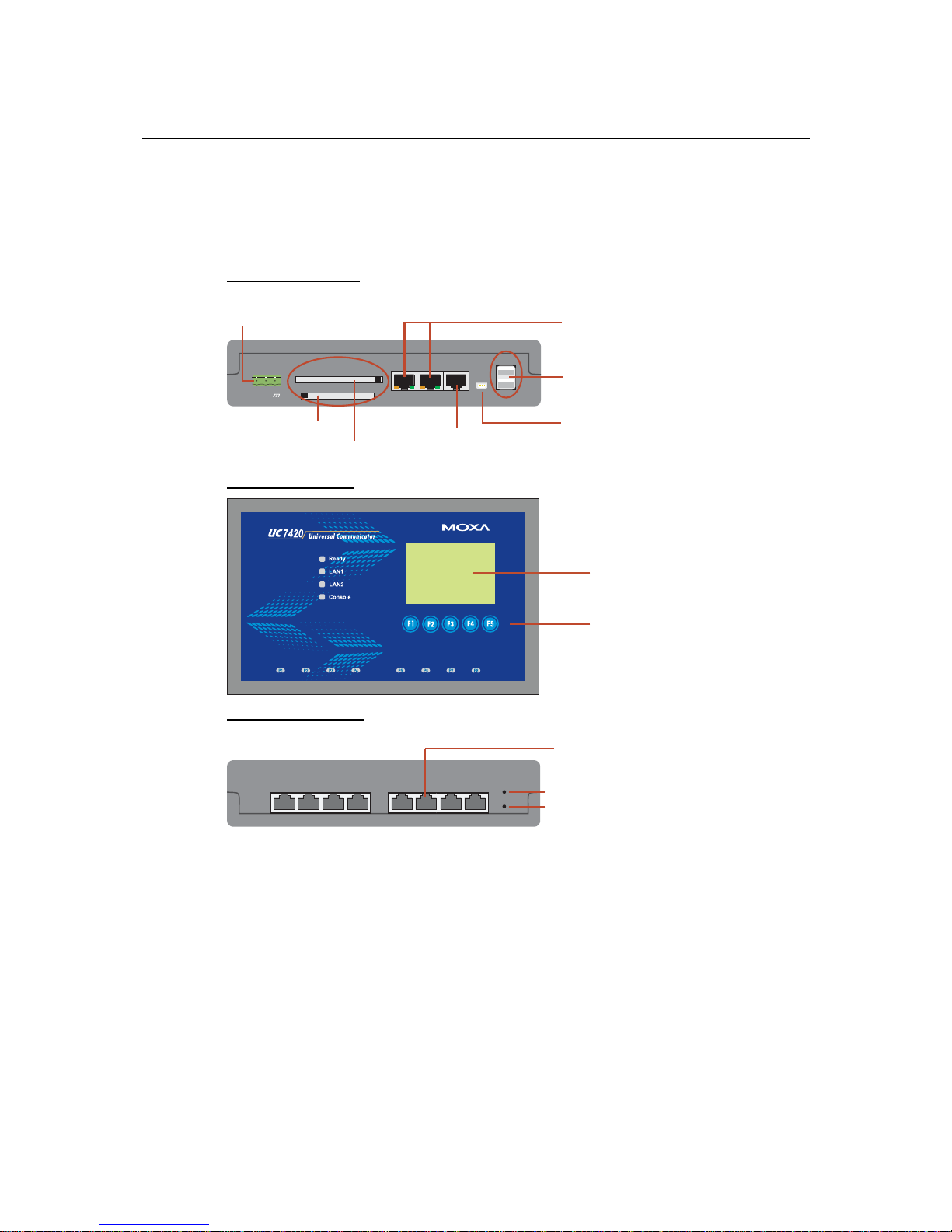

UC-7420 Rear View

DC 12-48V USB

LAN1 LAN2 Console

V+ V-

PCMCIA

12-48 VDC

Power Input

CF x 1

PCMCIA x 1

10/100 Mbps Ethernet x 2

USB 2.0 Host x 2,

AType Connector

USB 1.1 Client x 1,

miniB Connector

RS-232

PPP/Console

UC-7420 Top View

Graphics LCM

128 x 64 Dots

5 Buttons

UC-7420 Front View

Reset

RS-232/422/485

P2 P3 P4 P5 P6 P7 P8 Reset to

default

RJ45 RS-232/422/485

Connectors x 8

Reset to Default

Hardware Reset

UC-7400 Hardware User’s Manual Introduction

1-6

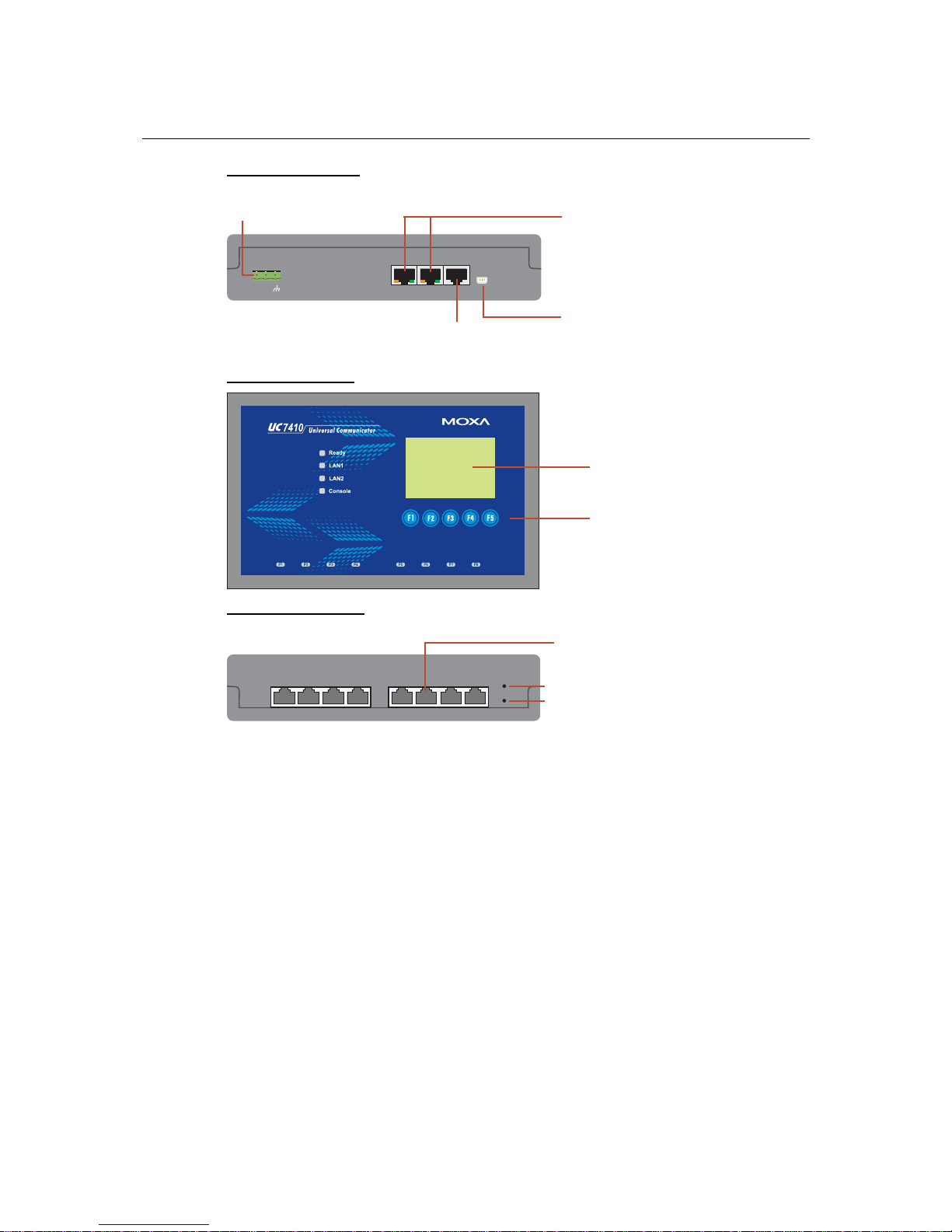

UC-7410 Rear View

DC 12-48V LAN1 LAN2 Console

V+ V-

12-48 VDC

Power Input 10/100 Mbps Ethernet x 2

USB 1.1 Client x 1,

miniB Connector

RS-232

PPP/Console

UC-7410 Top View

Graphics LCM

128 x 64 Dots

5 Buttons

UC-7410 Front View

Reset

RS-232/422/485

P2 P3 P4 P5 P6 P7 P8 Reset to

default

RJ45 RS-232/422/485

Connectors x 8

Reset to Default

Hardware Reset

UC-7400 Hardware User’s Manual Introduction

1-7

UC-7408 Rear View

DC 12-48V LAN1 LAN2 Console

V+ V-

PCMCIA

12-48 VDC

Power Input

CF x 1

PCMCIA x 1

10/100 Mbps Ethernet x 2

USB 1.1 Client x 1,

miniB Connector

RS-232

PPP/Console

UC-7408 Top View

UC-7408 Front View

Reset

RS-232/422/485

P2 P3 P4 P5 P6 P7 P8

Reset to

Default

D/O D/I

RJ45 RS-232/422/485

Connectors x 8

1 2 3 5 64 7 8 1 2 3 5 64 7 8

Reset to Default

8-ch Digital Output 8-ch Digital Input

Hardware Reset

Tabla de contenidos

Otros manuales de De oficina de Moxa Technologies

Moxa Technologies

Moxa Technologies DA-681-I-SP-XPE Manual de usuario

Moxa Technologies

Moxa Technologies V2416 Series Manual de usuario

Moxa Technologies

Moxa Technologies MPC-2120 Series Instrucciones de uso

Moxa Technologies

Moxa Technologies UC-7408 series Manual de usuario

Moxa Technologies

Moxa Technologies ThinkCore V481 Instrucciones de uso

Moxa Technologies

Moxa Technologies THINKCORE W345 Manual de usuario

Moxa Technologies

Moxa Technologies UC-8410A Series Instrucciones de uso

Moxa Technologies

Moxa Technologies UC-8100 Series Manual de usuario

Moxa Technologies

Moxa Technologies MC-7270-MP-T Manual de usuario

Moxa Technologies

Moxa Technologies V2416A-C7 Manual de usuario

Moxa Technologies

Moxa Technologies MC-7400 Series Manual de usuario

Moxa Technologies

Moxa Technologies MC-5157-AC/DC Manual de usuario

Moxa Technologies

Moxa Technologies DA-710 Series. DA-710-XPE Manual de usuario

Moxa Technologies

Moxa Technologies MC-5150-DC Series Manual de usuario

Moxa Technologies

Moxa Technologies BXP-C100 Series Manual de usuario

Moxa Technologies

Moxa Technologies W406 Series Manual de usuario

Moxa Technologies

Moxa Technologies ThinkCore V481 Manual de usuario

Moxa Technologies

Moxa Technologies V2406 Manual de usuario

Moxa Technologies

Moxa Technologies MC-5150-DC-CP Series Manual de usuario

Moxa Technologies

Moxa Technologies DA-681 Series Manual de usuario

Moxa Technologies

Moxa Technologies BXP-A100 Series Instrucciones de uso

Moxa Technologies

Moxa Technologies V3200 Series Instrucciones de uso

Moxa Technologies

Moxa Technologies ThinkCore DA-660-8-CE Manual de usuario

Moxa Technologies

Moxa Technologies UC-8410-LX Manual de usuario

Manuales populares de De oficina de otras marcas

HP m9060n - Pavilion - Elite Hoja de especificaciones

Asus

Asus E210 Series Manual de usuario

Dell

Dell Inspiron 600m Manual de usuario

Dell

Dell Inspiron 3662 Manual de usuario

TotalFlow

TotalFlow uFLO Manual de usuario

HP Presario SV7000 - Desktop PC Manual de usuario

HP ProDesk 400 G5 Manual

Logitech

Logitech MK320 Manual de usuario

Dell

Dell XPS 730 H2C Manual de usuario

Sony

Sony Vaio Series Manual de usuario

Sony

Sony VGC-LT32E - Vaio All-in-one Desktop Computer Manual de usuario

Alto

Alto MD 250 Manual de usuario

Lenovo

Lenovo ThinkCentre Edge 72 Manual

Lenovo

Lenovo ThinkStation D20 Manual

Arbor Technology

Arbor Technology FPC-7800 Series Manual de usuario

Sony

Sony VAIO VGX-TP1 Series Manual de usuario

Asus

Asus Eee Box B204 Manual de usuario

Dell

Dell Optiplex 9010 All In One Manual de usuario
