Moxa Technologies THINKCORE W311 Instrucciones de uso

W311/321/341

Hardware User’s Manual

Sixth Edition, March 2009

www.moxa.com/product

Reproduction without permission is prohibited.

W311/321/341

Hardware User’s Manual

The hardware described in this manual is furnished under a license agreement and may be used only in

accordance with the terms of that agreement.

Reproduction without permission is prohibited.

Trademarks

MOXA is a registered trademark of Moxa Inc.

All other trademarks or registered marks in this manual belong to their respective manufacturers.

Disclaimer

Information in this document is subject to change without notice and does not represent a commitment on the

part of Moxa.

Moxa provides this document “as is,” without warranty of any kind, either expressed or implied, including, but

not limited to, its particular purpose. Moxa reserves the right to make improvements and/or changes to this

manual, or to the products and/or the programs described in this manual, at any time.

Information provided in this manual is intended to be accurate and reliable. However, Moxa assumes no

responsibility for its use, or for any infringements on the rights of third parties that may result from its use.

This product might include unintentional technical or typographical errors. Changes are periodically made to the

information herein to correct such errors, and these changes are incorporated into new editions of the

publication.

Technical Support Contact Information

www.moxa.com/support

Moxa Americas:

Toll-free: 1-888-669-2872

Tel: +1-714-528-6777

Fax: +1-714-528-6778

Moxa China (Shanghai office):

Toll-free: 800-820-5036

Tel: +86-21-5258-9955

Fax: +86-10-6872-3958

Moxa Europe:

Tel: +49-89-3 70 03 99-0

Fax: +49-89-3 70 03 99-99

Moxa Asia-Pacific:

Tel: +886-2-8919-1230

Fax: +886-2-8919-1231

Table of Contents

Chapter 1 Introduction..................................................................................................1-1

Overview.................................................................................................................................. 1-2

Package Checklist.................................................................................................................... 1-2

Product Features ...................................................................................................................... 1-3

Product Hardware Specifications............................................................................................. 1-3

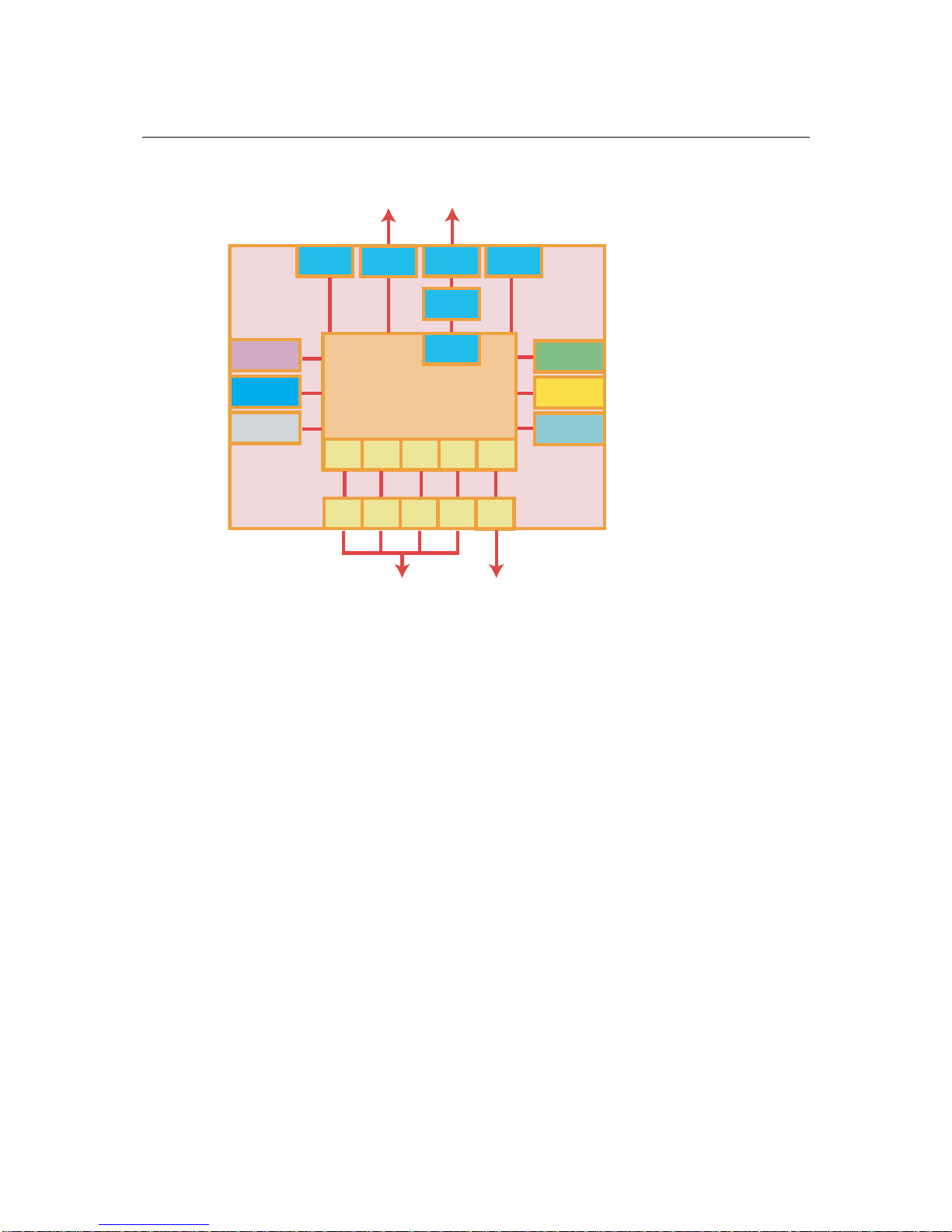

Hardware Block Diagram ........................................................................................................ 1-6

W311 ............................................................................................................................1-6

W321 ............................................................................................................................1-6

W341 ............................................................................................................................1-7

Chapter 2 Hardware Introduction.................................................................................2-1

Appearance .............................................................................................................................. 2-2

W311 ............................................................................................................................2-2

W321 ............................................................................................................................2-2

W341 ............................................................................................................................2-3

Dimensions .............................................................................................................................. 2-4

W311 ............................................................................................................................2-4

W321 ............................................................................................................................2-5

W341 ............................................................................................................................2-6

LED Indicators......................................................................................................................... 2-7

Reset Button............................................................................................................................. 2-7

Real Time Clock ...................................................................................................................... 2-8

Chapter 3 Hardware Connection Description .............................................................3-1

Wiring Requirements............................................................................................................... 3-2

Connecting the Power...................................................................................................3-2

Grounding the Unit.......................................................................................................3-2

Connecting Data Transmission Cables .................................................................................... 3-3

Connecting to the Network...........................................................................................3-3

Connecting to the WLAN.............................................................................................3-3

Connecting to a Serial Device ......................................................................................3-4

Serial Console Port.......................................................................................................3-4

SD Slot..................................................................................................................................... 3-4

USB (W341 only).................................................................................................................... 3-7

Relay Output (W341 only)....................................................................................................... 3-7

Appendix A Regulatory Approval Statement ................................................................A-1

Chapter 1 Introduction

The W300 series is a line of wireless RISC-based embedded computers that features 802.11a/b/g

WLAN, RS-232/422/485 serial ports, and an Ethernet port in a small, rugged chassis. In addition,

all models feature an SD slot, and the W341 features two USB 2.0 hosts and one relay output

channel.

Your W300 series embedded computer is ideal for diverse, machine-to-machine embedded

applications. It enables wireless operation for traditionally wired networks and serial devices. The

W300 series not only provides transparent data transfers, but also numeric computing, protocol

conversion, data processing and even data encryption. You will find it easier to build embedded

systems for distributed peer-to-peer communication, turn wired devices into wireless devices, and

introduce higher mobility and more intelligence to your system. In this chapter, you will learn

about the capabilities of this embedded computer.

This chapter covers the following topics:

Overview

Package Checklist

Product Features

Product Hardware Specifications

Hardware Block Diagram

¾W311

¾W321

¾W341

W311/321/341 Hardware User’s Manual Introduction

Overview

The W300 Series wireless embedded computer is designed around the Moxa ARTARM9 32-bit

RISC processor. Unlike the X86 CPU, which uses a CISC design, the Moxa ARTARM9 uses

RISC architecture and modern semiconductor technology to provide a powerful computing engine

without generating significant heat. The processor also integrates UART and LAN functions to

provide exceptional communication performance, but without the bus bandwidth limitations

associated with general ARM-based communication products.

On-board NOR Flash ROM and SDRAM provides ample storage capacity, and for select models,

the SD slot gives applications extra room to expand. The built-in WLAN function supports the

802.11a/b/g standard, providing transmission security with WEP, WPA and WPA2. The backup

LAN port not only provides an alternative solution for networking but also supports Ethernet

clients, allowing any network device to plug in and connect to the WLAN. The built-in

RS-232/422/485 serial ports support a wide range of serial devices, making this platform suitable

for data acquisition and protocol conversion applications.

The Linux-based operating system comes pre-installed and ready to run, providing an open

platform for software development. Software written for desktop PCs can easily be ported to

W300 Series embedded computers by using a common complier, so little time is spent modifying

existing software code. In addition, the operating system, device drivers, and user-developed

software can all be stored in the built-in flash memory.

Package Checklist

The W300 Series includes the following models:

W311-LX

A small, RISC-based, ready-to-run, wireless embedded computer with WLAN, one serial port,

Ethernet, SD slot, and Linux OS

W321-LX

A small, RISC-based, ready-to-run, wireless embedded computer with WLAN, two serial ports,

Ethernet, SD slot, and Linux OS

W341-LX

A RISC-based, ready-to-run, wireless embedded computer with WLAN, four serial ports, Ethernet,

SD slot, USB port, relay output, and Linux OS

Each model is shipped with the following items:

yW300 Series wireless embedded computer

yQuick Installation Guide

yDocumentation & Software CD

y100 cm RJ45-to-RJ45 Ethernet cross-over cable

y100 cm console port cable (CBL-4PINDB9F-100)

yUniversal PowerAdaptor

yProduct Warranty Statement

Optional Accessories

y35 mm DIN-rail mounting kit (DK-35A)

NOTE: Notify your sales representative if any of the above items are missing or damaged.

1-2

W311/321/341 Hardware User’s Manual Introduction

Product Features

W300 Series computers have the following features:

yMoxa ART 32-bit ARM9 industrial communication processor

y32 MB on-board RAM (64 MB for W341)

y16 MB built-in flash memory

y802.11a/b/g Wireless LAN

yWEP, WPA and WPA2 encryption

yInfrastructure mode andAd-Hoc mode

yRS-232/422/485 serial ports with software selectable interface

yBaudrates between 50 and 921.6 Kbps; supports non-standard baudrates

y10/100M Ethernet for backup networking

ySD card slot for storage expansion

yWithstands 5G continuous vibration and 50G shock

yLED indicators for status, serial transmission, and wireless signal strength

yReady-to-run Linux platform

yInstallation on DIN-rail or wall

yFanless design for increased ruggedness

Product Hardware Specifications

System

CPU Moxa ART ARM9 32-bit RISC CPU, 192 MHz

DRAM W311: 32 MB W321: 32 MB W341: 64 MB

Flash W311: 16 MB W321: 16 MB W341: 64 MB

Storage Expansion W311: SD slot x 1 W321: SD slot ×1 W341: SD slot ×1

USB W341: USB 2.0 host ×2

Relay Output Form C, SPDT ×1

Normal switching: 2A @ 30 VDC

Capacity: 60W max.

Switching power: 220 VDC max.

Switching voltage: 2A max.

Switch current: 4 ms @ 20°C

Operation time: 100 Mohm max.

Initial contact resistance:

Console Port RS-232 ×1 (TxD, RxD, GND), 4-pin header output, “115200, n, 8, 1”

Button Reset button ×1, supports “Reset to Factory Default”

Others RTC, buzzer, Watchdog Timer

OS Built-in Embedded Linux with MMU support, based on Linux Kemel

2.6

1-3

W311/321/341 Hardware User’s Manual Introduction

WLAN Communication

Standard Compliance 802.11a/b/g

Radio Frequency Type DSSS, CCK, OFDM

Media Access Protocol Carrier Sense Multiple Access with Collision Avoidance (CSMA/CA)

Modulation 802.11a/g: OFDM (64-QAM, 16-QAM, QPSK, BPSK) 802.11b: DSSS

(DBPSK, DQPSK, CCK)

Transmission Power

(Typical)

5.15 to 5.35 GHz: 15 dBm @6 Mbps; 12 dBm @54 Mbps

5.725 to 5.825 GHz: 15 dBm @6 Mbps; 12 dBm @54 Mbps

USA: 2.412 to 2.462 GHz (IEEE802.11g): 19 dBm @6 Mbps;

EU: 2.412 to 2.472 GHz 17 dBm @54Mbps

2.412 to 2.462 GHz (IEEE802.11b): 18 dBm@ 1 to 11 Mbps

Receiver Sensitivity

(Typical)

5.15 to 5.35 GHz: 6 Mbps @ -90 dBm; 54 Mbps @ -72 dBm

5.47 to 5.725 GHz: 6 Mbps @ -90 dBm; 54 Mbps @ -72 dBm

5.725 to 5.825 GHz: 6 Mbps @ -89 dBm; 54 Mbps @ -72 dBm

USA: 2.412 to 2.462 GHz (IEEE802.11g): 6 Mbps @ -90 dBm;

EU: 2.412 to 2.472 GHz 54 Mbps @ -73 dBm

USA: 2.412 to 2.462 GHz (IEEE802.11b): 11 Mbps @ -87 dBm;

EU: 2.412 to 2.472 GHz 1 Mbps @ -94 dBm

Transmission Rate 54 Mbps with auto fallback (54, 48, 36, 24, 18, 12, 11, 9, 6, 5.5, 2, 1

Mbps)

802.11b supported rates: 1, 2, 5.5, 11 Mbps

802.11a/g supported rates: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Transmission Distance 100 meters at 11 Mbps (with no obstructions)

Security WEP 64-bit/128-bit, WPA, WPA2 data encryption

Antenna Connector Reverse SMA

Antenna External 2 dBi dipole antenna

WLAN Mode Infrastructure, Ad-Hoc

Network Communication

LAN 10/100 Mbps RJ45 × 1, auto-sensing

Protection 1.5 KV built-in magnetic isolation protection

Serial Communication

Serial Port W311: RS-232/422/485 DB9 male × 1

W321: RS-232/422/485 DB9 male × 2

W341: RS-232/422/485 DB9 male × 4

Protection 15 KV built-in ESD protection for all signals

Data bits 5, 6, 7, 8

Stop bits 1, 1.5, 2

Parity None, Even, Odd, Space, Mark

Flow Control RTS/CTS, XON/XOFF, RS-485 ADDC™

Speed 50 bps to 921.6 Kbps; supports non-standard baudrates

LEDs

System Ready, SD activity

WLAN Enable, signal strength

1-4

W311/321/341 Hardware User’s Manual Introduction

LAN 10 M/Link, 100 M/Link (RJ45 connector)

Serial TxD, RxD

Power Requirements

Power Input 12 to 48 VDC

Power Consumption W311: 400 mA @ 12 VDC

W321: 400 mA @ 12 VDC

W341: 600 mA @ 12 VDC with no USB devices attached

1.2A @ 12 VDC with USB devices on each port at max spec

500 mA @ 5 VDC

Mechanical

Dimension

(W ×D ×H) (without wall mount ear or antenna)

W311: 77 ×111 ×26 mm

W321: 77 ×111 ×26 mm

W341: 150 ×100 ×38 mm

Antenna 110 mm

Construction Material W311: aluminum, 1 mm

W321: aluminum, 1 mm

W341: aluminum, 1 mm / SECC, 1 mm for rear panel

Mounting DIN-rail, wall

Environmental

Operating Temperature -10 to 60°C (14 to 140°F), 5 to 95% RH

Storage Temperature -20 to 80°C (-4 to 176°F), 5 to 95% RH

Regulatory Approvals

EMC FCC, CE (Class A)

Safety TUV, UL, cUL

Others RoHS, CRoHS, WEEE

Warranty 5 years

1-5

W311/321/341 Hardware User’s Manual Introduction

Hardware Block Diagram

W311

UART

MOXA ART CPU

32-bit ARM9

192 MHz

16MB

RAM

8MB

Flash

Power

Circuit

RTC

Watchdog

Serial

Port 1

LAN

MAC

PHY

Ethernet

WLAN

802.11a/b/g

Function

UART

Console

Port

RS-232/422/485 RS-232

W321

UART

MOXA ART CPU

32-bit ARM9

192 MHz

16MB

RAM

8MB

Flash

Power

Circuit

RTC

Watchdog

Serial

Port 1

LAN

MAC

PHY

Ethernet

UART

Serial

Port 2

WLAN

802.11a/b/g

Function

UART

Console

Port

RS-232/422/485 RS-232

1-6

W311/321/341 Hardware User’s Manual Introduction

W341

MOXA ART CPU

32-bit ARM9

192 MHz

16MB

RAM

8MB

Flash

Power

Circuit

RTC

Watchdog

LAN

MAC

PHY

Ethernet

UART UARTUART UART

Serial

Port 1 Serial

Port 2 Serial

Port 3 Serial

Port 4

Relay

Output

Function

WLAN

USB 2.0

Host x 2

802.11a/b/g

UART

Console

Port

RS-232

RS-232/422/485

1-7

Otros manuales para THINKCORE W311

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de De oficina de Moxa Technologies

Moxa Technologies

Moxa Technologies MC-5150-DC Series Manual de usuario

Moxa Technologies

Moxa Technologies DA-681 Series Manual de usuario

Moxa Technologies

Moxa Technologies V2406 Manual de usuario

Moxa Technologies

Moxa Technologies DA-681C Series Manual de usuario

Moxa Technologies

Moxa Technologies MC-3201 Series Instrucciones de uso

Moxa Technologies

Moxa Technologies MPC-2120 Series Manual de usuario

Moxa Technologies

Moxa Technologies MPC-2240 Series Manual de usuario

Moxa Technologies

Moxa Technologies MC-7270-MP-T Manual de usuario

Moxa Technologies

Moxa Technologies DA-662A Series Manual de usuario

Moxa Technologies

Moxa Technologies V2406-24I Series Manual de usuario

Moxa Technologies

Moxa Technologies DA-683 Series Manual de usuario

Moxa Technologies

Moxa Technologies THINKCORE W321 Manual de usuario

Moxa Technologies

Moxa Technologies UC-8200 Series Manual de usuario

Moxa Technologies

Moxa Technologies DA-820C Series Manual de usuario

Moxa Technologies

Moxa Technologies UC-7112 LX Plus Instrucciones de uso

Moxa Technologies

Moxa Technologies DA-682A-DPP Series Manual de usuario

Moxa Technologies

Moxa Technologies UC-8410-LX Manual de usuario

Moxa Technologies

Moxa Technologies UC-7408 series Manual de usuario

Moxa Technologies

Moxa Technologies ThinkCore DA-660-8-CE Manual de usuario

Moxa Technologies

Moxa Technologies UC-7400 Manual de usuario

Moxa Technologies

Moxa Technologies MC-5157-AC/DC Manual de usuario

Moxa Technologies

Moxa Technologies UC-8410A Series Instrucciones de uso

Moxa Technologies

Moxa Technologies DA-820 Series Manual de usuario

Moxa Technologies

Moxa Technologies V2403C Series Manual de usuario

Manuales populares de De oficina de otras marcas

HP m9060n - Pavilion - Elite Hoja de especificaciones

Asus

Asus E210 Series Manual de usuario

Dell

Dell Inspiron 600m Manual de usuario

Dell

Dell Inspiron 3662 Manual de usuario

TotalFlow

TotalFlow uFLO Manual de usuario

HP Presario SV7000 - Desktop PC Manual de usuario

HP ProDesk 400 G5 Manual

Logitech

Logitech MK320 Manual de usuario

Dell

Dell XPS 730 H2C Manual de usuario

Sony

Sony Vaio Series Manual de usuario

Sony

Sony VGC-LT32E - Vaio All-in-one Desktop Computer Manual de usuario

Alto

Alto MD 250 Manual de usuario

Lenovo

Lenovo ThinkCentre Edge 72 Manual

Lenovo

Lenovo ThinkStation D20 Manual

Arbor Technology

Arbor Technology FPC-7800 Series Manual de usuario

Sony

Sony VAIO VGX-TP1 Series Manual de usuario

Asus

Asus Eee Box B204 Manual de usuario

Dell

Dell Optiplex 9010 All In One Manual de usuario
