V3200 Series

Quick Installation Guide

Embedded Computers

Version 1.0, March 2023

Technical Support Contact Information

www.moxa.com/support



- 2 -

Overview

The V3200 Series embedded computers are built around an Intel®

Core™ i7/i5/i3 or Intel® Celeron® high-performance processor and

come with up to 64 GB RAM, one M.2 2280 M key slot, and two

HDD/SSD for storage expansion. The computers are compliant with EN

50155:2017 and EN 50121-4 standards covering operating

temperature, power input voltage, surge, ESD, and vibration, making

them suitable for railway onboard and wayside applications.

For connecting with onboard and wayside systems and devices, the

V3200 computers are equipped with a rich set of interfaces including 4

Gigabit Ethernet ports (default; can go up to 8 ports) with one-pair LAN

bypass function to ensure uninterrupted data transmission, 2 RS-

232/422/485 serial ports, 2 DIs, 2 DOs, and 2 USB 3.0 ports. The built-

in TPM 2.0 module ensures platform integrity and provides hardware-

based security as well as protection from tampering.

Vehicular applications require reliable connectivity. They also require

clear indicators on the device that identify the status of the software.

The V3200 computers come with two 5G/one LTE and 6 SIM-card slots

to help establish redundant LTE/Wi-Fi connections and 3 programmable

LEDs that enable monitoring of the runtime status of software.

Package Checklist

Each basic system model package is shipped with following items:

•V3200 Series embedded computer

•Wall-mounting kit

•2 HDD trays

•16 screws for securing the HDD trays

•HDMI cable locker

•Quick installation guide (printed)

•Warranty card

NOTE

Notify your sales representative if any of the above items are

missing or damaged.

Panel Views

Front View

V3200-TL-4L Models

- 3 -

V3200-TL-8L Models

Rear View

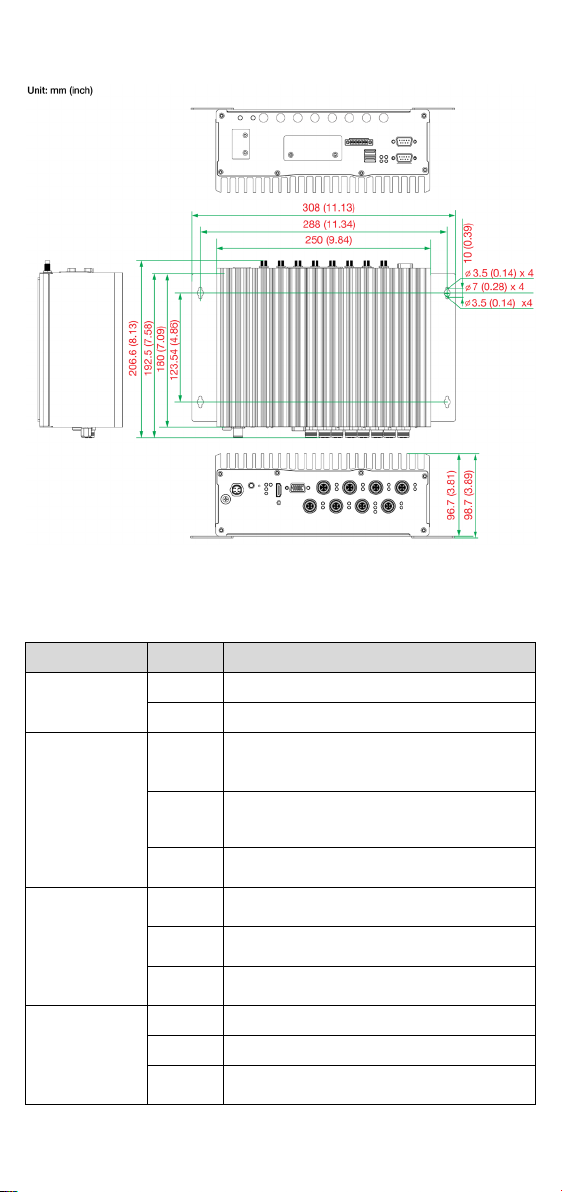

Dimensions

V3200-TL-4L Models

- 4 -

V3200-TL-8L Models

LED Indicators

The following table describes the LED indicators located on the front

and rear panels of the V3200 computer.

LED Name Status Function

Power

(Power button)

Green Power is ON

OFF No power input/other power-input error

Ethernet

(100 Mbps)

(1000 Mbps)

Green Steady ON: 100 Mbps Ethernet link

Blinking: Data transmission is in progress

Yellow Steady ON: 1000 Mbps Ethernet link

Blinking: Data transmission is in progress

Off Data

transmission speed at 10 Mbps or the

cable is not connected

Ethernet

(1000 Mbps)

(2500 Mbps)

LAN1

Green Steady ON: 1000 Mbps Ethernet link

Blinking: Data transmission is in progress

Yellow

Steady ON: 2500 Mbps Ethernet link

Blinking: Data transmission is in progress

OFF

Data transmission speed at 100/10 Mbps

or the cable is not connected

Serial

(TX/RX)

Green Tx: Serial port is transmitting data

Yellow Rx: Serial port is receiving data

OFF No operations

- 5 -

LED Name Status Function

Storage

Yellow

Data is being accessed from either the M.2

M key (PCIe [x4]) or the SATA drive

OFF

Data is not being accessed from the

storage drives

LAN Bypass

LED

(I/O board)

Yellow LAN bypass mode is activated

OFF No operations

Programmable

LED

(Main board*3)

Green Application active normally, blinking or

frequency adjustment

OFF No operations

Installing the V3200

The V3200 computer comes with 2 wall-mounting brackets. Attach the

brackets to the computer using 4 screws on each side. Ensure that the

mounting brackets are attached to the V3200 computer in the direction

shown in the following figure.

The 8 screws for the mounting brackets are included in the product

package. They are standard IMS_M3x5L screws and require a torque of

4.5 kgf-cm. Refer to the following illustration for details.

Use 2 screws (M3*5L standard is recommended) on each side to attach

the V3200 to a wall or cabinet. These 4 screws are not included in the

product package; they need to be purchased separately.

- 6 -

Ensure that the V3200 computer is installed in the direction shown in

the following figure:

Connecting the Power

The V3200 computers are provided with M12 power input connectors on

the front panel. Connect the power cord wires to the connectors and

then tighten the connectors. Push the power button; the Power LED

(on the power button) will light up to indicate that power is being

supplied to the computer. It should take about 30 to 60 seconds for the

operating system to complete the boot-up process.

Definition

V+

N.C.

V-

N.C.

The power input specification is given below:

•DC source with a power source rating of 24 V @ 4.0 A; 110 V @ 0.9

A, and a minimum of 18 AWG.

For surge protection, connect the grounding connector located beside

the power connector with the earth (ground) or a metal surface.

NOTE

This computer is designed to be supplied by listed equipment

(UL listed/ IEC 60950

-1/ IEC 62368-1) rated 24 to 110VDC,

nimum 4 to 0.9 A, and minimum Tma=70˚C. If you need

assistance with purchasing a power adapter, contact the Moxa

technical support team.

Connecting Displays

The V3200 has 1 VGA interface that comes with a D-Sub 15-pin female

connector. In addition, another HDMI interface is also provided on the

front panel.

NOTE

In order to have highly reliable video streaming, use premium

HDMI-certified cables.

- 7 -

USB Ports

The V3200 comes with 2 USB 3.0 ports on the rear panel. The USB

ports can be used to connect to peripherals, such as keyboard, mouse,

or flash drives for expanding the system’s storage capacity.

Serial Ports

The V3200 comes with 2 software-selectable RS-232/422/485 serial

ports on the rear panel. The ports use DB9 male connectors.

Refer to the following table for the pin assignments:

RS-232 RS-422

RS-485

(4-wire)

RS-485

(2-wire)

DCD

TxDA(-)

–

RxD

TxDB(+)

–

TxD

RxDB(+)

DataB(+)

DTR

RxDA(-)

DataA(-)

GND

DSR

–

RTS

–

CTS

–

Ethernet Ports

The V3200 has 4 (V3200-TL-4L models) or 8 (V3200-TL-8L models)

1000 Mbps RJ45 Ethernet ports with M12 connectors on the front panel.

Refer to the following table for the pin assignments:

Definition

DA+

DA-

DB+

DB-

DD+

DD-

DC-

DC+

Digital Inputs/Digital Outputs

The V3200 comes with 2 digital inputs and 2 digital outputs in a

terminal block. Refer to the following figures for the pin definitions and

the current ratings.

Digital Inputs

Dry Contact

Logic 0: Short to

Ground

Logic 1: Open

Wet Contact

(

COM to DI)

Logic

0: 10 to 30

VDC

Logic 1: 0 to 3 VDC

Digital Outputs

Current Rating:

200 mA per

channel

Voltage:

24 to 30 VDC

For detailed wiring methods, refer to the V3200 Hardware User’s

Manual.

- 8 -

Installing SIM Cards

The V3200 Series comes

with 6 SIM card slots on

the rear panel of the

computer. Make sure you

insert the SIM card in the

right direction as

indicated on the label.

For detailed SIM card and wireless module installation, refer to the

V3200 Hardware User Manual.

Replacing the Battery

The V3200 comes with one slot for a battery, which is installed with a

lithium battery with 3V/200 mAh (Type: BR2032) specifications.

To replace the battery, do the following:

1. Locate the cover of the battery slot.

The battery slot is located on the front panel of the computer.

2. Unfasten the two screws on the battery cover.

3. Take off the cover; the battery is attached to the cover.

4. Separate the connector and remove the two screws on the metal

plate.

5. Replace the new battery in the battery holder, place the metal

plate on the battery, and fasten the two screws tightly.

6. Reconnect the connector, place the battery holder into the slot,

and secure the cover of the slot by fastening the two screws on

the cover.

NOTE

Be sure to use the correct type of battery. Incorrect battery

may cause system damage. Contact Moxa’s technical support

staff for assistance, if necessary.

CAUTION

Dispose of used batteries according to the instructions.
