Mini Gadgets BBSRBDictionary Manual de usuario

1 Version 2.0

Bush Baby Stealth Dictionary

Hidden Camera Manual

SKU: BBSRBDictionary

2 Version 2.0

THANK YOU FOR PURCHASING THE BBSDICTIONARY

Please read through this manual before operating your

device, and keep it handy.

Your purchase should include:

1 x BBSRBDictionary

1 x Remote Control

1 x Removable Battery

1 x MicroUSB Cable

1 x Charging Adapter with Indicator Lights

1 x AC Adapter

1 x 16GB MicroSD Card

1 x MicroSD Card Reader

1 x Instruction Booklet

3 Version 2.0

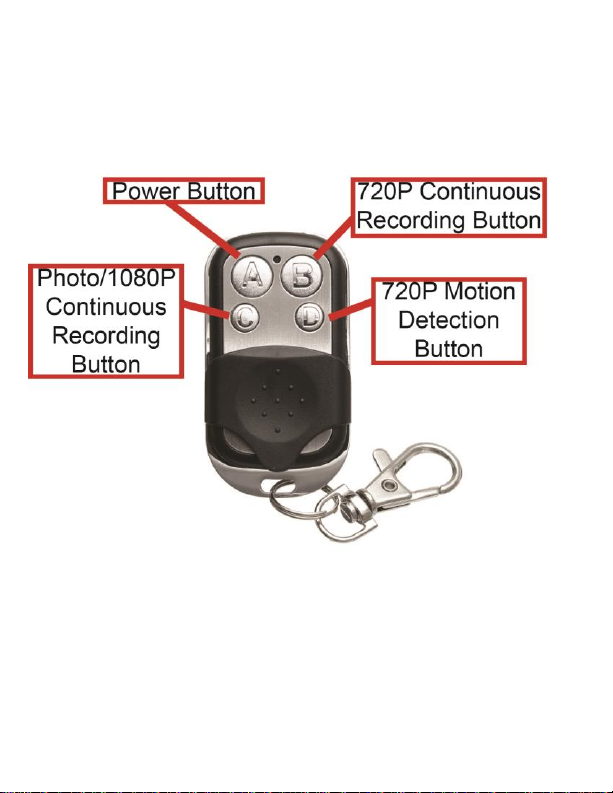

GET FAMILIAR WITH THE BBSDICTIONARY

4 Version 2.0

5 Version 2.0

6 Version 2.0

BEFORE YOU START

To preserve battery power, your device will come with

the battery connector disconnected. Before

attempting to use the device be sure to connect the

battery’s connector to the circuit board power lead.

OPERATING THE BBSDICTIONARY

IMPORTANT NOTICE: Allow the device to charge 6 –8

hours before using.

MICROSD CARD SLOT

To access the MicroSD Card Slot, you must open the

dictionary using the given key.

1. Gently push the MicroSD Card into the slot. The

gold contacts on the card will be inserted first,

and they should face the main circuit board.

You will feel some spring resistance before the

card clicks in to place.

2. Never force the card into the Card Slot under

any circumstances, otherwise the dictionary

unit or the MicroSD card itself will be damaged.

7 Version 2.0

3. To remove the SD card, gently push the card in

so that it clicks.

4. The internal spring tension will eject the card.

REMOVING AND CHARGING THE BATTERY

1. Remove battery from the inside of the

dictionary.

2. Disconnect the battery connector that is

connecting the battery to the circuit board. Be

careful not to pull on the wires as that could

damage them.

3. Connect the connector on the battery to the

connector on the charging adapter (see page

5).

4. Plug the provided USB cable into the other end

of the charging adapter.

5. Plug the other end of the USB cable into the

wall AC adapter and plug it into the wall.

6. Wait 6 to 8 hours.

a. The larger the battery capacity, the

longer it takes to charge.

8 Version 2.0

HOW TO TURN ON THE CAMERA

1. Press the Power Button on the remote control

one time. The device is now in Standby mode.

HOW TO RECORD CONTINUOUS VIDEO (720P)

1. In standby mode, press the “B” button once

quickly (see page 4). The unit will vibrate twice.

2. Once the device stops vibrating, it is recording

video.

3. To stop recording, press the “B” button again,

and wait three seconds. The device

automatically returns to standby mode.

HOW TO RECORD CONTINUOUS VIDEO (1080P)

1. In standby mode, press and hold the “C” button

for 3 seconds.

2. The unit will vibrate three times. The camera is

recording when the unit stops vibrating.

3. To stop recording, press the “C” button again,

and wait three seconds. The device will save

the video and return to standby mode.

9 Version 2.0

HOW TO RECORD IN MOTION DETECTION MODE

1. In Standby mode, press the “D” button once

quickly (see page 4). The unit will vibrate three

times.

2. The unit is now in motion detection mode, and

it will begin recording video when motion is

detected. NOTE: there will be no indication

when the device detects motion –it will simply

start recording video.

3. To return to standby mode, press the “D”

button again. The unit will vibrate, and then

return to standby mode.

HOW TO TAKE A PICTURE

1. While in Standby mode, press the “C” button

quickly (see page 4). The unit will vibrate, and

one photo will be taken. The unit will return to

standby mode.

MICROSD CARD SLOT

To access the MicroSD Card Slot, you must open the

dictionary’s false inside and find the camera board.

10 Version 2.0

1. Gently push the MicroSD card into the slot until

you hear a click, then release the card. The

spring inside should push the card out enough

that you can grab it.

2. To insert the SD card, make sure the gold

contacts on the card are inserted first, and that

they’re facing the main circuit board. You will

feel some spring resistance before the card

clicks into place.

3. Never force the card into the slot. Otherwise,

your unit or the card will be damaged.

64GB and 128GB MicroSD cards will require special

formatting to work. The device will not function with

these cards if they are not properly formatted

beforehand.

Visit www.mgidownloads.com/Software and download

the “guiformat.zip” file. Extract the files and follow the

instructions in the “64GB SD Card Formatting.pdf”

document.
