Mini Gadgets WiFi1080pMini Manual de usuario

1 Version 1.0

MINI BLACK BOX WIFI

CAMERA WITH ROTATING

LENS

SKU: WiFi1080pMini

2 Version 1.0

THANK YOU FOR PURCHASING THE WIFI1080PMINI

Please read this manual before operating the WIFI1080PMINI and

keep it handy.

Your purchase should include:

1 x WiFi1080pMini*

1 x Mini CD

1 x AC Wall Adapter

1 x Mini USB Cable

1 x Instruction Booklet

3 Version 1.0

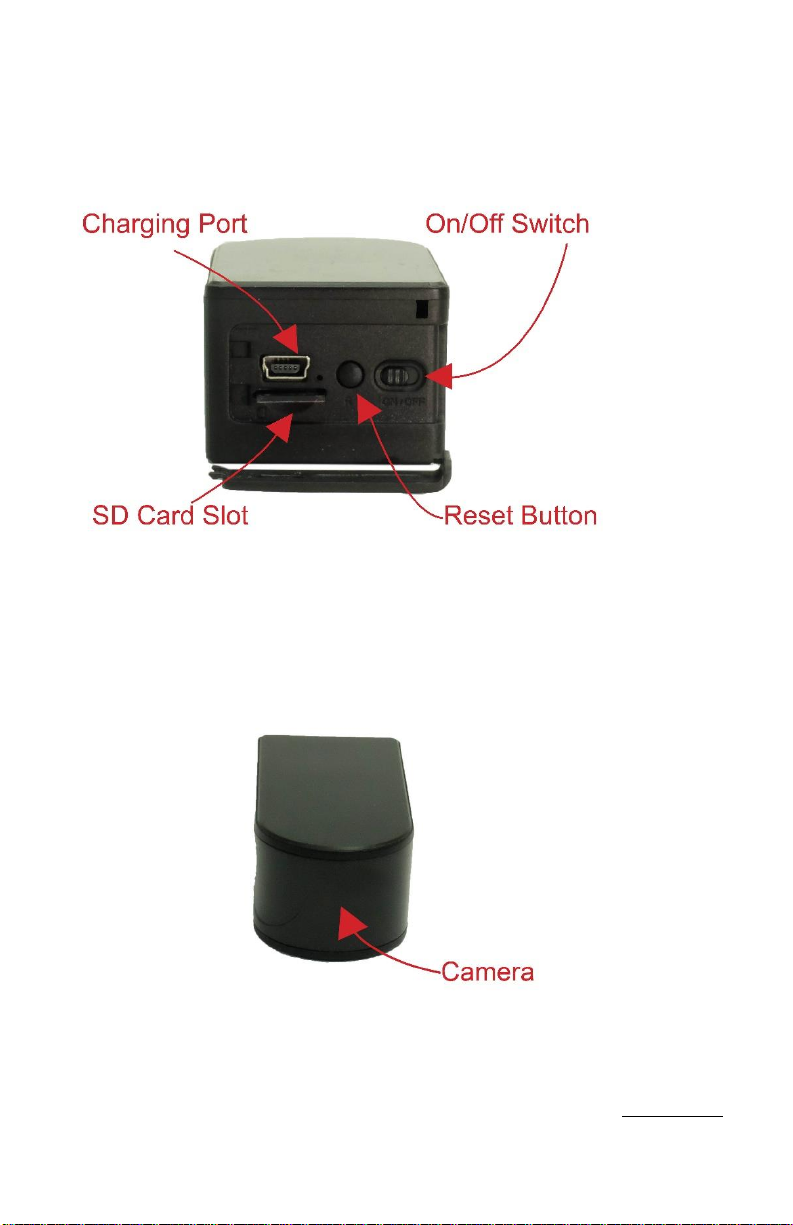

GETTING TO KNOW YOUR WIFI1080PMINI

4 Version 1.0

OPERATING THE WIFI1080PMINI

BEFORE YOU START

1. First you must download the P2PLiveCam app from the

Google Play Store or the iPhone App Store.

oAndroid:

https://play.google.com/store/apps/details?id=co

m.g_zhang.myp2pcam&hl=en

oiPhone:

https://itunes.apple.com/us/app/p2plivecam/id78

9572618?mt=8

2. If you wish to enable SD Card recording, you must insert a

MicroSD card into the unit. (if applicable)

CONNECTING TO YOUR DEVICE DIRECTLY

1. Please plug your device into a wall outlet and make sure

switch on unit is in the On position.

2. Turn on your phone’s Wi-Fi and wait up to 7 minutes for

the device to generate a Wi-Fi signal. The Wi-Fi Signal

name will match the UID on the sticker on the back of the

device.

3. Once the device generates its Wi-Fi signal, connect to it via

the Wi-Fi settings on your phone.

oNOTE: Some Android devices may produce a

warning that the network has no internet access. If

you see this, choose to connect to the network

anyway.

4. After connecting to the Wi-Fi Signal with your mobile

device, open the P2PLiveCam App.

NOTE: For iOS devices, you must wait until the Wi-Fi Signal

appears next to your Phone Carrier Name in the status bar

at the top of your phone screen.

5 Version 1.0

5. Once the app opens, tap the plus (+) button at the top

right of the app.

6. Tap “Search (LAN)” and the app should show a “New

Device”.

7. Tap on the New Device and all the camera’s information

will be filled in.

8. Tap “OK”.

9. Now you will see the app listed in the home screen of the

app and it will show “Online”. You may now tap on this

camera entry to test the video feed.

NOTE: You will be prompted to change the device password the

first time you view the camera video feed. We suggest that you do

change this to prevent any unauthorized viewing of your camera.

IMPORTANT: You must keep this password in a safe place. If you

ever need to access the camera from a different phone or reinstall

the camera app, this password will be required to re-add the

camera. If you forget the password, a factory reset will be

required.

CONNECTING THE DEVICE TO YOUR WIFI FOR REMOTE VIEWING

1. From the home screen of the app, tap the settings gear

next to the camera name.

2. A menu will pop up, choose “Device Settings”.

oFor Android devices the option will be “Advanced

Config”.

3. Next choose “WiFi Config”.

4. Select your network from the list of available networks

and then enter your W-iFi password and press OK.

5. A dialog will pop up to confirm the network name and

password you entered. Make sure these are correct and

then press OK.

6. The device will reboot. You will know the device has

connected to your Wi-Fi successfully when the camera

6 Version 1.0

shows Online in the home screen of the app. This may take

up to 5 minutes.

7. Once the device shows as Online, confirm that it

connected to your Wi-Fi successfully by opening the

settings app on your phone and choosing your Wi-Fi

settings. If you connected successfully, the device will no

longer be generating its own Wi-Fi signal, and you should

be connected to your own Wi-Fi.

oNOTE: If you still see a network broadcasting that is

the named after the UID on the back of your

device, connecting to your Wi-Fi has failed. Please

repeat steps 3-7 above and pay careful attention to

the network password you entered.

8. The device is now connected to your Wi-Fi and may be

accessed from anywhere that your phone has an internet

connection.

HOW TO ADJUST THE VIDEO QUALITY OF THE STREAM

1. Open the live video stream of your camera.

2. Once the video is streaming, tap the screen once to reveal

the options.

3. In the top right of the screen there will be a video quality

setting (HD, High, Normal, and Low Bandwidth). Choose

the quality according to your preference.

HOW TO SET UP MOTION ALARM RECORDING

1. To set up the motion alarm, return to the home screen of

the app and tap the settings gear next to your camera and

then choose “Device Settings”.

oFor Android devices the option will be “Advanced

Config”.

2. Tap “Alarm Config”.

7 Version 1.0

3. Tap “Motion Detection Sensitivity” and set according to

your preference. (We suggest a setting near the middle of

the available options.)

4. Tap OK at the bottom of the screen and you will receive

notifications on your phone when motion is detected.

5. To record when the alarm detects motion, select “SD Card

Record Config” from the Settings menu.

6. Tap “Record Setting” and choose “On Alarm”.

7. Tap OK at the bottom of your screen to save your settings.

oNOTE: You must have an SD Card inserted into the

device for this to work. See the “Before You Start”

section for instructions.

HOW TO STREAM LOCALLY ON YOUR PC (Windows Only)

1. After connecting your device to Wi-Fi, insert the CDROM

that came with the device into your computer.

2. Open the IPCamera folder on the disk and copy the

application to your computer from the CDROM.

3. Open the application.

4. Double click on the IP address shown which is for your

camera.

5. Your default browser will open.

6. Choose the appropriate setting for your browser.

RETRIEVE THE FILES TO YOUR PC

1. Remove the SD Card from your device.

2. Use an SD Card Reader (not provided) to connect the

MicroSD card to your computer.

3. Locate “Removable Disk” inside the (My) Computer folder.

AutoPlay Removable Disk > Open folder to view

files

8 Version 1.0

Or…

Go to Start > Computer > Removable Disk

4. Open the Removable Disk drive.

5. Open the folder containing the files.

6. Double click the file you want to view.

9 Version 1.0

TROUBLESHOOTING

THE DEVICE WON’T TURN ON

Make sure the device is plugged into an electrical outlet

and the battery is fully charged.

CANNOT RECORD TO MICROSD CARD

Confirm you have inserted a MicroSD Card into the unit.

HOW TO FACTORY RESET THE DEVICE

A factory reset will restore all settings to their original

factory settings.

Plug in camera, wait 2 minutes, press reset button for 5

seconds until right LED light turns off. Camera will reboot

and product a Wi-Fi signal within 7 minutes.

CAN’T FIND DEVICE’S WIFI SIGNAL

Please unplug the device, wait 30 seconds, plug your

camera back in, and try again.

THE APP CANNOT FIND THE CAMERA AFTER CHOOSING

“SEARCH/LAN”

Ensure you are still connected to the device’s Wi-Fi signal

by going to your phone’s Wi-Fi settings.

Please unplug the device, wait 30 seconds, plug your

camera back in, and try again.
