MiiCraft Profession Series Manual de usuario

MIICRAFT 3D Production System --> An important step in making a better world

Maintenance Manual

Profession Series / Advance Series

Version 1.0

MiiCraft Profession & Advance series printer are well designed by the finest design & optical engineers

to provide additive manufacturing process more compatibility, with low maintenance on the machine.

Maintenance work should be regular in order to keep the printer in good condition and achieve high

quality prints every time. Some parts require maintenance before each print and some every few

hundred working hours. All maintenance activities do not take much time and are not complicated.

Before commencing any repair, it is extremely important to turn off the printer. Remember to always

wear safety gloves and glasses while working with printer.

MIICRAFT 3D Production System --> An important step in making a better world

Contents :-

Common & frequently performed practices __________________________________________ Page 3

Main Components to be checked frequently _________________________________________ Page 4

Glass ___________________________________________________________________ Page 4

Teflon __________________________________________________________________ Page 8

Picker __________________________________________________________________ Page 13

Recoater ________________________________________________________________ Page 14

MIICRAFT 3D Production System --> An important step in making a better world

Common & frequently performed practices

The following tables present maintenance and repair guidelines connected with each section of the

MiiCraft Profession & Advance series printers, together with specific check points, necessary activities

and their frequency.

Sr.

No.

Activity

Frequency

Cleaning the machine &

interior Surroundings

Before Every Print

Cleaning Picker Surface

Before Every Print

Cleaning teflon glass

After change of teflon or print failure

Change of Teflon

After 20 prints

Resin Mixing

Before Every Print

Checking for printing

residuals in the resin

tank

After Printing / Must check if print failure occurs

Cleaning Recoater Stirrer

After Change of resin in tank / After print failure /

Before starting Printing if standby 12Hours or

Cleaning Tank

After Print Failure

Restart / Shut Down

Shut Down the printer if there’s no use

Checking Tension in

recoater belt

After 2 Years

Tightening Picker

Locking Screws

Before Every Print

Tightening Tank Locking

Screws

Before Every Print

MIICRAFT 3D Production System --> An important step in making a better world

Main Components to be checked frequently

Glass

Teflon

Picker

Recoater

Glass :-

Required tools :-

1) Hand Gloves

2) Hex Allen Key –3mm

3) Cotton Cloth

4) Alcohol / Acetone

Procedure :-

Glass is located in between tilt tray & teflon module.

MIICRAFT 3D Production System --> An important step in making a better world

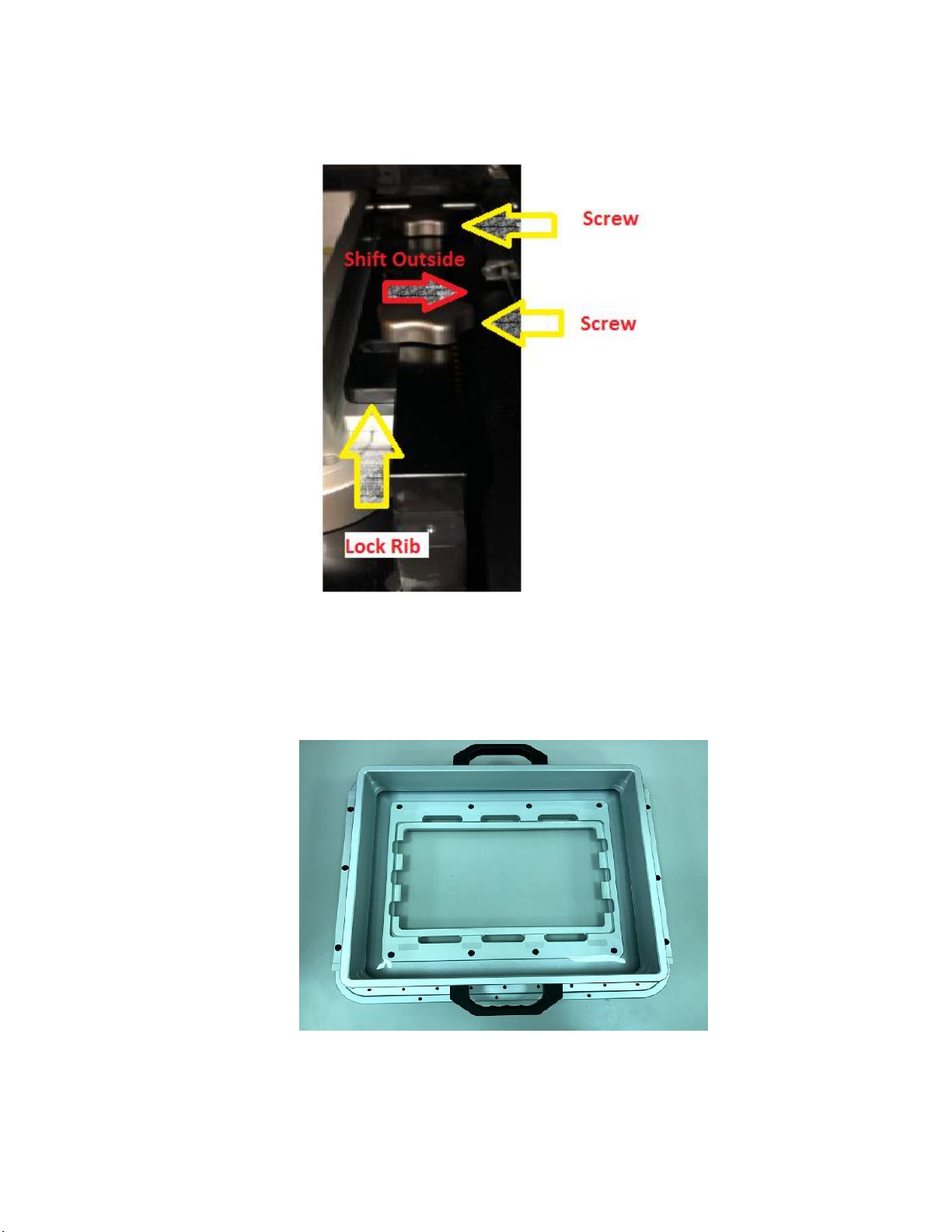

Remove the module by unscrewing tank holders 4 screw & shifting ribs on the outside.

(Image contains one side only)

Pull out the tank outside by holding tank handle & place it on safe cart to start further

procedure.

MIICRAFT 3D Production System --> An important step in making a better world

Remove the 6 locking bolts using hex allen key as shown in the image.

Lift up the teflon module to check if glass have some residuals or dirt on it.

Take out the glass & teflon tank assembly. (Refer following image)

If glass contains any kind of dirt on it, clean it with alcohol or acetone using cotton or tissue.

Cleaning procedure should be done soft & slowly on both sides to avoid damage to the glass.

MIICRAFT 3D Production System --> An important step in making a better world

The cleaned glass will be transparent as shown in the image.

Check if teflon is leaking resin from its surface, if yes, there’s need to change teflon.

Reassemble the teflon module on the glass using hex allen key by tightening 6 screws & insert

the assembled glass & tank module on the tilt tray mechanism.

Lock the top 4 screws after shifting both side ribs inside to secure the fixed position of tank

module on the tank holder.

(Image contains one side only)

MIICRAFT 3D Production System --> An important step in making a better world

Teflon :-

MiiCraft suggest end users to change teflon after 20 prints for avoiding print failure & wastage of time in

case of teflon failure.

Require tools :-

1) Hand Gloves

2) Power screw driver

3) Allen Key Hex - 3mm

4) Teflon Module

Procedure :-

Remove the 4 locking screws & shift the rib in unlocking position.

(Image contains one side only)

MIICRAFT 3D Production System --> An important step in making a better world

Take out the glass & teflon tank assembly

Clean the tank module by removing excess amount of resin in the resin container.

Remove 12 bolts (6 bolts on each rib) using hex Allen key or power screw driver.

Lift up the teflon module to check if glass have some residuals or dirt on it.

(Image contains one side only)

Clean it if there’s any dirt by using cotton cloth & alcohol.

MIICRAFT 3D Production System --> An important step in making a better world

Place the tank upside down for removing the 32 screws using power screw driver.

Using hex allen key or power screw driver, remove all of the screws from the tank module.

Take new teflon module.
