INSTALLATION INSTRUCTIONS

99-3030B

Attention! Let the vehicle sit with the key

out of the ignition for a few minutes before

removing the factory radio. When testing the

aftermarket equipment, ensure that all factory

equipment is connected before cycling the

key to ignition.

KIT FEATURES

• ISO DIN radio provision with pocket

• ISO DDIN radio provision

• Complete center dash panel for a factory look

• Painted matte black

• Includes an Axxess interface, wiring harness, ASWC-1,

and antenna adapter for a complete installation

KIT COMPONENTS

• A) Radio/climate control panel • B) Radio brackets • C) Climate control trim panel A (04-05) • D) Climate control trim panel B (06-09) • E) Pocket

• F) (6) Panel clips • G) (12) #8 x 3/8” Phillips screws • H) Axxess interface and wiring harness (not shown) • I) Antenna adapter (not shown)

• J) ASWC-1 (not shown) TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver

• 9/32” Socket wrench

TABLE OF CONTENTS

Dash Disassembly ...............................................2-3

Kit Preparation ...................................................4-5

Kit Assembly

–ISO DIN radio provision with pocket ..................6

–ISO DDIN radio provision .....................................7

Axxess Interface Installation .................................8

Final Assembly ...................................................... 11

WIRING & ANTENNA CONNECTIONS

Wiring Harness: Axxess interface included

Antenna Adapter: Included with kit

Steering wheel control interface: ASWC-1 included

A B C

D E

Cadillac XLR 2004-2009

Visit MetraOnline.com for more detailed information about the product and up-to-date vehicle

speciﬁc applications

1.800.221.0932

MetraOnline.com

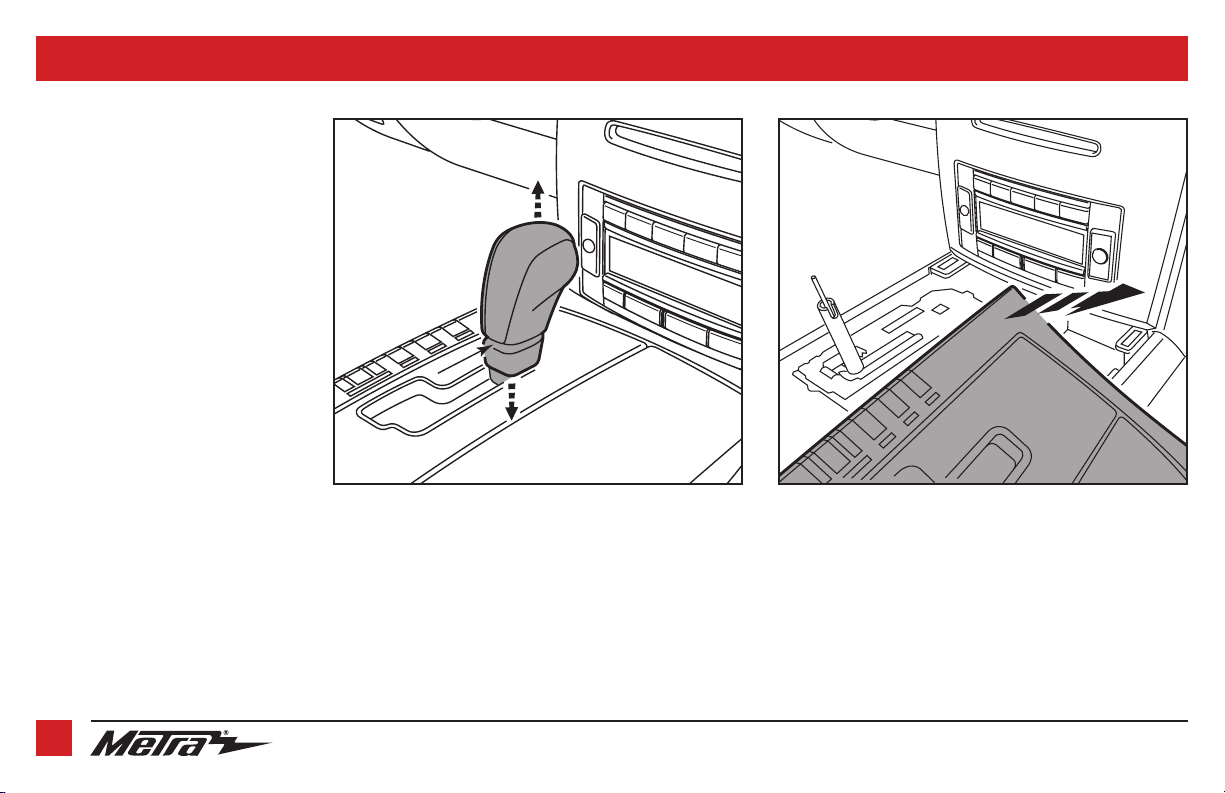

1. On the bottom of the shifter, pull the

chrome trim downward, and then

remove (1) screw exposed. Pull up on

the shifter to remove it. (Figure A)

2. Unclip the shifter trim plate, then set to

the side. (Figure B)

Continued on the next page

DASH DISASSEMBLY

(Figure B)(Figure A)

REV. 2/21/2019 INST99-3030B 3

DASH DISASSEMBLY (CONT.)

(Figure A)

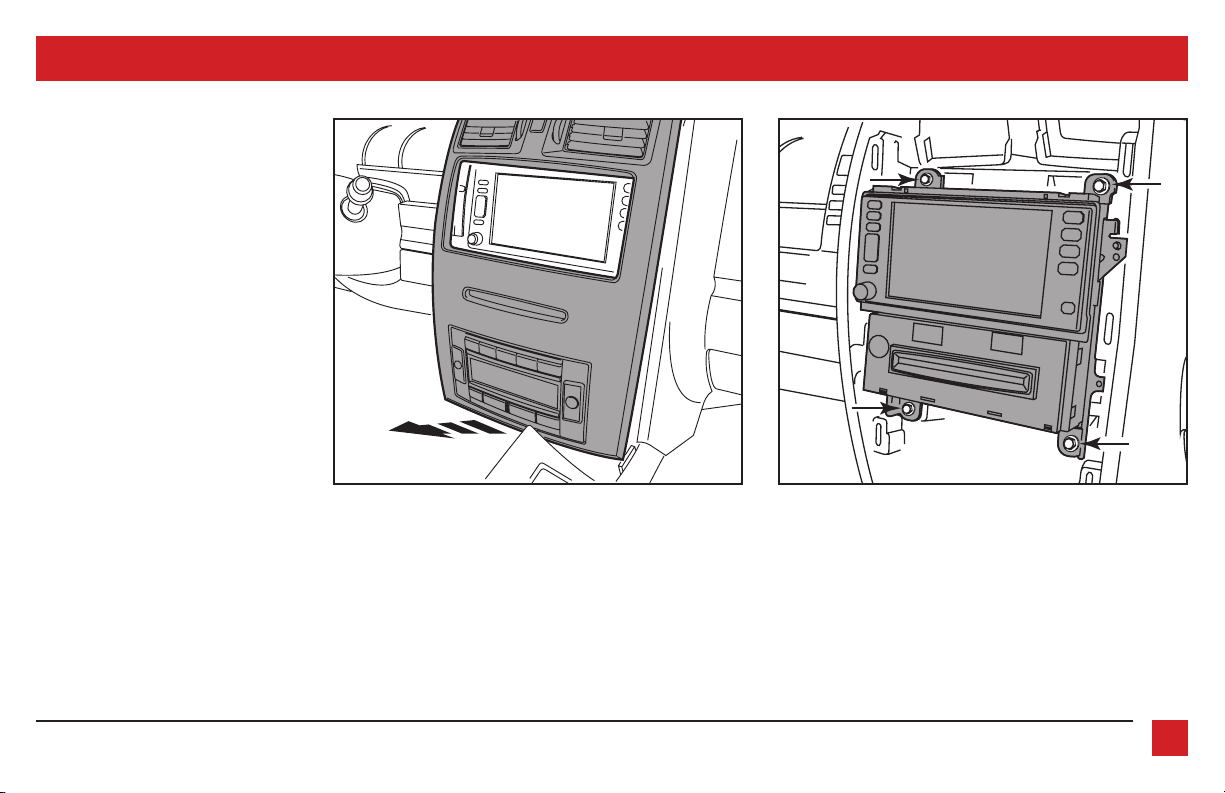

3. Unclip, unplug, and remove the radio/

climate control panel. (Figure C)

4. Remove (4) 9/32” screws securing the

radio. Slide the radio out, then unplug

and remove the radio. (Figure D)

Continue to Kit Preparation

(Figure D)(Figure C)

1.800.221.0932

MetraOnline.com

KIT PREPARATION

From the factory radio/climate control panel:

1. Unclip and remove the a/c vents.

(Figure A)

2. Unclip and remove the hazard switch.

(Figure A)

3. Remove (4) screws securing the climate

controls, then remove the controls.

(Figure A)

Continued on the next page

(Figure A)

REV. 2/21/2019 INST99-3030B 5

KIT PREPARATION (CONT.)

4. Secure the appropriate

climate control

trim panel

to the

99-3030B radio/

climate control panel

using the (4)

#8 x 3/8” Phillips screws provided. The

climate control panel

part number is

stamped onto the back of the panel.

CH-3030-1 - 2004-2005

CH-3030-2 - 2006-2009 (Figure A)

To the 99-3030B radio/climate control panel:

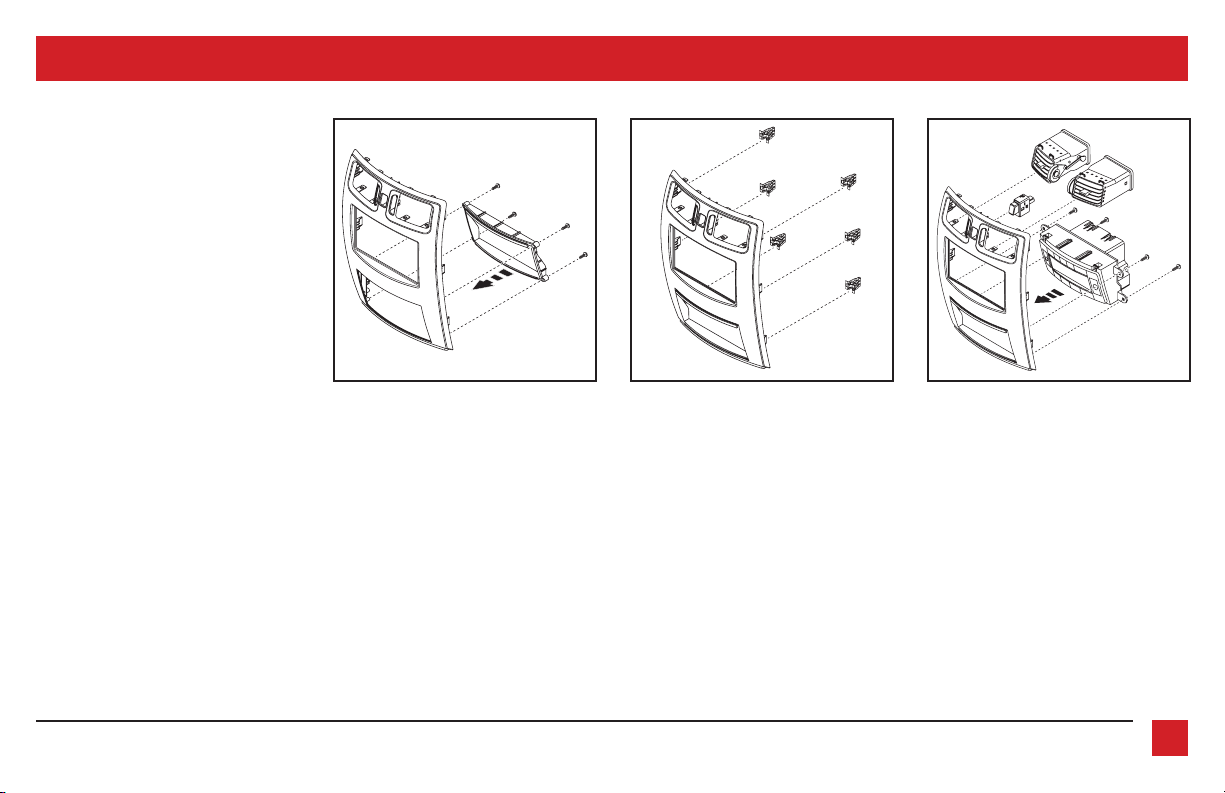

5. Secure the (6) panel clips supplied to the

panel (the factory clips can also be used

if so desired). (Figure B)

6. Clip in the factory a/c vents. (Figure C)

7. Clip in the hazard switch. (Figure C)

8. Secure the climate controls to the panel

using the (4) #8 x 3/8” Phillips screws

provided. (Figure C)

Continue to Kit Assembly

(Figure A) (Figure B) (Figure C)

1.800.221.0932

MetraOnline.com

KIT ASSEMBLY

ISO DIN radio provision with pocket

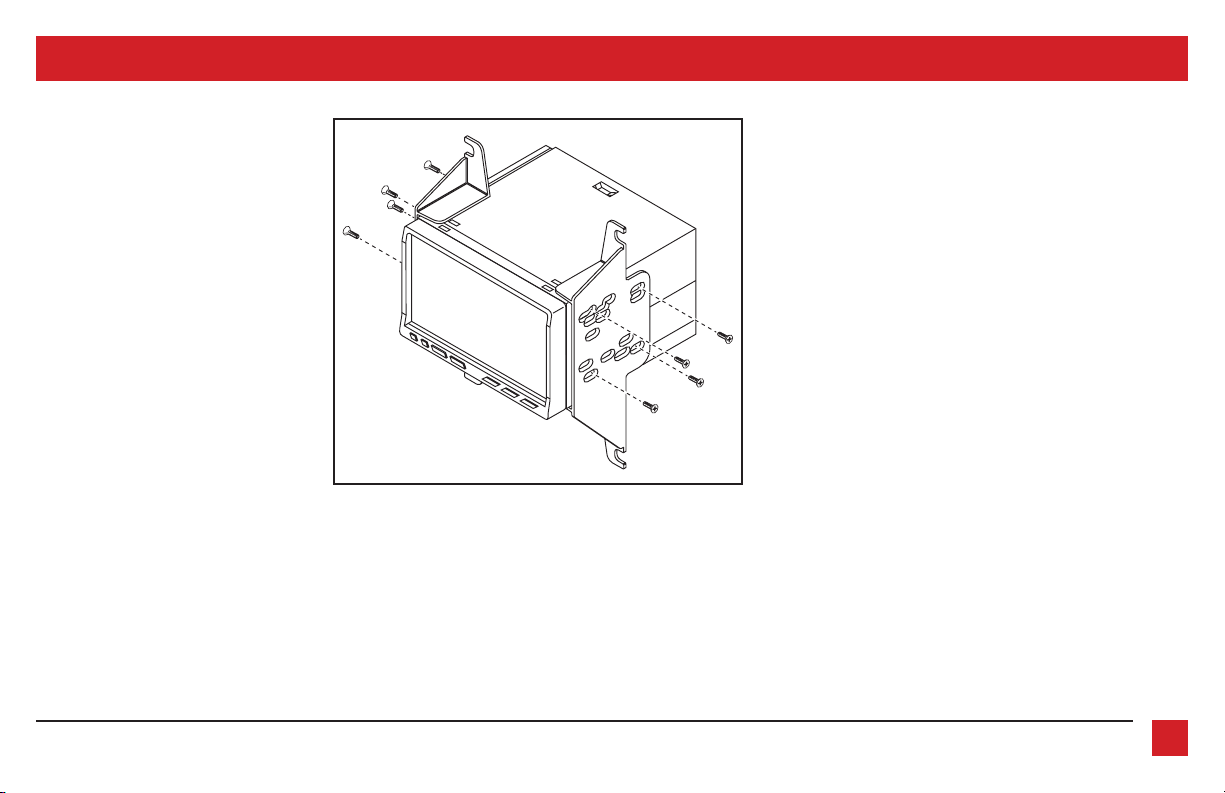

1. Secure the

radio brackets

to the

pocket

using the (4) #8 x 3/8” Phillips screws

provided. (Figure A)

2. Remove the metal DIN sleeve and trim

ring from the aftermarket radio.

3. Slide the radio into the bracket/pocket

assembly, then secure it to the assembly

using the screws supplied with the

radio. (Figure B)

Continue to Axxess Interface Installation

(Figure A) (Figure B)

REV. 2/21/2019 INST99-3030B 7

(Figure A)

ISO DDIN radio provision

1. Secure the

radio brackets

to the radio

using the screws supplied with the

radio. (Figure A)

Continue to Axxess Interface Installation

KIT ASSEMBLY

1.800.221.0932

MetraOnline.com

AXXESS INTERFACE INSTALLATION

INTERFACE FEATURES

INTERFACE COMPONENTS

• Axxess interface

• 3030 harness

• 16-pin harness with stripped leads

• ASWC-1 harness

• ASWC-1 interface

• CD player jumper harness

• Female 3.5mm connector with stripped leads

TOOLS REQUIRED

• Crimping tool and connectors, or solder gun, solder, and heat shrink

• Small ﬂat blade screwdriver • Tape • Wire cutter • Zip ties

TABLE OF CONTENTS

Connections ...............................................................................................................................9-12

Installation ...................................................................................................................................13

Programming ...............................................................................................................................13

Adjustments .................................................................................................................................14

• Provides accessory power (12-volt 10-amp)

• Maintains the Retained Accessory Power (R.A.P.) feature

• Provides NAV outputs (parking brake, reverse, speed sense)

• Retains warning chimes

• Retains OnStar/OE Bluetooth

• Adjustable volume for chimes and OnStar

• Retains steering wheel controls via ASWC-1

• Retains the factory ampliﬁer

• Retains balance and fade

• Micro-B USB updatable

REV. 2/21/2019 INST99-3030B 9

From the 3030 harness to the aftermarket radio:

• Connect the Black wire, and the (3) Black/White wires to the ground wire.

• Connect the Yellow wire to the battery wire.

• Connect the Blue wire to the power antenna wire.

• If the aftermarket radio has an illumination wire, connect the Orange wire to it.

• The Black/Yellow wire is used for OnStar level adjustment for models that do not come

equipped with steering wheel controls. Refer to the Onstar level adjustment section for

futher instructions.

ASWC-1 harness:

This harness is to be used along with the ASWC-1 to retain steering wheel audio controls. Refer

to the ASWC-1 vehicle speciﬁc install instructions available at axxessinterfaces.com for radio

connections and programming.

• Connect the Red wire to accessory power.

Continue to Installation

From the 16-pin harness with stripped leads to the aftermarket radio:

• Connect the Red wire to the accessory wire.

Note: There will be a Red wire from the 3030 harness to connect as well.

• Connect the Blue/White wire to the amp turn on wire. This wire must be connected to hear

sound from the factory ampliﬁer.

• If the aftermarket radio has a mute wire, connect the Brown wire to it. If the mute wire is

not connected, the radio will turn off when OnStar is activated.

• Connect the Gray wire to the right front positive speaker output.

• Connect the Gray/Black wire to the right front negative speaker output.

• Connect the White wire to the left front positive speaker output.

• Connect the White/Black wire to the left front negative speaker output.

• Connect the Green wire to the left rear positive speaker output.

• Connect the Green/Black wire to the left rear negative speaker output.

• Connect the Purple wire to the right rear positive speaker output.

• Connect the Purple/Black wire to the right rear negative speaker output.

The following (3) wires are only for multimedia/navigation radios that require these wires.

• Connect the Blue/Pink wire to the VSS/speed sense wire.

• Connect the Green/Purple wire to the reverse wire.

• Connect the Light Green wire to the parking brake wire.

• Tape off and disregard the Orange/White wire, it will not be used in this application.

CONNECTIONS

1.800.221.0932

MetraOnline.com

I N S TAL L ATI O N

With the key in the off position:

1. Connect the CD player jumper harness to the wiring harness in the vehicle.

2. Connect the ASWC-1 harness to the wiring harness in the vehicle. Do not connect the ASWC-1

until the Axxess interface is programmed and fully functional.

3. Connect the 16-pin harness with stripped leads into the Axxess interface.

4. Connect the 3030 harness into the Axxess interface, and then to the wiring harness in the

vehicle.

5. Locate the factory antenna connector in the dash and complete all necessary connections to

the radio. Use the antenna adapter provided to adapt the factory antenna connector to the

aftermarket radio.

PROGRAMMING

Attention! If the interface ever loses power, the following steps will need to be performed again.

Please ensure that the owner of the vehicle knows this.

1. Temporarily connect the climate control while programming.

Turn the key to the ignition position and wait until the radio comes on

Note: If the radio doesn’t come on within 60 seconds, turn the key to the off position,

disconnect the interface, check all connections, reconnect the interface and then try agin.

Cycle the key off. If the driver’s door is closed, open and close the door. Cycle the key back on.

4. Test all funtions of the installation for proper operation, before reassemblying the dash.

5. Connect the ASWC-1 to the ASWC-1 harness, then program it per the vehicle speciﬁc install

instructions.
