Metra Electronics 88-00-8000 Manual de usuario

88-00-8000

AW-800PKUV

INSTALLATION

INSTRUCTIONS

APPLICATIONS

CAR PAGE

TOYOTA

4Runner 1984-88......................................................................... 1

4Runner 1989-95......................................................................... 1

4Runner 1996-99......................................................................... 2

Camry 1987-91............................................................................ 2

Celica(GT/GTS) 1986-89...............................................................3

Celica 1990-93............................................................................. 3

Corolla(GTS/SR5) 1984-87...........................................................4

Corolla(sedan/wagon-lowerdash) 1988-92.................................. 4

Corolla(sedan/wagon-upperdash) 1988-92..................................5

Corolla (coupe-lowerdash) 1993-97.............................................. 5

Corolla(coupe-upperdash) 1993-97............................................. 6

MR2 1991-94............................................................................... 6

Pickup 1984-88............................................................................ 7

Pickup 1989-91............................................................................ 7

Pickup 1992-95............................................................................ 8

Supra 1986-92............................................................................. 8

T100 1993-98.............................................................................. 9

Tacoma 1995-00...........................................................................9

KIT FEATURES

Workswith

factorybrackets

orMetra's

99-8101

Fillsspaceleft

afterremoving

double-DINunit

KIT COMPONENTS

TOOLS REQUIRED

Cuttingtool

Phillipsscrewdriver

KIT FEATURES

Pocket

1-800-221-0932 www.metraonline.com

Disconnect the negative battery terminal to

prevent an accidental short circuit. Remove

the ashtray and (3) screws from the ashtray

bracket. Remove (1) screw from each side

of the dash console and unsnap the trim

bezel.

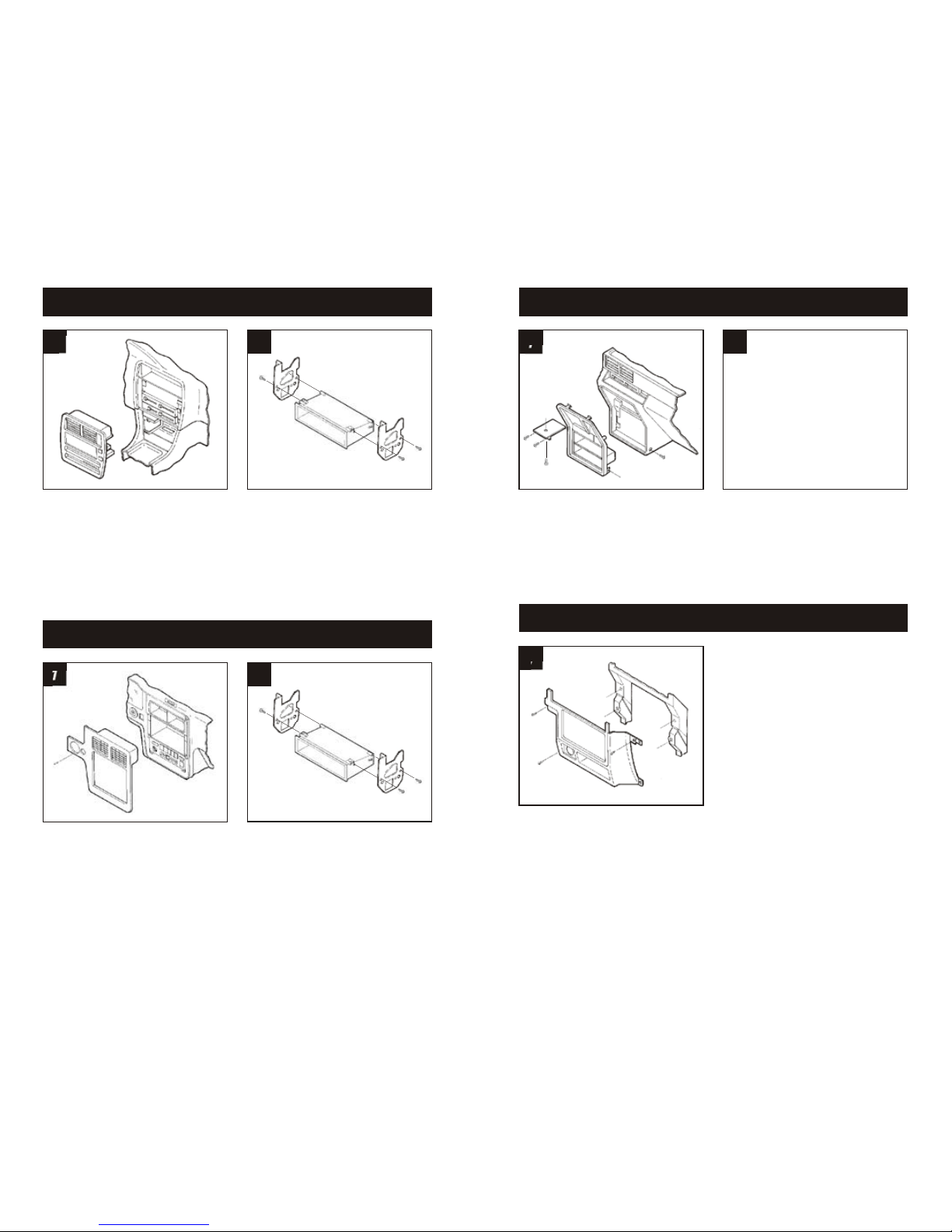

TOYOTA 4Runner 1984-88

Disconnect the negative battery terminal to

prevent an accidental short circuit. Remove

the driver's side speaker panel by removing

(3) screws and (1) 10mm bolt. Remove (1)

screw from the left side of the housing and

unsnap the ignition cover. Remove the

glove compartment assembly by removing

(1) 10mm bolt from the bottom of the

speaker panel and (3) screws from the right

side of the housing. Remove the remaining

(3)screwssecuringtheradiotrimbezel.

TOYOTA 4Runner 1989-95

Remove the mounting brackets from the

factory head unit assembly. Align the holes

inthemountingbracketswiththeholesinthe

Pocket. Mount the factory mounting

brackets to the Pocket with those screws

previouslyremoved.

Remove the mounting brackets from the

factory head unit assembly. Align the holes

inthemountingbracketswiththeholesinthe

Pocket. Mount the factory mounting

brackets to the Pocket with those screws

previouslyremoved.

USE THE FOLLOWING INSTRUCTIONS FOR APPLICATIONS USING

FACTORY BRACKETS. FOR APPLICATIONS USING METRA'S 99-

8101,USETHEINSTRUCTIONSPROVIDEDWITHTHATKIT.

Disconnect the negative battery terminal to

prevent an accidental short circuit. Open

the center armrest door. Unsnap the

parking brake trim panel to access the gear

shifter trim panel. Unsnap the gear shifter

trimpanel and remove. Removetheclimate

control knobs. Remove the climate control

trim plate and (2) Phillips screws exposed.

Unclip the radio trim bezel and remove.

Remove (4) Phillips screws securing the

factoryheadunitanddisconnectthewiring.

TOYOTA 4Runner 1996-99

Disconnect the negative battery terminal to

prevent an accidental short circuit. Remove

(2) screws above the climate controls and

gentlyunsnapthedashtrimbezel. Remove

(4) screws securing the factory head unit

anddisconnectthewiring.

TOYOTA Camry 1987-91

Remove the mounting brackets from the

factory head unit assembly. Align the holes

inthemountingbracketswiththeholesinthe

Pocket. Mount the factory mounting

brackets to the Pocket with those screws

previouslyremoved.

Remove the mounting brackets from the

factory head unit assembly. Align the holes

inthemountingbracketswiththeholesinthe

Pocket. Mount the factory mounting

brackets to the Pocket with those screws

previouslyremoved.

Disconnect the negative battery terminal to

prevent an accidental short circuit. Remove

(2) screws from the lower steering column

panel and remove. Remove the (2) screws

exposed on the radio trim bezel. Open the

glove box and remove (1) screw and (1) bolt

exposed. Remove (2) screws from the ash-

tray cavity and (2) screws from the bracket.

Remove (2) screws from each lower side of

thetrimbezelandunsnapthebezel.

TOYOTA Celica (GT/GTS) 1986-89

Disconnect the negative battery terminal to

preventanaccidentalshortcircuit. Carefully

pry up on the gear shifter trim panel and

remove. Remove (2) screws exposed on

the bottom edge of the radio trim panel.

Unsnap the panel and disconnect the

ashtrayandcigarettelighterwiring.

TOYOTA Celica 1990-93

Remove the mounting brackets from the

factory head unit assembly. Align the holes

inthemountingbracketswiththeholesinthe

Pocket. Mount the factory mounting

brackets to the Pocket with those screws

previouslyremoved.

Remove the mounting brackets from the

factory head unit assembly. Align the holes

inthemountingbracketswiththeholesinthe

Pocket. Mount the factory mounting

brackets to the Pocket with those screws

previouslyremoved.

Disconnect the negative battery terminal to

prevent an accidental short circuit. Remove

(1) screw located to the right of the ignition

switch. Remove (1) screw located above

the driver's side speaker. Carefully unsnap

the dash trim bezel (some force may be

required).

TOYOTA Corolla (sed/wag-lower dash) 1988-92

Disconnect the negative battery terminal to

prevent an accidental short circuit. Remove

(2) Phillips screws from each side of the

console trim bezel. Remove (4) screws

securing the factory head unit and

disconnectthewiring.

TOYOTA Corolla (GTS/SR5) 1984-87

Remove the mounting brackets from the

factory head unit assembly. Align the holes

inthemountingbracketswiththeholesinthe

Pocket. Mount the factory mounting

brackets to the Pocket with those screws

previouslyremoved.

Remove the mounting brackets from the

factory head unit assembly. Align the holes

inthemountingbracketswiththeholesinthe

Pocket. Mount the factory mounting

brackets to the Pocket with those screws

previouslyremoved.

Disconnect the negative battery terminal to

prevent an accidental short circuit. Remove

the climate control knobs, unsnap the upper

trim bezel and disconnect the hazard and

clock leads. Remove (2) screws from the

lowertrimbezelandremove.

TOYOTA Corolla (coupe-lower dash) 1993-97

Disconnect the negative battery terminal to

prevent an accidental short circuit. Remove

(4) screws from the top edge of the

instrument trim bezel and (2) screws below

the radio opening. Remove (1) screw from

the lower-left tab of the bezel ( to the right of

thea/cvent)andunsnapthebezel.

TOYOTA Corolla (sed/wag-upper dash) 1988-92

Remove the mounting brackets from the

factory head unit assembly. Align the holes

inthemountingbracketswiththeholesinthe

Pocket. Mount the factory mounting

brackets to the Pocket with those screws

previouslyremoved.

Remove the mounting brackets from the

factory head unit assembly. Align the holes

inthemountingbracketswiththeholesinthe

Pocket. Mount the factory mounting

brackets to the Pocket with those screws

previouslyremoved.

Disconnect the negative battery terminal to

prevent an accidental short circuit. Remove

the climate control knobs and unsnap the

dash trim bezel. Disconnect the clock and

hazardleads.

TOYOTA Corolla (coupe-upper dash) 1993-97

Disconnect the negative battery terminal to

prevent an accidental short circuit. Remove

the ashtray and (2) screws from the ashtray

cavity. Unsnap and remove the shifter

consolebezel. Remove(1) screwbelowthe

ignition switch and remove the dash trim

bezel.

TOYOTA MR2 1991-94

Remove the mounting brackets from the

factory head unit assembly. Align the holes

inthemountingbracketswiththeholesinthe

Pocket. Mount the factory mounting

brackets to the Pocket with those screws

previouslyremoved.

Remove the mounting brackets from the

factory head unit assembly. Align the holes

inthemountingbracketswiththeholesinthe

Pocket. Mount the factory mounting

brackets to the Pocket with those screws

previouslyremoved.

Disconnect the negative battery terminal to

prevent an accidental short circuit. Remove

the ashtray and (3) screws from the ashtray

bracket. Remove (1) screw from each side

of the dash console and unsnap the trim

bezel.

TOYOTA Pickup 1984-88

Disconnect the negative battery terminal to

prevent an accidental short circuit. Remove

the driver's side speaker panel by removing

(3) screws and (1) 10mm bolt. Remove (1)

screw from the left side of the housing and

unsnap the ignition cover. Remove the

glove compartment assembly by removing

(1) 10mm bolt from the bottom of the

speaker panel and (3) screws from the right

side of the housing. Remove the remaining

(3)screwssecuringtheradiotrimbezel.

TOYOTA Pickup 1989-91
