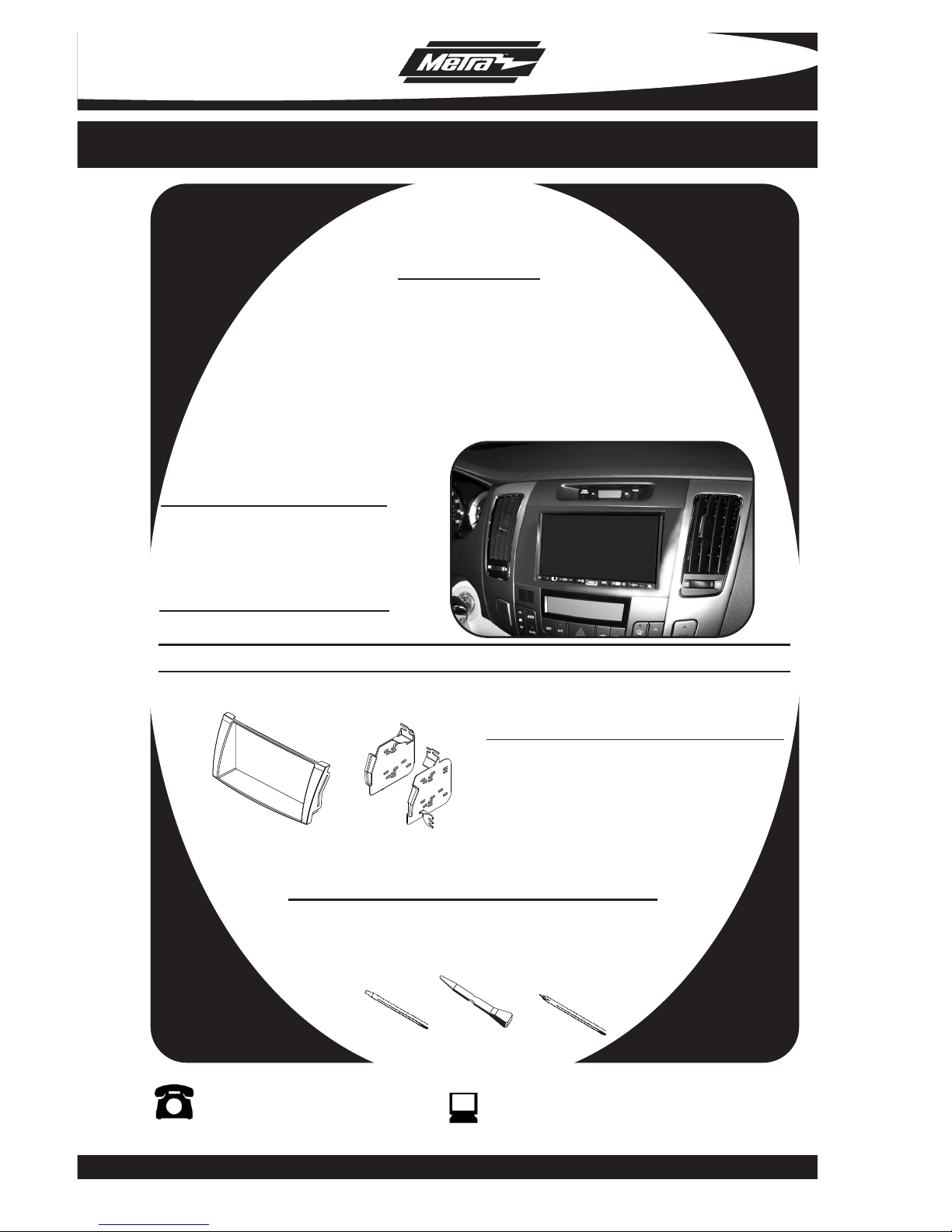

INSTALLATION INSTRUCTIONS FOR PART 95-7333

95-7333

KIT FEATURES

•Double DIN Radio Provision

•Stacked ISO Mount Units Provision

• Painted To Match Factory

Bronze Dash

A) Double DIN Trim Plate B) Double DIN Brackets

Wiring & Antenna Connections (sold separately)

•70-7303 - Hyundai / Kia Harness 2009

•40-KI11 - Kia Antenna Adapter 2007-up

KIT COMPONENTS

Small Flat Blade Screwdriver • Panel Removal Tool

•Phillips Screwdriver

1-800-221-0932

www.metraonline.com

TOOLS REQUIRED:

APPLICATIONS

HYUNDAI

Sonata 2009-10

Dash Disassembly

-HyundaiSonata2009-10.........................................1,2

Kit Assembly

-DoubleDINRadioProvision .......................................3

-Stacked ISO Mount Units Provision

Final Assembly ...........................................4

TABLE OF CONTENTS

95-7333

*Note:

Refer also to the instructions included with the aftermarket radio.

95-7333 DASH DISASSEMBLY

HYUNDAI SONATA2009

-10

Disconnect the negative battery

terminal to prevent an accidental

short circuit.

Unclip and remove the shifter trim

panel.

(Figure B)

Remove shifter knob from stem.

(Figure A)

Unclip and remove the (2) side trim

panels from the center console area.

(Figure C)

Continued on page 2.

95-7333 DASH DISASSEMBLY

HYUNDAI SONATA2009

-10

Remove (2) Phillips screws then

unclip and remove the small trim

panel below the factory climate con-

trols and above the pocket.

(Figure D,E)

Unclip and remove the trim panel sur-

rounding the radio and including the

climate controls and vents.

(Figure F)

Remove (4) Phillips screws securing

the radio.Unplug and remove the

radio.

(Figure G)

Continue to kit assembly.

95-7333 KIT ASSEMBLY

DOUBLE DIN/STACKED ISO MOUNT

UNITS PROVISION

Slide the Double DIN or stacked ISO

mount unit(s) into the bracket/trim

plate assembly and secure the

unit(s) to the assembly using the

screws supplied with the unit(s).

(Figure B)

Continue to final assembly.

*Note: Refer also to the instructions included with the aftermarket radio.

Snap the Double DIN brackets to the

inside edge of the Double DIN trim

plate.

(Figure A)

95-7333 FINAL ASSEMBLY

FINAL ASSEMBLY

(A) Strip wire ends back 1/2"

B) Twist ends together

C) Solder

D) Tape

Locate the factory wiring harness in the dash. Metra recommends using the

proper mating adapter and making connections as shown. (Isolate and individually

tape off the ends of any unused wires to prevent electrical short circuit.)

Re-connect the negative battery terminal and test the unit for proper operation.

Reassemble radio and dash assemblies in reverse order of disassembly.

FINAL WIRING CONNECTIONS

Make wiring connections using the EIA color code chart shown belowand the instructions included with the

head unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and

individually tape off ends of anyunused wires to prevent electrical short circuit.

METRA / EIA WIRING CODE

12V Ignition / Acc. . . . . . . . . . Red

12V Batt / Memory. . . . . . . . . Yellow

Ground. . . . . . . . . . . . . . . . . . Black*

Power Antenna............Blue

Amp Turn-On . . . . . . . . . . . . . Blue / White

Amp Ground. . . . . . . . . . . . . . Black / White

Illumination . . . . . . . . . . . . . . Orange

Dimmer.................Orange / White

Right Front (+) . . . . . . . . . . . . Gray

Right Front (-). . . . . . . . . . . . . Gray/ Black

Left Front (+) . . . . . . . . . . . . . White

Left Front (-). . . . . . . . . . . . . . White / Black

Right Rear (+) . . . . . . . . . . . . Violet

Right Rear (-) . . . . . . . . . . . . . Violet / Black

Left Rear (+) . . . . . . . . . . . . . Green

Left Rear (-) . . . . . . . . . . . . . . Green / Black

*NOTE: When a Black wire is not present, ground radio to vehicle chassis.

All colors may not be present on all leads due to manufacturer’s specifications.

95-7333

NOTES

95-7333 INSTRUCTIONS

1-800-221-0932

www.metraonline.com
