Metra Electronics 107-HY1 Manual de usuario

INSTALLATION INSTRUCTIONS

107-HY1

Patent Pending

Attention! With the key out of the ignition,

disconnect the negative battery terminal

before installing this product. Ensure that all

installation connections are secure before

cycling the ignition to test this product.

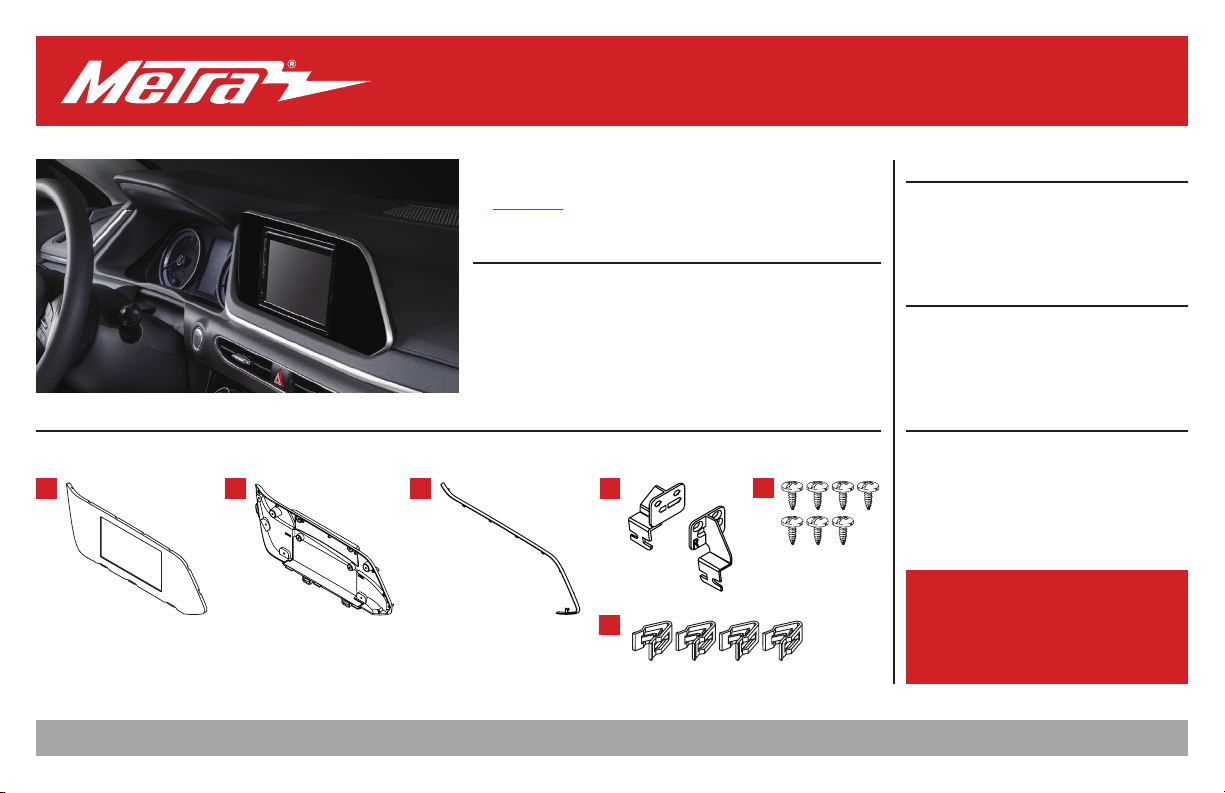

KIT FEATURES

• Designed speciﬁcally for Pioneer modular 6.8” radios like the

DMH-C2550NEX and DMH-C2500NEX.

†† Refer to the radio manufacturer for current models

• Painted to match factory with a gloss black face, bright silver trim,

and matte black back plate.

Note – Pioneer extension cable required for installation. Sold separately.

KIT COMPONENTS

• A) Front panel • B) Back panel • C) Brackets • D) Silver trim • E) #8 x 3/8” Phillips screws (7) • F) Panel clips (4)

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver

TABLE OF CONTENTS

Dash Disassembly ..................................................2

Kit Assembly ..........................................................3

A CB D E

Hyundai Sonata 2020-Up

Visit MetraOnline.com for more detailed information about the product and up-to-date vehicle

speciﬁc applications

WIRING & ANTENNA CONNECTIONS

(sold separately)

Wiring Harness:

Visit metraonline.com for audio/

video and steering wheel control interface options.

Antenna Adapter: 40-KI10

1.800.221.0932

MetraOnline.com

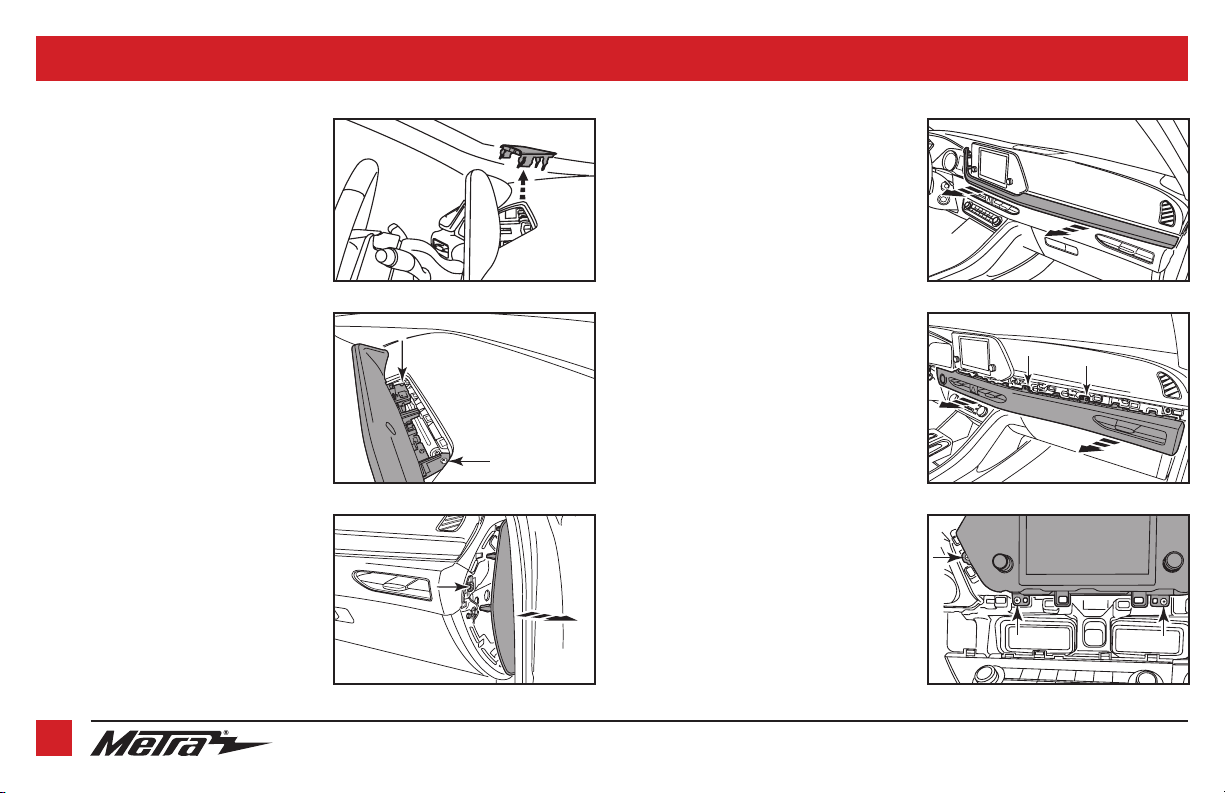

1. Unclip the trim behind the radio and

remove (2) Phillips screws exposed.

(Figures A,B)

2. Open the passenger door, then remove

the trim panel from the side of the

dashboard. Remove (1) Phillips screw

exposed. (Figure C)

3. Unclip and remove the trim directly

below the radio. (Figure D))

DASH DISASSEMBLY

4. Remove (2) Phillips screws securing the

a/c vent panel, then unclip, unplug, and

remove. (Figure E)

5. Remove (3) screws securing the radio.

Unclip and slide the radio out, then

unplug and remove. (Figure F)

Continue to Kit Preparation

(Figure A) (Figure D)

(Figure B) (Figure E)

(Figure C) (Figure F)

REV. 9/16/2021 INST107-HY1 3

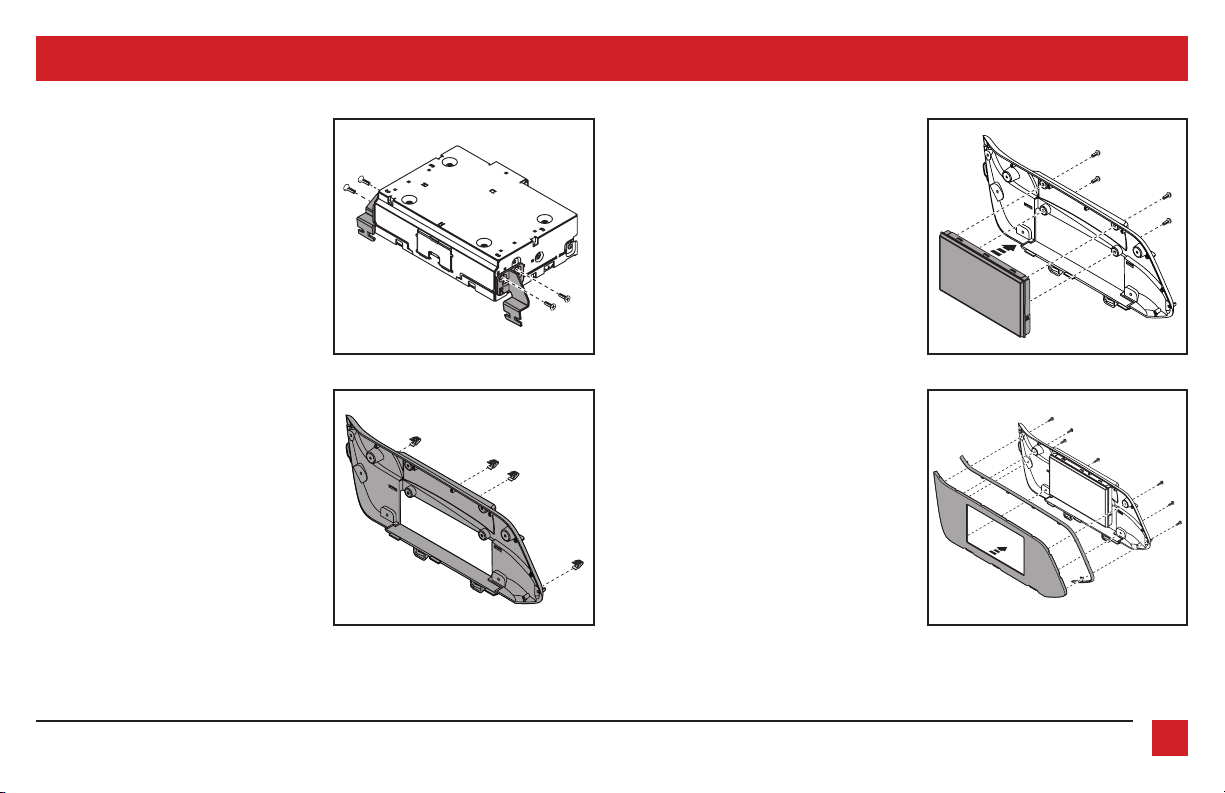

KIT ASSEMBLY

Pioneer Modular DDIN radio provision

Note: For steps 1 and 2, reference the

installation manual provided with the radio

for which hardware to use. The display

screen and radio chassis use two different

types of screws.

1. Secure the brackets to the radio chassis

using (4) screws supplied with the radio.

(Figure A)

2. Locate the factory wiring harness and

antenna connector in the dash and

complete all necessary connections to

the radio. Metra recommends using the

proper mating adapter from Metra and/

or Axxess.

3. Slide the radio assembly into to the

dash, then secure using the factory

screws. (NOTE – route screen cable to be

connected later)

4. Connect Pioneer extension cable to the

radio display screen.

5. Attach the (4) panel clips to the back

panel (Figure B)

6. Secure the radio screen display to the

back panel using (4) of the screws

supplied with the radio. (Figure C)

7. Place the silver trim betwixt the back

panel and the front panel. Assemble

together using (7) of the included

#8 x 3/8” screws. (Figure D)

8. Connect the radio display to the radio

chassis, clip the assembly into the dash,

and secure with the factory hardware.

9. Reassemble the dash in reverse

order of disassembly to complete the

installation.

(Figure A) (Figure C)

(Figure B) (Figure D)

KNOWLEDGE IS POWER

Enhance your installation and fabrication skills by

enrolling in the most recognized and respected

mobile electronics school in our industry.

Log onto www.installerinstitute.com or call

800-354-6782 for more information and take steps

toward a better tomorrow.

Metra recommends MECP

certiﬁed technicians

INSTALLATION INSTRUCTIONS

107-HY1

Having difﬁculties? We’re here to help.

Contact our Tech Support line at:

386-257-1187

Or via email at:

techsupport@metra-autosound.com

Tech Support Hours (Eastern Standard Time)

Monday - Friday: 9:00 AM - 7:00 PM

Saturday: 10:00 AM - 7:00 PM

Sunday: 10:00 AM - 4:00 PM
