Maytronics Pulit E70 Manual de usuario

1English

8151148

Pulit E70 Robot Pool Cleaner by Maytronics

User Instructions

Guide d’utilisation

Istruzioni per l’uso

Instrucciones para el Usuario

Bedienungsanweisungen

DEU

3English

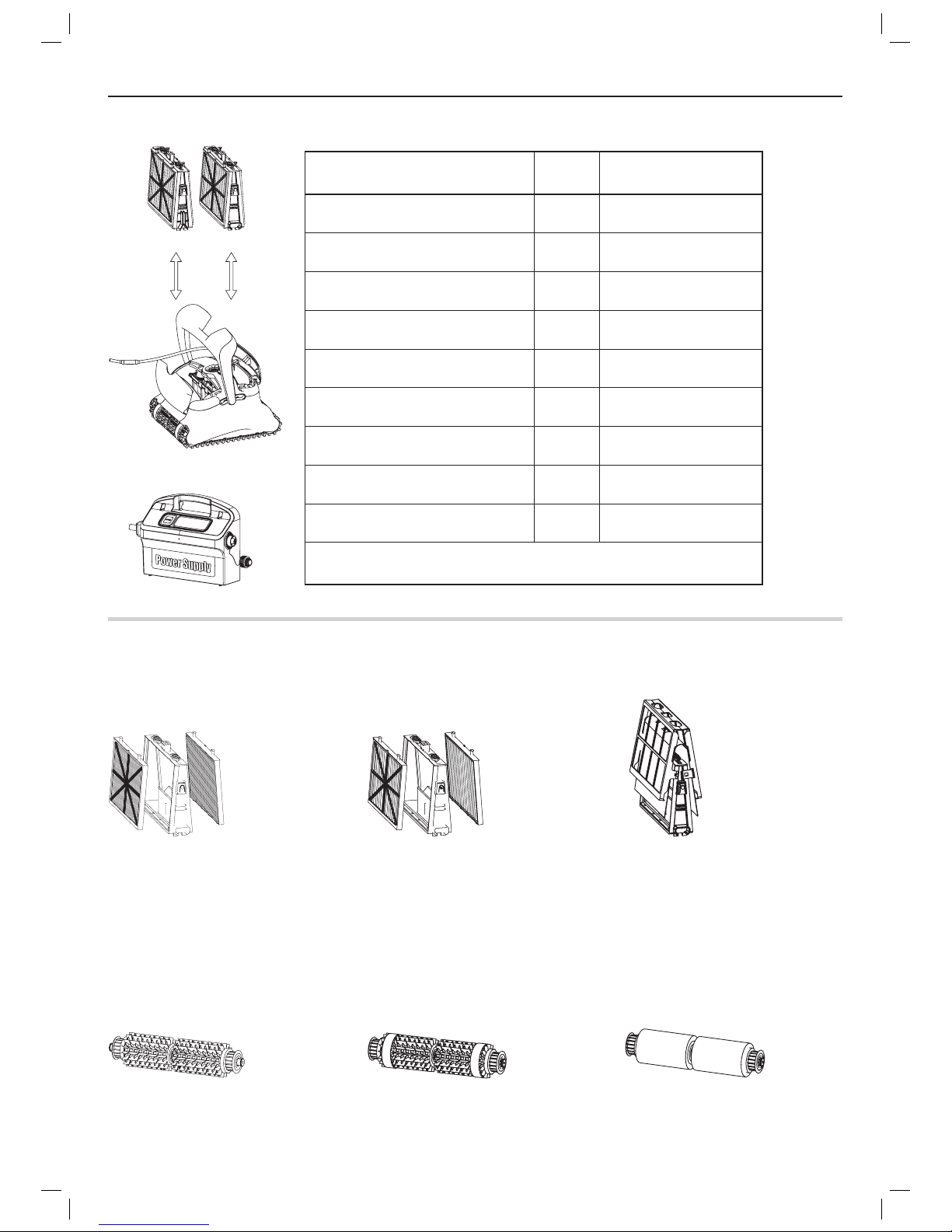

What You’ll Find Inside the Box

Part X Comment

Base frame for ﬁlter elements 2

Ultra-ﬁne ﬁlter 4 ﬁlters

Bag for ﬁlters storage 1

Ultra-ﬁne disposable ﬁlter with frames 1 set 10 disposable ﬁlters per set

Spring ﬁlter 4 ﬁlters

“S” clip 4

Power supply unit 1

Pulit E70 pool cleaner 1

Caddy kit 1

Optional components available on request from your Pulit E70 distributor

Section 1 - Description of Main Components

1. Filters

There are three types of ﬁlters.

Spring ﬁlter + base frame

For dirty pools with large debris such as

leaves etc. – Useful for beginning of season.

Ultra-ﬁne ﬁlter cartridge + base frame

For day-to-day use.

Factory default.

Ultra-ﬁne disposable ﬁlter + frame

For day-to-day use for up to 3 cycles.

2. Brushes

There are three types of optional brushes, each designed to provide optimal traction on different pool surfaces. Only one type set is

provided with your Pulit E70.

Standard Brush

For concrete, PVC, ﬁberglass and liner.

Combined Brush

For rough ceramic surface and mosaic tiles.

Wonder Brush

For smooth ceramics.

Power supply Unit

Pulit E70 pool cleaner

Filter and cartridges

English

3. Power supply unit

Digital, “Switch-Mode” power supply:

Input - 100-250 AC VoltsUÊ

50-60 HertzUÊ

180 WattUÊ

Output - 30 VDCUÊ

IP 54UÊ

Section 2 – Pulit E70 Operation

Part 1 – Preparing the Pulit E70 Pool Cleaner for Use

A. Assemble the Caddy kit – you will ﬁnd the instructions in a separate document

B. Adjusting the handle ﬂoat angle

The handle angel must be adjusted to determine the speed that the Pulit E70 advances along the water-line.

1. Lay the handle down at an angle of 180º to

the ground.

2. Push the base of the arm into the body of the

Pulit E70 and slide it towards the rear of the

Pulit E70 until it clicks into the required position.

Normal advance

More efﬁcient cleaning action on water-line.

Fast advance

Fast speed – For faster but less efﬁcient cleaning

action on water-line.

Push in here Slide here

Push in here

Slide here

On/Off

switch

5English

C. Laying out the cable

Unwind minimal required cable to cover the entire pool size, straight the cable along the pool side.

Make sure there are no twists or kinks.

Part 2 - Into the water

Inserting the Pulit E70 into the pool.

Place the Pulit E70 into the pool and release the handle.

Note: When using the Combined brushes or Wonder brushes, gently squeeze the Wonder brush material until it is totally wet.

Only use the original supplied power supply unit.

The Power supply unit is splash proof – do not immerse it in water.

Unplug the power supply unit before any servicing activity.

Do not plug the power supply unit in before placing the pool cleaner in the water.

Ensure the mains outlet is protected by a ground fault interrupter (GFI) or an earth leakage interrupter (ELI).

3 Meters

10 feet Swivel

English

Turning the Pulit E70 on

Part 3 - Taking the Pulit E70 out of the water

Unplug power supply before any servicing activity.

If the Pulit E70 has not ﬁnished its cycle, turn off the power supply1.

unit and unplug the mains.

Pull the ﬂoating cable gently until the Pulit E70 has risen to the2.

surface, then lift by the handle.

Plug the ﬂoating cable from the Pulit E701.

into the power supply unit.

Plug the electrical cable from the power2.

supply unit into the mains.

Press the ON/OFF switch3.

The Pulit E70 will now start to work.4.

Important: Do NOT lift the Dolphin from the water by its cable.

Floating cable

On/Off

switch

Note : If your model includes the remote control unit, please refer to the included instruction leaﬂet.

7English

Section 3 - Routine Maintenance

Part 1 - Extracting and cleaning the ﬁlter elements

Unplug power supply before any servicing activity.

Reassembling the ﬁlter elements

Insert the locating tabs at the bottom of the

ﬁlter element into their groves on the base frame,

then close the “S” clip.

Opening the Ultra-ﬁne disposable ﬁlters

1. Open the ﬁlter frames by unclipping the

fasteners at the sides.

2. Rinse out the cartridge base, then reassemble

the cartridges with a new disposable ﬁlter.

Filter frame

Cartridge base

Side fastener

Locating tab

Locating tab groove

Disposable

Ultra-ﬁne ﬁlter element

English

Reinstall the ﬁlters according to the diagram

DO NOT FORCE THE FILTERS INTO PLACE.

Part 2 - Dismantling and cleaning the impeller

Unplug power supply before any servicing activity.

Dismantle the impeller cover and

clean around the impeller housing,

then reassemble.

Grooved end ﬁtting Octagonal end ﬁtting

Important: Where applicable, you must reset the full ﬁlter bag indicator on the power supply unit.

Important: When storing a Pulit E70 with Combined or Wonder brushes, please note to keep the brushes wet at all times.

Recommendation: Rinse all brushes with clean water after each cleaning cycle.

Coil the cable and store in dry cool area – preferably on the Caddy if available.

Do NOT store the Pulit E70 exposed to direct sunlight.

Do NOT store the Pulit E70 exposed to excessive heat.

Do NOT store the Pulit E70 exposed to frost.

Section 4 – Storage Advice

9English

Troubleshooting Guide

Before contacting your Pulit E70 distributor please read through this guide.

The pool water condition must be within the following parameters:

PH: 7.0 – 7.4 Salt: Max 5,000 ppm

Temperature: 12˚C(54˚F) to 32˚C(90˚F) Chlorine: Max 2 ppm

Symptom Solution

Cable twisting or cable coils up Check for any obstruction in the pool

Change handle diagonal position after each use

Remove excess cable from the pool

Make sure ﬁlter cartridge is clean

Straighten cable and lay it in the sun periodically

Pulit E70 is moving in circles or does not reach all pool areas or

the Pulit E70 is not traveling sideways on walls

Check for foreign objects in moving parts

Make sure Filter elements are clean and that the ﬁlter doors

are closed

Make sure that there is enough cable laid out to cover the

whole pool

Before using the Pulit E70 at the beginning of the season you

should brush any algae from the ﬂoor and walls of the pool

Adjust the diagonal angle of the handle

Pulit E70 does not climb walls Make sure the ﬁlter cartridge is clean

If using the Pulit E70 at the beginning of the season, use the

spring cartridge

If using the Pulit E70 at the beginning of the season you should

ﬁrst brush any algae from the ﬂoor and walls of the pool

Check if brushes are suitable for pool coating and replace them

if necessary

Check if brushes are worn and replace them if necessary

Make sure the impeller area is clean

When applicable: Check that the RCU is set for climbing

Pulit E70 not sinking Make sure the Wonder brushes or the combined brushes are

soaked in water

Pulit E70 disengaging from wall at water line If Pulit E70 climbs too high consult your Pulit E70 distributor

RCU is not working When applicable: Check if the batteries need replacing

Motor is not working Check if the impeller is blocked

Check if the drive system is blocked

Electrical problem (power supply), check power source.

If power source is in order, please contact your Pulit E70

distributor

Additional troubleshooting is available at our Website:

http://www.maytronics.com

French

Liste des pièces fournies dans l’emballage

Pièces X Remarques

Châssis des composants du ﬁltre 2

Filtre ultraﬁn 4 ﬁltres

Poche de rangement des sacs ﬁltres 1

Filtre jetable ultraﬁn avec châssis 1 lot 10 ﬁltres jetables par lot

Filtre pour nettoyage de printemps 4 ﬁltres

crochet en “S” 4

Bloc d’alimentation 1

Robot nettoyeur de piscine Pulit E70 1

Kit Caddy 1

Les éléments optionnels sont disponibles sur demande de la part de votre

distributeur Pulit E70

Chapitre 1 - Description des principaux composants

1. Filtres

Trois types de ﬁltres sont disponibles.

Filtre Printemps (pour nettoyage de

printemps) + châssis

Pour piscines sales contenant des saletés de

grande taille, par ex. des feuilles – utile en

début de saison.

Cartouche de ﬁltre ultraﬁn + châssis

A usage quotidien.

Réglage d’usine, déﬁni par défaut.

Filtre jetable ultraﬁn + châssis

A usage quotidien, conçu pour 3 cycles.

2. Brosses

Trois types de brosses sont proposés en option, chacune d’elles étant conçue pour fournir une traction optimale sur différentes sur-

faces de piscine. Un seul ensemble brosse est fourni avec votre nettoyeur Pulit E70.

Brosse standard

pour surfaces en béton, PVC, ﬁbre de verre

et à revêtement.

Brosse combinée

pour surface rugueuse en céramique et

pavés en mosaïque.

Brosse Wonder

pour sols en céramique lisse.

Bloc d’alimentation électrique

Robot nettoyeur de piscine

Pulit E70

Filtre et cartouches
