User Instructions

Maytronics Dolphin robotic pool cleaner

CLASSIC 11 / CLASSIC 11+

CLASSIC 11 / CLASSIC 11+ |User Instructions

CLASSIC 11 / CLASSIC 11+

Robotic Pool Cleaner

User Instructions

Contents

1. INTRODUCTION ......................................................................................................................................................2

2. SPECIFICATIONS .....................................................................................................................................................2

3. WARNINGS AND CAUTIONS ..............................................................................................................................2

4. ROBOTIC POOL CLEANER PARTS ................................................................................................................... 4

5. USE THE POOL CLEANER....................................................................................................................................5

5.1 Setup ..................................................................................................................................................................5

5.2 Place the Pool Cleaner in the water................................................................................................... 6

5.3 Robot Indicator Lights............................................................................................................................... 6

5.4 Remove the Pool Cleaner from the water .......................................................................................7

6. USE THE

MyDolphin™ Plus

IOT MOBILE APP............................................................................................. 8

6.1

Getting Started with the MyDolphin™ Plus App

............................................................................... 8

6.2

Prepare the Pool Cleaner for Connection

.......................................................................................... 8

6.3

Activate the Pool Cleaner Using your Mobile Smart Device

....................................................... 8

6.4

Led Lights

........................................................................................................................................................ 9

7. OFFSEASON STORAGE....................................................................................................................................... 9

8. CLEANING THE DUAL FILTER BASKET..........................................................................................................10

8.1

Cleaning after use - removing and cleaning the dual ﬁlter basket

.........................................10

8.2

Periodic ﬁlter cleaning

...............................................................................................................................11

8.3

Clean the Impeller

...................................................................................................................................... 12

9. TROUBLESHOOTING ........................................................................................................................................... 13

10.

MyDolphin™ Plus

- TROUBLESHOOTING....................................................................................................14

2CLASSIC 11 / CLASSIC 11+ |User Instructions

1. INTRODUCTION

Thank you for purchasing a Maytronics Robotic Pool Cleaner.

We are sure that your Maytronics Robotic Pool Cleaner will provide you with reliable, convenient and

cost-effective pool cleaning.

Its reliable filtration in all pool conditions, active brushing, and all-surface climbing brush enhance

maximum pool hygiene.

The Robotic Pool Cleaners by Maytronics deliver advanced cleaning technology, long lasting

performance and easy maintenance. You and your family will be free to enjoy swimming with full

confidence that your pool is completely clean.

2. SPECIFICATIONS

Robot

Motor protection: IP 68

Minimum depth: 0.4m / 1.33ft

Maximum depth: 5m / 16.4ft

This product is in accordance with EU Regulation & Directive 2014/531EU.

For full EU declaration of conformity, please visit: www.maytronics/download

3. WARNINGS AND CAUTIONS

IMPORTANT SAFETY INSTRUCTIONS

READ AND FOLLOW ALL INSTRUCTIONS

Please adhere strictly to the following WARNINGS:

Ensure the electrical outlet is protected by a Ground Fault Interrupter (GFI) or an Earth Leakage

Interrupter (ELI).

Keep the power supply out of standing water.

Position the power supply at least 3.5m/12ft away from the edge of the pool.

Do not enter the pool while the Pool Cleaner is in the water.

Unplug the power supply before servicing

Take the Robot Pool Cleaner out of the pool before allowing people to enter the pool.

When examining the Robot Pool Cleaner, disconnect the main power supply.

Digital switch-mode power supply

IP 54

Input: 100-125 AC Volts, 200-230 AC Volts, 50-60Hertz, 120 Watt

Output: <30VDC

Bluetooth®/Wifi® Max tras power 10mW EIRR, 2.4 GHz frequency

WARNING

CLASSIC 11 / CLASSIC 11+ |User Instructions

Ensure that children do not attempt to access Robot Pool Cleaner while it is operating.

Keep the Robot Pool Cleaner out of the reach of children or persons with reduced physical,

sensory or mental capabilities, or lack of experience and knowledge, unless they have been

given supervision or instruction.

The unit must be connected only to a supply circuit that is protected by a ground-fault circuit

interrupter (GFCI). This GFCI should be tested on a routine basis. To test the GFCI, push the test

button. The GFCI should interrupt power. Push the reset button. Power should be restored. If

the GFCI fails to operate in this manner, the GFCI is defective. If the GFCI interrupts power to the

power unit without the test button being pushed, a ground current may be flowing, indicating

the possibility of an electric shock. Do not use the power unit. Disconnect the power unit and

contact the manufacturer for assistance.

Only an original power cable must be used, at all times. Replaced by a Robot Pool Cleaner

certified technician, in case of need to avoid hazard.

To reduce the risk of electric shock replace damaged cord immedietely.

Do not use extension cord to connect unit to electric supply; provide a properly located outlet.

Use the originally supplied power supply only

Please ensure that the following PRECAUTIONS are implemented:

Operator should keep hands away from driving belt mechanism.

Position the Caddy and power supply at least 3.5m/12ft from pool’s edge – during operation.

For continued protection against possible electric shock, the power supply unit should be placed

at least 11cm/4in above ground.

When lifting the Robot Pool Cleaner, take care to prevent back injury.

Do not bury cord – locate cord to minimize abuse from lawn mowers, hedge trimmers and other

equipment.

When not in use, store the Pool Cleaner on its Caddy in a shaded area. Use the Pool Cleaner in the following

water conditions only.

Chlorine Max 4 PPM

pH 7.0-7.8 PPM

Temperature 6-35°C / 43-95°F (below 15°C / 59°F climbing performance may be affected)

NaCl Maximum = 5000 PPM

CAUTION

WARNING

4CLASSIC 11 / CLASSIC 11+ |User Instructions

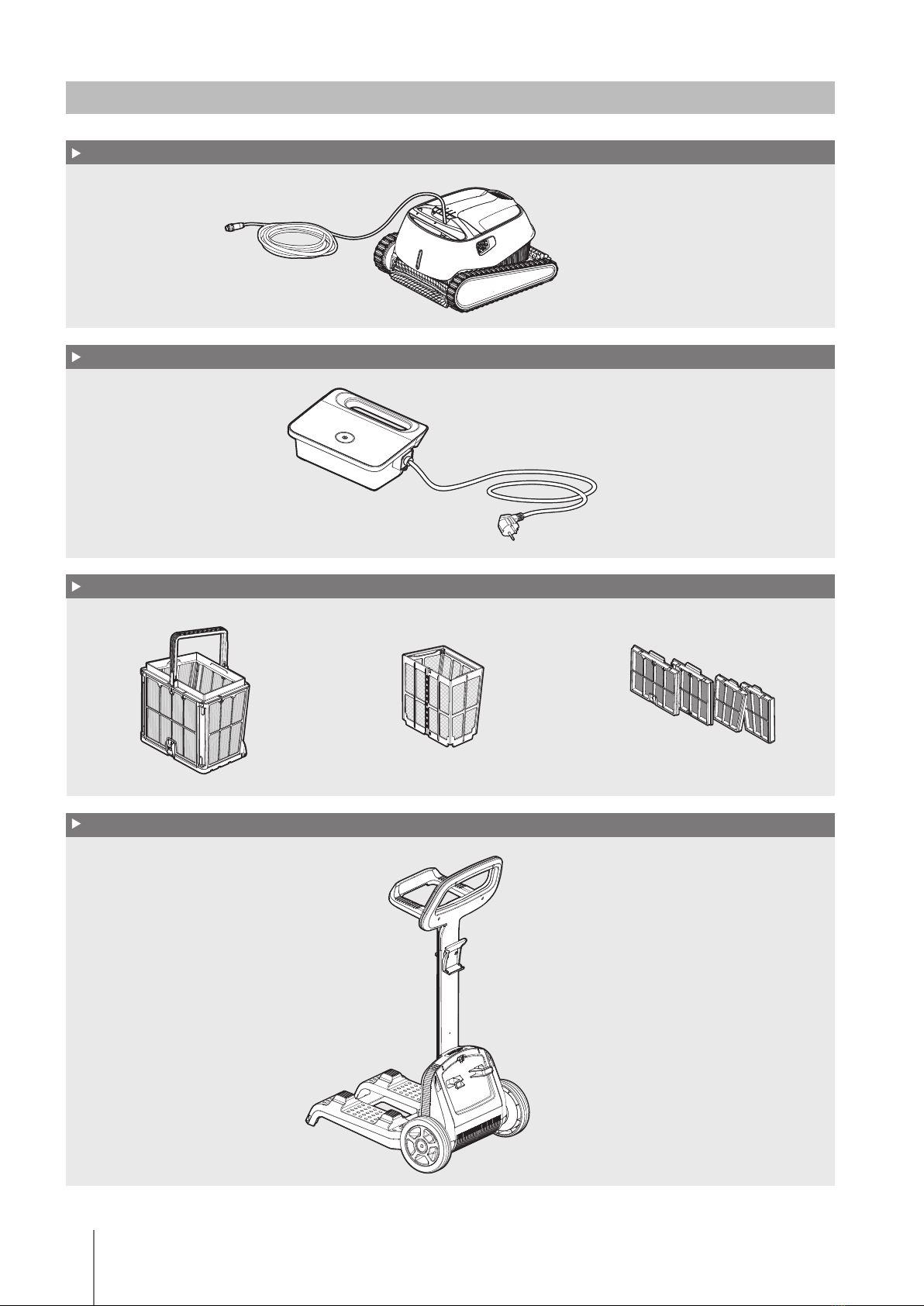

Caddy kit - optional

Power supply unit - options

Filtration options

Robotic Pool Cleaner Model Basic 11 / Classic 11 / Classic 11+

4. ROBOTIC POOL CLEANER PARTS

CLASSIC 11 / CLASSIC 11+ |User Instructions

5. USE THE POOL CLEANER

5.1 Setup

The Pool Cleaner is very simple to use. Simply place it in the pool and make sure that it is correctly

positioned on the floor of the pool.

Turn it ON and enable it to complete the task.

Before using the Pool Cleaner for the first time, perform the following steps:

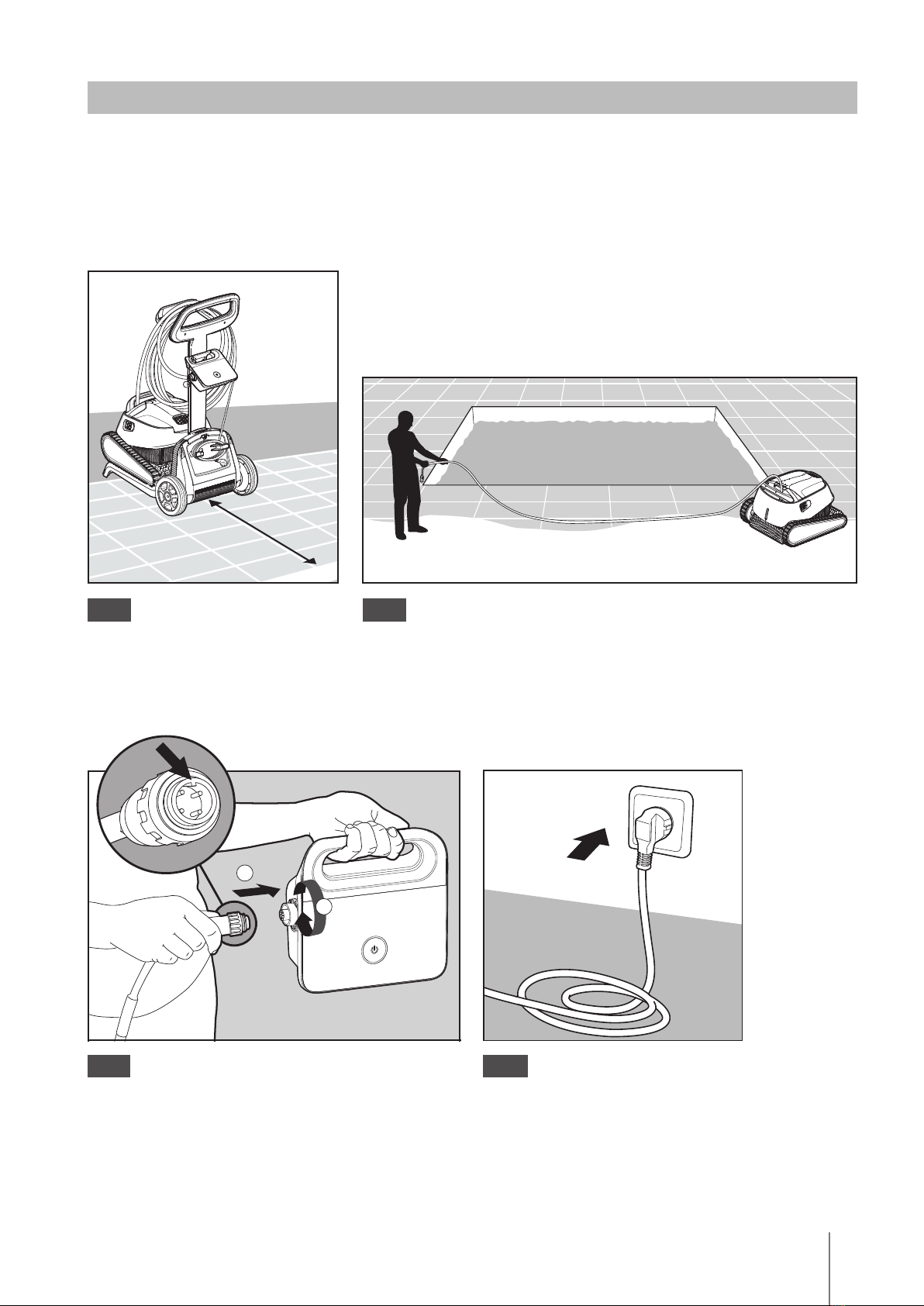

Position the power supply

so that it is approximately in the

middle of the long side of the

pool at a distance of 3.5m/12ft.

Unwind the blue cable and stretch it out completely so that it

has no kinks.

3.5m/12ft

5.1.1 5.1.2

Attach the blue cable to the power supply by

inserting it with the notch on the connector (1) lined

up to the groove in the socket on the power supply.

Turn it clockwise (2).

Plug in the power supply

and leave it in the OFF position.

5.1.45.1.3

6CLASSIC 11 / CLASSIC 11+ |User Instructions

5.2 Place the Pool Cleaner in the Water

Place the Pool Cleaner into the pool.

Release the Pool Cleaner and let it sink to the

ﬂoor of the pool. Make sure that the blue cable is

free of any obstructions.

5.2.1

Turn the power supply ON.

The Pool Cleaner will now operate until it has

reached the end of the cleaning cycle.

5.2.2

Light Indication

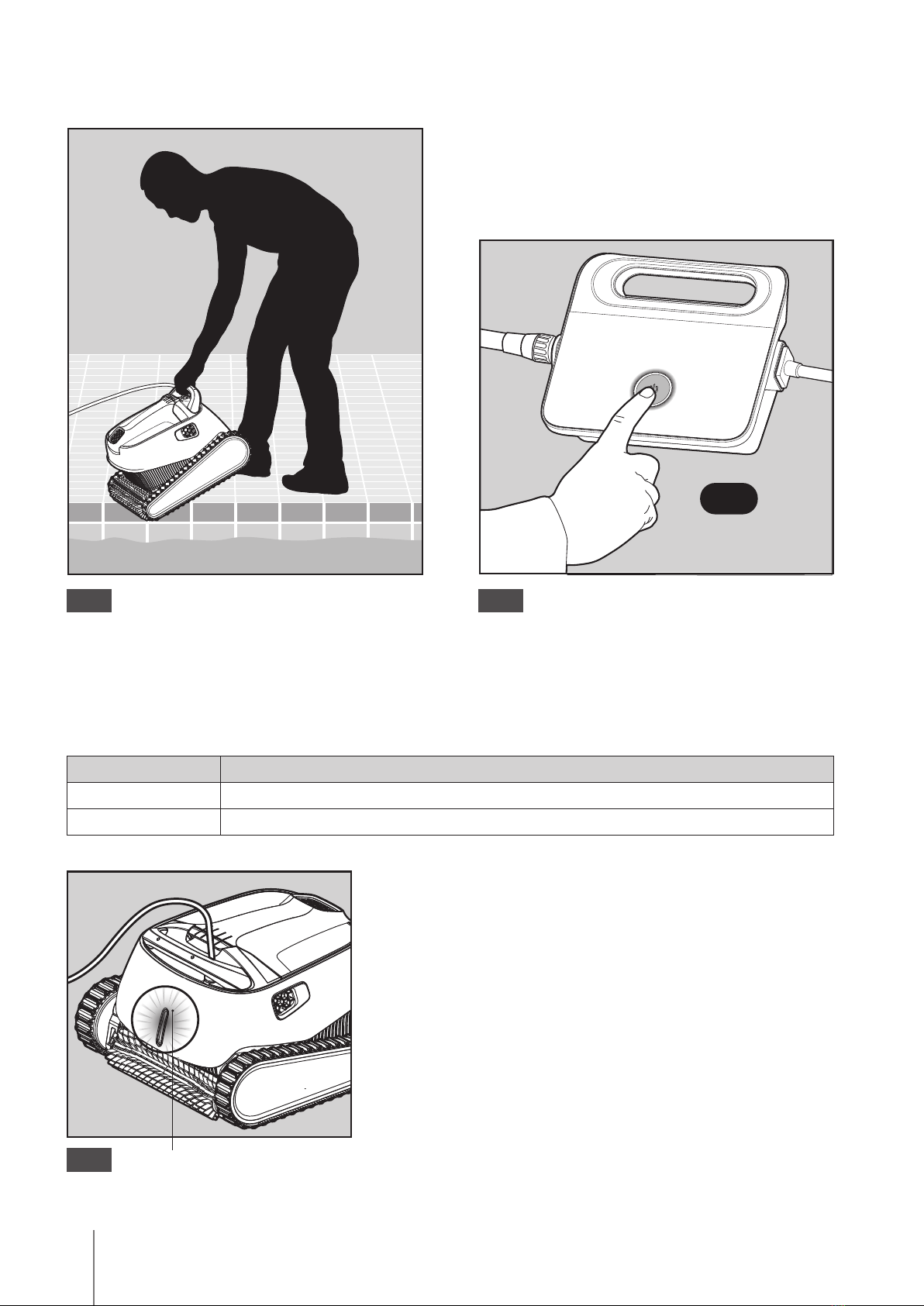

Blue blinking Normal operation (additional options available in the App)

Green blinking Smartphone communication with Pool Cleaner – manual driving navigation

5.3 Robot Indicator Lights - For eligible models only

5.3.1

Indicator lights.

CLASSIC 11 / CLASSIC 11+ |User Instructions

Using the blue cable, bring the Pool Cleaner to the pool edge.

Use the handle to remove the Pool Cleaner from the pool.

Place the Pool Cleaner on the edge of the pool to let the water drain out.

5.4.3

5.4.2

5.4 Remove the Pool Cleaner from the Water

5.4.1

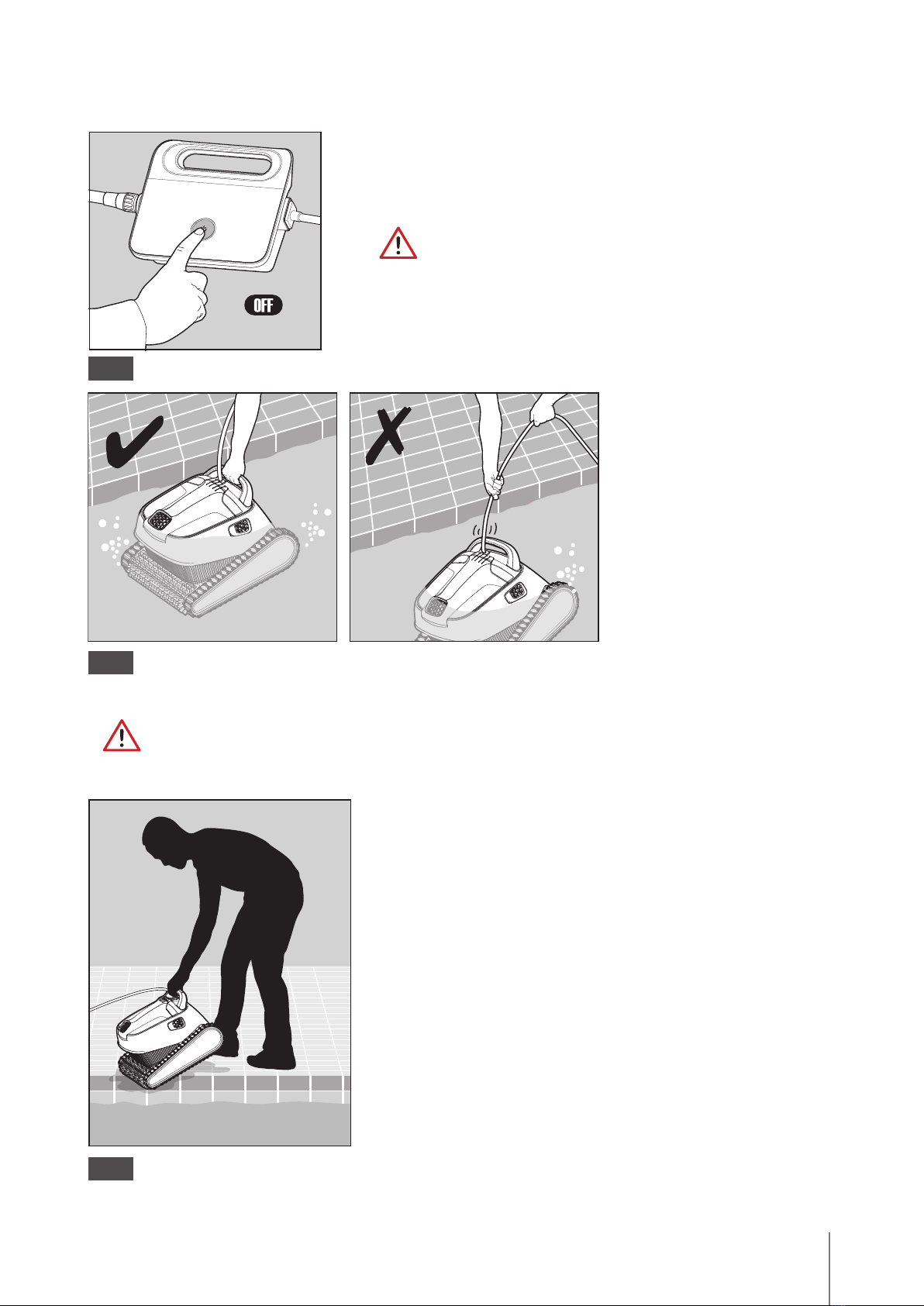

Turn OFF the power supply.

Please use the cable to pull the robot to the surface, then use the handle

WARNING

8CLASSIC 11 / CLASSIC 11+ |User Instructions

6. USE THE

Mydolphin™ Plus

IOT MOBILE APP

Please download the Maytronics MyDolphin™ Plus app to your mobile smart device from either Google Play

for Android or the Appstore for iOS.

The Maytronics MyDolphin™ Plus app is cloud-connected, enabling control from anywhere at anytime,

with real-time connectivity.

6.1 Getting Started with the MyDolphin™ Plus App

The app is compatible with the following smart devices:

Apple (iOS) – version 10 and up – iPhone, iPad, iPod

Android – version 5 and up operating system

1. Make sure your mobile smart device (phone/tablet) is connected to your home/pool Wi-Fi® network.

2. Make sure you have your Wi-Fi® network name and password in reach.

3. Ensure Bluetooth® is enabled on your smart device.

4. Android users - please make sure your GPS and Location Services are ON.

5. For iOS 13 only - while the app is working, enable Bluetooth® & location.

6. Please make sure your router is on 2.4Ghz Wi-Fi® frequency only.

6.2 Prepare the Pool Cleaner for Connection

1. Connect the Pool Cleaner to the power supply.

2. The connectivity LED light indicator on your power supply will start flashing blue.

3. Place the Pool Cleaner in the water.

4. Press the ON button on your IoT power supply, to start the Pool Cleaner.

6.3 Activate the Pool Cleaner Using your Mobile Smart Device

1. Activate the MyDolphin™ Plus app.

2. Click Agree and allow all the required permissions.

3. Sign up by creating an account or use your Gmail/Facebook accounts.

4. Scan the QR code located on the side of the power supply.

5. Alternatively, press "Search for your robot manually" to pair with your Pool Cleaner.

The app will start pairing with your power supply.

6. Wait for the steady blue connectivity LED light and a success message in the app.

7. Connect to your home/pool Wi-Fi® network.

8. Enter the password of your home Wi-Fi® network, and press CONTINUE

After a short while, your power supply will flash green and blue.

9. Wait for the steady green connectivity LED light and a success message in the app.

NOTE: Please make sure to fill in the Warranty details and name your Dolphin Pool Cleaner.

CLASSIC 11 / CLASSIC 11+ |User Instructions

6.4 LED Lights

Connectivity LEDs

The connectivity LED light on the power supply has several modes:

1. Flashing blue light - waiting for Bluetooth® connection.

2. Steady blue light - connected via Bluetooth®.

3. Flashing green light - power supply is trying to connect to your home/pool Wi-Fi® network and

cloud, or a weak internet signal.

4. Steady green light - power supply is now connected to the Wi-Fi® network and to the cloud.

5. Alternating blue and green light - power supply is connected via Bluetooth® and trying to connect

to your home/pool Wi-Fi® network & cloud.

On/Off LEDs

1. Flashing green light - waiting for the next operation (delay mode or weekly timer).

2. Alternate blue/green/red lights – program updating remotely.

Please wait until process is completed

3. Steady red light – fault. Refer to troubleshooting.

Tips

• If the app is stuck on the same screen for over 2 minutes, close the app and re-open it.

• To test your Wi-Fi® signal strength and quality, play a video via your smart device browser.

7. OFF SEASON STORAGE

If the Pool Cleaner will not be in use for an extended period, perform the following storage steps:

1. Make sure that no water is left in the Pool Cleaner.

2. Thoroughly clean the filters of the cartridges and insert them in place.

3. Roll up the cable so that it has no kinks and place on the Caddy.

4. Store the pool cleaner upright on the Caddy in a protected area out of direct sun/rain/frost at a

temperature of between 5˚-45˚C / 41˚-113˚F

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Aspiradora de piscina de Maytronics

Maytronics

Maytronics Hybrid Manual de usuario

Maytronics

Maytronics MCC5 Manual de usuario

Maytronics

Maytronics Dolphin Liberty 200 Manual de usuario

Maytronics

Maytronics Classic 2 Manual de usuario

Maytronics

Maytronics Dolphin Swash TC Manual de usuario

Maytronics

Maytronics Dolphin Nautilus Manual de usuario

Maytronics

Maytronics Dolphin SX20 Manual de usuario

Maytronics

Maytronics Dolphin M400 Manual de usuario

Maytronics

Maytronics BASIC 1 Manual de usuario

Maytronics

Maytronics CLASSIC 8D-UNI Manual de usuario

Maytronics

Maytronics Dolphin Liberty Manual de usuario

Maytronics

Maytronics Supreme M4 Manual de usuario

Maytronics

Maytronics Dolphin Skagerrak20 Manual de usuario

Maytronics

Maytronics Dolphin DX35 Manual de usuario

Maytronics

Maytronics MTC8-UNI Manual de usuario

Maytronics

Maytronics Classic 4-UNI Manual de usuario

Maytronics

Maytronics MBC5-UNI Manual de usuario

Maytronics

Maytronics Dolphin Bio Suction Manual de usuario

Maytronics

Maytronics Dolphin Wave Manual de usuario

Maytronics

Maytronics Dolphin Basic 13 Manual de usuario

Maytronics

Maytronics Dolphin Liberty Manual de usuario

Maytronics

Maytronics Dolphin Mass 11 Manual de usuario

Maytronics

Maytronics Dolphin WAVE 200 XL Manual de usuario

Maytronics

Maytronics Dolphin M400 Manual de usuario

Manuales populares de Aspiradora de piscina de otras marcas

POOLGOODS

POOLGOODS PoolGobbler Pro Manual de usuario

AREBOS

AREBOS AR-HE-BSR Hoja de información del producto

iRobot

iRobot Verro 600 Manual de usuario

Kokido

Kokido SKOOBA K535CBX/18/EU Manual de usuario

Dolphin

Dolphin 2x2 Gyro Manual de usuario

SmartPool

SmartPool Robo-Kleen PLUS Manual de usuario

Brilix

Brilix BARACUDA Manual de usuario

Aiper

Aiper Orca 1200 Pro Manual de usuario

Hayward

Hayward Navigator Pro Manual de usuario

Polaris

Polaris Vac-Sweep 380 Manual de usuario

Pentair

Pentair Prowler 710 Manual de usuario

BWT

BWT D500 Manual de usuario

Kokido

Kokido xtrovac 70 Manual de usuario

Pentair

Pentair RACER Manual de usuario

Pentair

Pentair REBEL 2 Manual de usuario

Zodiac

Zodiac VX55 4WD Manual de usuario

SmartPool

SmartPool Robo Kleen Plus Manual de usuario

Steinbach

Steinbach Twin Manual de usuario
